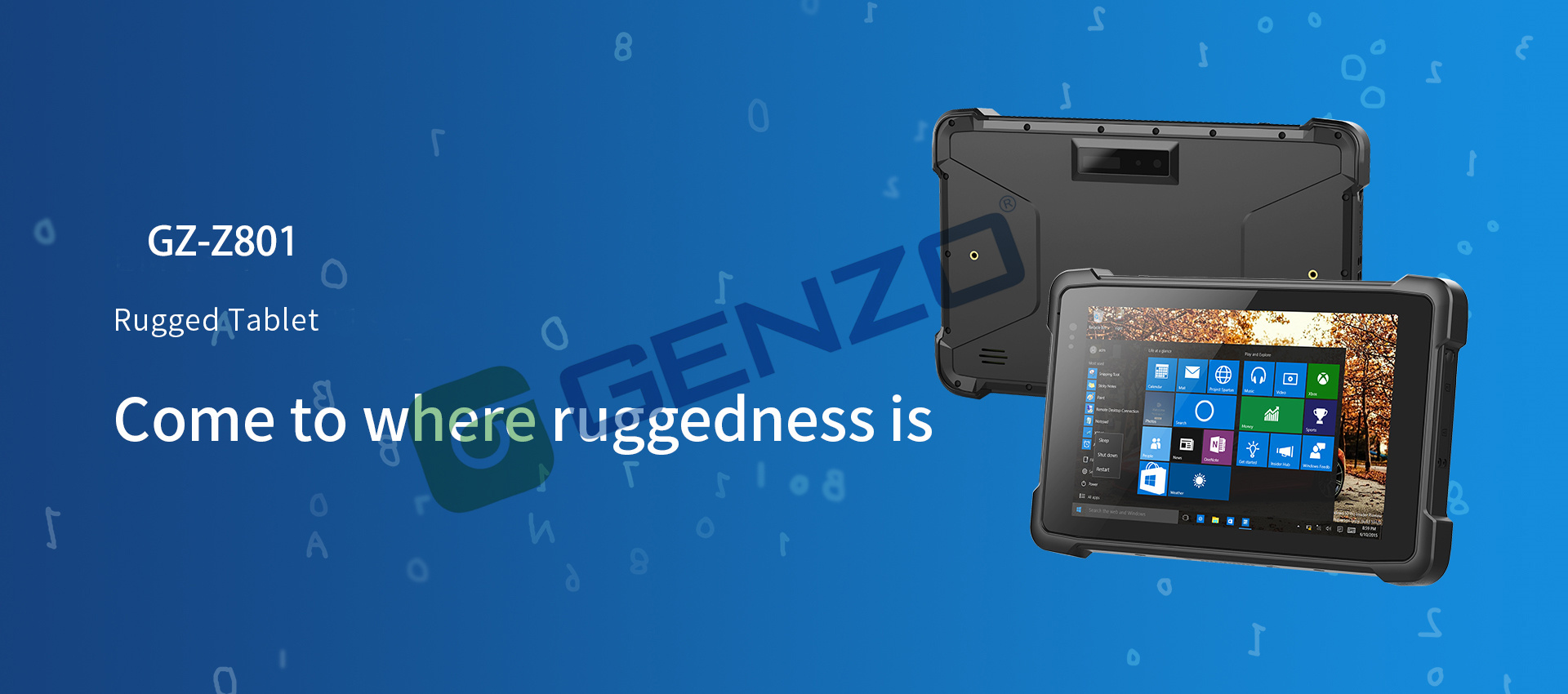

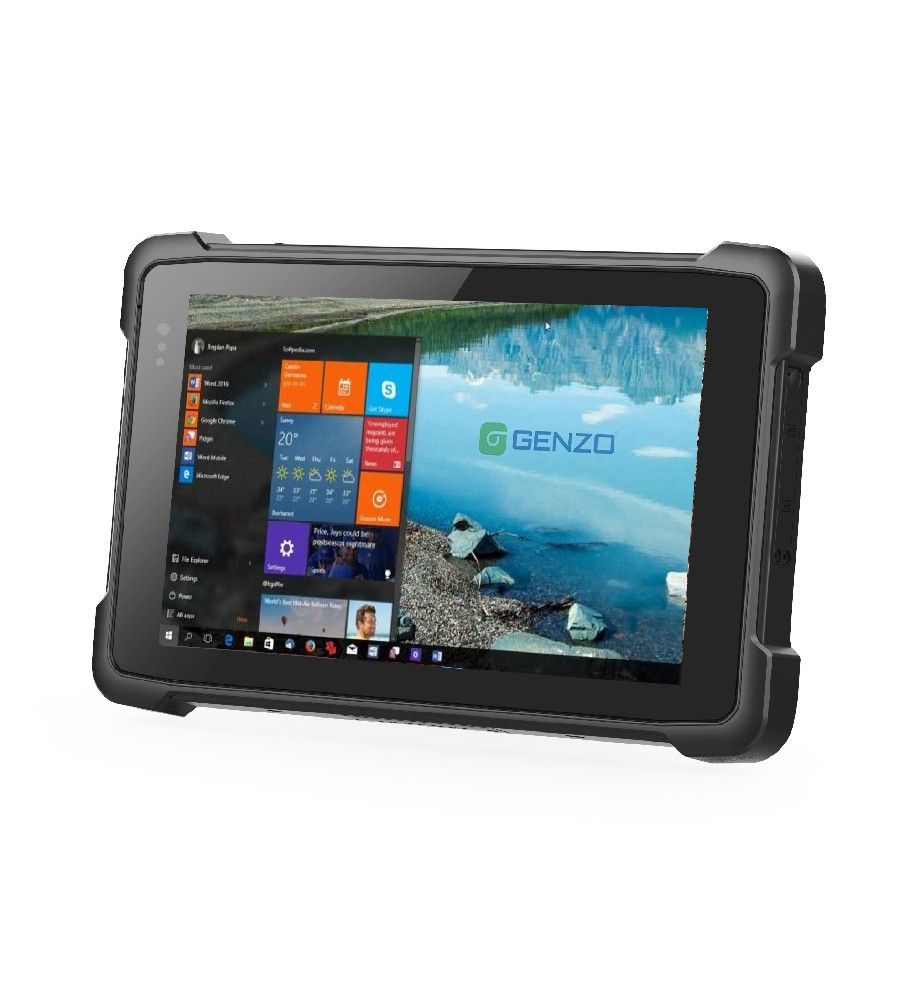

8 Inch Cheap Rugged Windows Tablet

Modle:GZ-Z801 , CPU：Intel Baytrail-T(Quad-core ),Z3735F,1.33 GHz-1.83 GHz ， RAM/ROM：2GB DDR3L + 64GB EMMC， LCD Display：8 inch 800*1280 IPS LCD,450 nits，Battery: 3.7V/6000mAh. Built in polymer lithium ion battery. Camera: Front:2.0MP with indicator light,Rear: 5.0MP. Optional Items: Docking Station /1D or 2D Barcode Scanner/Vehicle Mount.
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
Intel Baytrail-T(Quad-core ),Z3735F,1.33 GHz-1.83 GHz
GPU
Intel® HD Graphics
RAM/ROM
2GB LPDDR3/ 64GB Emmc
External Memory
Support TF*1,MAX 128GB

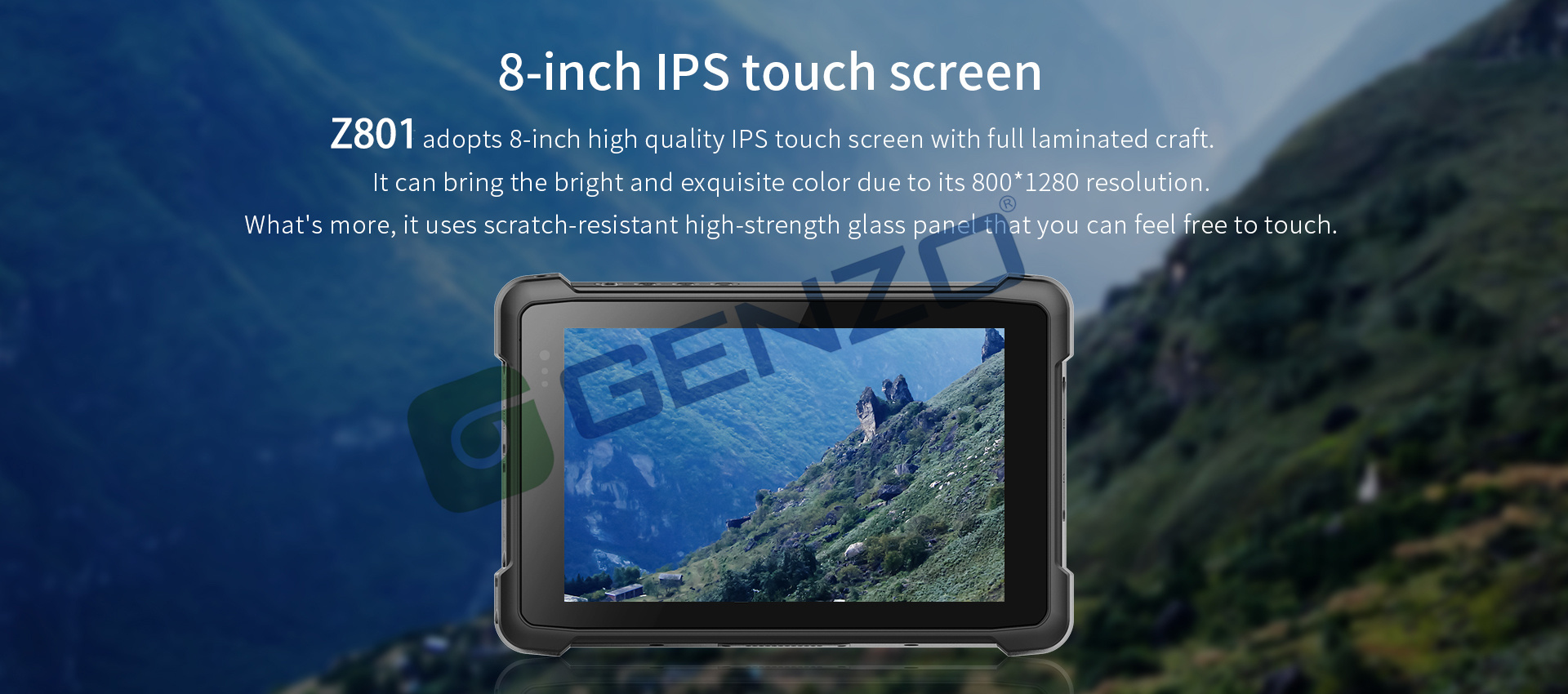

LCD Display
8“ 16:10,800*1280 IPS LCD,450 nits
Touch Panel
5 point G+G capacitive touch screen,hardness 6H, scratch resistant
Camera
Front:2.0MP with indicator light,Rear: 5.0MP
Battery
3.7V/6000mAh. Built in polymer lithium ion battery
Battery Time
Nearly 6hours (50% volume sounds, 200 lumens brightness,1080P HD video display by default)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Data Collection & Networking

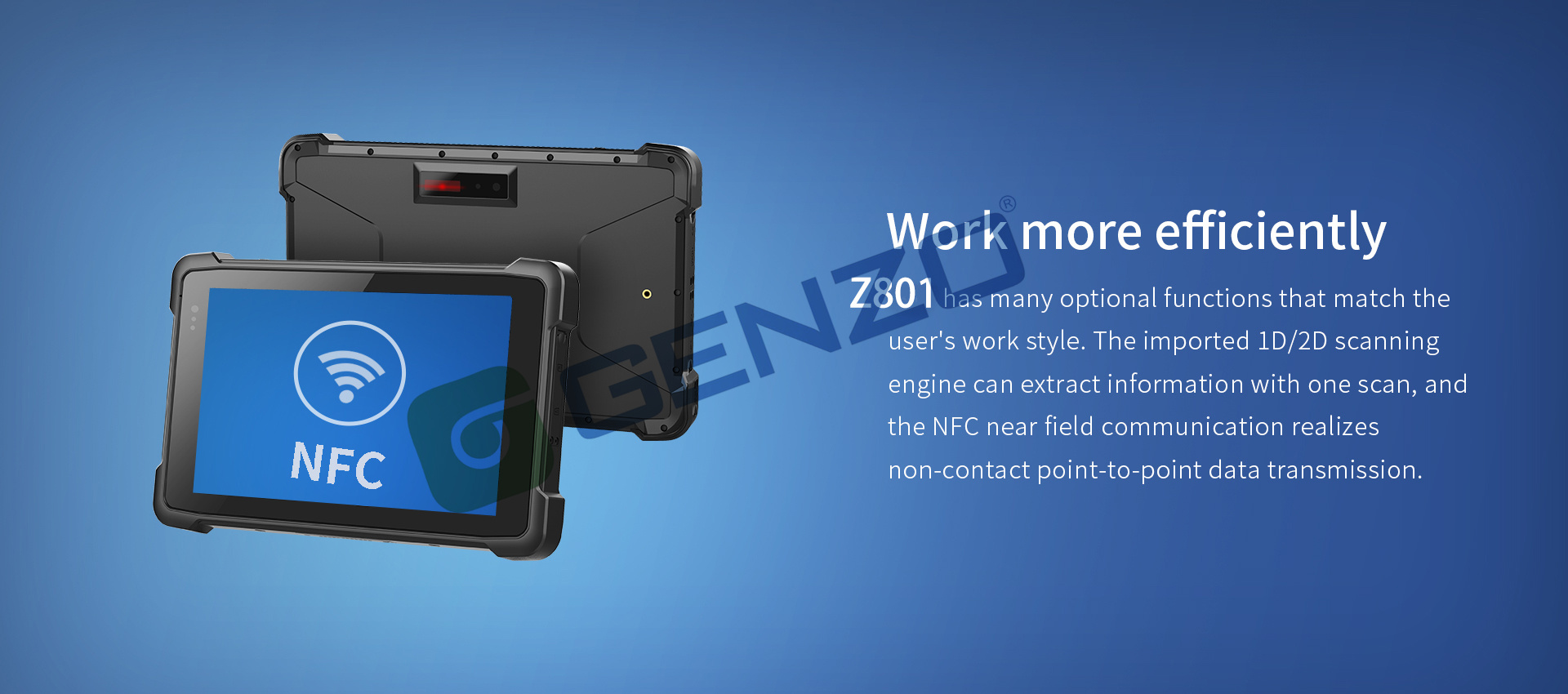

Barcode Scanner
1D Optional SE655E100R;    2D Optional SE4710
NFC
Optional, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT4.1 (BLE) class1 transmission distance：10m

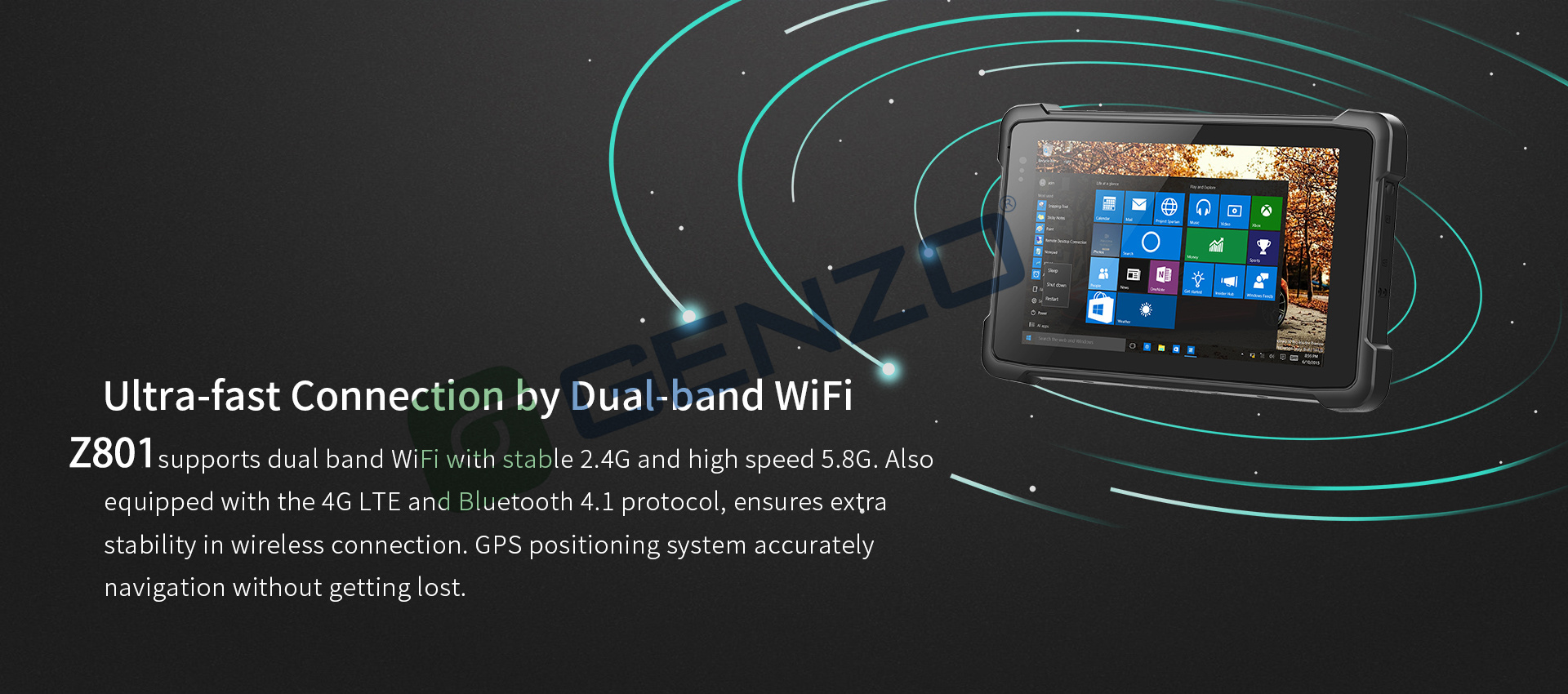

WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI, intel AP6255
4G
MeiGlink SLM750, LTE-FDD: B1/3/5/8; LTE-TDD:B38/39/40/41;  WCDMA: B1/B8;                  TD-SCDMA:B34/39; CDMA&EVDO:BC0; GSM: 900/1800
GPS
U-blox NEO-7 Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 10 home inactivated os(Free), Optiona PRO/IOT/LTSC
I/O Port & Appearance & Package

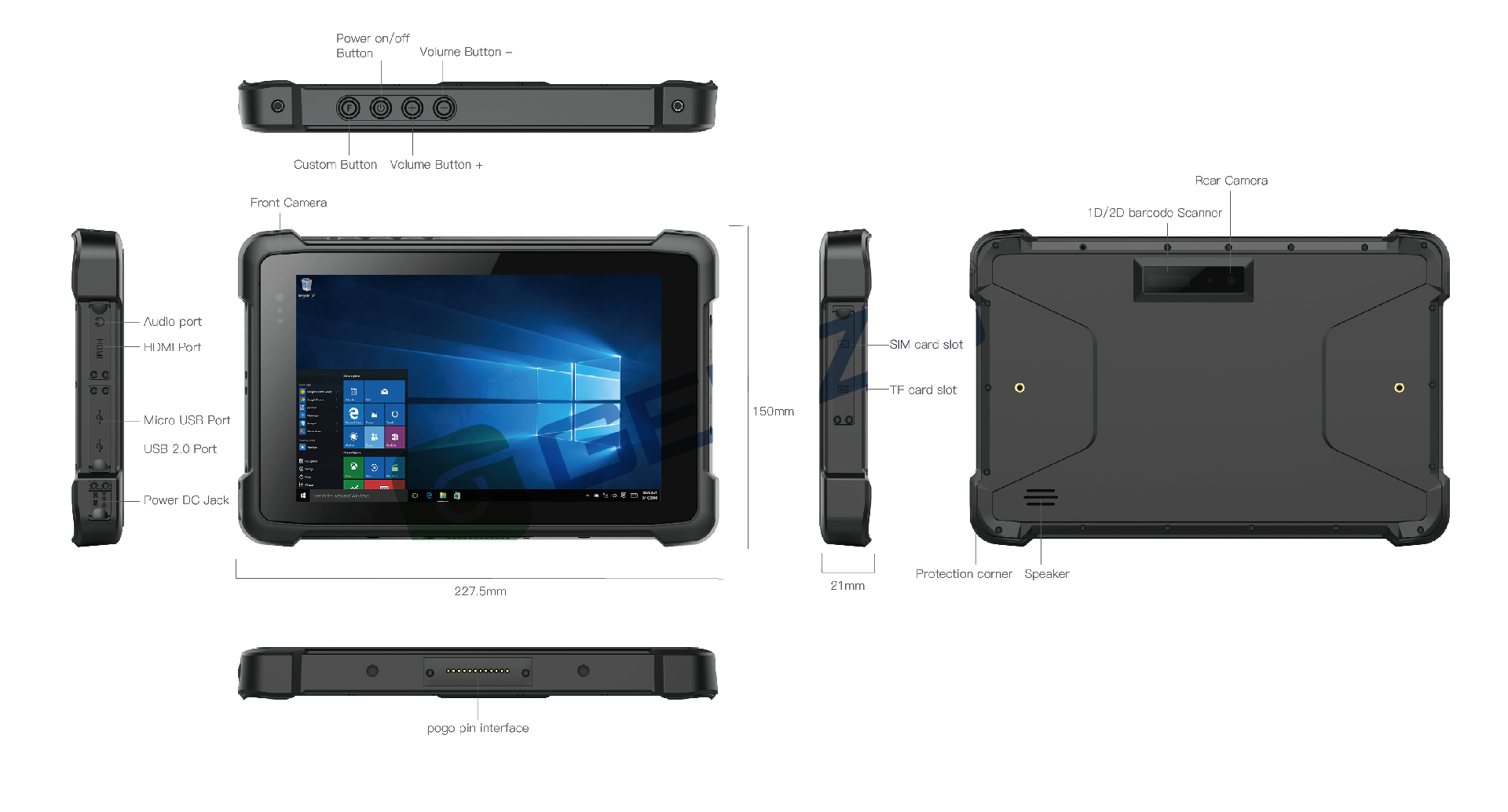

I/O Port
HDMI 1.4a x 1,
USB 2.0 Type-A x 1, Micro USB x 1,
SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1
Dimension
227.7*150.8*24.7mm
Weight
Device unit: 1000g.Unit with giftbox and standard accessories:1400g.
Package
USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design

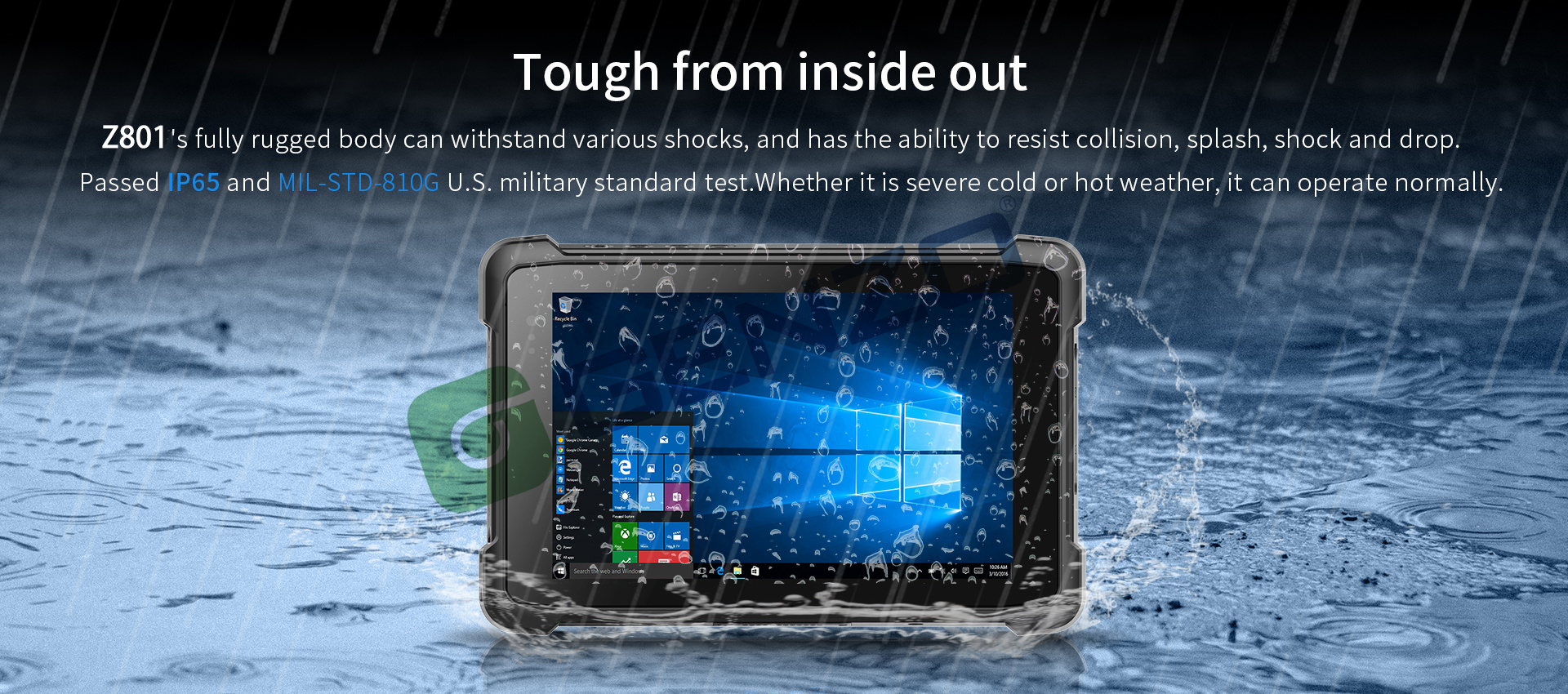

IP67
 IP65 Report:Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm；
b. Water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel:about 1min；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
