8 Inch 5G Rugged Android Tablet

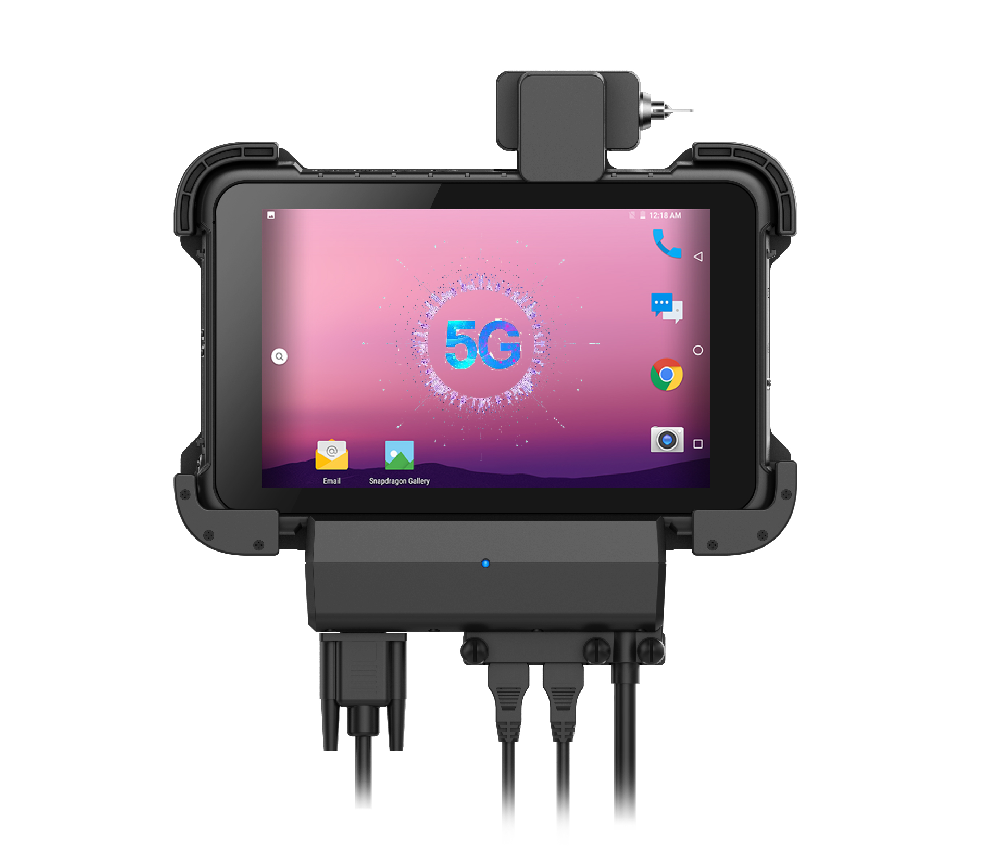

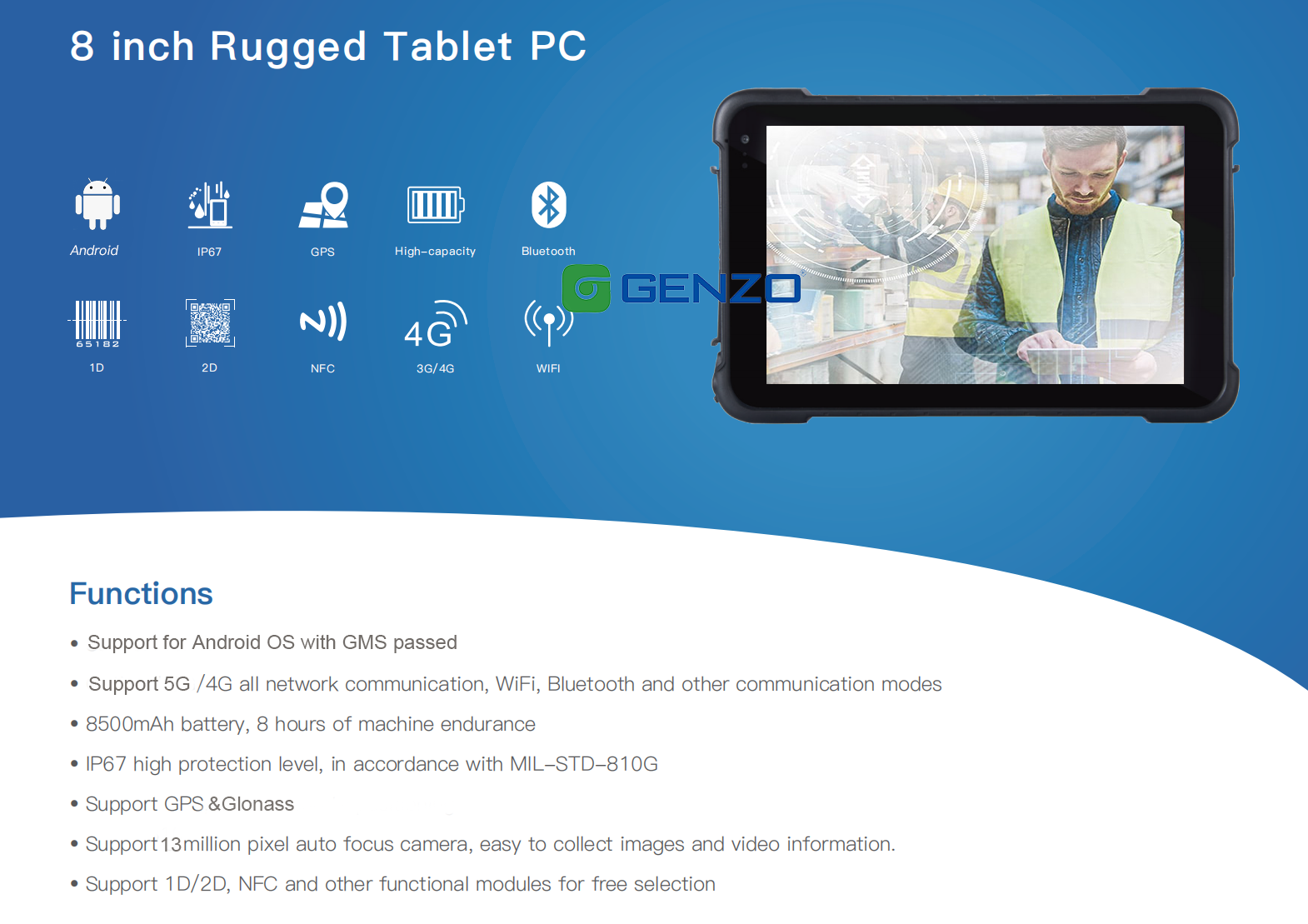

Modle:GZ-MT805P , CPU：SM6350 Dual-core Cortex-2* A77 2.0GHz & 6* A55 1.7GHz ， RAM/ROM：4GB DDR3L + 64GB EMMC， LCD Display：8 inch 1200*1920 FHD, 550 nits, 750nits optional，Battery: 3.7V/8500mAh. Built in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station /1D or 2D Barcode Scanner/Vehicle Mount/Stylus
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
SM6350 Dual-core Cortex-2* A77 2.0GHz & 6* A55 1.7GHz
GPU
Adreno GPU 619
RAM/ROM
4GB LPDDR3/ 64GB Emmc
External Memory
Support TF*1,MAX 256GB
LCD Display
8“ 16:10,1200*1920 FHD,   550 nits,      750nits optional
Touch Panel
Multipoints Capacitive, G+G, Rigidity: above 7H-Anti-scratch, support handwriting
Camera
Front:5.0MP, Rear: 13MP auto-facus with flashlight
Battery

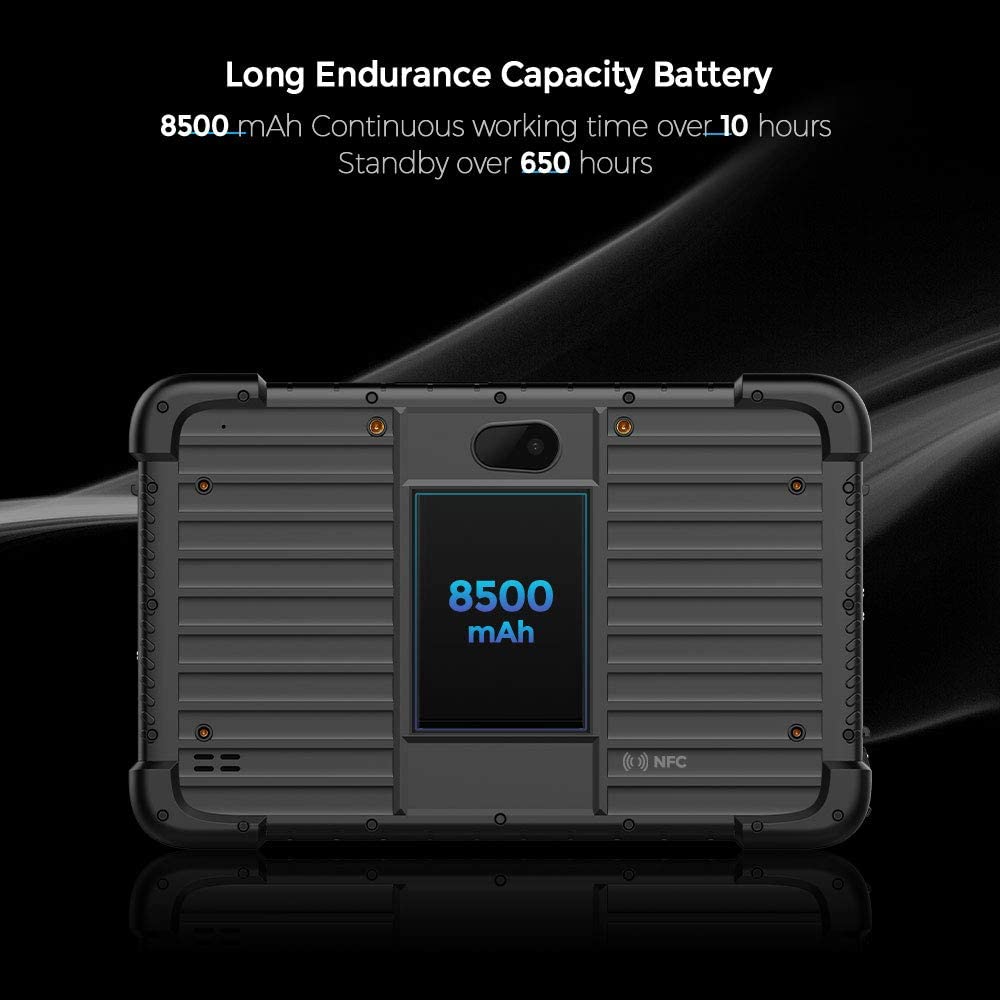

3.7V/8500mAh. Built in polymer lithium ion battery.                                            7.5Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Sensor
light Sensor *1,Gyro Sensor *1,G_sensor *1,Compass Sensor *1
Indicator light
Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full power
Data Collection & Networking

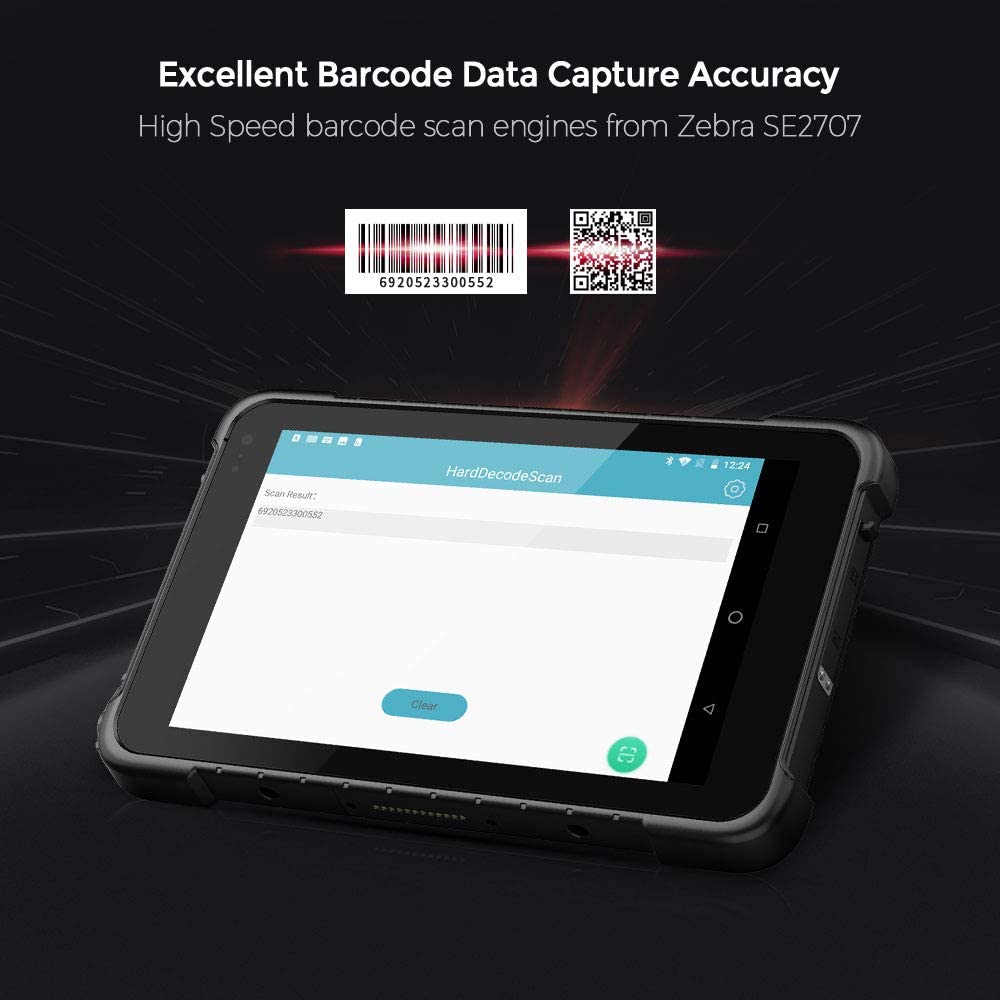

Barcode Scanner
2D Optional Zebra SE4710 Soft decoding
NFC
Build-in NFC, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT5.1 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI
4G/5G
5G NR:N1/N28/41/78/79 TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/5/7/8 WCDMA: B1/5/8
GPS
GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS
OS
Android  11 With GMS
I/O Port & Appearance & Package

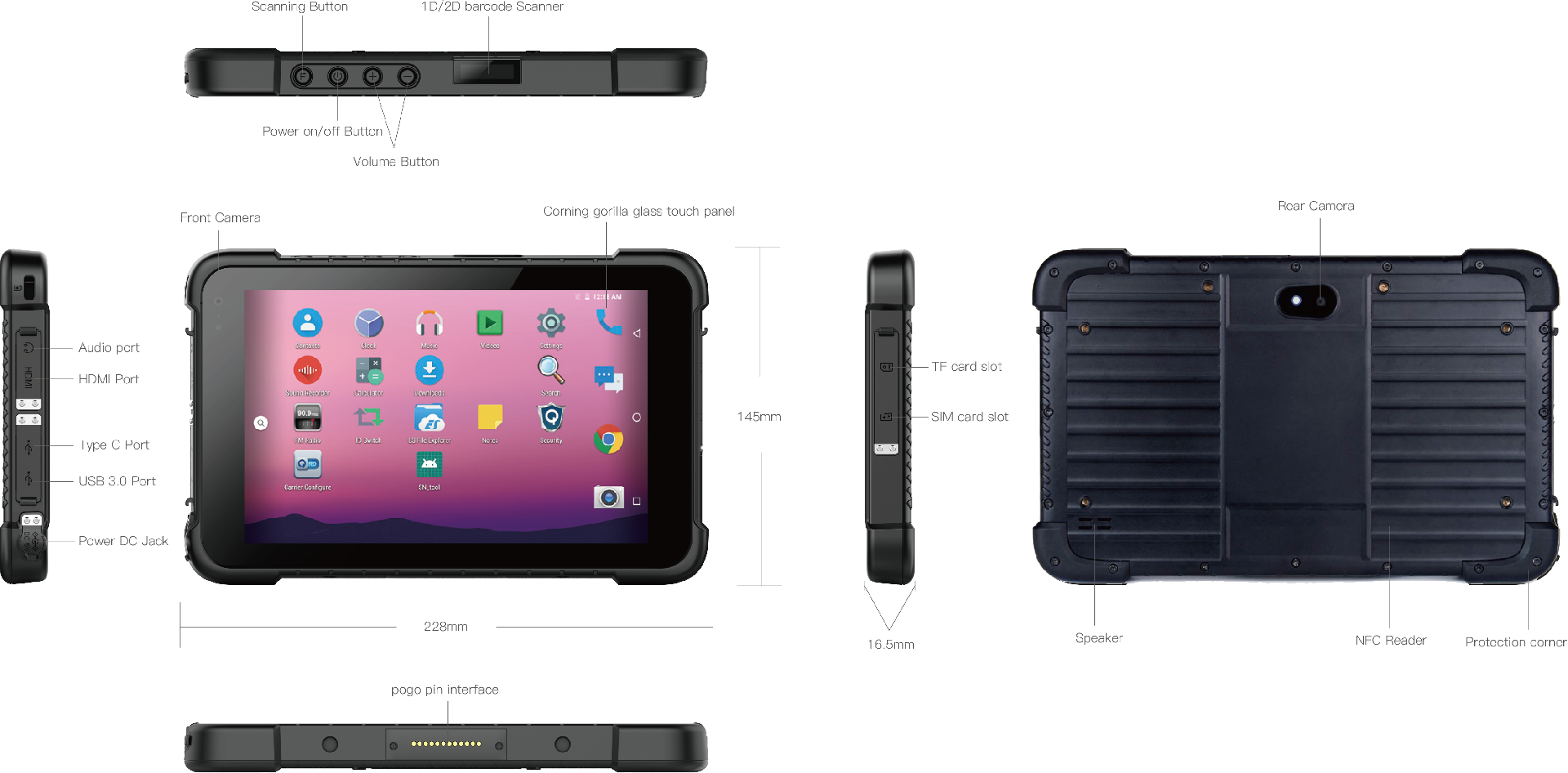

I/O Port
HDMI 1.4a x 1,
USB 3.0 Type-A x 1, Type-c x 1,
SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1
Dimension
225.6*144.6*21.5mm
Weight
Device unit: 715g.Unit with giftbox and standard accessories:1400g.
Package
Type-c cable/Type-c OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design

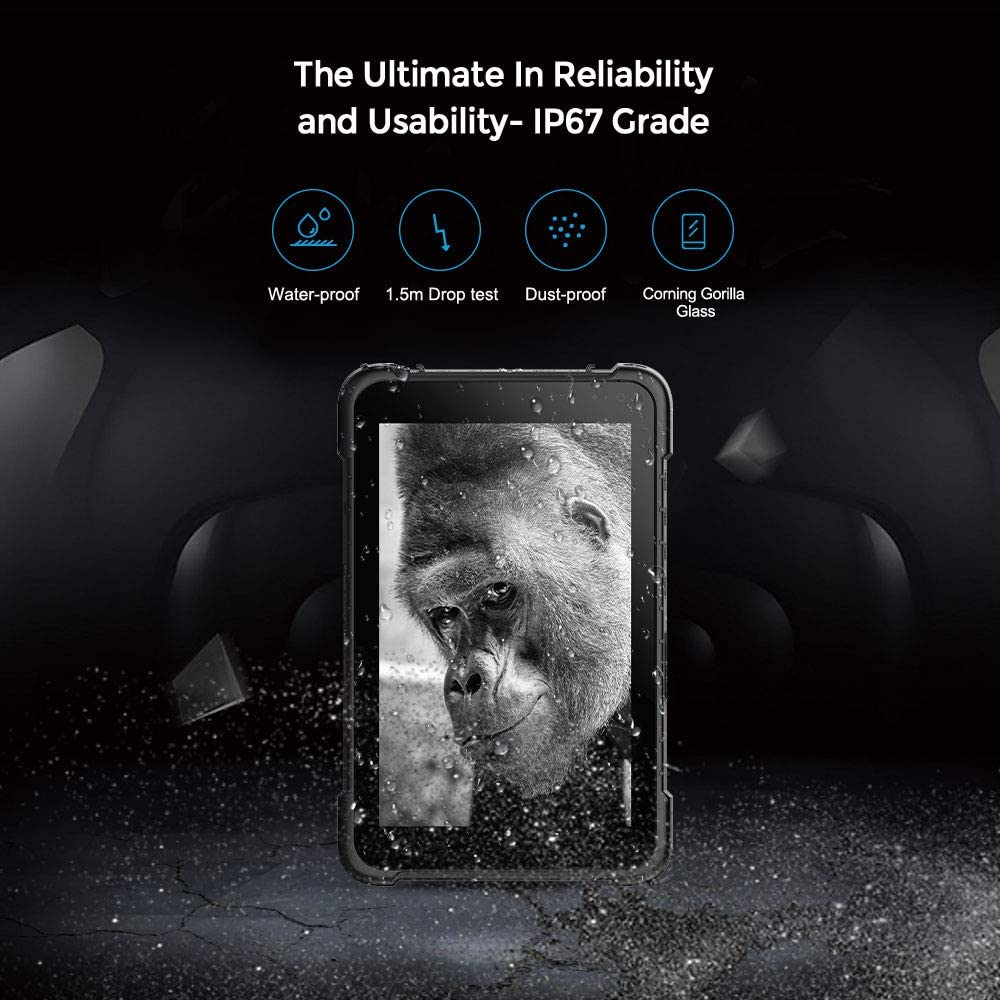

IP67
 IPX7 Method name：short time submerging test test device and test condition：submerge water box。the size should make the testing
sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample
top side to water surface at least 0.15m. Testing time: 30 min
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
