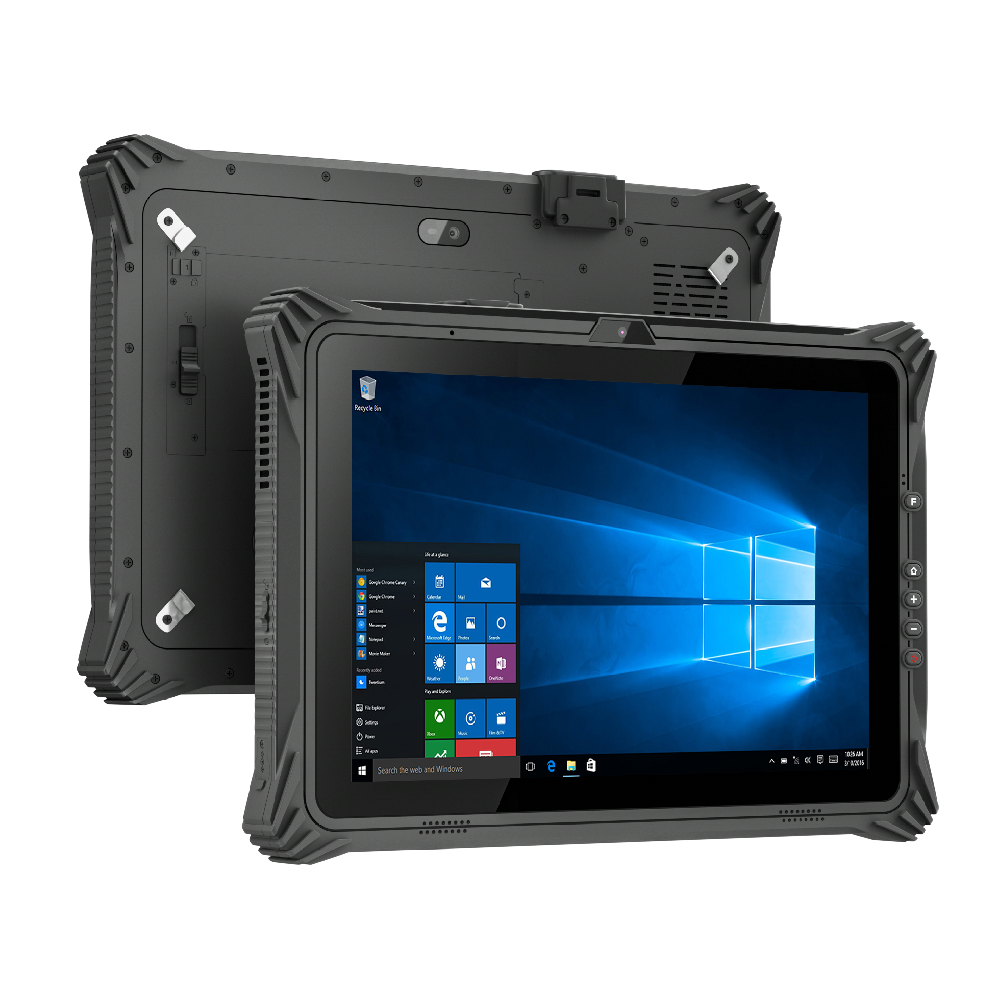

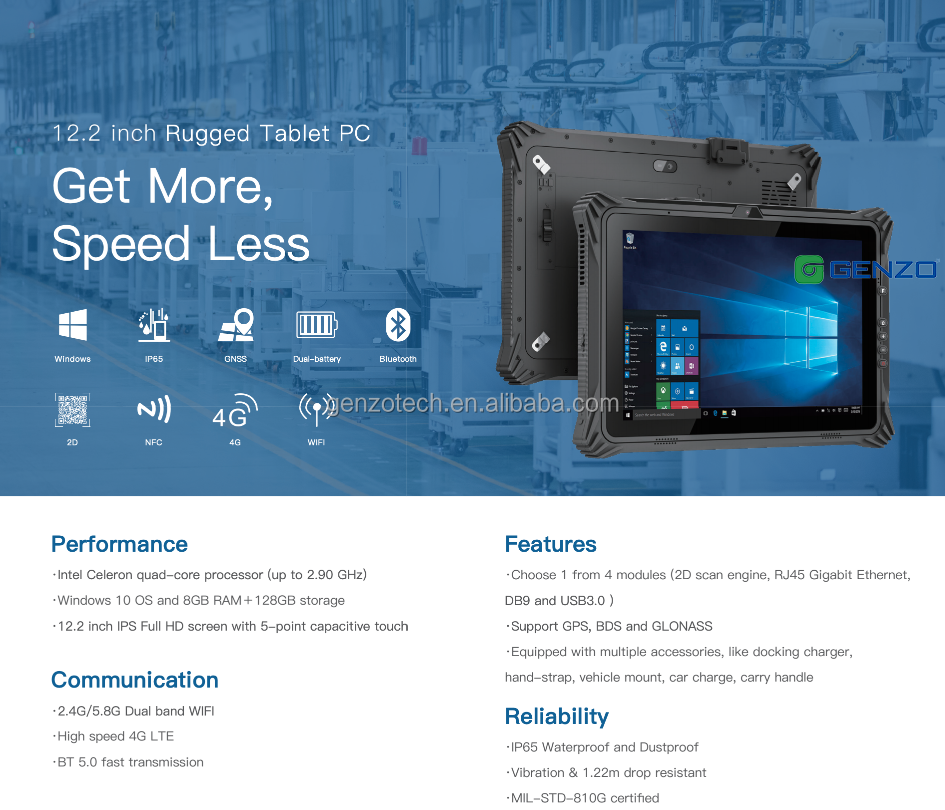

New 12 Inch N5105 Rugged Windows Tablet With Keyboard

Modle: GZ-J12. CPU：Intel JASPER LAKE N5105，4M Cache, 2.9GHz， RAM/ROM：8GB DDR4L / 128GB NGFF SSD Removeable, Optional 16GB DDR4L， LCD Display：12.2 inch 16:10, 1200×1920P, 650cd/m2， Battery(Small+Big)：7.4V 6300mAh(large battery can hot plug replacement)/ + 7.4V 700mAh/ (dual battery ).Camera: Front:5.0MP, Rear: 8.0MP. 1* DB9 board With RS232 + 1* RJ45. Optional Items: Docking Station /1D or 2D Barcode Scanner/Vehicle Mount/Stylus
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
Intel JASPER LAKE N5105，4M Cache, 2.9GHz
GPU
Intel® UHD Graphics 620
RAM/ROM
8GB DDR4L /  128GB NGFF SSD Removeable, Optional 16GB DDR4L
External Memory
Support TF*1,MAX 128GB

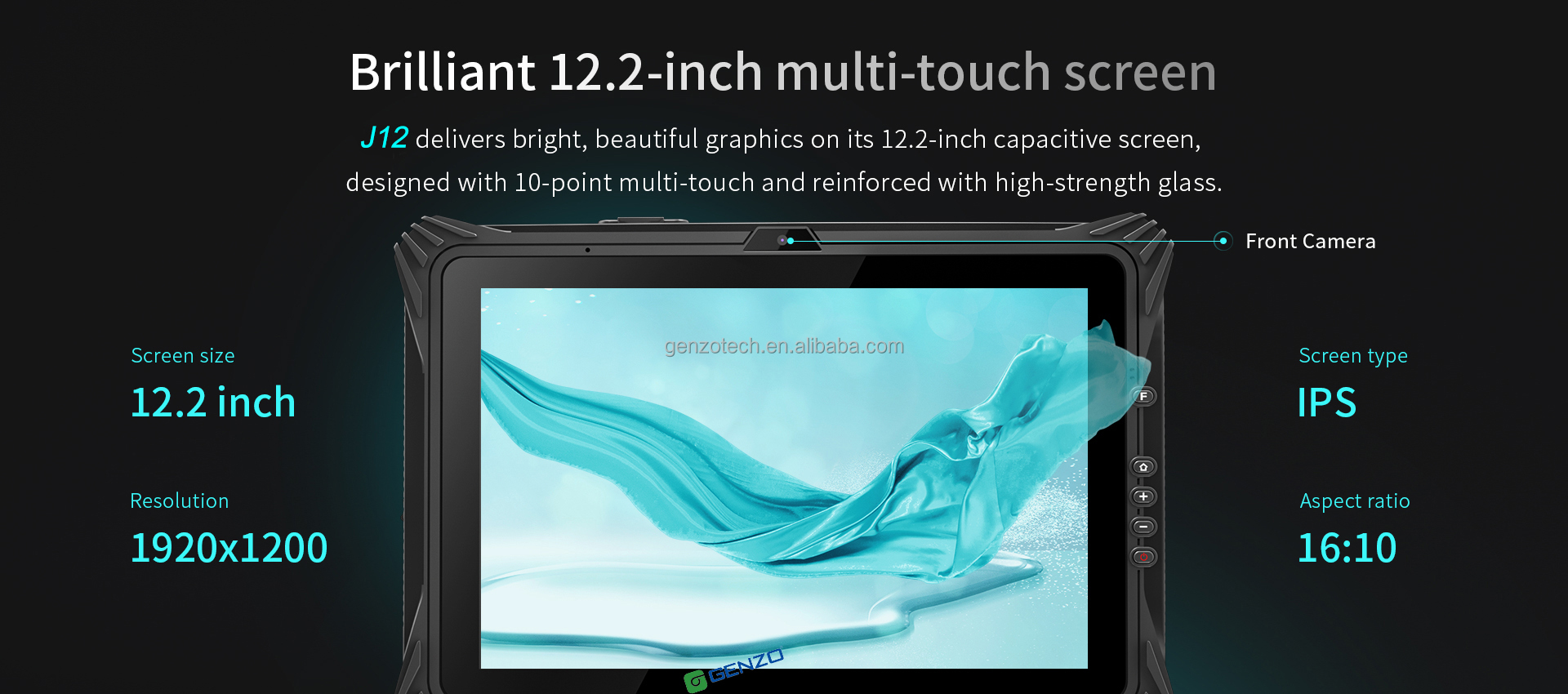

LCD Display
12.2 inch 16:10,    1200×1920P,      650 cd/m2
Touch Panel
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support 930 active pen
Camera
Front:5.0MP,   Rear: 8.0MP With flashlight

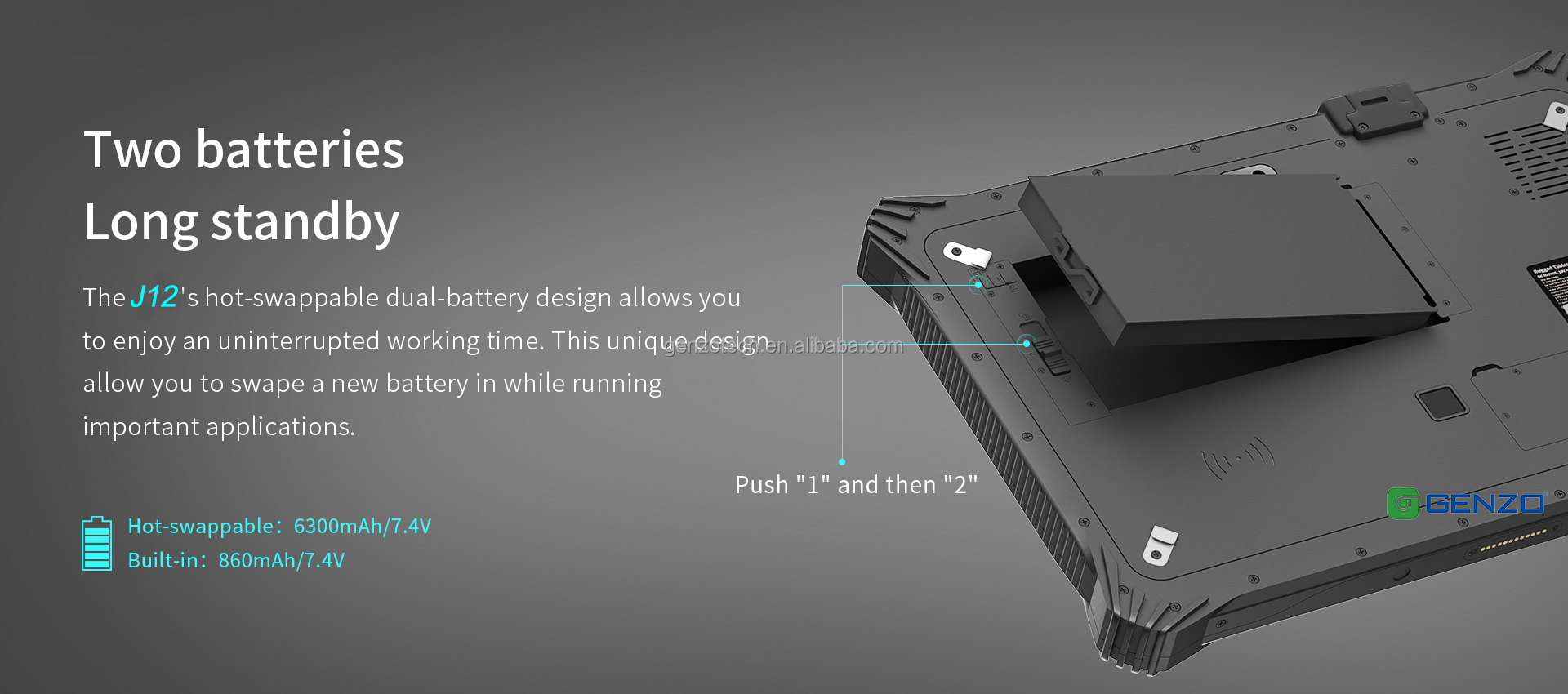

Battery(Small+Big)
Small Battery:Built in polymer lithium ion battery,Non-Removeable 7.4V/700mAh. 30mins(default 50% volumn，default200nit，play 1080P HD video)        +Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,7.4V/6300mAh.
5-6hrs(default 50% volumn，default200nit，play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Mic
Sensitivity:-42db, Output resistance:2.2kΩ
TPM
Built-in TPM2.0
G_sensor
Gravity acceleration sensor
Fingerprint
Built-in ×1 SPI Fingerprint (windows hellow boot login)

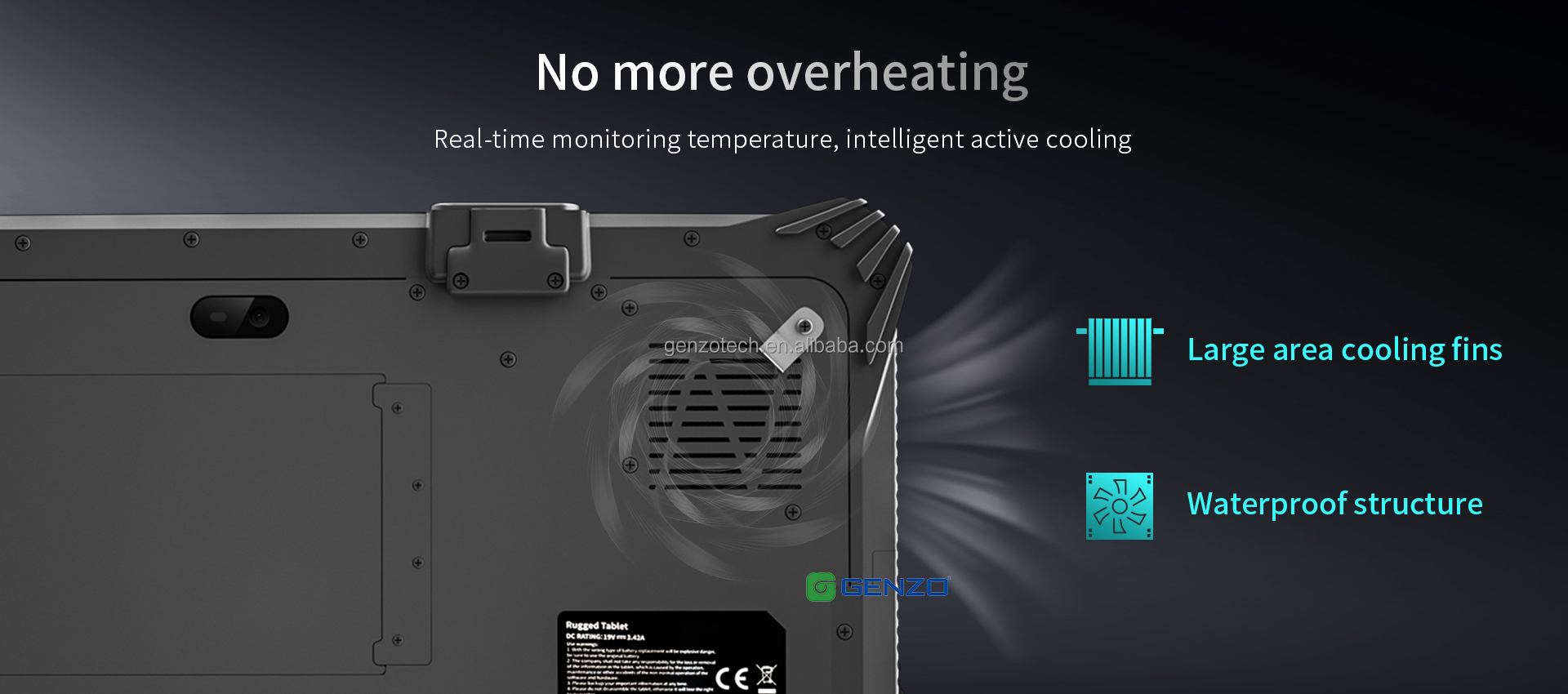

Fan
Built-in ×1 IPX5

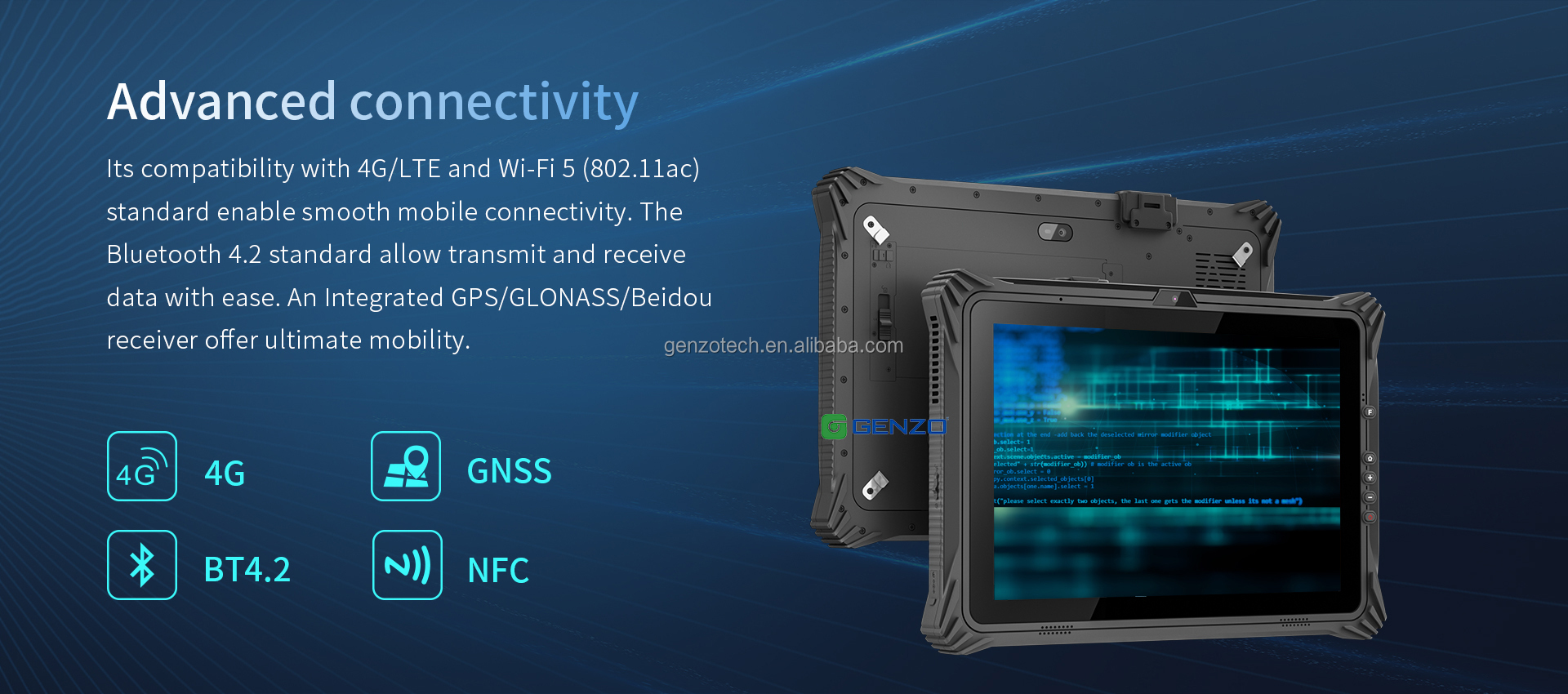

Data Collection & Networking
Barcode Scanner
1D Optional Honeywell N6551;
2D Optional Honeywell N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
Optional NXP100,  13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT5.0 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v)
4G
MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no
TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPS
U-blox M8Q ,Support:GPS, Beidou module, glonass.
Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 10 Pro inactivated os(Free), Optiona Home/IOT/LTSC
Module extension (Note: The following modules are one of five)
Ethernet interface
1* RJ45 board,(10/100M/1000M) Ethernet interface
(Standard Machine is Including RJ45 Port)
Serial port
1* DB9 board
One-dimension barcode
1* Honeywell N6551
Two-dimension barcode
1*Honeywell N4680 hardcode
USB2.0
1*USB2.0
I/O Port & Appearance & Package

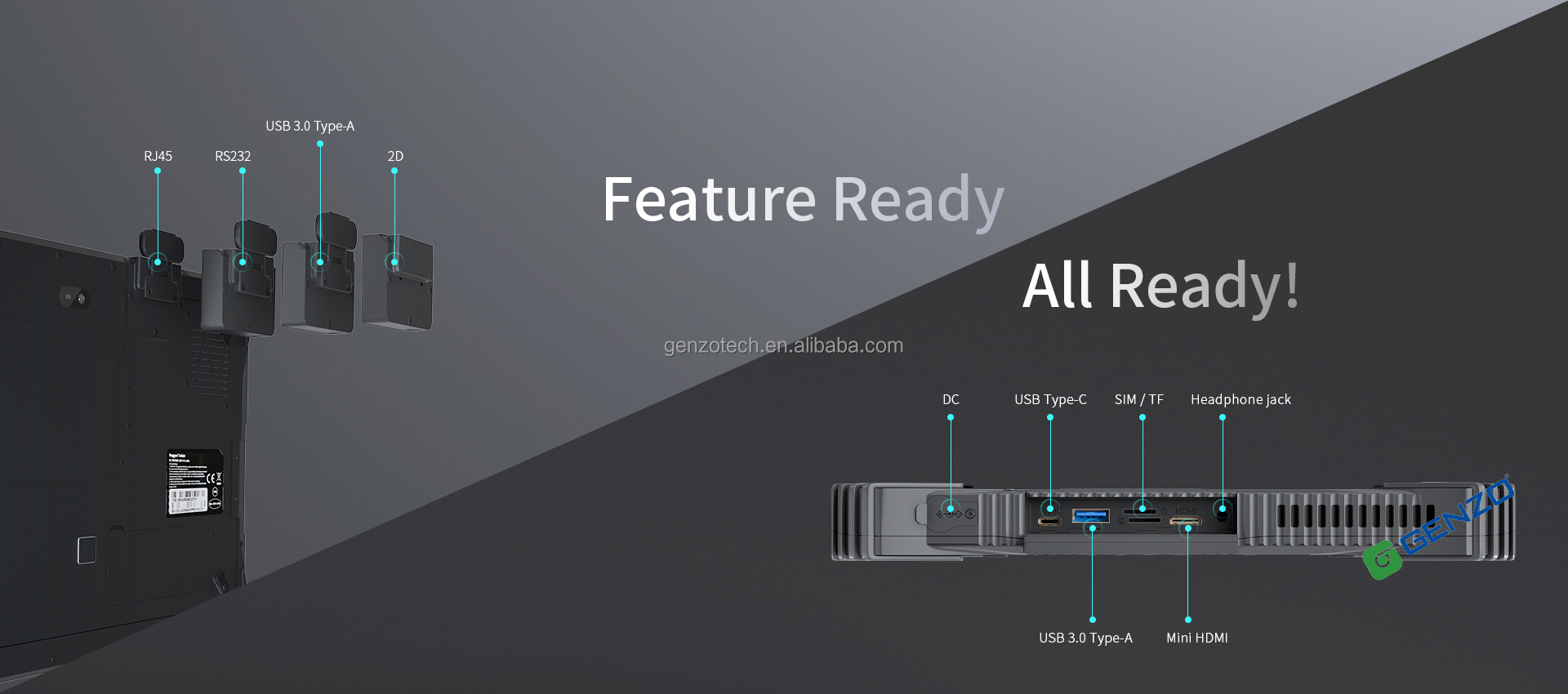

I/O Port
HDMI 1.4a mini x 1,
USB 3.0 Type-A x 1, Type-c x 1(USB3.0/HDMI/Charging),
SIM Card x 1, TF Card x 1,
RJ45 *1
12pin（USB&Docking charging） x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC 19V 3.42A DC jack x 1
Keys
F KEY=Scanner key,Scanner key x1,No barcode then customizable ((GPIO)                  Volume adjustment key(+) x 1,Volume adjustment key(-) x 1,windows keyx 1,power keyx 1
Indicator light
Power on is always blue, power off light is off ×1,
(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1
Power Adaptor
AC100V ~ 240V, 19V3.42A/65W Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
339.3*230.3*26 mm
Weight
Device unit: 1500g.
Package
USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
