12 Inch 12th I5/I7 Windows Tablet

Modle:GZ-A20 , CPU：12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz， RAM/ROM：8GB DDR4L Optional: 16GB, up to 64GB / 128GB NGFF SSD Removeable, Optional: 256GB, up to 512GB， LCD Display：12.2 inch 16:10, 1200×1920P, 650 cd/m2，Battery: Small Battery:Built in polymer lithium ion battery,Non-Removeable 7.4V/700mAh + Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,7.4V/6300mAh. Camera: Front:2.0MP, Rear: 8.0MP. 1* RJ45. Optional Items: Docking Station /2D Barcode Scanner/Vehicle Mount/Stylus/1* DB9 board With RS232
Products Inquiry

PRODUCT INFORMATION





Hardware
CPU
12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz
Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz
GPU
Intel® Iris® Xe Graphics eligible
RAM/ROM
8GB DDR4L Optional: 16GB, up to 64GB / 128GB NGFF SSD Removeable,
Optional: 256GB, up to 512GB
External Memory
Support TF*1,MAX 128GB
LCD Display
12.2 inch 16:10,    1200×1920P,      650 cd/m2
Touch Panel
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support 930 active pen
Camera
Front:2.0MP,   Rear: 8.0MP With flashlight

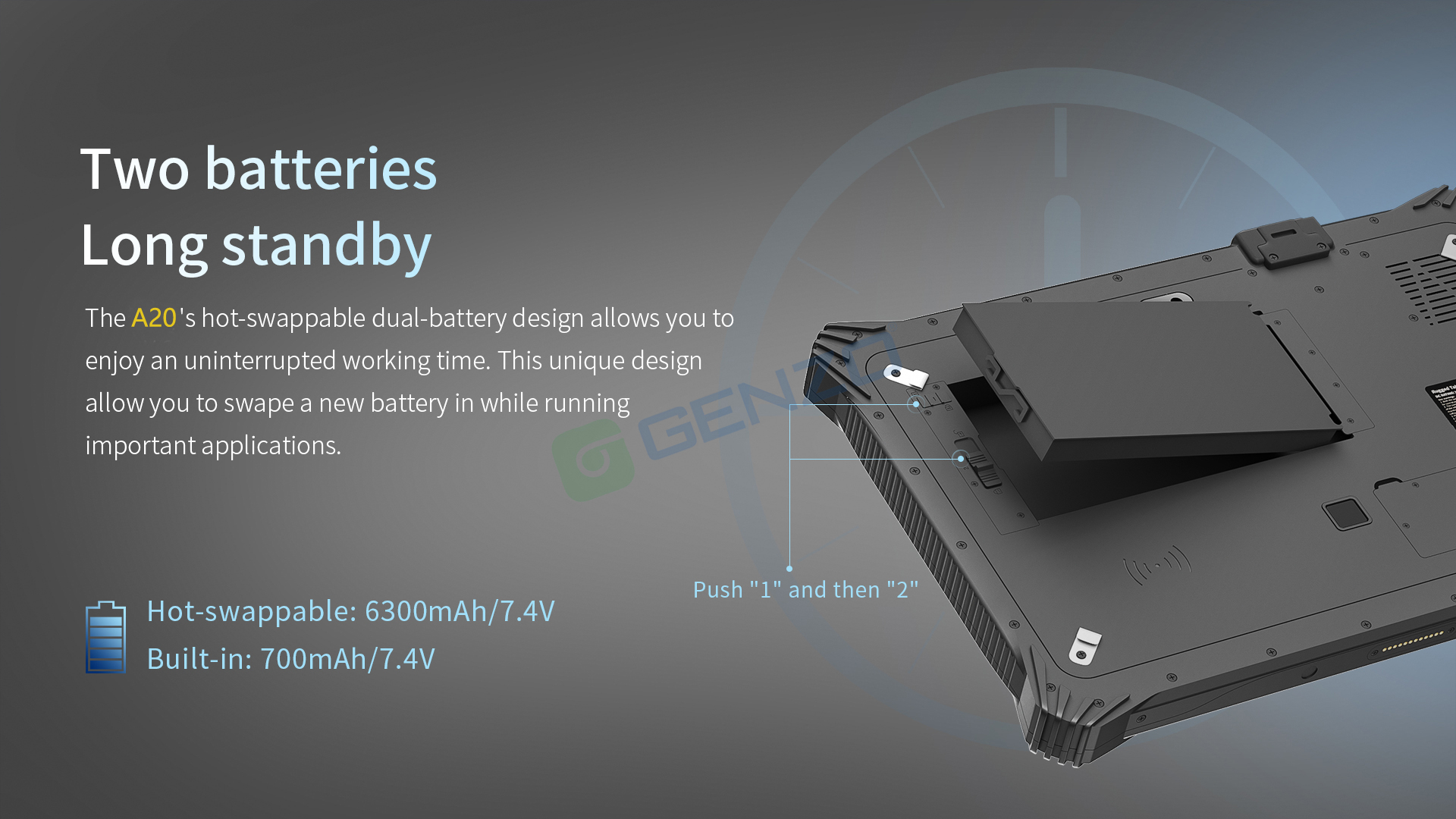

Battery(Small+Big)
Small Battery:Built in polymer lithium ion battery,Non-Removeable 7.4V/700mAh. 30mins(default 50% volumn，default200nit，play 1080P HD video)        +Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,7.4V/6300mAh.
5-6hrs(default 50% volumn，default200nit，play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Mic
Waterproof microphone 4618, specification: - 44dB±3DB
TPM
Built-in TPM2.0
G_sensor
Gravity acceleration sensor
Fingerprint
Built-in ×1 SPI Fingerprint (windows hellow boot login)
Fan
Built-in ×1 IPX5
Data Collection & Networking
Barcode Scanner
2D Optional Honeywell N3680/N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
Optional NXP300,  13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT5.1 (BLE) class1 Transmited distance：10m
WIFI
Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI
4G
MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no
TDD band) Europe, Middle East, Africa, Taiwan, Japan
5G Optional
Optional SRM825N M.2, 52*30*2.3mm, 5G Sub-6GHz,。 -EA: Region: EMEA, Australia, Japan, Korea 5G SA&NSA: LTE-FDD:
B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD: B34/B38/B39/B40/B41/B42 WCDMA: B1/B5/B8
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79
GPS
U-blox M7N, Support: GPS, glonass
Optional: U-blox M8Q, Support: GPS, Beidou, glonass
OS
Windows 11 Pro (Home, IOT) 64bit, Language by default: English
Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit

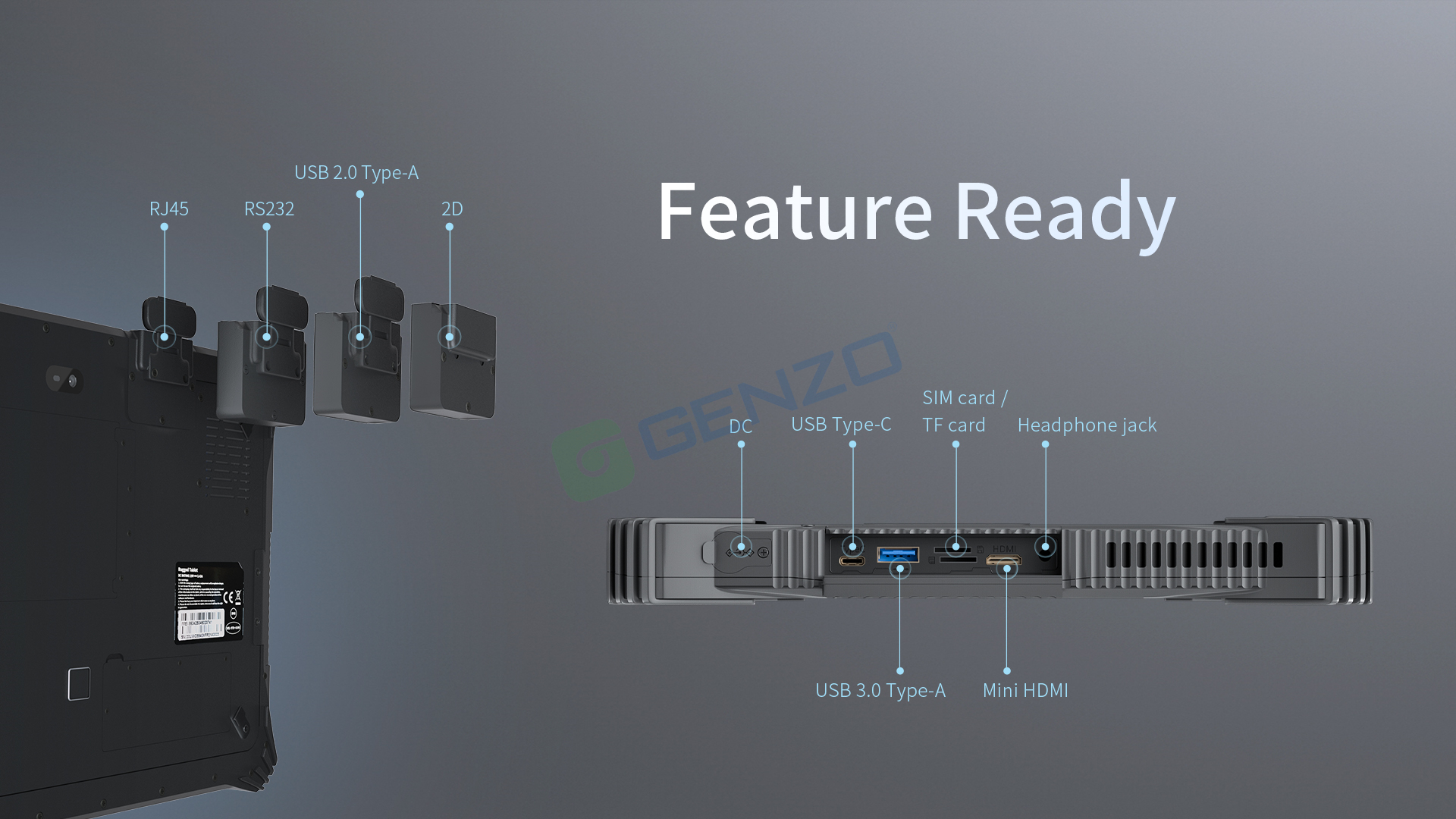

Module extension (Note: The following modules are one of four)
Ethernet interface
1* RJ45 board,(10/100M/1000M) Ethernet interface
(Standard Machine is Including RJ45)
Serial port
1* DB9 board
Two-dimension barcode
1*Honeywell N3680/N4680 Hardcode
USB2.0
1*USB2.0
I/O Port & Appearance & Package
I/O Port
HDMI 1.4a mini x 1,
USB 3.0 Type-A x 1, Type-c x 1(USB3.0/HDMI/Charging),
SIM Card x 1, TF Card x 1,
RJ45 *1
12pin（USB&Docking charging） x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC 19V 3.42A DC jack x 1
Keys
F KEY=Scanner key,Scanner key x1,No barcode then customizable ((GPIO)                  Volume adjustment key(+) x 1,Volume adjustment key(-) x 1,windows keyx 1,power keyx 1
Indicator light
Power on is always blue, power off light is off ×1,
(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1
Power Adaptor
AC100V ~ 240V, 19V3.42A/65W Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
339.3*230.3*26 mm
Weight
Device unit: 1500g.
Package
Standard configuration:Hand-strap/Carry Handle/USB cable/OTG cable/19V 3.42A Adapter/Packing box（Can be customized logo)
Optional Accessories
Docking Charger / Vehicle Mount/ Stylus / Removable Battery
Certificate System & Reliability Design
IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
