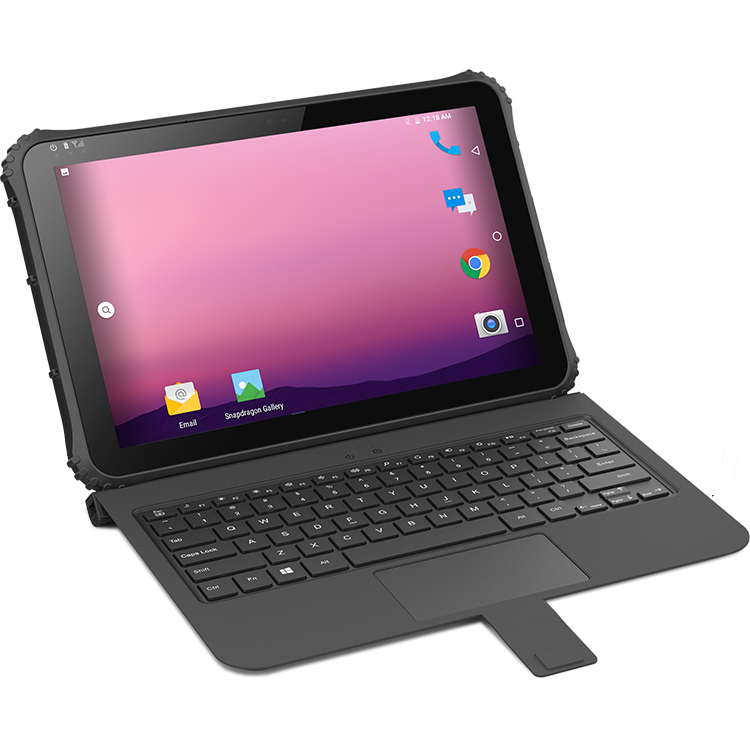

12 Inch Rugged Android Tablet With Keyboard

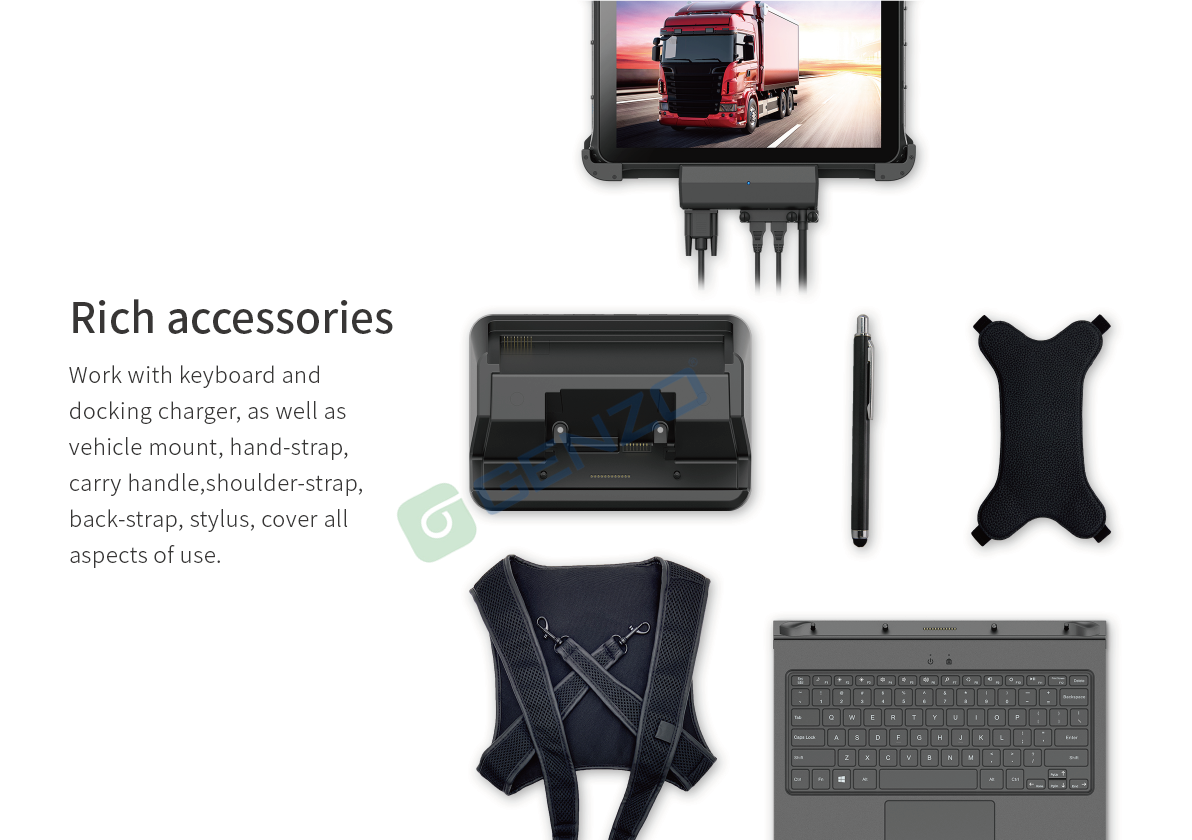

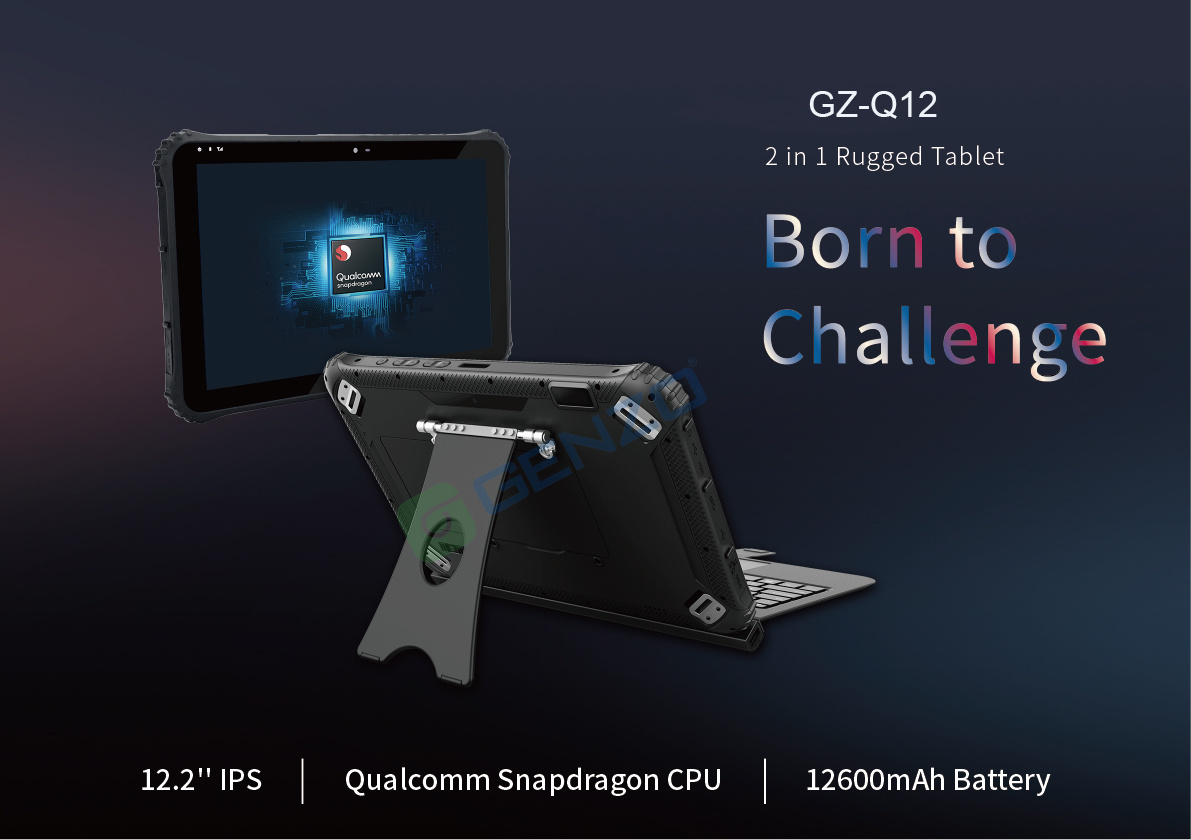

Modle:GZ-Q12. CPU：SLM758NE-6469, MAG module (including 4G+64G EMCP, MSM8953) 2.0GHz， RAM/ROM：4GB DDR3L / 64GB EMMC, LCD Display：12.2 inch 16:10, 1200×1920P, 280cd/m2， Battery(Small+Big)：3.7V/12600mAH, (Removeable Backup Battery).Camera: Front:5.0MP, Rear: 13.0MP. 1* DB9 board With RS232 + 1* RJ45. Optional Items: Keyboard/Docking Station /1D or 2D Barcode Scanner/Vehicle Mount/Stylus
Products Inquiry

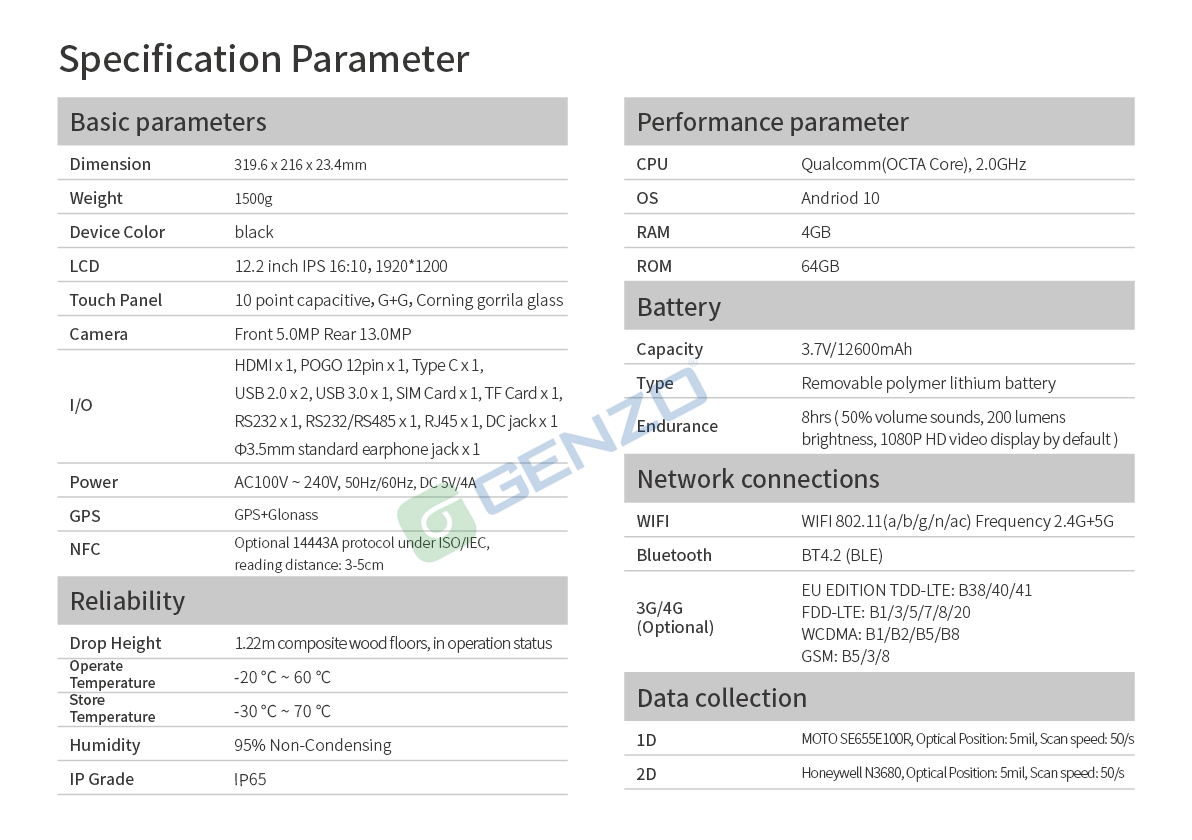

PRODUCT INFORMATION

Hardware
CPU
SLM758NE-6469, MAG module (including 4G+64G EMCP, MSM8953),2.0GHz
GPU
Adreno506; 650MHz
RAM/ROM
4GB DDR3L /  64GB EMMC
External Memory
Support TF*1,MAX 128GB

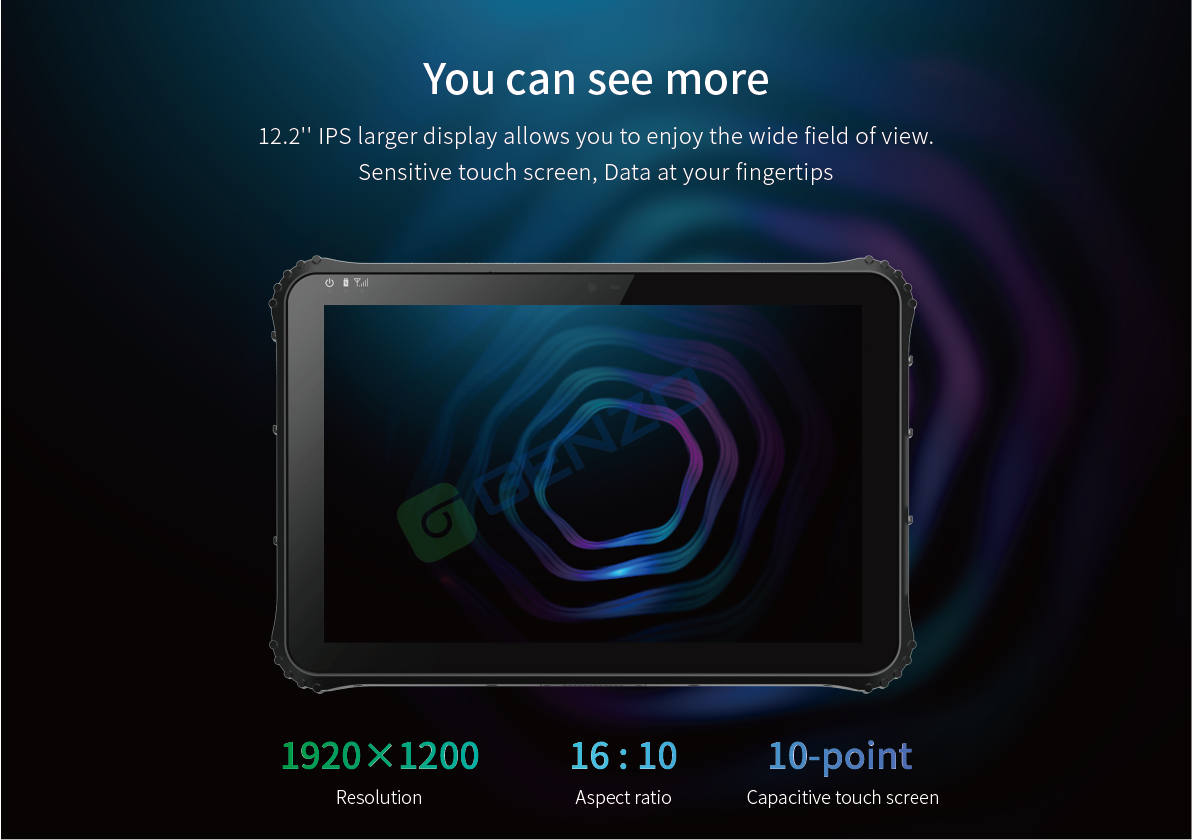

LCD Display
12.2 inch 16:10,    1200×1920P,      280 cd/m2
Touch Panel
10 point capacitive,G+G,Corning gorrila glass, Rigidity: 7H above, anti-scratch,COF, update to support GP930 stylus firmware

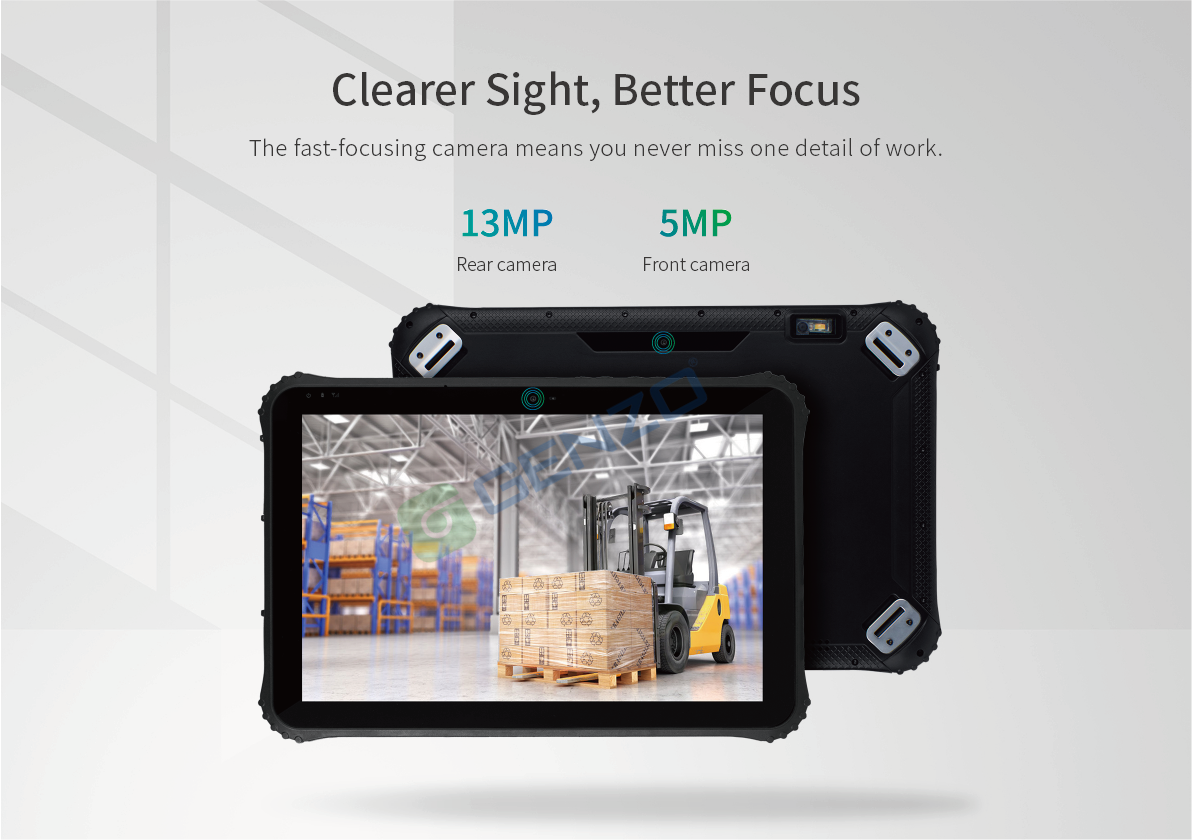

Camera
Front:5.0MP,   Rear: 13.0MP
Battery(Small+Big)
3.7V/12600mAH, (Removeable Backup Battery)
8-10hrs(default 50% volumn,default200 lumens brightnessplay 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 2
Mic
Sensitivity:-42db, Output resistance:2.2kΩ
G_sensor
Gravity acceleration sensor
L_sensor
Built-in
Compass
Built-in
Gyroscope
Built-in
Data Collection & Networking

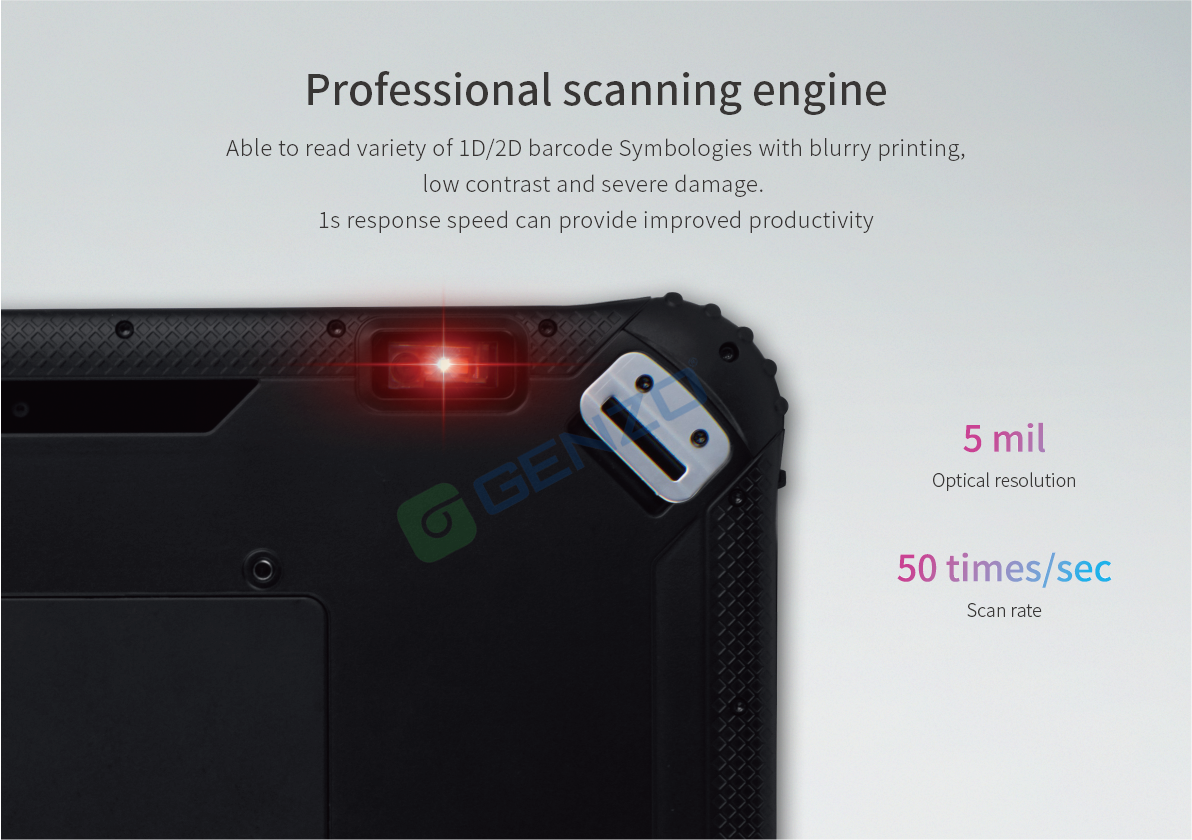

Barcode Scanner
1D Optional MOTO SE655E100R;
2D Optional Honeywell N3680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
NXP NFC 13.56MHz Support ISO/IEC:14443A/14443B/15693/18092/mifare protocol，read card distance:4cm
BT
BT4.2 (BLE) class1 transmission distance:10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI (Qualcomm WCN 3680+PA)
4G
EU EDITION TDD-LTE: B38/40/41 FDD-LTE: B1/3/5/7/8/20
GPS
Sleeve support: GPS+Glonass; capture sensitivity: -140 dBm; cold start time less 50 seconds, hot start time: less 5 seconds, GPS frequency: 1575.42MHz, Glonass frequency: 1602MHZ; Support Beidou
OS
Android 10/11 with GMS
Module extension

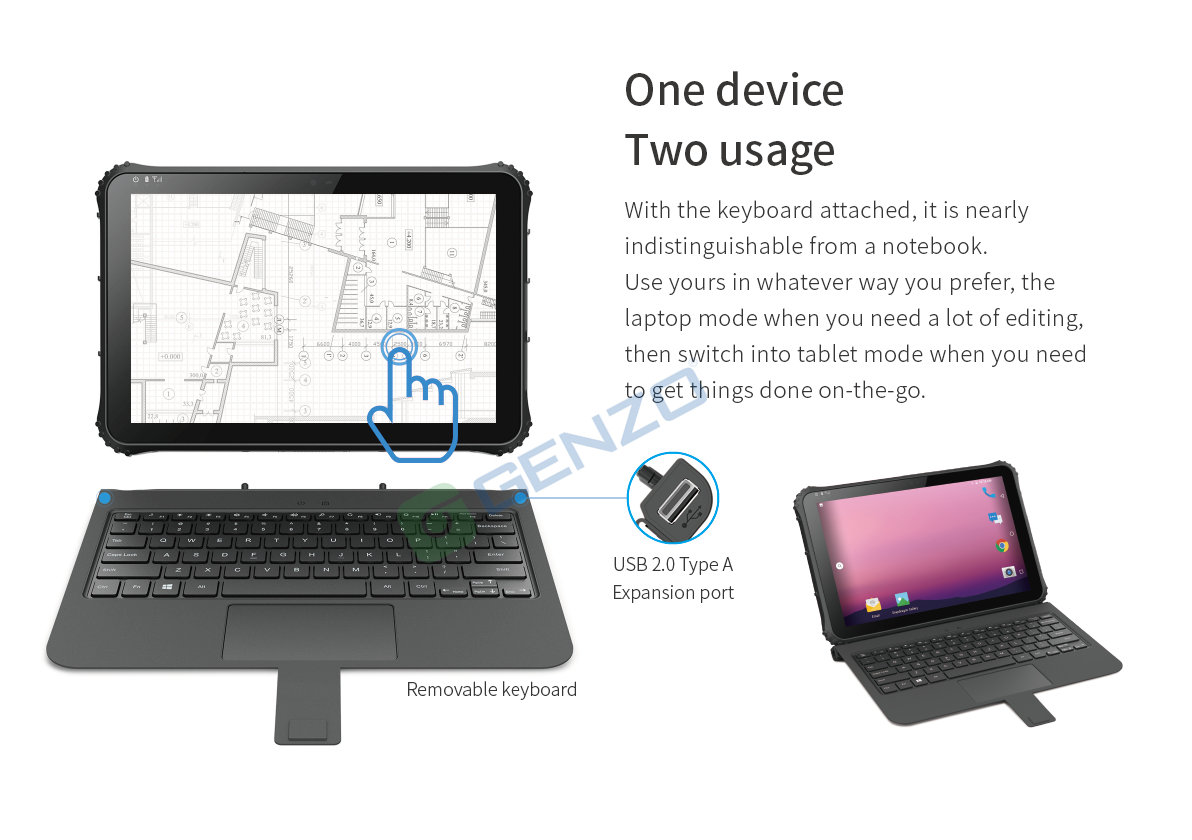

Keyboard
Optional
Material: keyboard ABS+PC Leather; bracket stainless steel+TPU；
keyboard（23.5cm（W）*37cm（L），bracket：11.5cm（W）*18.4cm（L）；Weight：604g；
I/O Port & Appearance & Package

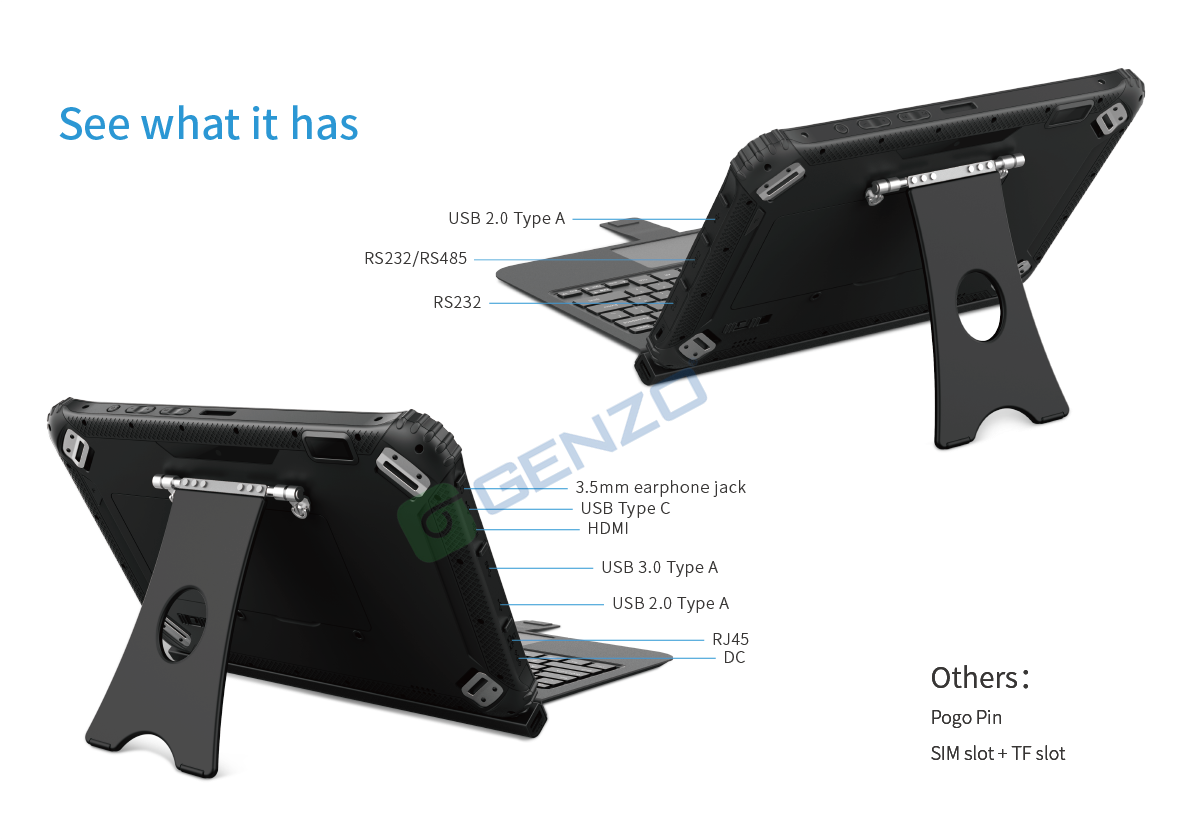

I/O Port
HDMI 1.4a x 1, Type C x1（data&charing）,
USB 3.0 Type-A x 1, USB 2.0 Type-A x 2,
SIM Card x 1, TF Card x 1,
12pin（USB&Docking charging） x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC 5V 4A DC jack x 1
DB9 (RS232) ×1 AND DB9 (RS485) ×1,
RJ45 10/100/1000Mbps ×1
Keys
Barcode Scanning Key(back of unit) x1,
P1 Key(Home) x1,        P2 Key(Back) x1,
Volume adjustment key(+) x 1,
Volume adjustment key(-) x 1,
Power keyx 1
Indicator light
Power on is always blue, power off light is off ×1,
(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1
Power Adaptor
AC100V ~ 240V, 5V4A/ Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
319.6*216*23.4 mm
Weight
Device unit: 1500g.
Package
USB cable/OTG cable/Charger 5V 4A/Hand Straps/Back Wrist Straps/Back bracket/ Packing box（Can be customized logo),
Certificate System & Reliability Design

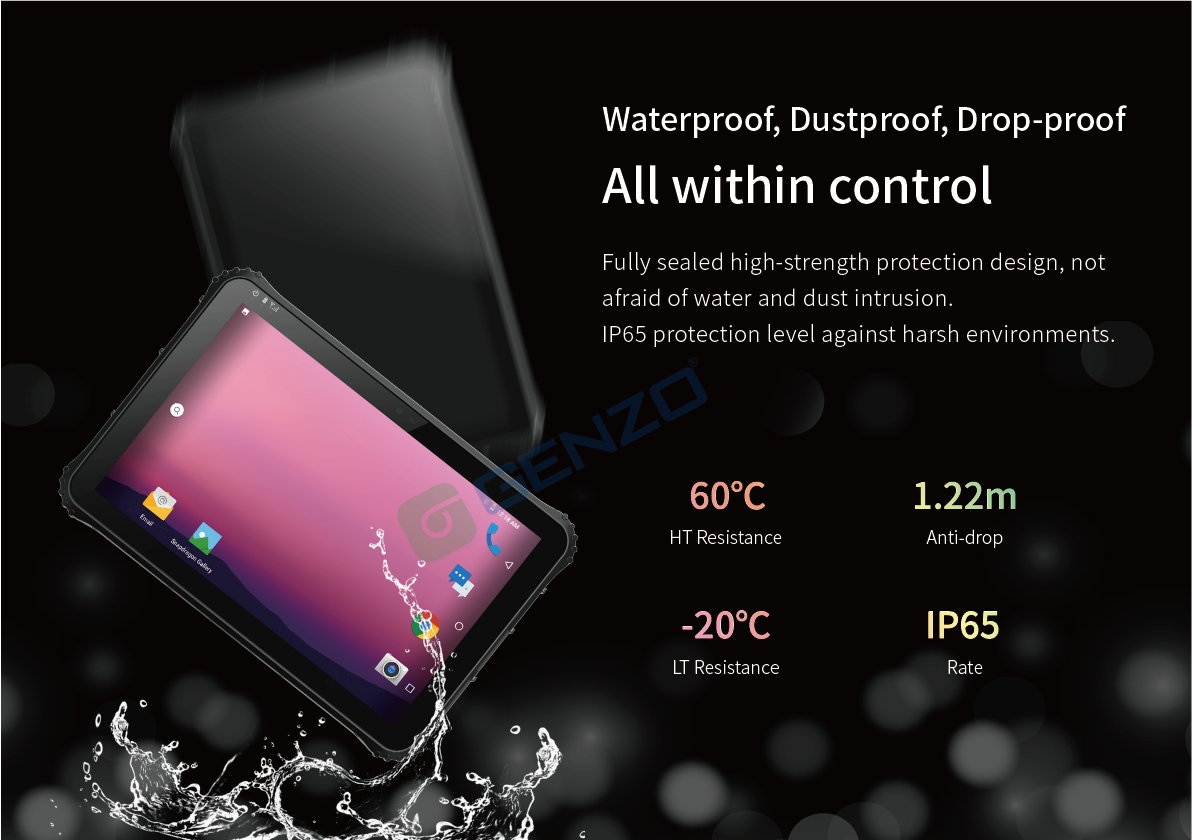

IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
