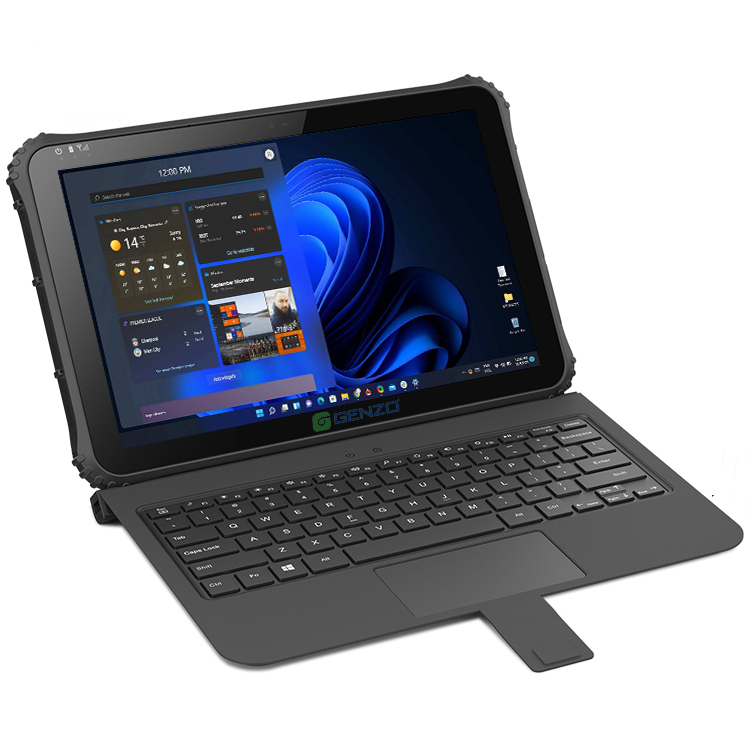

12 Inch Rugged Windows Tablet With Keyboard

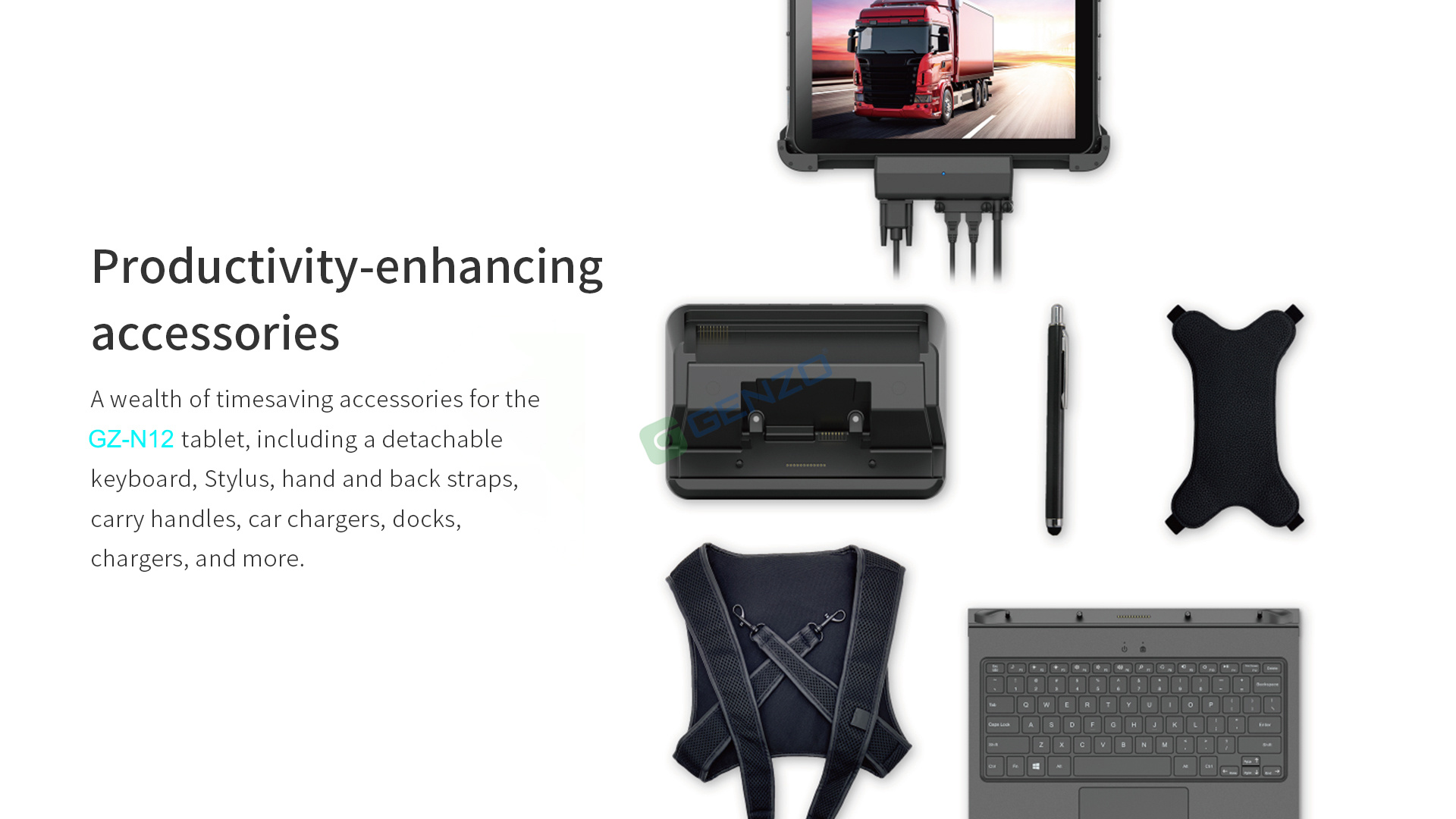

Modle:GZ-N12. CPU：Intel JASPER LAKE N5100, up to 2.80 GHz， RAM/ROM：8GB DDR3L / 128GB M.2, NGFF SSD(512GB MAX)， LCD Display：12.2 inch 16:10, 1200×1920P, 650cd/m2， Battery(Small+Big)：7.4V 6300mAh(large battery can hot plug replacement)/ + 7.4V 1000mAh/ (dual battery ).Camera: Front:5.0MP, Rear: 8.0MP. 1* DB9 board With RS232 + 1* RJ45. Optional Items: Keyboard/Docking Station /1D or 2D Barcode Scanner/Vehicle Mount/Stylus/ 5G
Products Inquiry

PRODUCT INFORMATION

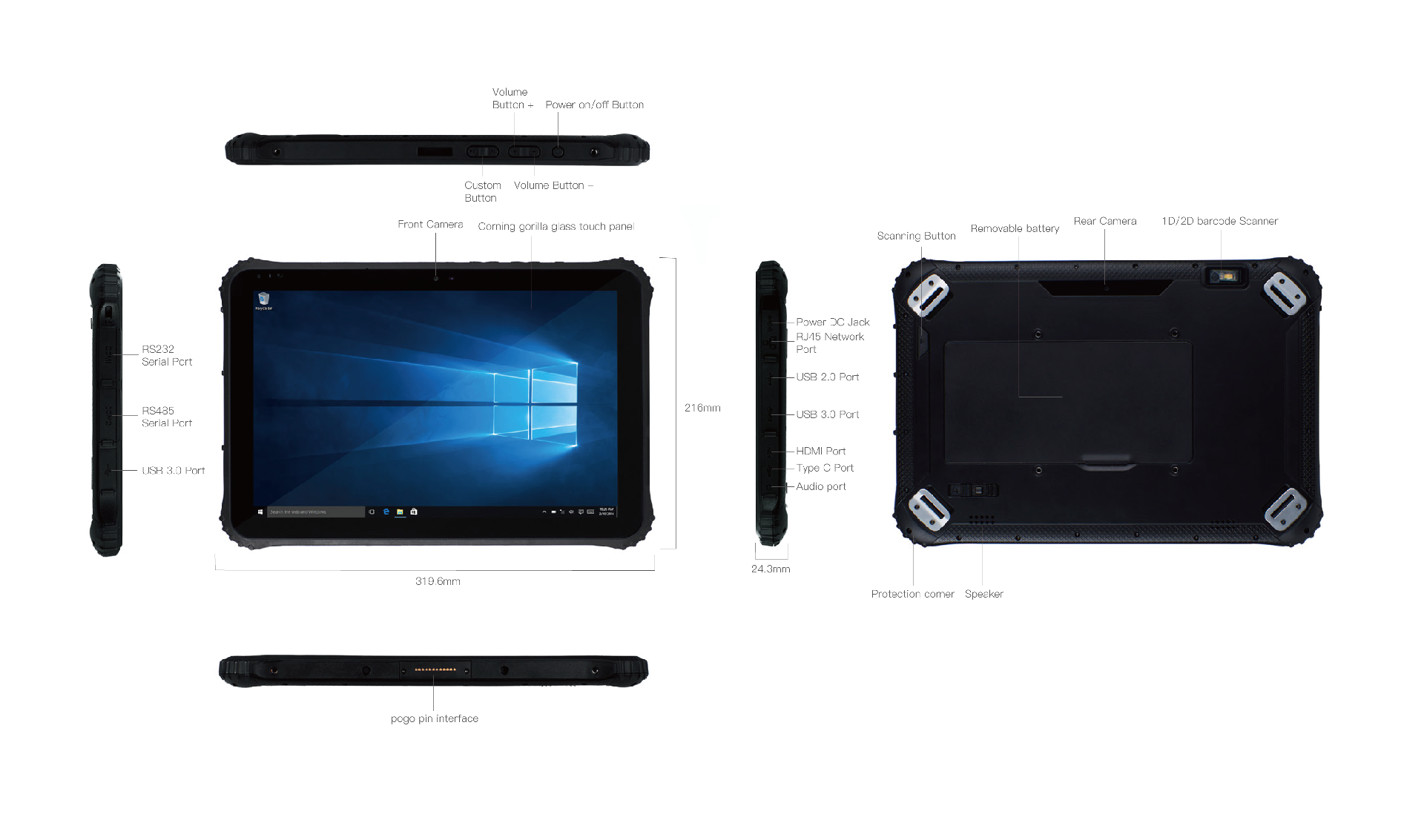

six views of I22J.png

Hardware
CPU
Intel JASPER LAKE N5100, up to 2.80 GHz
GPU
Intel® HD Graphics Gen 11 LP
RAM/ROM
8GB DDR3L /  128GB M.2, NGFF SSD(512GB MAX)
External Memory
Support TF*1,MAX 512GB
LCD Display

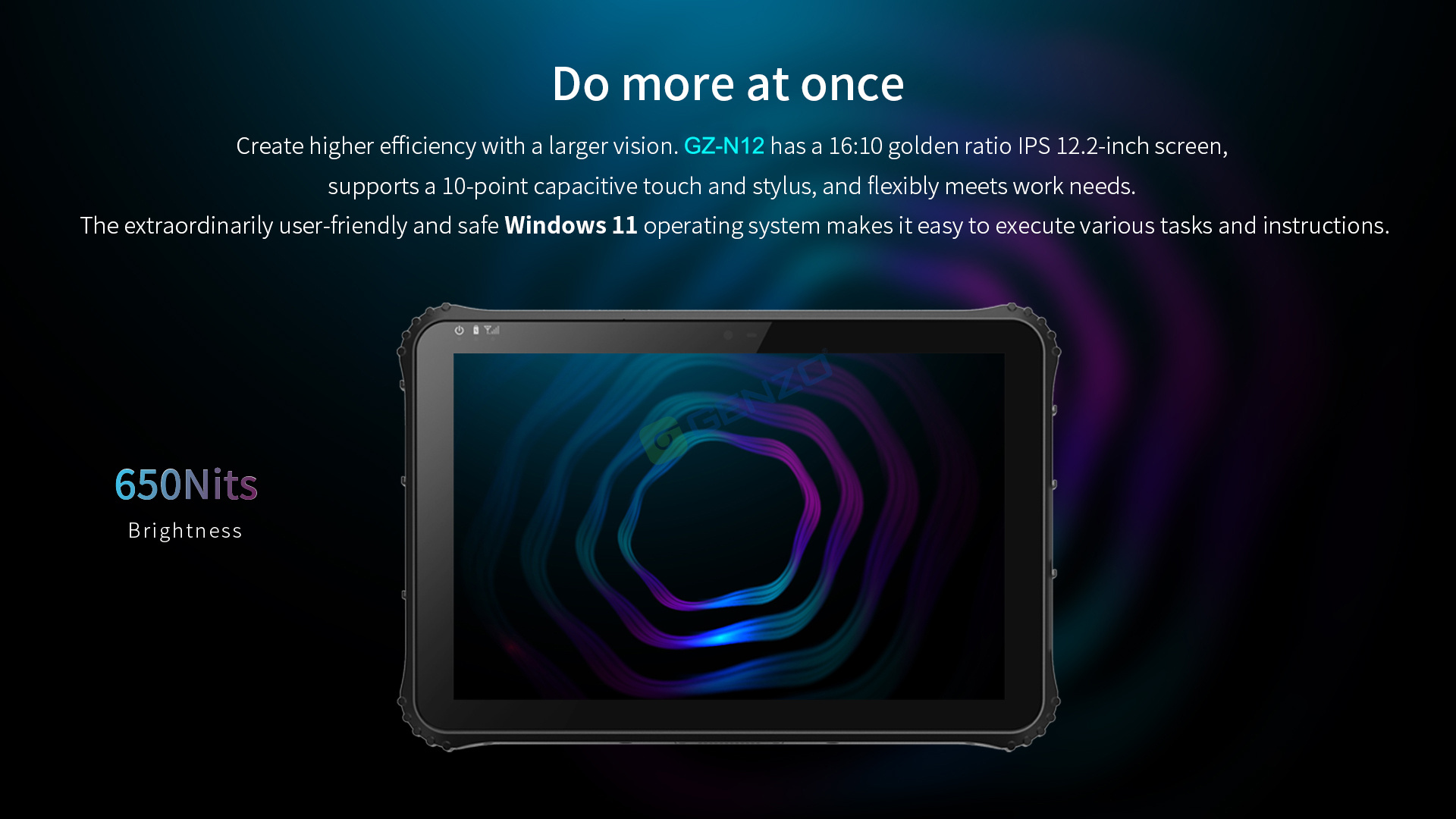

12.2 inch 16:10,    1200×1920P,      650cd/m2
Touch Panel
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support 930 active pen
Camera
Front:5.0MP,   Rear: 8.0MP
Battery(Small+Big)
7.4V 6300mAh(large battery can hot plug replacement)/  + 7.4V 1000mAh/ (dual battery )
6-7hrs(default 50% volumn,default200 lumens brightnessplay 1080P HD video)
RTC
Built in RTC clock button battery
Speaker
Embedded 8Ω/0.8W waterproof speakerx 2
Mic
Sensitivity:-42db, Output resistance:2.2kΩ
G_sensor
Gravity acceleration sensor
Gyroscope
Built-in
Data Collection & Networking
Barcode Scanner
1D Optional MOTO SE655E100R;
2D Optional Honeywell N3680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
NXP NFC 13.56MHz Support ISO/IEC:14443A/14443B/15693/18092/mifare protocol，read card distance:4cm
BT
BT5.0 (BLE) class1 transmission distance:10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI
4G
MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no
TDD band) Europe, Middle East, Africa, Taiwan, Japan
5G
Optional
SA&NSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 5G SA&NSA: LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32
LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8 5G SA&NSA: LTE-FDD:B1/B3/B5/B8/B28 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8
N1/N28/N41/N78/N79;
GPS
Support:GLONASS,GPS
GPS Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 11Pro inactivated os(Free), Optiona Home/IOT/LTSC
Module extension

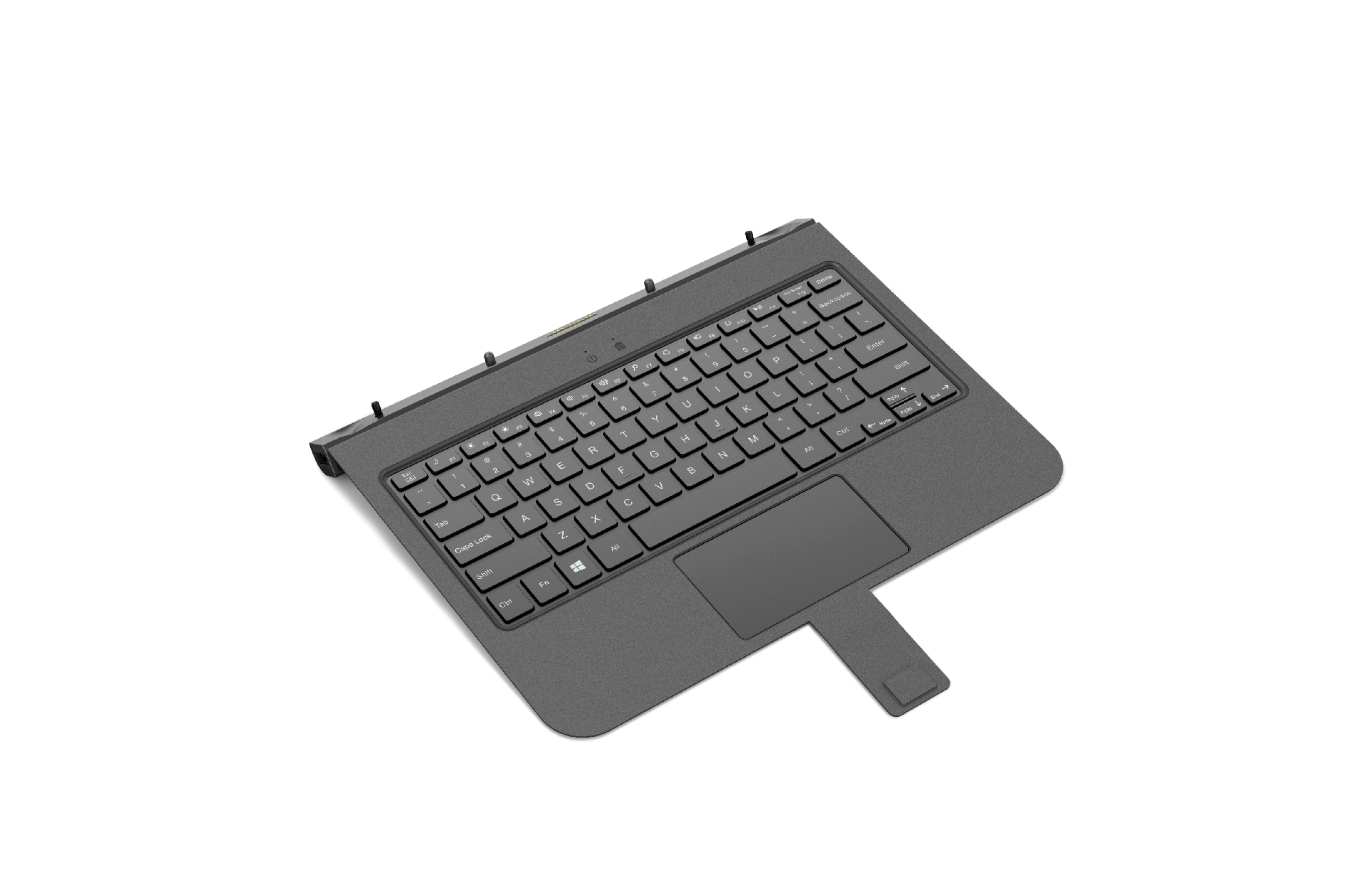

Keyboard
Optional
Material: keyboard ABS+PC Leather; bracket stainless steel+TPU；
keyboard（23.5cm（W）*37cm（L），bracket：11.5cm（W）*18.4cm（L）；Weight：604g；
I/O Port & Appearance & Package

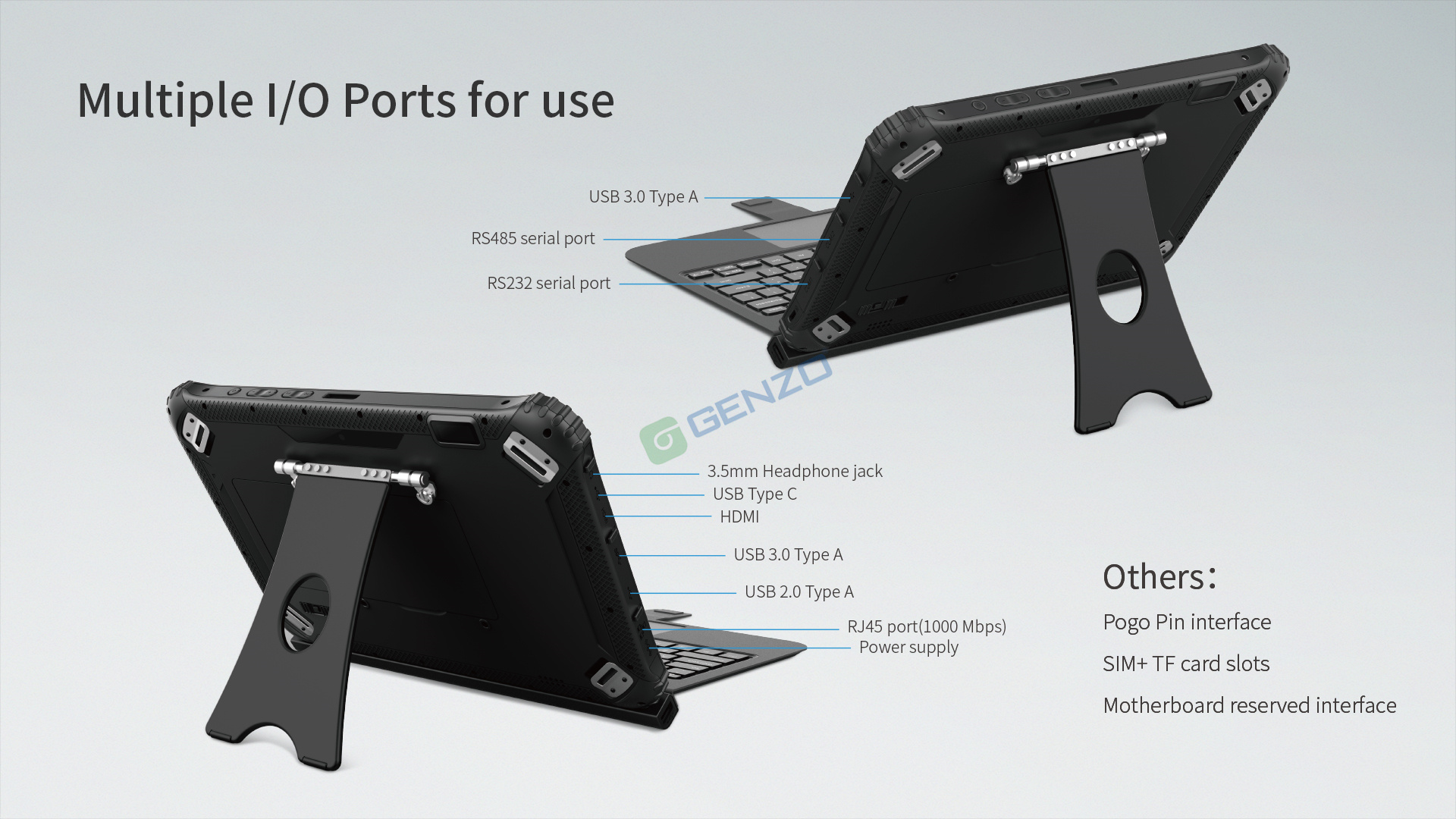

I/O Port
HDMI 1.4a x 1, Type-c  x 1,
USB 3.0 (9pin)Type-A x 2, USB 2.0(4pin) Type-A x 1,
SIM Card x 1, TF Card x 1,
12pin（USB&Docking charging） x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC 12V 4A DC jack x 1
DB9 (RS232) ×1 AND DB9 (RS485) ×1,
RJ45 10/100/1000Mbps ×1
Keys
Barcode Scanning Key(back of unit) x1,
P Key(Customized Key) x2,
Volume adjustment key(+) x 1,
Volume adjustment key(-) x 1,
Power keyx 1
Indicator light
Power on is always blue, power off light is off ×1,
(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1
Power Adaptor
AC100V ~ 240V, 12V4A/ Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
319.6*216*23.4 mm
Weight
Device unit: 1500g.
Package
USB cable/OTG cable/Charger 12V 4A/Hand Straps/Back Wrist Straps/Back bracket/ Packing box（Can be customized logo),
Certificate System & Reliability Design
IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
