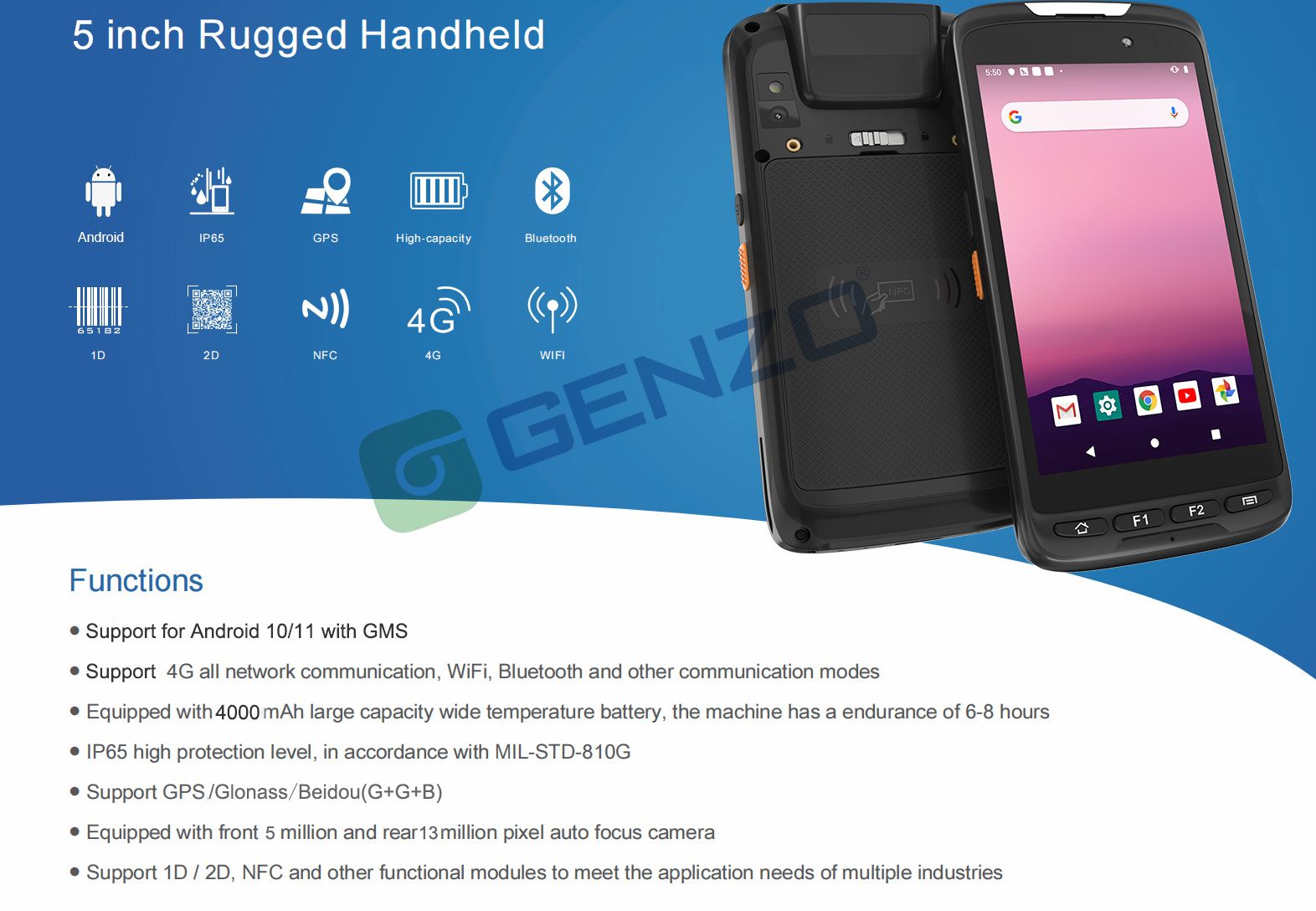

5 Inch Rugged Android PDA - GZ-A505

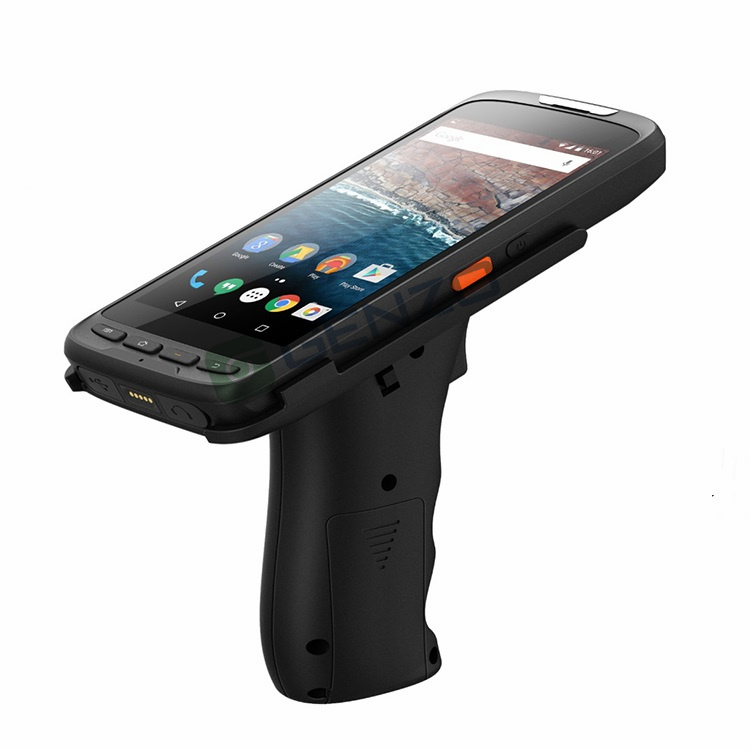

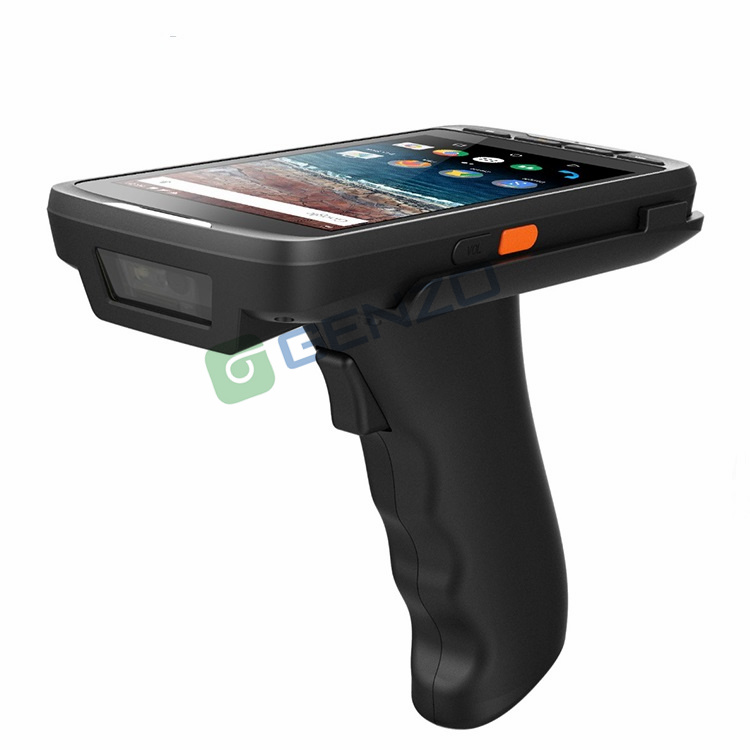

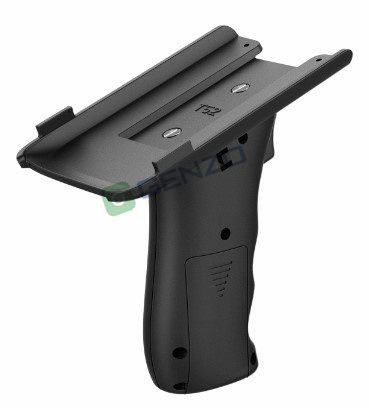

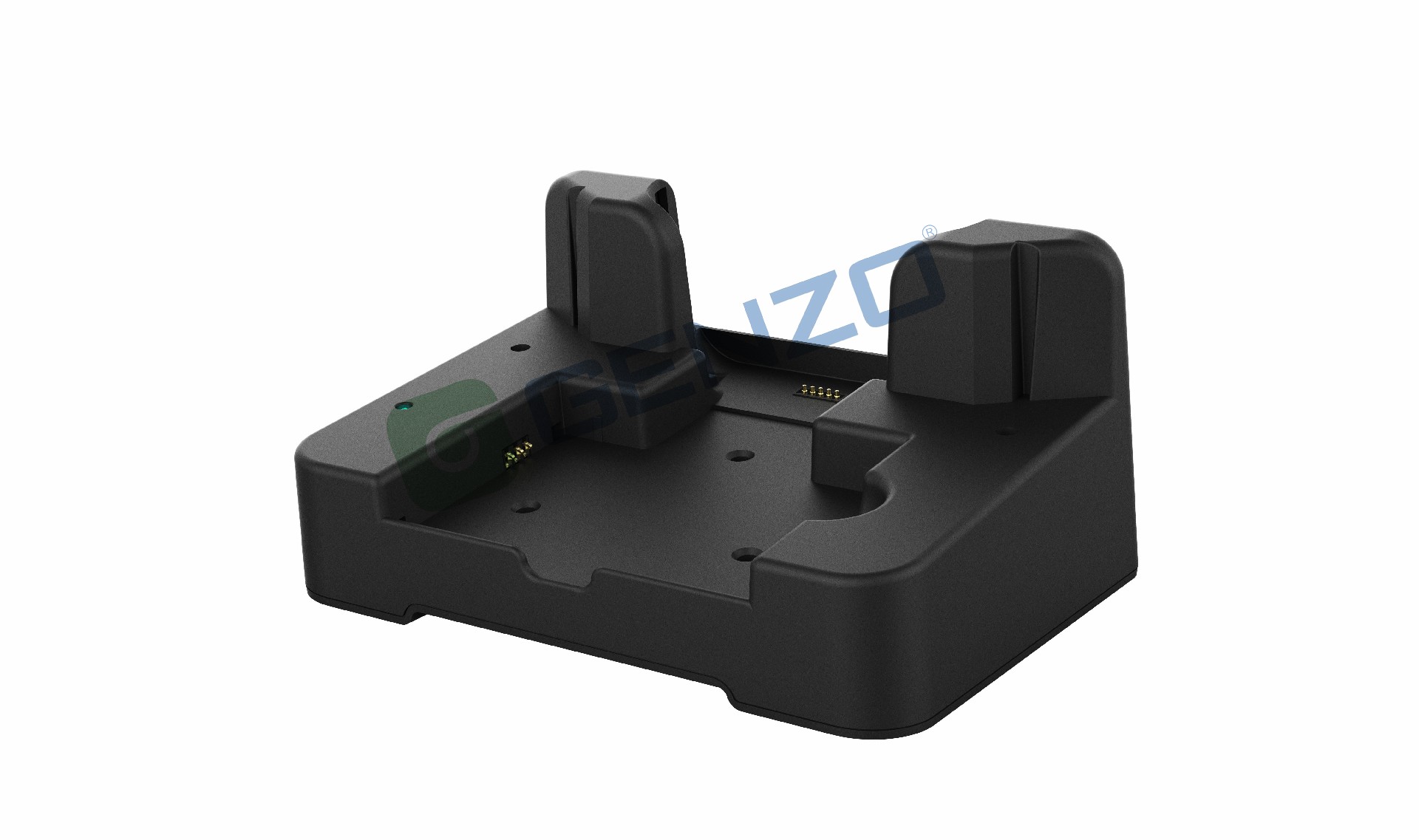

Modle:GZ-A505. CPU：MT6762 (8core) 4*A53 2.0GHz + 4*A53 1.5GHz， RAM/ROM：4GB LPDDR3/ 64GB Emmc， LCD Display：5“ 16:9,720*1280 IPS LCD,300 nits， Battery：3.7V/4000mAh. Removeable polymer lithium ion battery.Standard Machine: 4GB RAM + 64GB ROM + NFC + 4G LTE + 2D Barcode Scanner + Android OS. Optional Items: Docking Station / Scanner Triggers / Removeable Battery.
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
MT6762 (8core) 4*A53 2.0GHz + 4*A53 1.5GHz
GPU
IMG GE8320 650MHz
RAM/ROM
LPDDR4X up to 4GB (dual channels with 16-bit data bus width)/   64GB Emmc
External Memory
Support TF*1,MAX 128GB

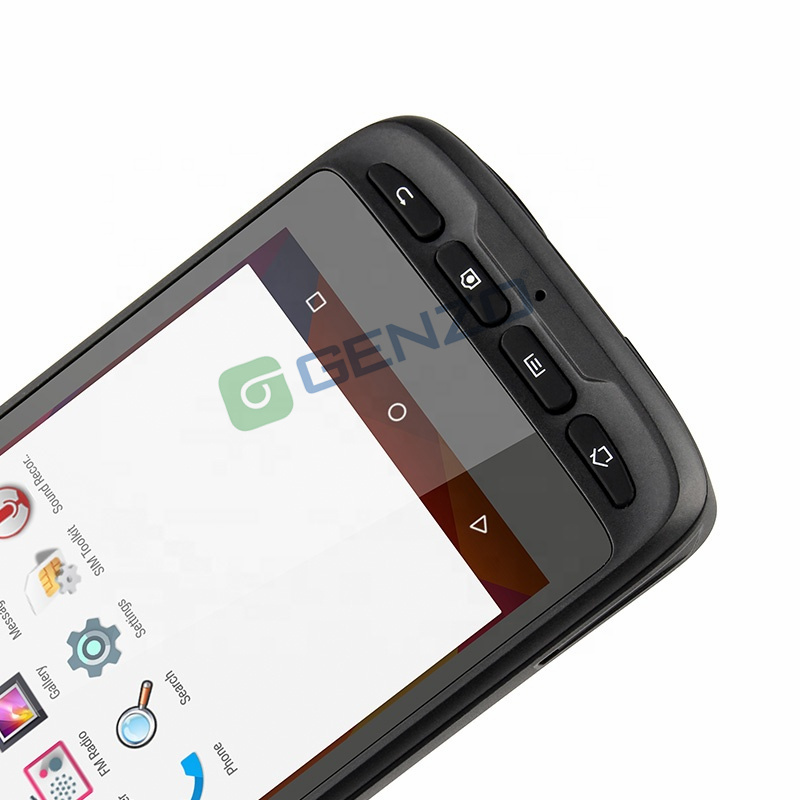

LCD Display
5“ 16:9,720*1280 IPS LCD,300 nits
Touch Panel
5 point G+F capacitive touch screen,Corning® Gorilla® Glass
Camera
Front:5.0MP,   Rear13.0MP automatic focusing with astigmatism， PDAF support
Battery

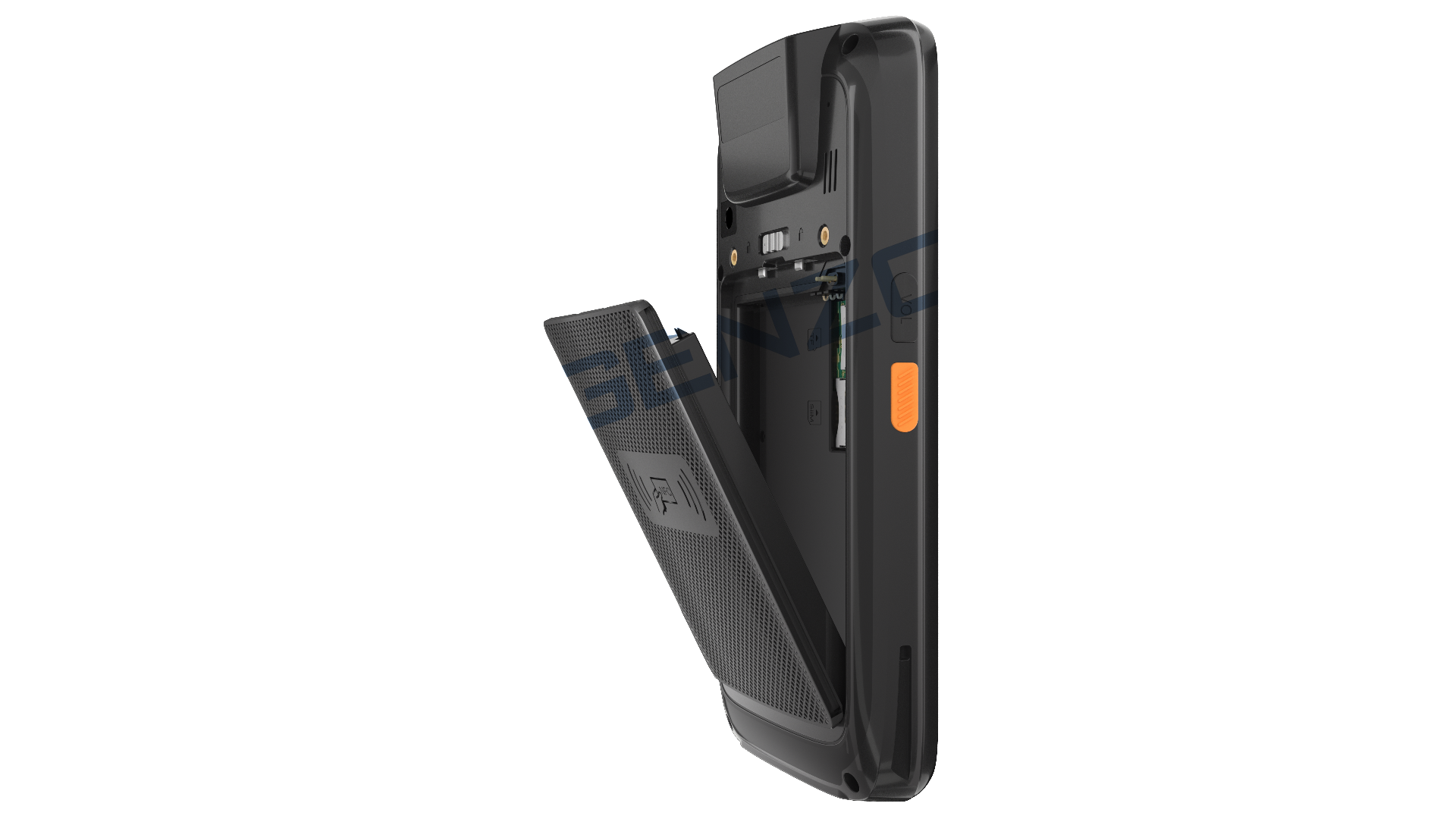

3.7V/4000mAh. Removeable polymer lithium ion battery
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Audio amplifier
Built-in Class K power amplifier
Real Time Clock(RTC)
Built-in
Sensor
light Sensor *1,Geomagnetic sensor *1,Ggyroscope *1,G_sensor *1
Data Collection & Networking
Barcode Scanner
 Built-in 2D Zebra4710

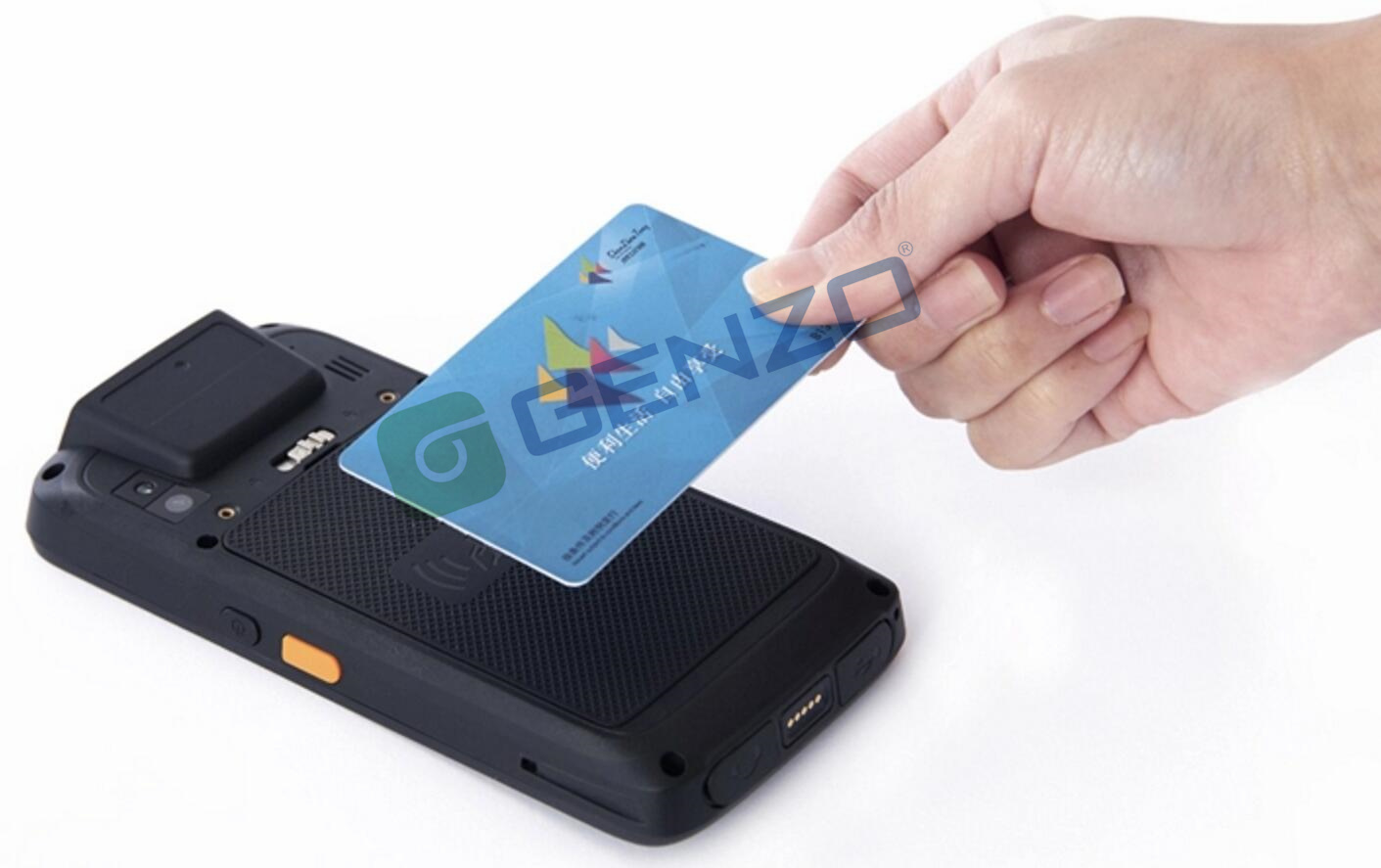

NFC
Built-in 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT5.0(BLE)    transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming
4G
GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41)
GPS
Support GPS+Glonass+Beidou(G+G+B)
OS
Android 10/11 with GMS

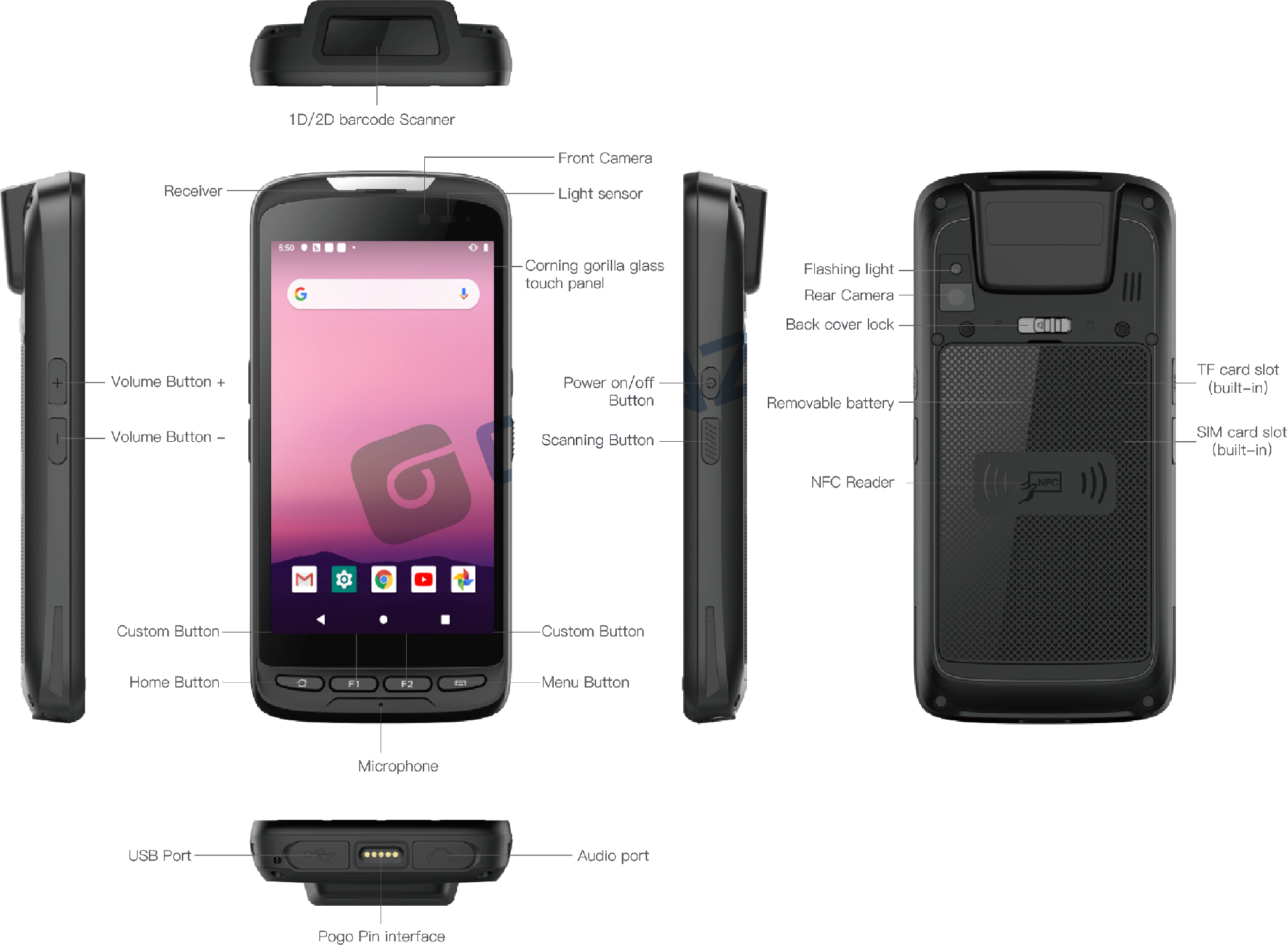

I/O Port & Appearance & Package

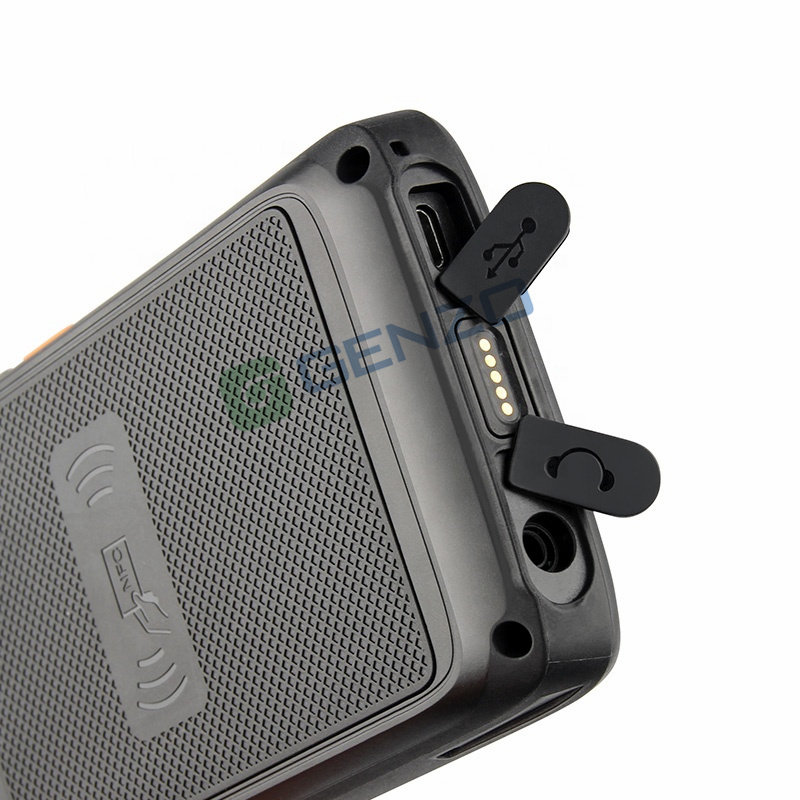

I/O Port
USB Type-C x 1,
SIM Card x 1,
TF Card x 1,
4Pin machine buttom x 1
Φ3.5mm standard earphone jack x 1
Dimension
157.4*74.6*24.2mm
Weight
Device unit: 260g.

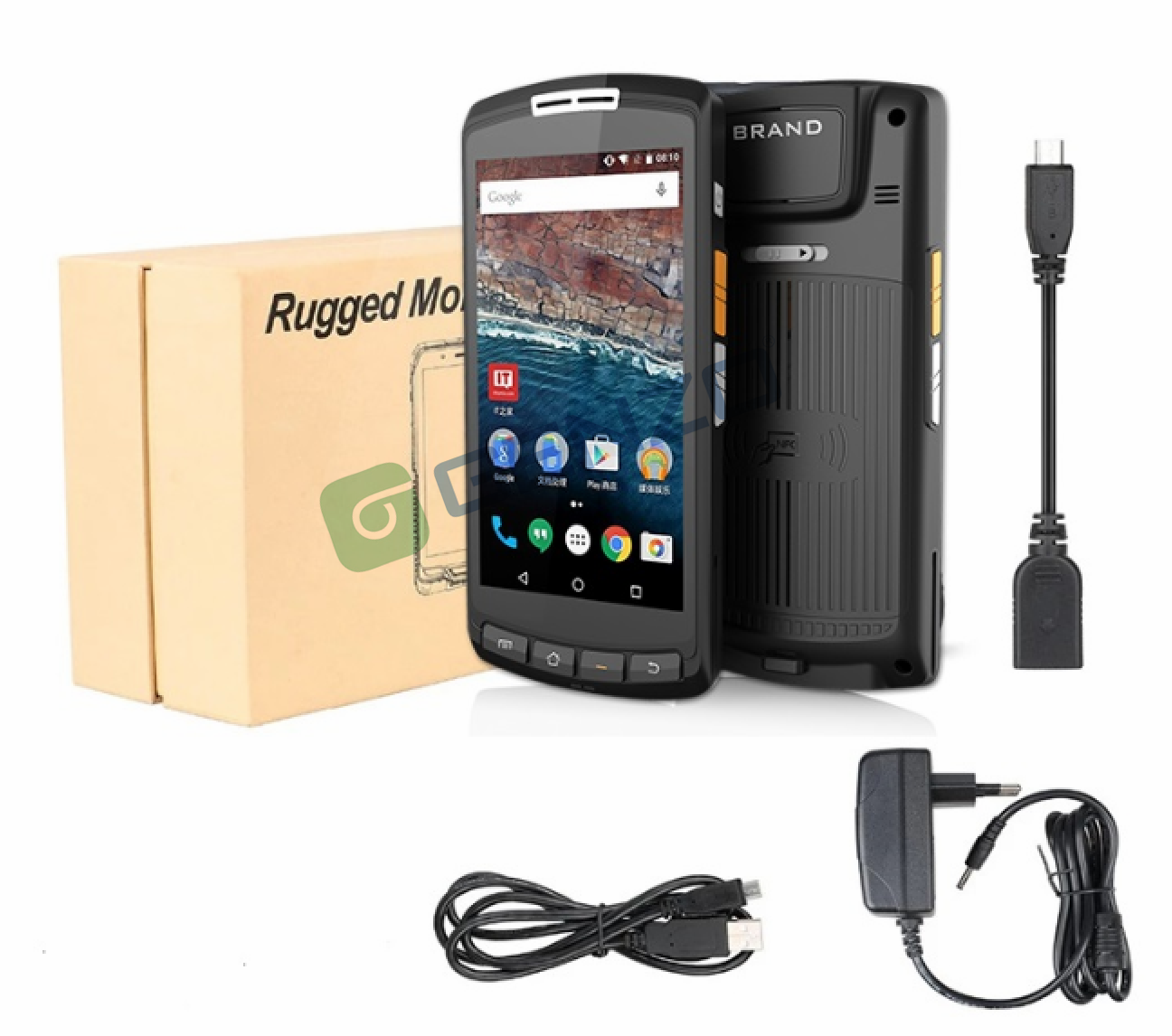

Package
USB Type-c cable/Hand-strap/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67/IP65
IP65 Report：waterproof test：IP-X5，dustproof test：IP-6X
a.nozzle inner diameter：6.3mm；
b.water-carrying capacity：12.5±0.625L/min；
c.water pressure：adjust according to specified water-carrying capacity；
d.central part of main water flow Away from the nozzle 2.5 m diameter about 40mm circle；
e.water spray time for outter shell per a square meter：about 1min；
f. test time：at least 3min;
g.distance from nozzle to outter shell surface：2.5～3m.
after tested,check sample and no water inside situation
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,   IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-10 °C to 50 °C
Store Temperature
‘-20 °C to 60 °C
Humidity
Humidity: 95% Non-Condensing
