GZ-W602 6 Inch Rugged Windows PDA

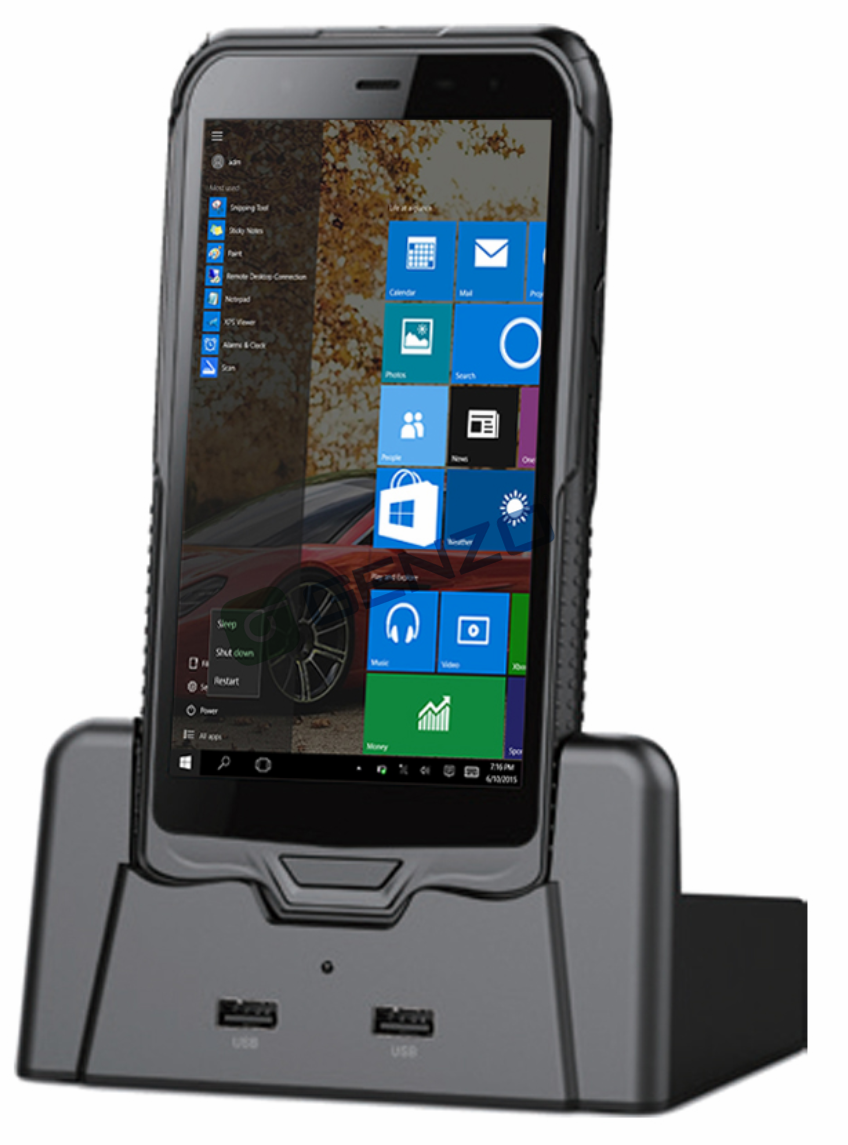

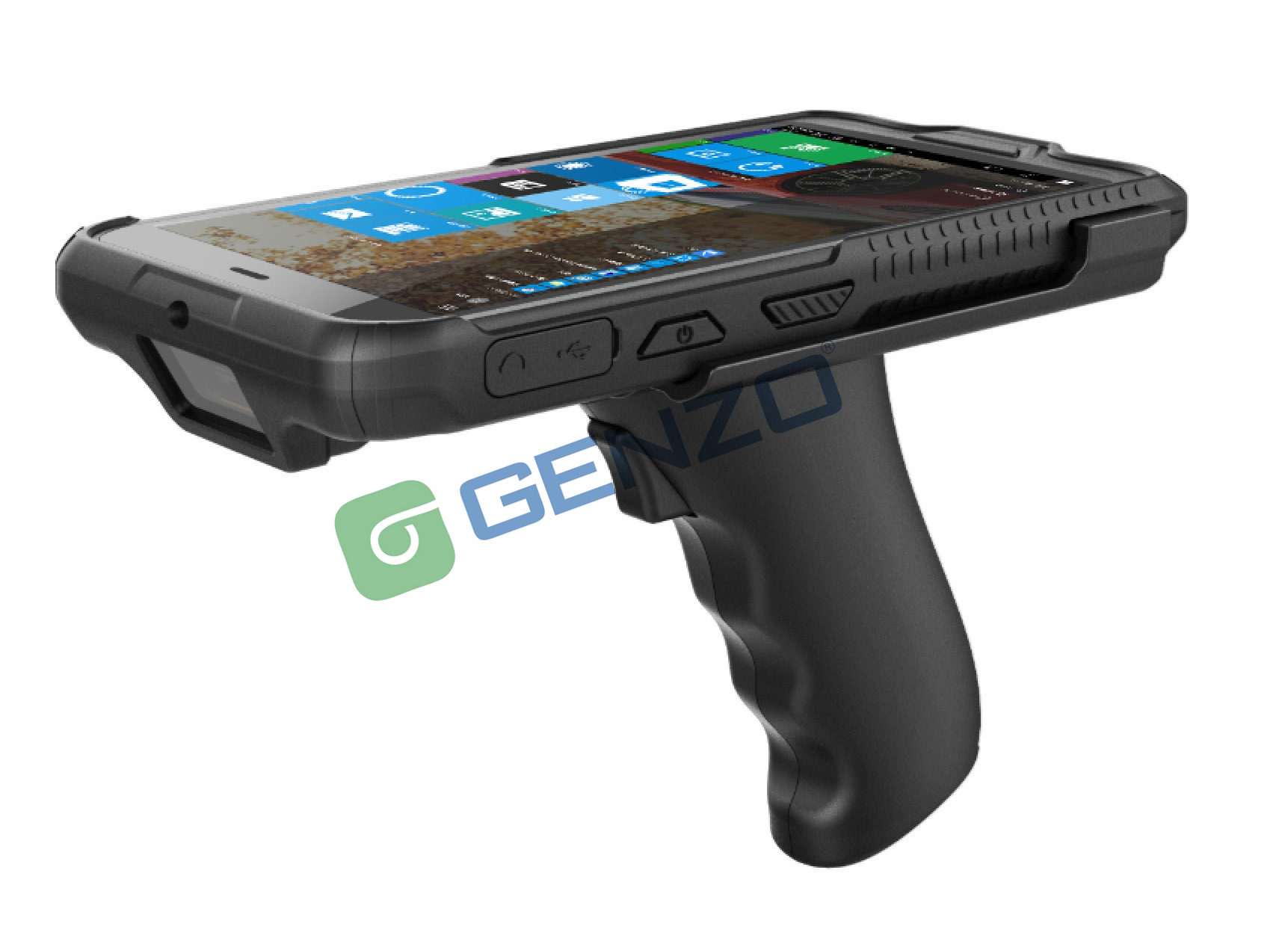

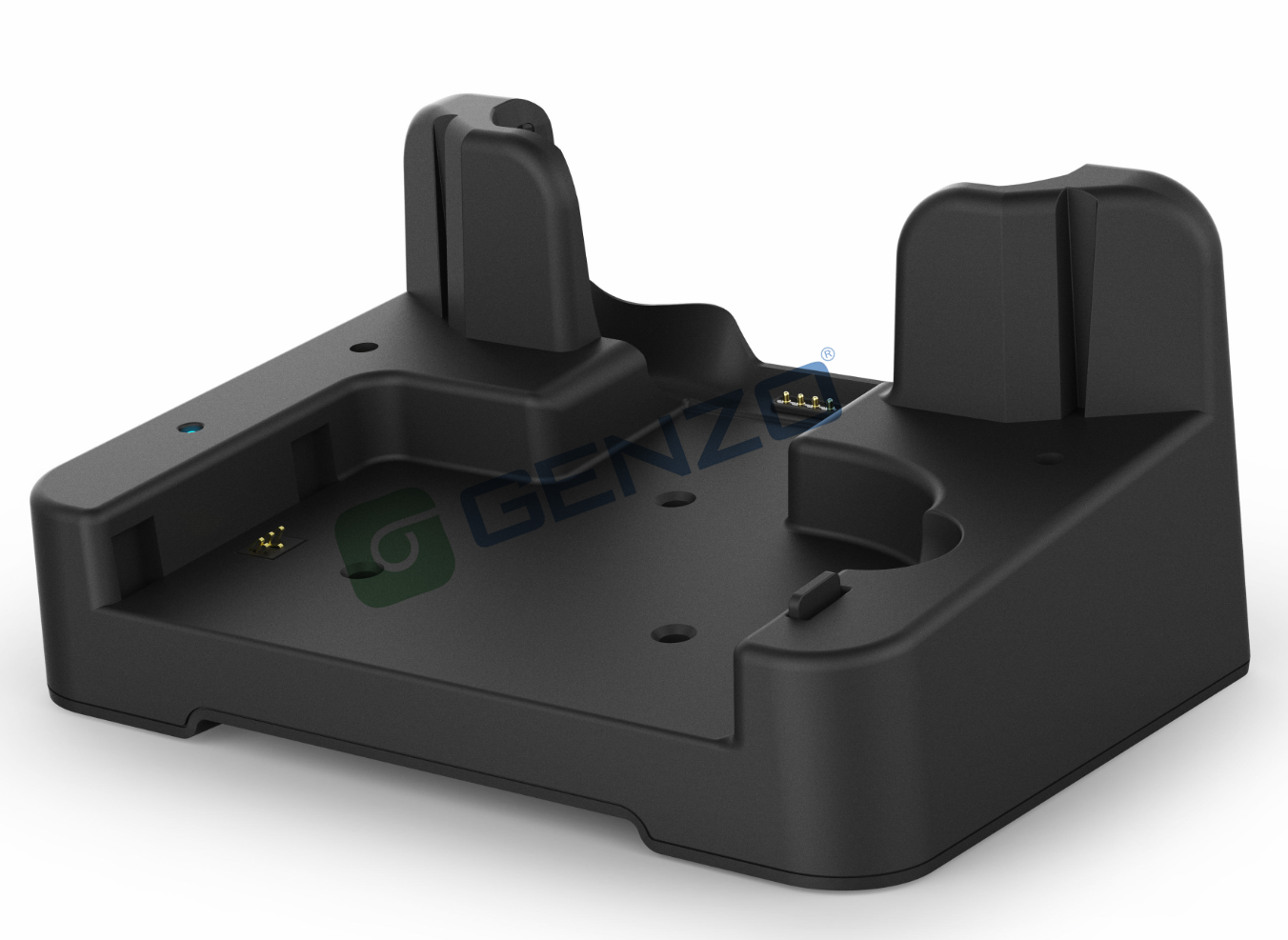

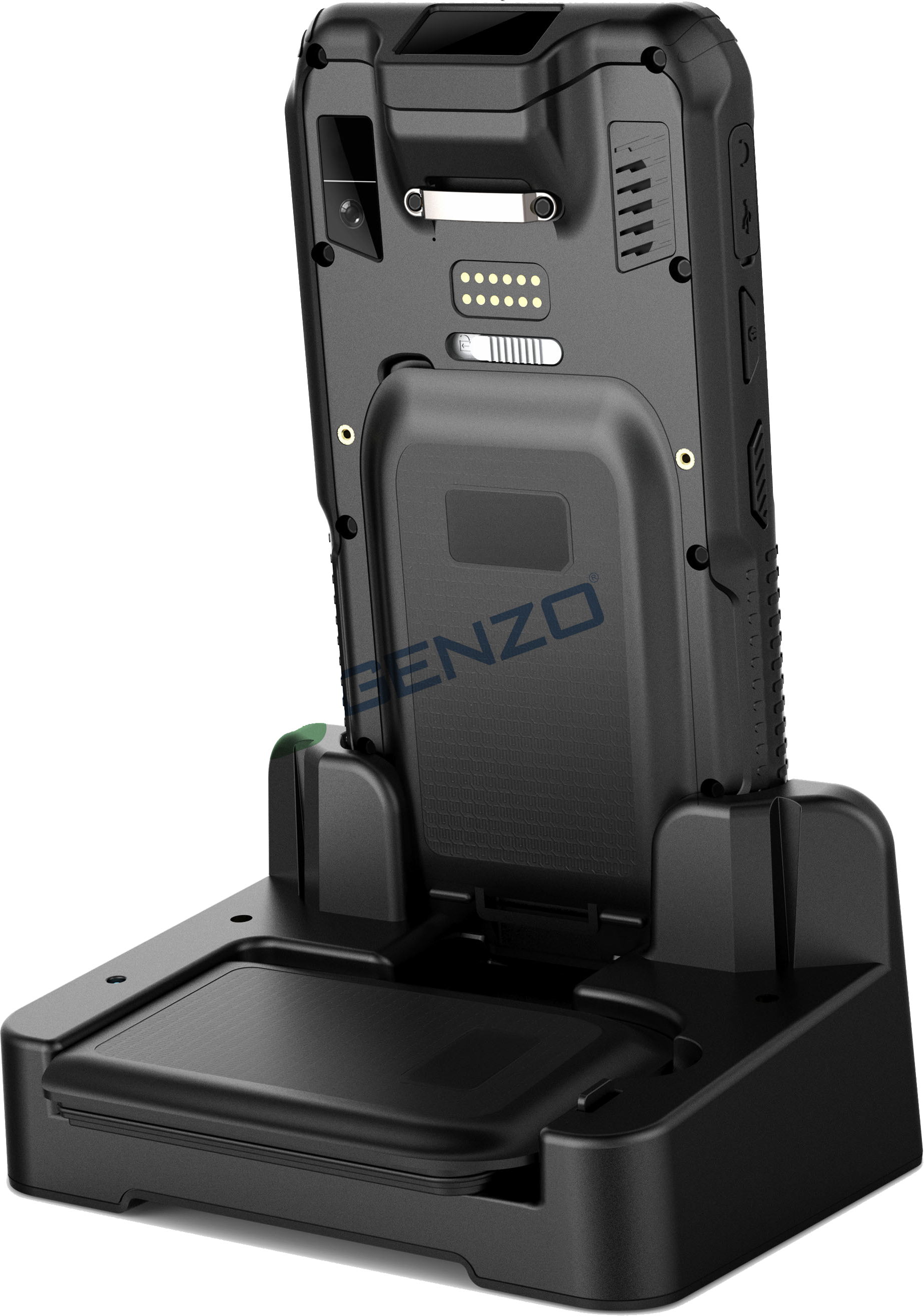

Modle:GZ-W602. CPU：Intel Atom x5 Z8350 1.92 GHz， RAM/ROM：4GB LPDDR3/ 64GB Emmc， LCD Display：5.98 inch 16:9,720*1280 IPS LCD,430 nits， Battery：3.7V/5000mAh. Removeable polymer lithium ion battery.Standard Machine: 4GB RAM+64GB ROM+NFC+4G LTE+Windows 10 IOT Inactivated OS. Optional Items: Docking Station / Scanner Triggers / 1D or 2D Barcode Scanner / Removeable Battery / Activated Key
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU

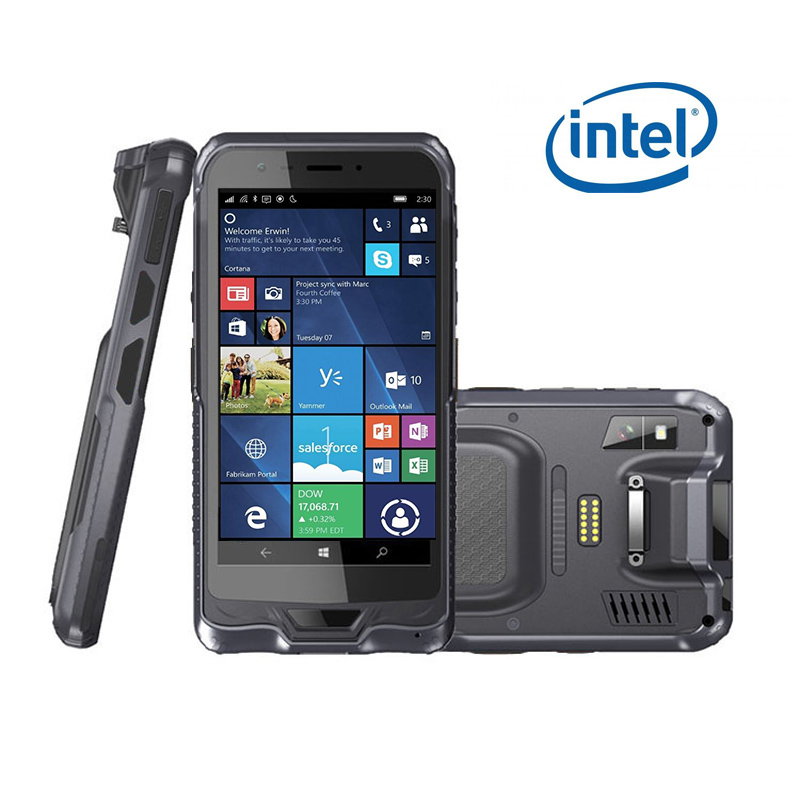

Intel Atom x5 Z8350  1.92 GHz
GPU
Intel® HD Graphics
RAM/ROM
4GB LPDDR3/ 64GB Emmc
External Memory
Support TF*1,MAX 128GB
LCD Display

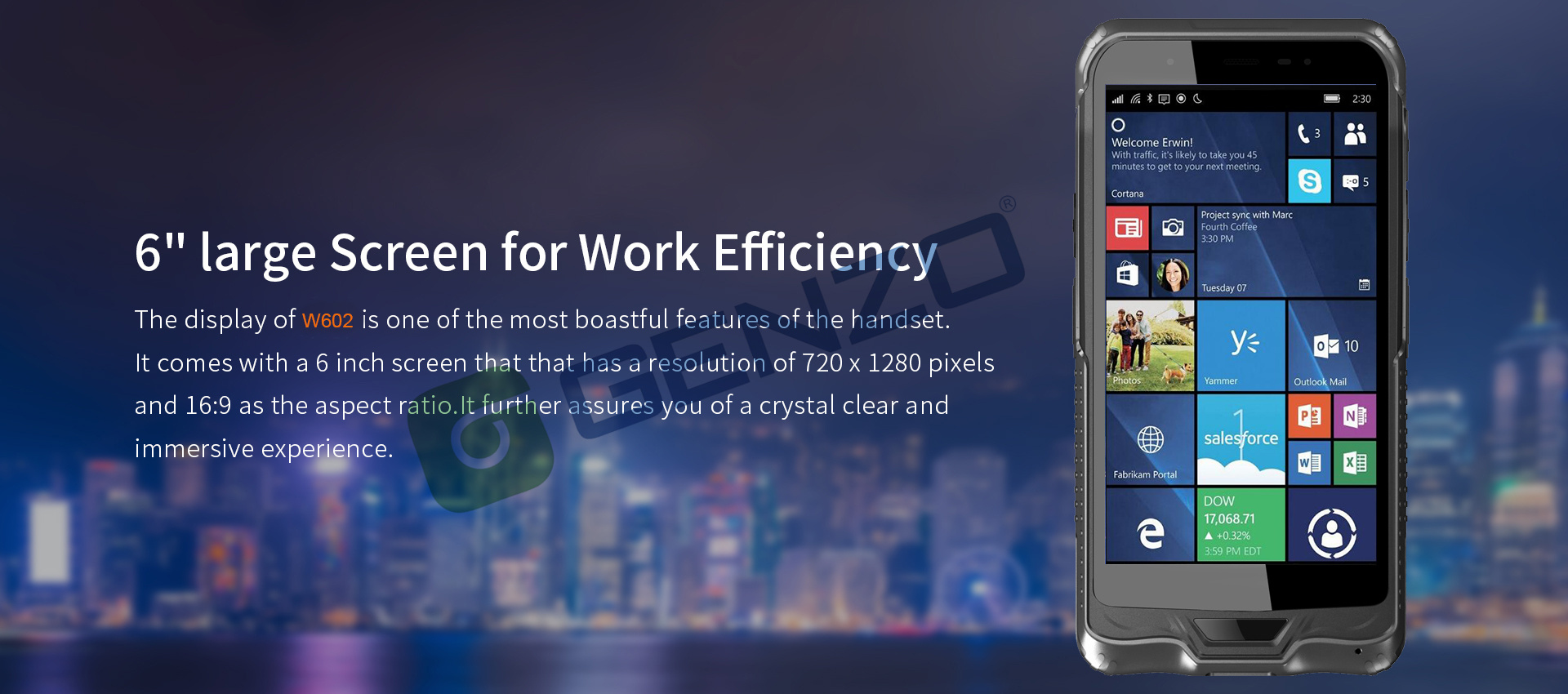

5.98“ 16:9,720*1280 IPS LCD,430 nits
Touch Panel
5 point G+FF capacitive touch screen,Corning® Gorilla® Glass
Camera
Front:2.0MP with indicator light,Rear 5.0MP automatic focusing
Battery
3.7V/5000mAh. Removeable polymer lithium ion battery
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Data Collection & Networking
Barcode Scanner
1D Optional Honeywell N4313;    2D Optional Honeywell N4680/N3680
NFC
Built-in 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT4.2 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG
4G
MeiGlink SLM750, LTE-FDD: B1/3/5/8; LTE-TDD:B38/39/40/41;  WCDMA: B1/B8;                  TD-SCDMA:B34/39; CDMA&EVDO:BC0; GSM: 900/1800
GPS
U-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 10 IOT inactivated os(Free)
I/O Port & Appearance & Package
I/O Port
USB Type-C x 1,
SIM Card x 1,
TF Card x 1,
4Pin machine buttom x 1
Φ3.5mm standard earphone jack x 1
Dimension
185 x 94.6 x 28.5mm
Weight
Device unit: 380g.Unit with giftbox and standard accessories:1000g.
Package

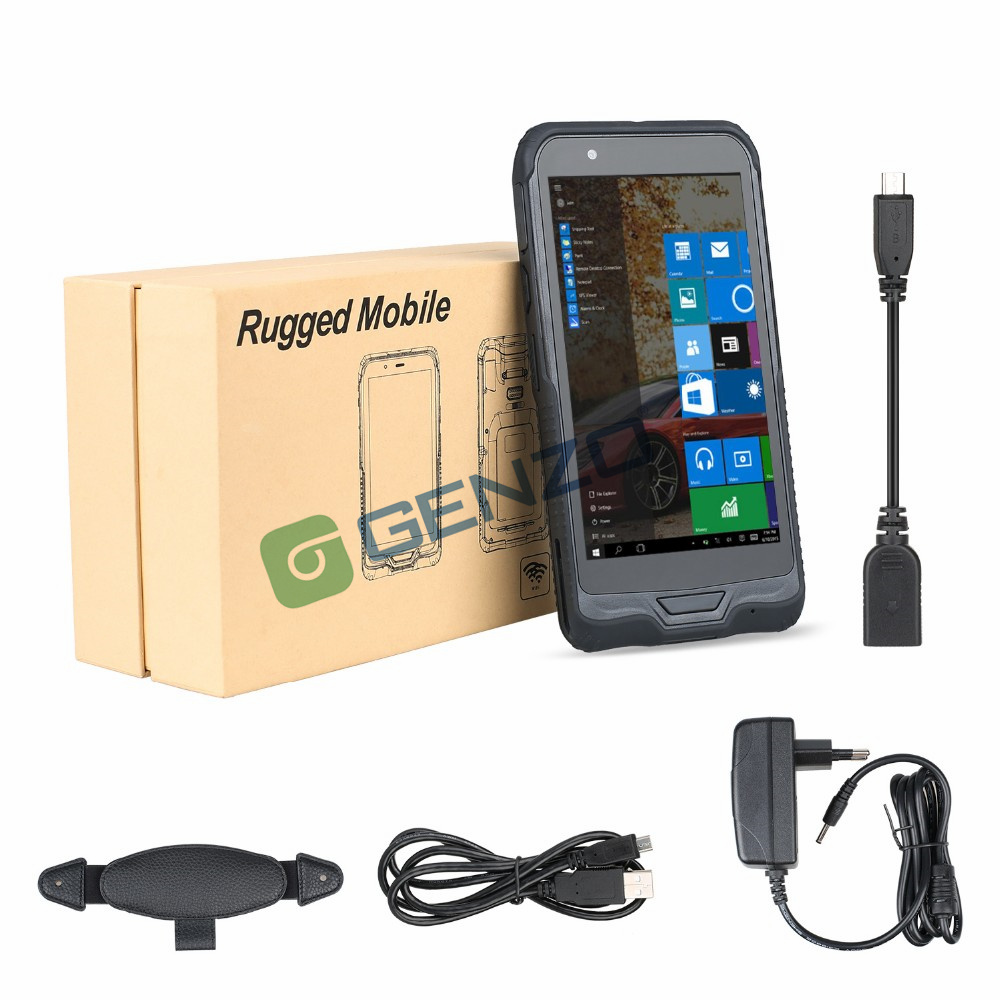

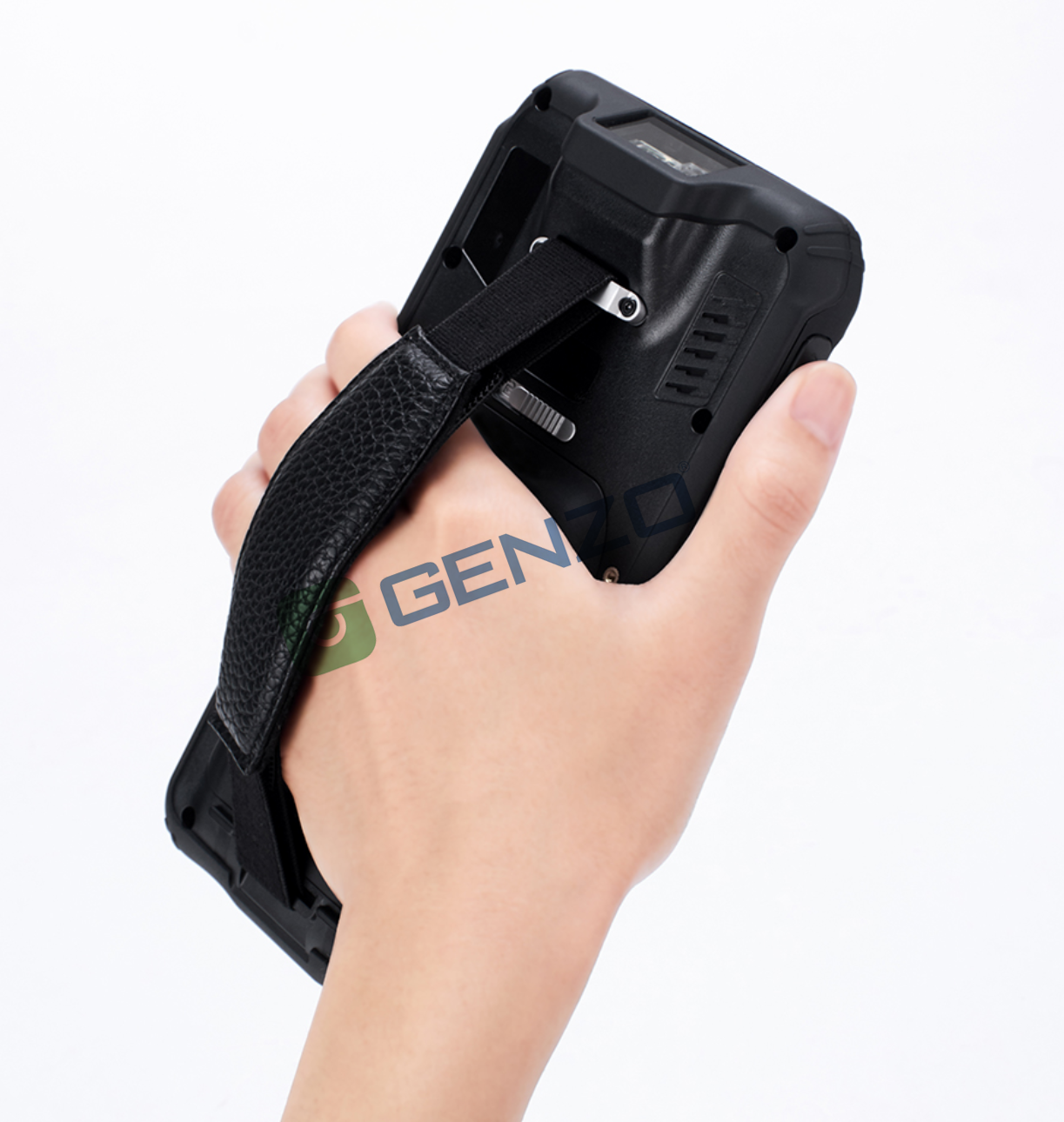

USB cable/Hand-strap/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67
IP65 Report：waterproof test：IP-X5，dustproof test：IP-6X
a.nozzle inner diameter：6.3mm；
b.water-carrying capacity：12.5±0.625L/min；
c.water pressure：adjust according to specified water-carrying capacity；
d.central part of main water flow Away from the nozzle 2.5 m diameter about 40mm circle；
e.water spray time for outter shell per a square meter：about 1min；
f. test time：at least 3min;
g.distance from nozzle to outter shell surface：2.5～3m.
after tested,check sample and no water inside situation
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-10 °C to 50 °C
Store Temperature
’-20 °C to 60 °C
Humidity
Humidity: 95% Non-Condensing
