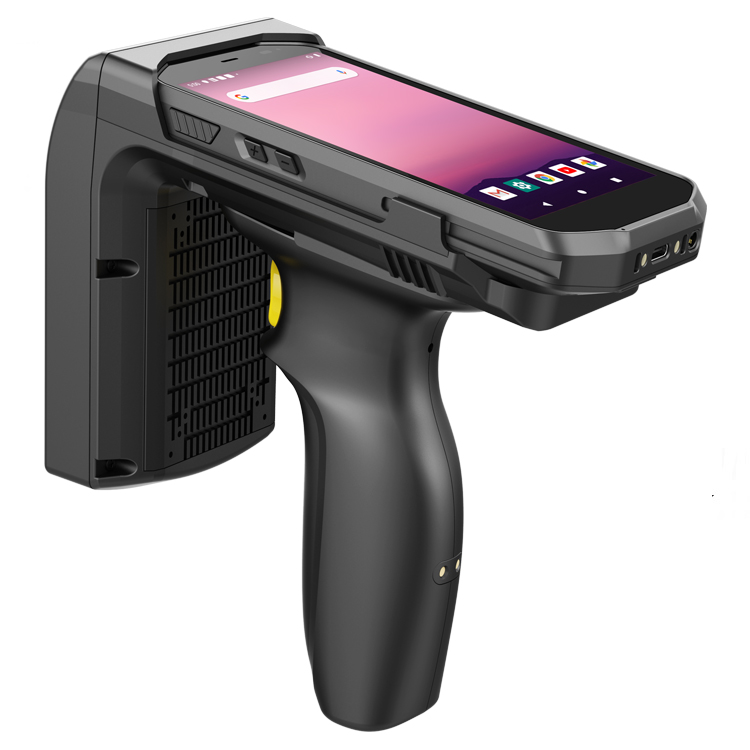

5 Inch Android PDA With UHF
info@genzo-tec.com
+86-13480710654
Toggle Navigation

5 Inch Android PDA With UHF

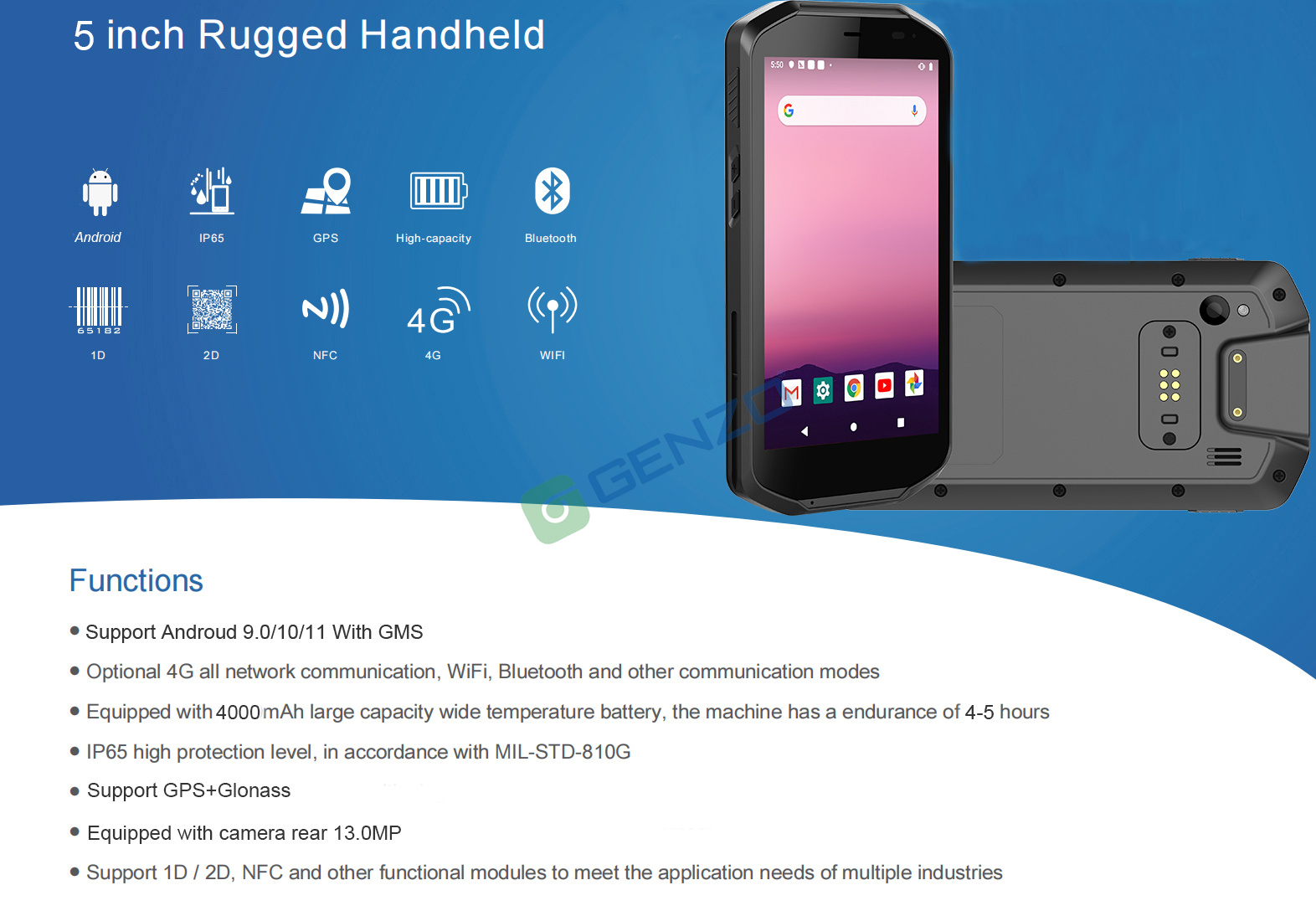

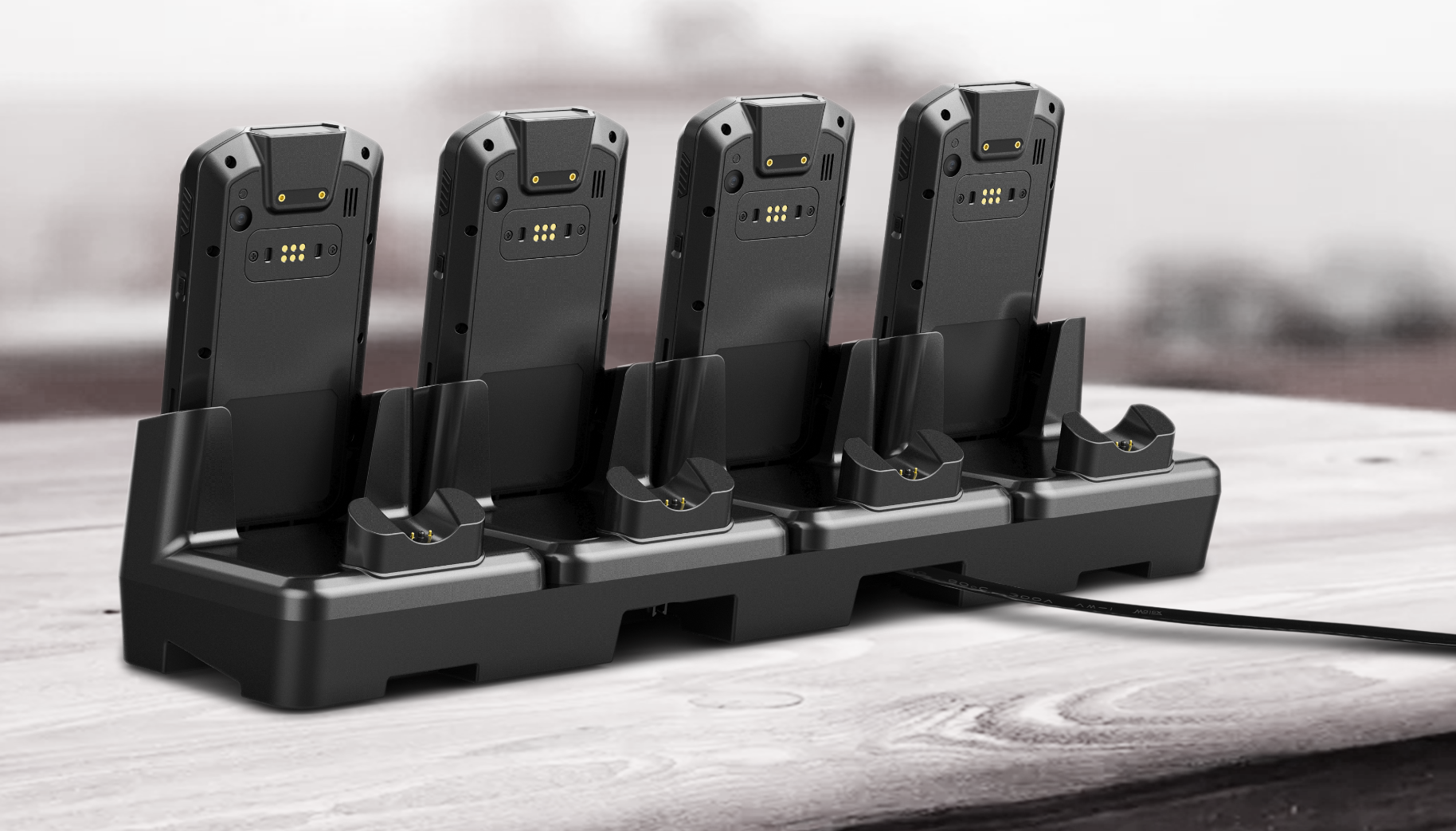

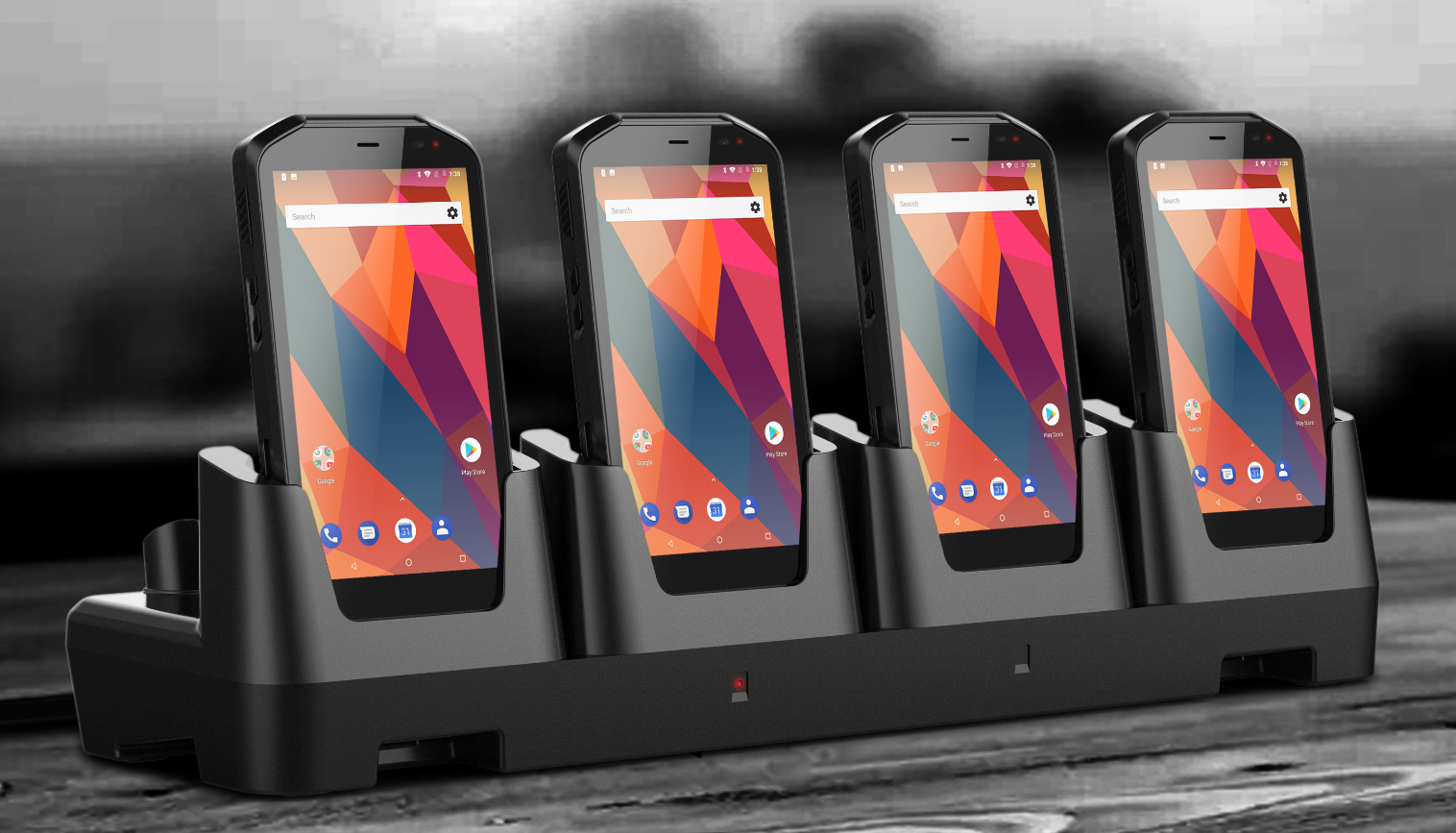

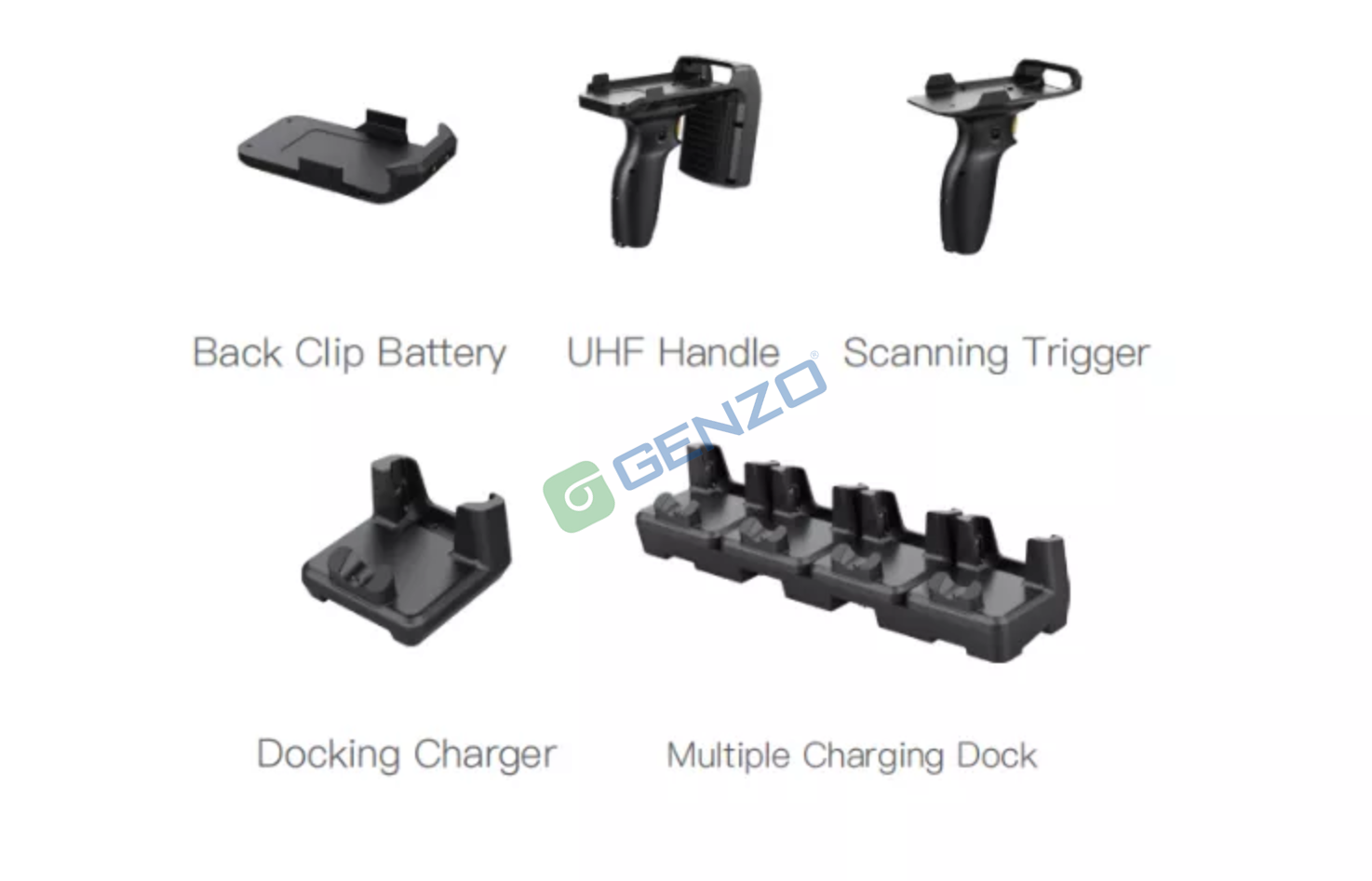

Modle:GZ-A503. CPU：Qualcomm MSM8953（8core） 2.0GHz， RAM/ROM：4GB LPDDR3/ 64GB Emmc， LCD Display：5“ 16:9,720*1280 IPS LCD,330 nits， Battery：3.7V/4000mAh. Built-in polymer lithium ion battery. Standard Machine: 4GB RAM + 64GB ROM + NFC + 4G LTE + 2D Barcode Scanner + Android OS. Optional Items: Docking Station / Scanner Triggers / Removeable Backup Battery.
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
Qualcomm MSM8953（8core） 2.0GHz
GPU
Adreno 506 1920 × 1200 @ 60 fps
RAM/ROM
4GB/ LPDDR3 /   64GB Emmc
External Memory
Support TF*1,MAX 128GB

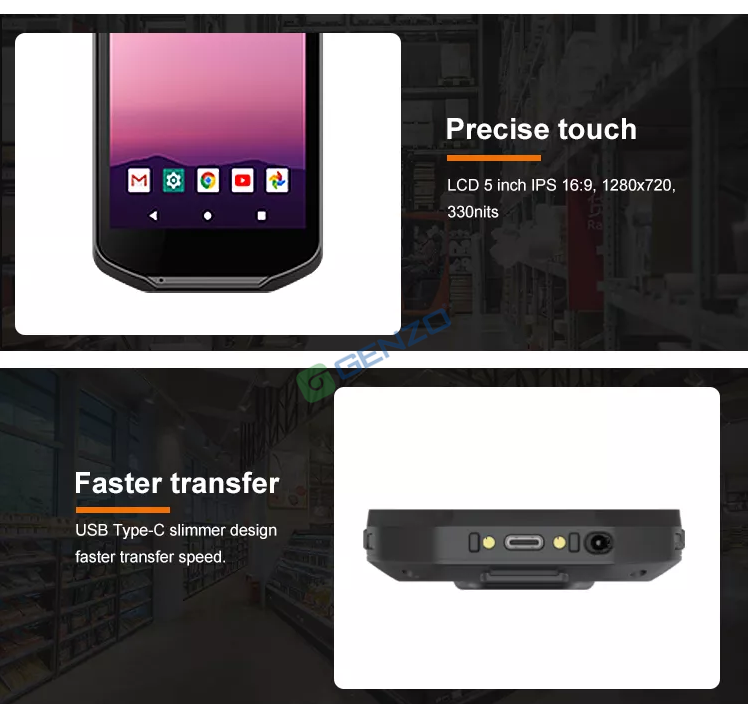

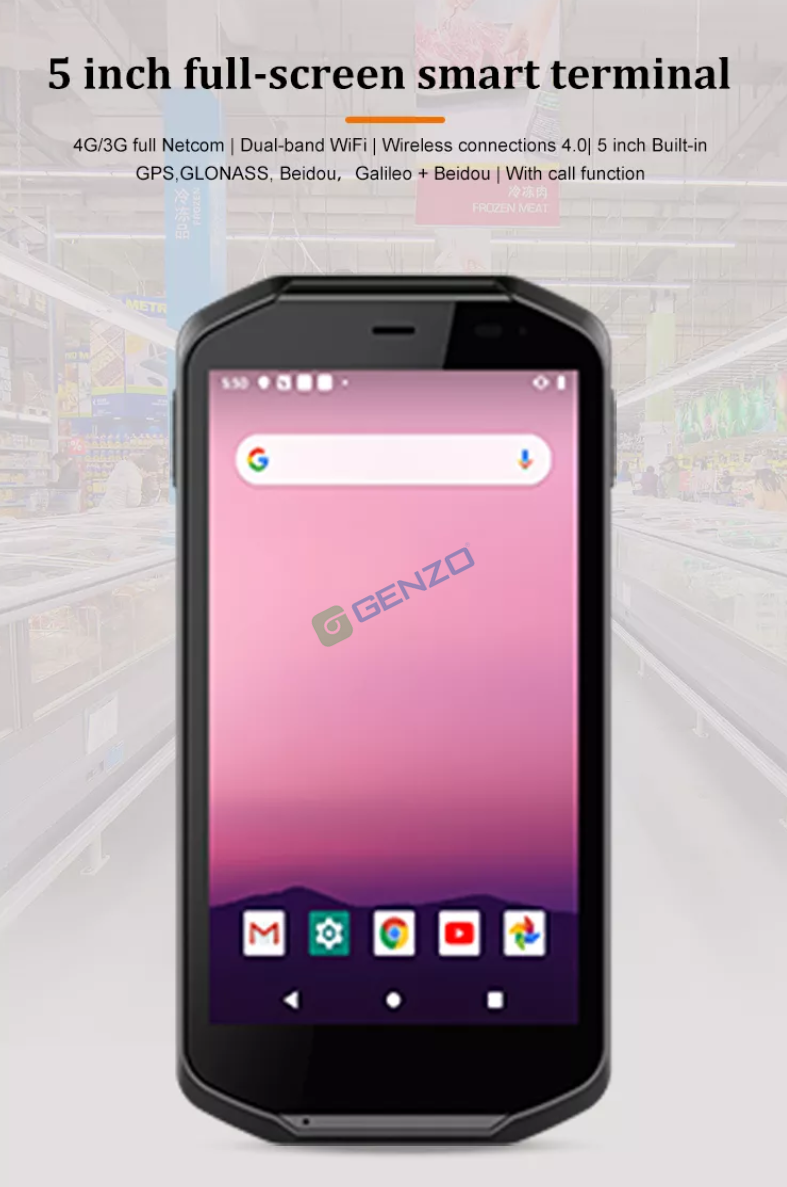

LCD Display
5“ 16:9,720*1280 IPS LCD,330 nits
Touch Panel
5 point G+F capacitive touch screen,Corning® Gorilla® Glass
Camera
Rear13.0MP

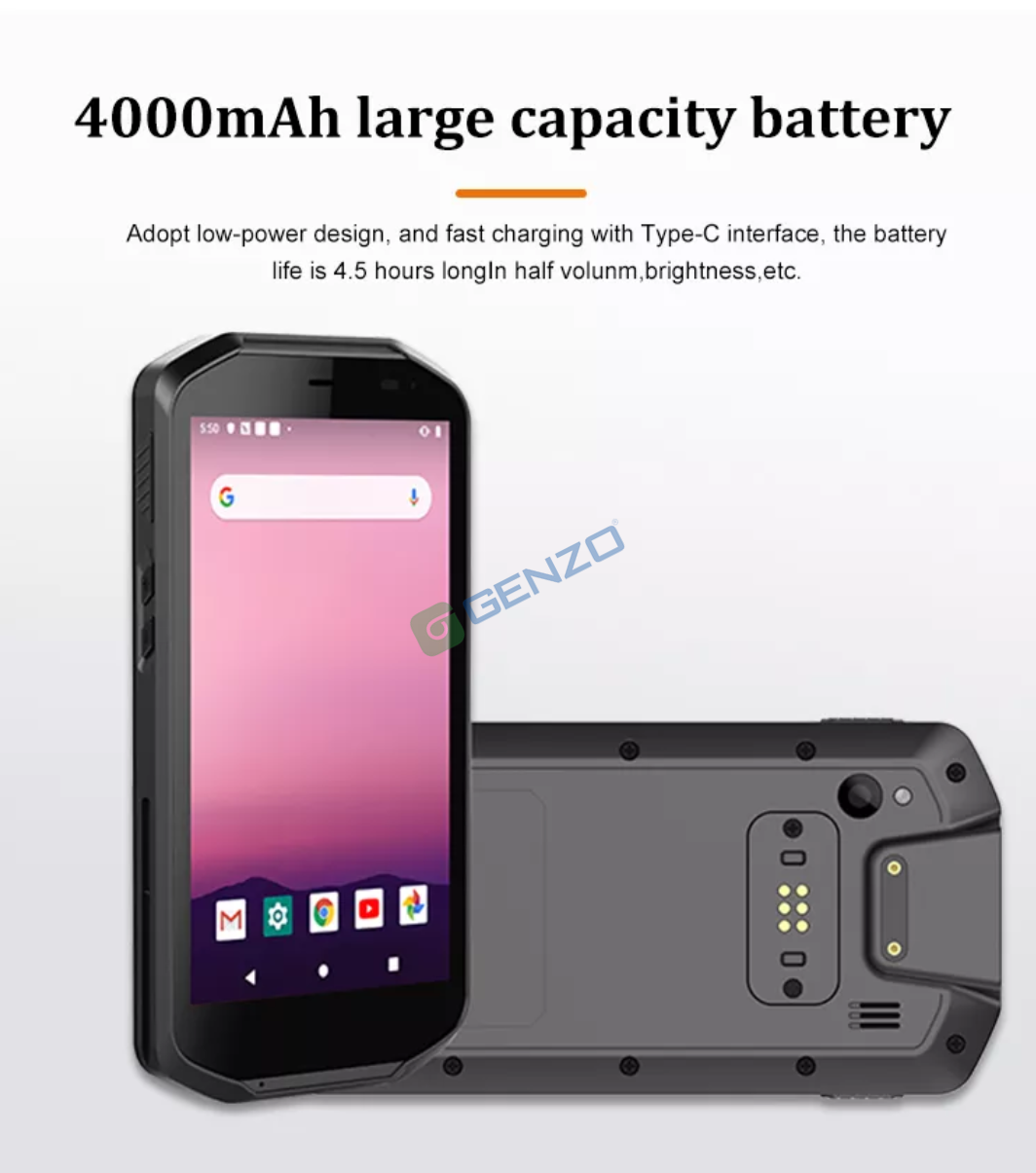

Battery
3.7V/4000mAh. Built-in polymer lithium ion battery
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Sensor
light Sensor *1,Geomagnetic sensor *1,Ggyroscope *1,G_sensor *1

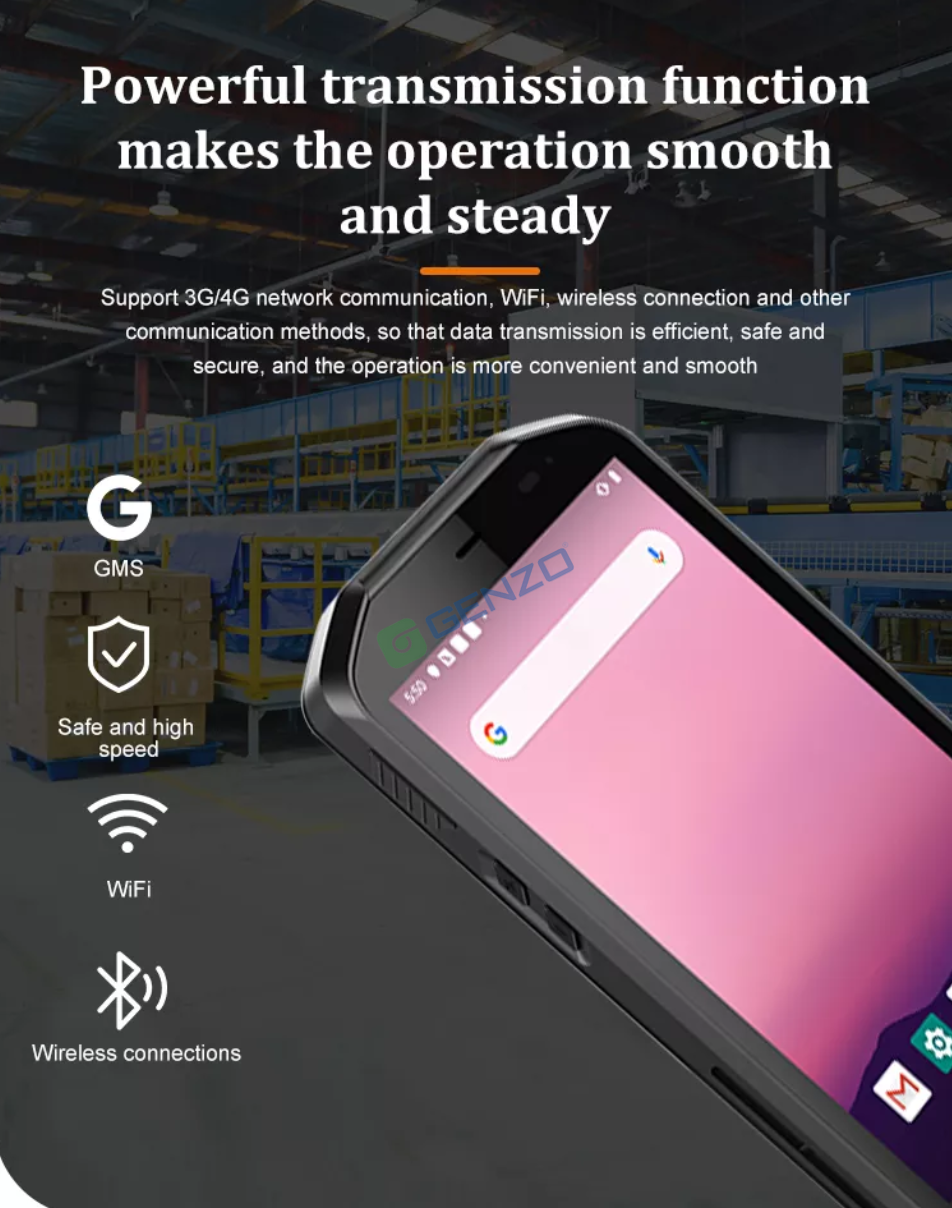

Data Collection & Networking

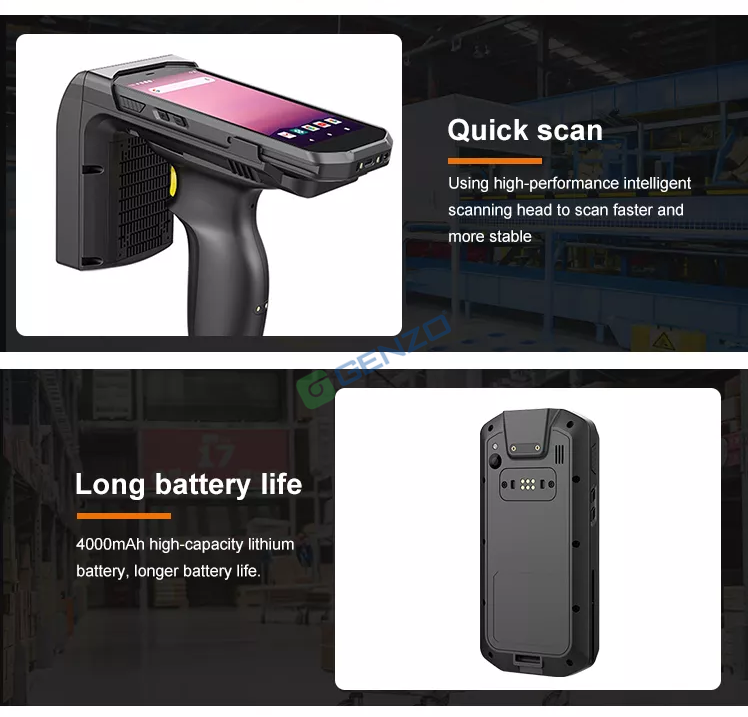

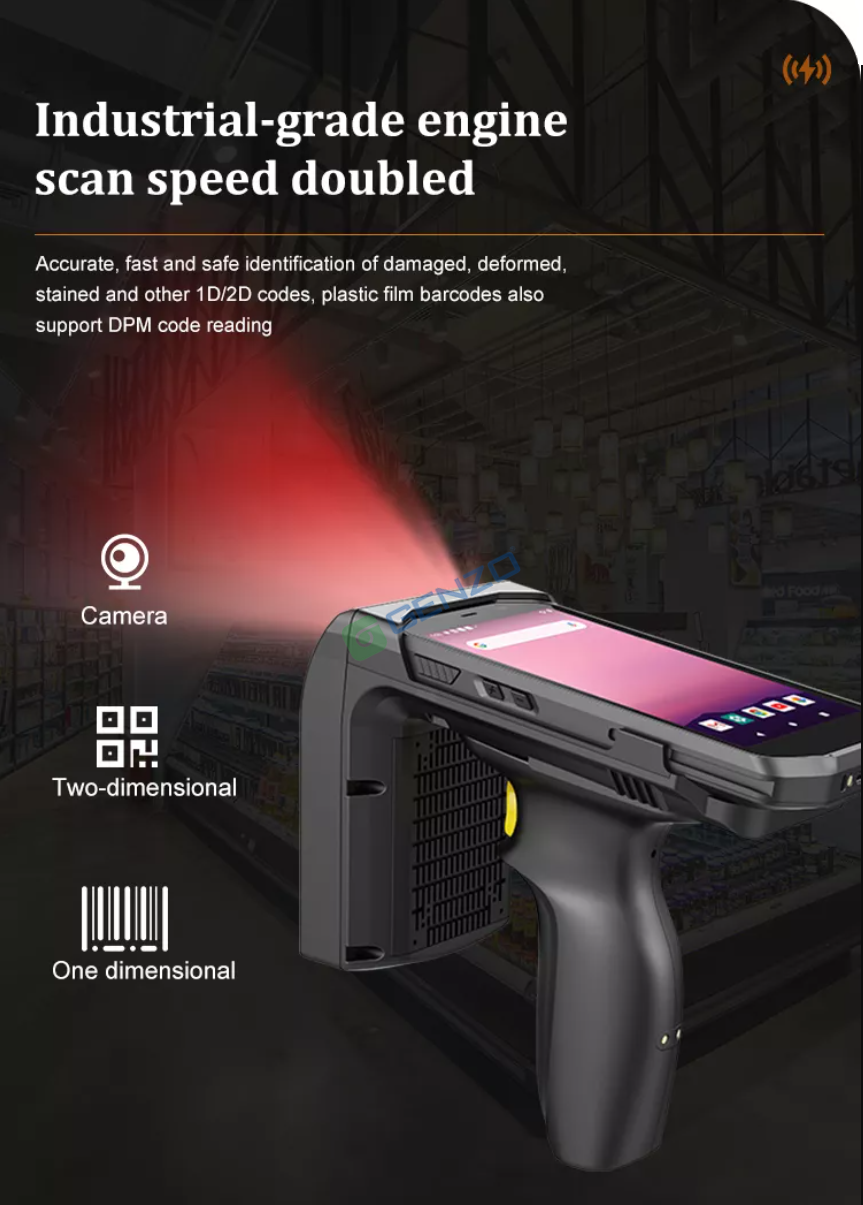

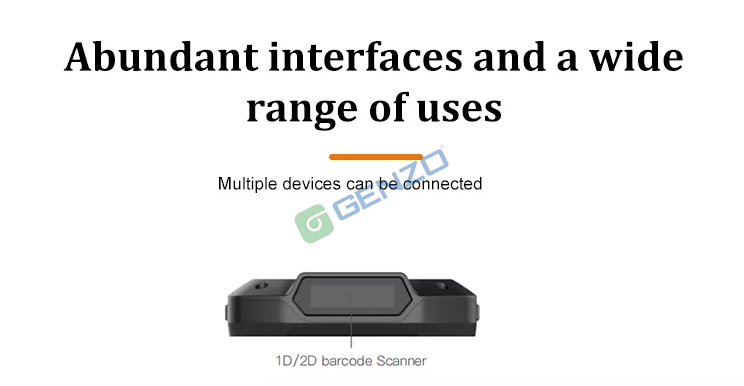

Barcode Scanner
Built-in 2D Zebra4710
NFC
Built-in 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT4.0(BLE)    transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI
4G
CMCC 4M：
LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
GPS
Support GPS+Glonass
OS
Android 9/10/11 with GMS
I/O Port & Appearance & Package

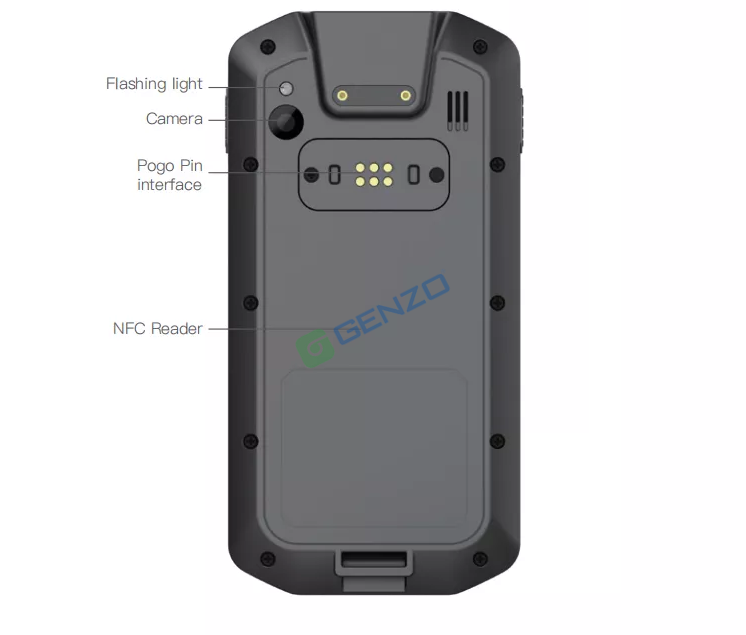

I/O Port
USB Type-C x 1,
SIM Card x 1,
TF Card x 1,
2Pin machine buttom x 1
8Pin back shell x 1
Φ3.5mm standard earphone jack x 1
Dimension
147.7 x 74 x 19mm
Weight
Device unit: 220g.
Package
USB Type-c cable/Type-c OTG Cable/Hand-strap/Charger 5V 3A/Packing box
Certificate System & Reliability Design

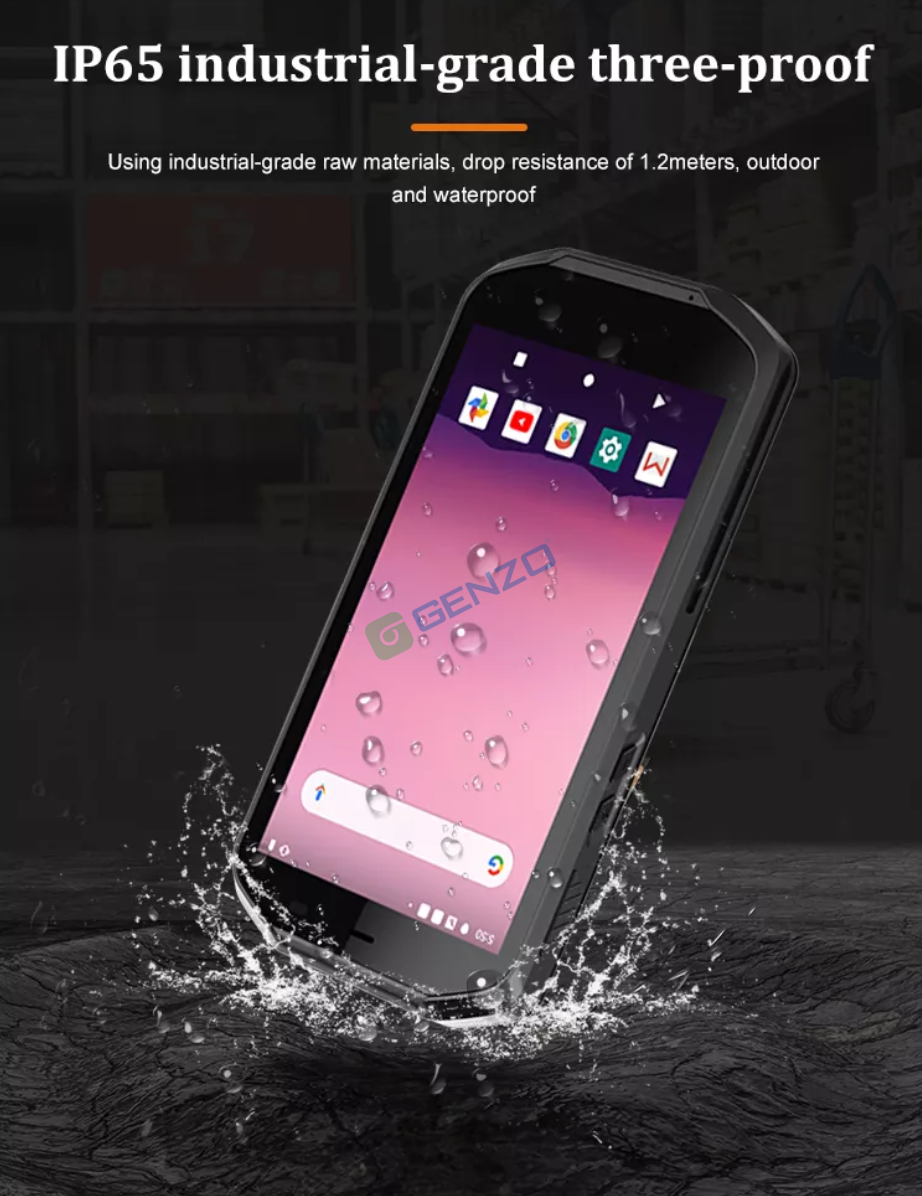

IP67/IP65
IP65 Report：waterproof test：IP-X5，dustproof test：IP-6X
a.nozzle inner diameter：6.3mm；
b.water-carrying capacity：12.5±0.625L/min；
c.water pressure：adjust according to specified water-carrying capacity；
d.central part of main water flow Away from the nozzle 2.5 m diameter about 40mm circle；
e.water spray time for outter shell per a square meter：about 1min；
f. test time：at least 3min;
g.distance from nozzle to outter shell surface：2.5～3m.
after tested,check sample and no water inside situation
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,   IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-10 °C to 50 °C
Store Temperature
‘-20 °C to 60 °C
Humidity
Humidity: 95% Non-Condensing
