GZ-A605

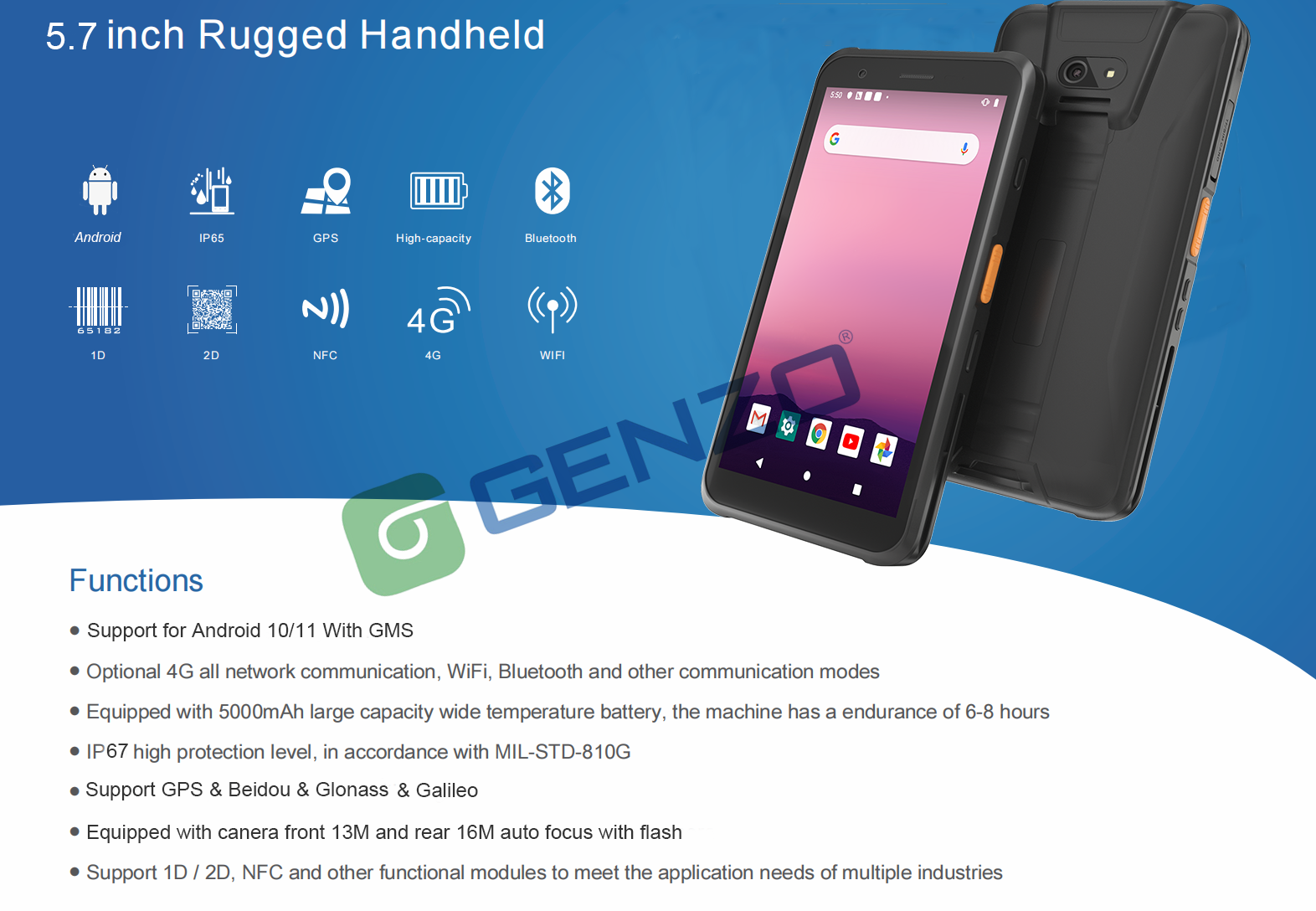

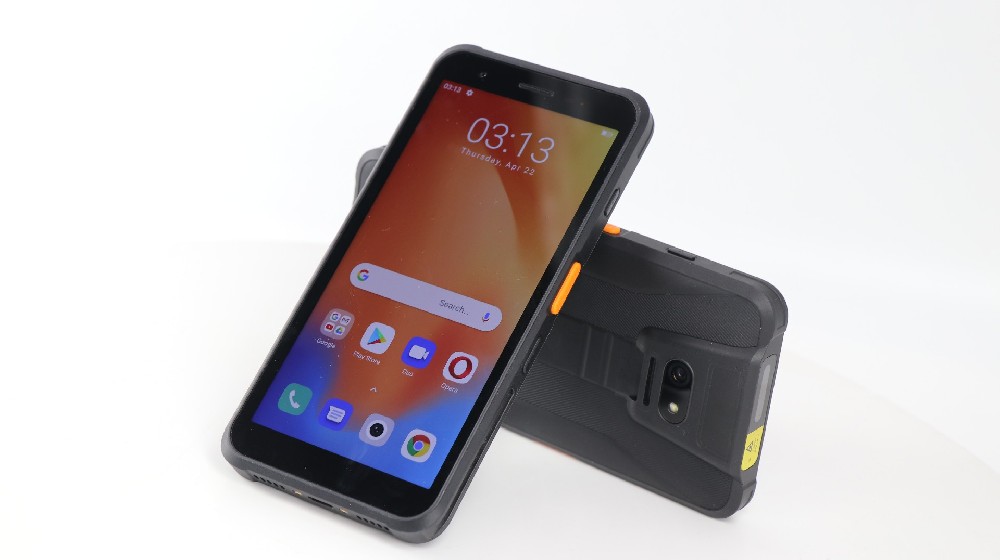

Modle:GZ-A605, MT6762V/WD, 4*A53 2.0GHz + 4*A53 1.5GHz, RAM/ROM:LPDDR4X up to 4GB (dual channels with 16-bit data bus width) / 64GB Emmc. 5.7“ 16:9,720*1440 18:9 IPS LCD,430 nits. 3.8V/5000mAh.Built-in 2D Zebra4710

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

Hardware
CPU	MT6762V/WD, 4A53 2.0GHz + 4A53 1.5GHz
GPU	IMG GE8320 650MHz
RAM/ROM	LPDDR4X up to 4GB (dual channels with 16-bit data bus width)/ 64GB Emmc
External Memory	Support TF*1,MAX 128GB

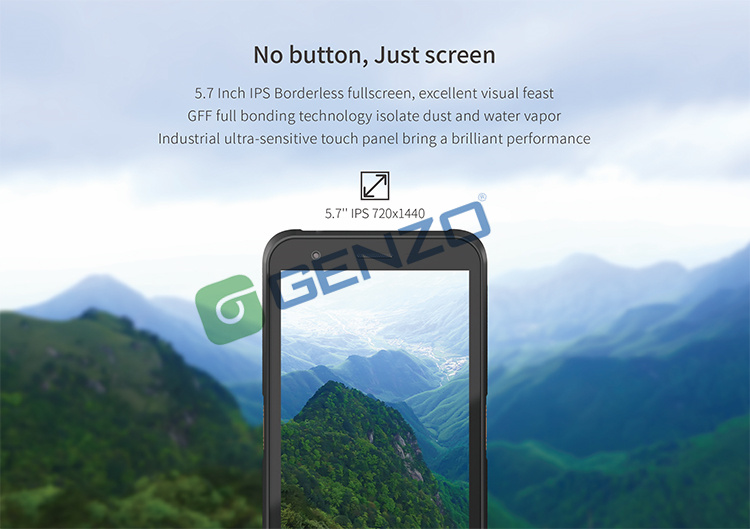

LCD Display	5.7“ 16:9,720*1440 18:9 IPS LCD,430 nits
Touch Panel	5 points Capacitive，G+FF，Corning Gorilla Glass 3

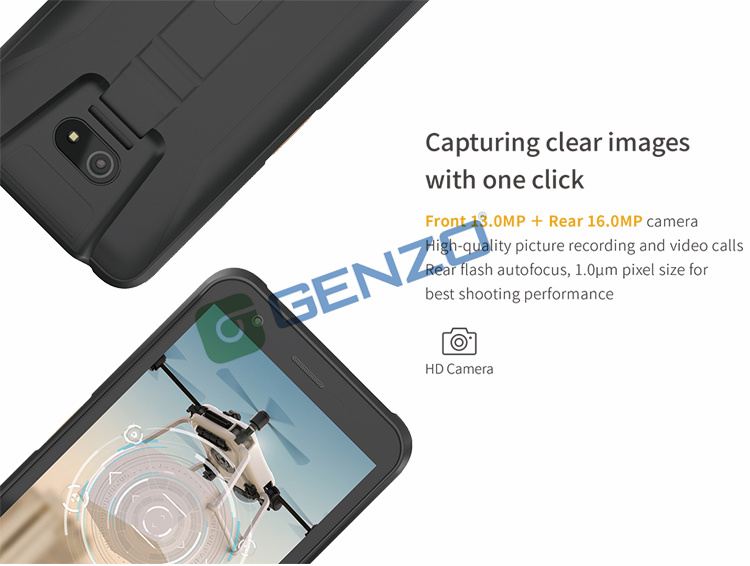

Camera	Front:13.0MP, Rear16.0MP automatic focusing with flash
Battery	3.8V/5000mAh. Built-in polymer lithium ion battery
Speaker	Embedded 8Ω/0.8W waterproof speakerx 1
Compass	Built-in
Real Time Clock(RTC)	Built-in
Sensor	light Sensor 1,Proximity sensor 1,Indicator light 1,G_sensor 1
Data Collection & Networking

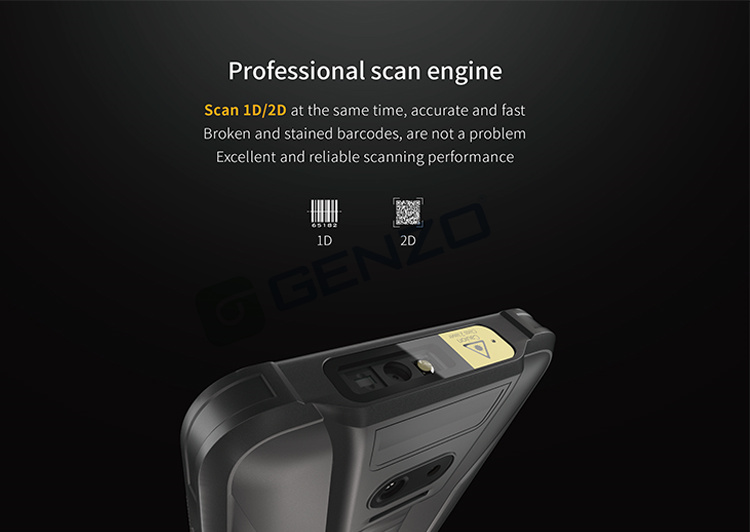

Barcode Scanner	Built-in 2D Zebra4710
NFC	Support ST21NFCDXBGARA7
BT	BT5.0(BLE) transmission distance：10m

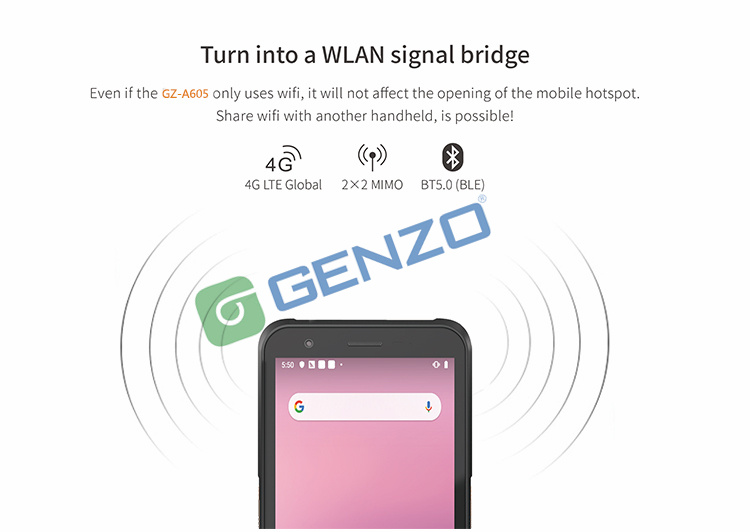

WIFI	WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming
4G	GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41)
GPS	Support GPS+GLONASS+beidou+Galileo
OS	Android 10/11 with GMS

I/O Port & Appearance & Package

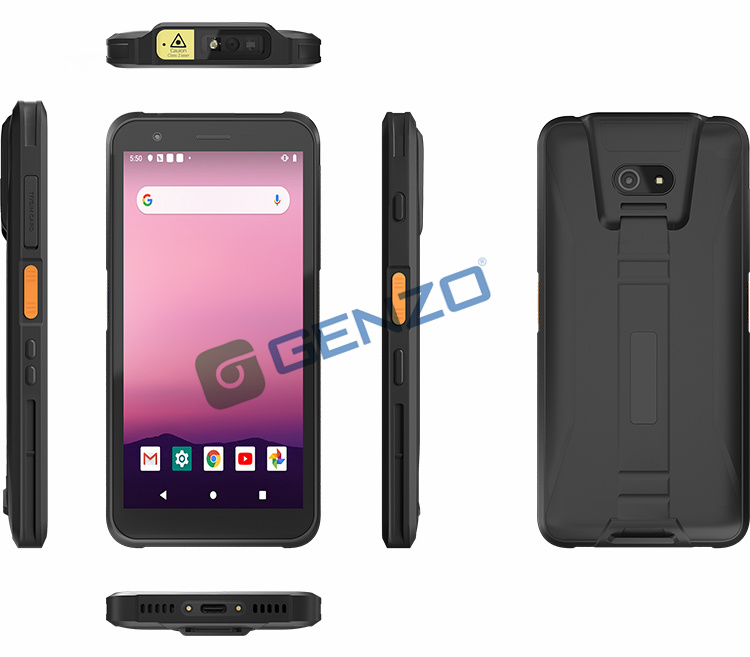

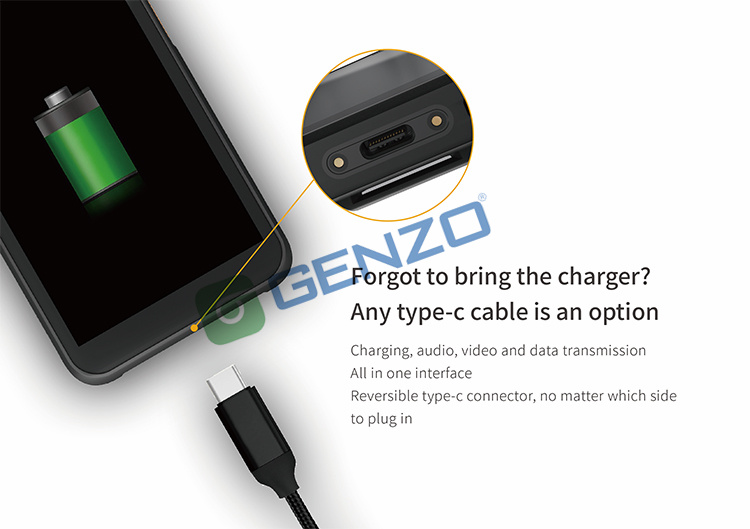

I/O Port	USB Type-C x 1, SIM Card x 1,TF Card x 1, Three choice two card socket (two nano SIM cards or one nano SIM card and one T card) 4Pin machine buttom x 1 Φ3.5mm standard earphone jack x 1

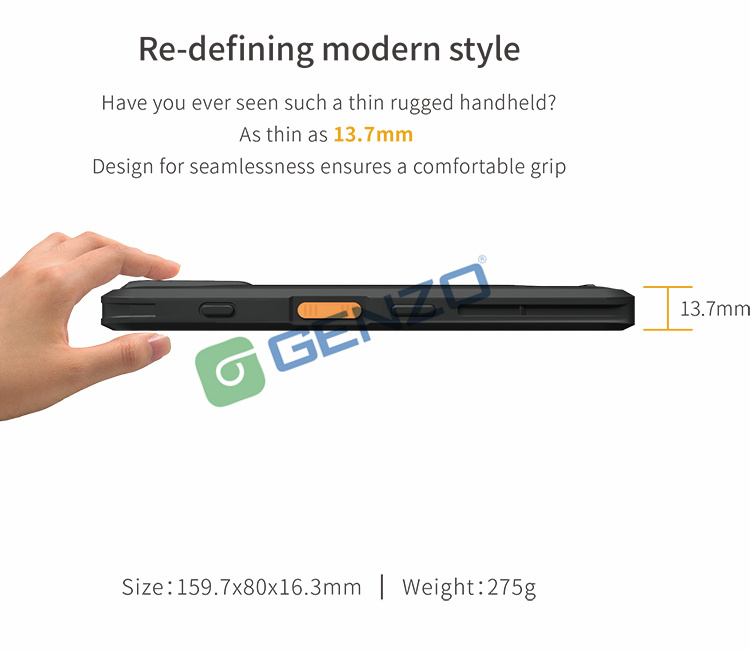

Dimension	159.78016.3mm
Weight	Device unit: 275g.
Package	TYPE-C 2.0*1 OTG cable/Hand-strap/Charger 5V 3A/Packing box
Certificate System & Reliability Design

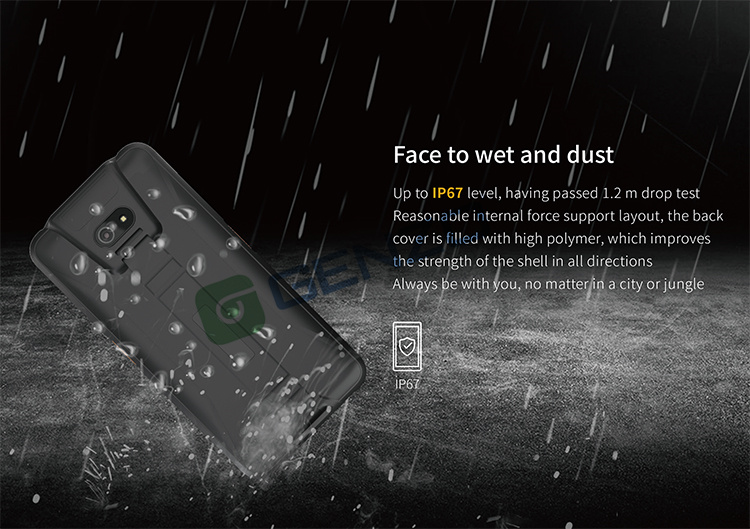

IP67/IP65	IPX7 Method name：short time submerging test test device and test condition：submerge water box。the size should make the testing sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m. Testing time: 30 min
CE NB	YES
MIL-STD-810G	YES
Battery	UN38.3，MSDS, IEC62133
Drop Height	MIL-STD-810G 1.22m drop
Operate Temperature	‘-10 °C to 50 °C
Store Temperature	‘-20 °C to 60 °C
Humidity	Humidity: 95% Non-Condensing
