GZ-MT86X 8 Inch 8+128 IP67 Rugged Android Tablet

Modle:GZ-MT86X. CPU：MT6789 2*A76 2.2GHz，6*A55 2.0GHz， RAM/ROM：8GB DDR4L +128 GB EMMC， LCD Display：8 inch 16:10,800*1280 FHD LCD, 700 nits，Battery: 3.7V/8500mAh. Built in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station / 2D Barcode Scanner.
Products Inquiry

PRODUCT INFORMATION

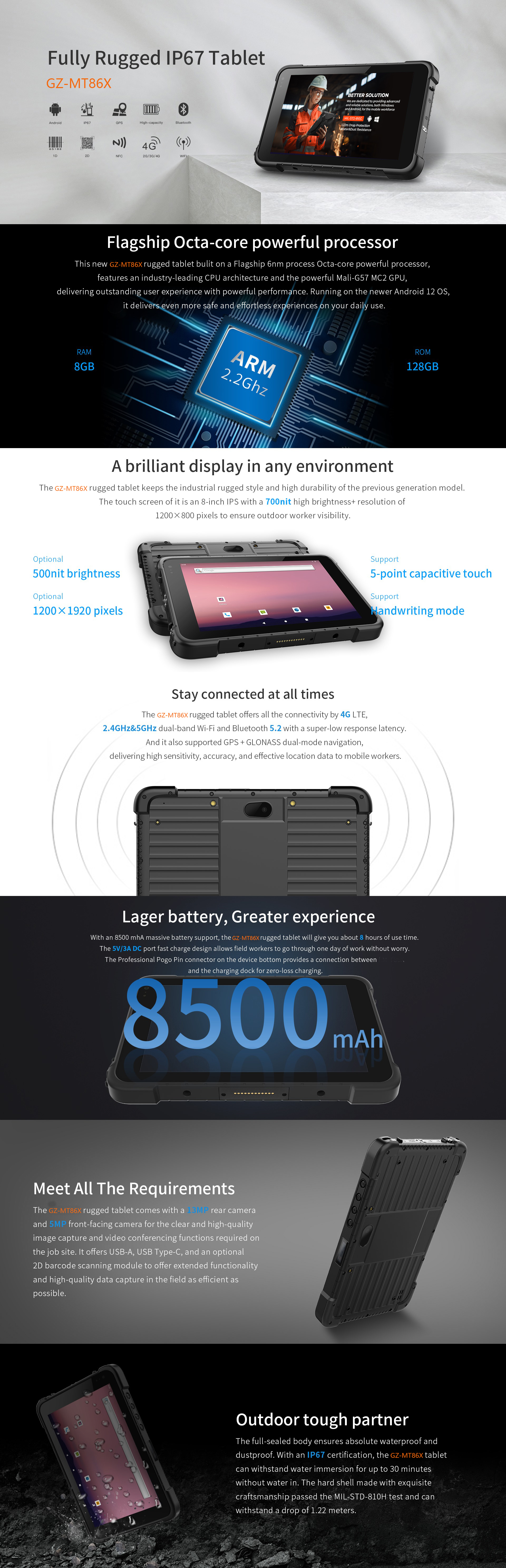

T86X-details page 拷贝.jpg

Hardware
CPU
MT6789 2*A76 2.2GHz，6*A55 2.0GHz
GPU
ARM G57 MC2
RAM/ROM
8GB LPDDR4/ 128GB Emmc
External Memory
Support TF*1,MAX 512GB
LCD Display
8“ 16:10,800*1280 FHD LCD, 700 nits
Touch Panel
Multipoints Capacitive, G+G, Rigidity: above 7H-Anti-scratch, support handwriting
Camera
Front:5.0MP, Rear: 13MP auto-facus with flashlight
Battery

Built-in Li-polyment Battery  8500mAh/3.7V

7 hours  ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )

Speaker
Embedded 8Ω/1W waterproof speakerx 1
Indicator LightRed light on when power is low

Long red light when charging

Long green light  when full with power

Sensor
light Sensor *1,Gyro Sensor *1,G_sensor *1,Compass Sensor *1
Data Collection & Networking
Barcode Scanner
2D Optional Zebra SE4710 Soft decoding
NFC
Build-in NFC, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT5.2 (BLE) class1  Transmited distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI
4G
European version TDD-LTE: B38/40/41 FDD-LTE: B1/3/5/7/8/20 WCDMA:B1/B5/B8 GMS:B5/3/8;  Option American version FDD-LTE：B2/4/5/7/12/13/17/28b WCDMA：B2/4/5
GPS
Support :GPS+Glonass; Capture sensitivity: -140 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second;                                   GPS frequency: 1575.42MHz, GLONASS frequency: 1602MHz
OS
Android 12 With GMS
I/O Port & Appearance & Package
I/O Port
USB 2.0 Type-A x 1, Type-c x 1,
SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1
Dimension
225.6*144.6*21.5 mm
Weight
Device unit: 715g.Unit with giftbox and standard accessories:1400g.
Package
Type-c cable/Type-c OTG cable/Handstraps/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67
IP67 Report: Water resistance: IP-X5, Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm；
b. water speed:12.5±0.625L/min；
c. Water Pressure:djust according to water volumn；
d.Central part of water volumn
e.Spray time in surface
of panel:about 1min；
f.test time:at least 3min；
g.distance between nozzle and panel surface:2.5～3m.
       After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
