8 Inch Rugged Windows Tablet

Modle:GZ-J87. CPU：Intel JASPER LAKE N5100, up to 2.80 GHz， RAM/ROM：4GB DDR3L + 64GB EMMC， LCD Display：8 inch 16:10, 1200×1920P, 550 cd/m2， 7.6V/5000mAh. Removable polymer li-ion battery. 7.6V/5000mAh (It can be fully charged in 4 hours under the DP Fast charging current of 19V/3.42A)9h(default 50% volumn，default 200 lumens brightness，play 1080P HD video)
Products Inquiry

PRODUCT INFORMATION

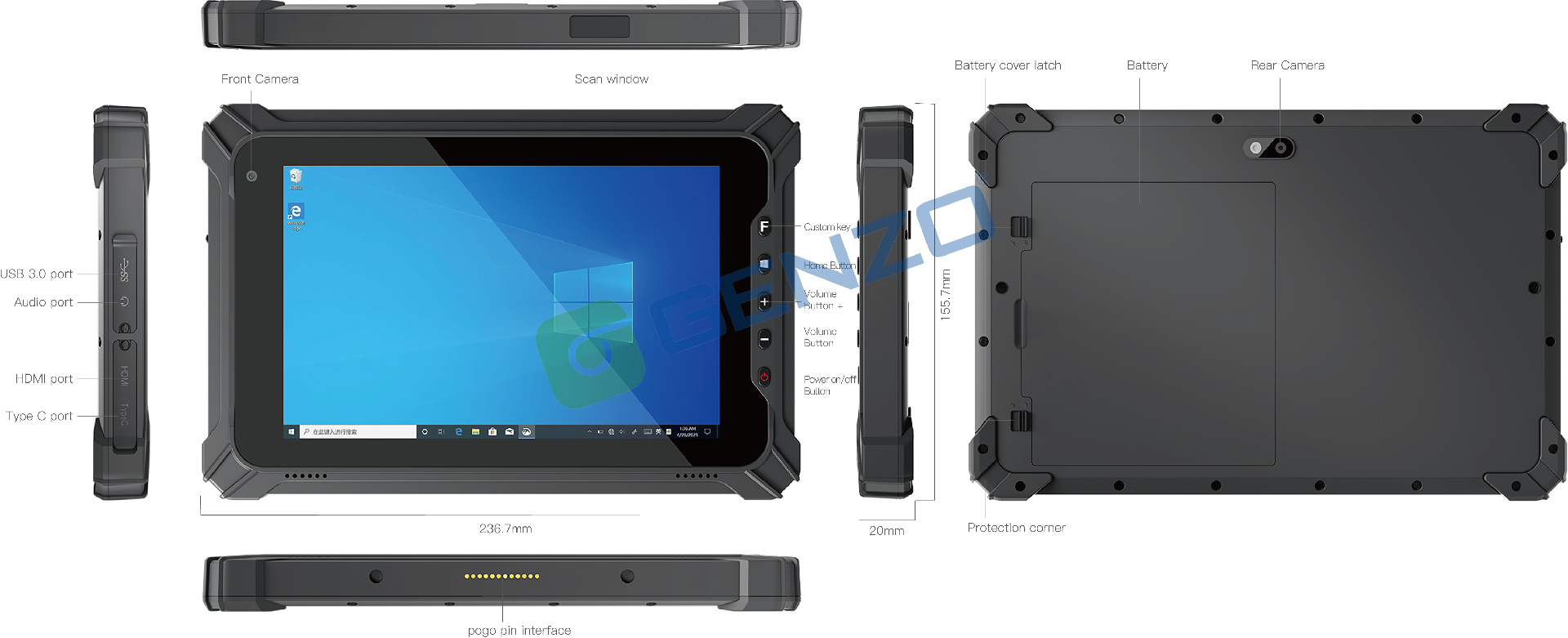

six views of I87J.png

Hardware
CPU
Intel JASPER LAKE N5100  2.8GHz
GPU
Intel® HD Graphics Gen 11 LP
RAM/ROM
4GB LPDDR3/ 64GB Emmc
External Memory
Support Micro SD card, up to 512GB
LCD Display
8“ 16:10,FHD 1200*1920 TFT,  550 nits
Touch Panel
5 points Toughened glass capacitor screen，G+F+F，Rigidity: above 7H-Anti-scratch,Corning® Gorilla® Glass

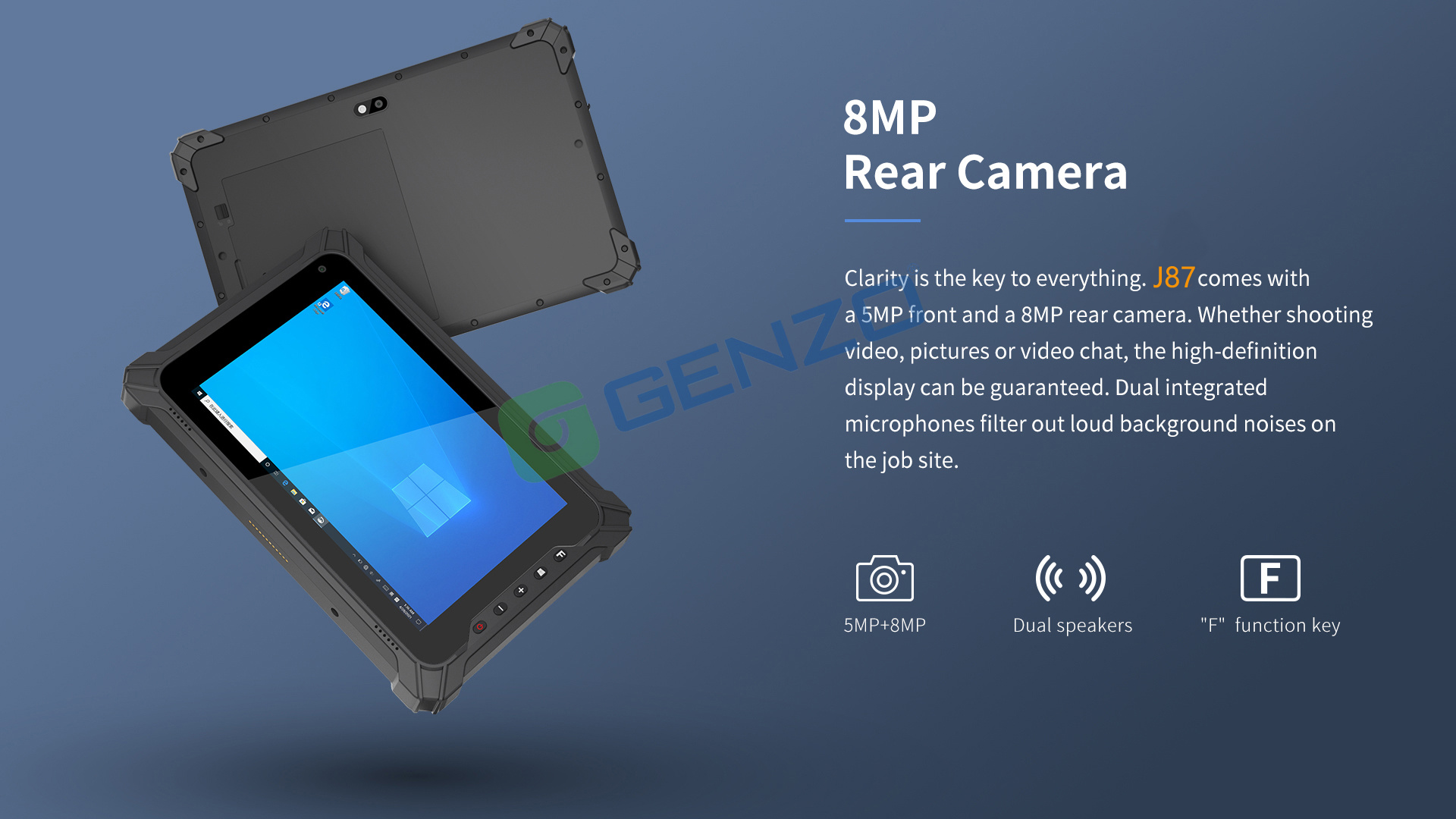

Camera
Front:5.0MP, Rear: 8.0MP Autofocus with flashlight
Battery
7.6V/5000mAh. Removable polymer li-ion battery. 7.6V/5000mAh (It can be fully charged in 4 hours under the charging current of 19V/3.42A)
9h(default 50% volumn，default 200 lumens brightness，play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 2
Data Collection & Networking
Barcode Scanner
2D Optional Honeywell N4680/N3680
NFC
Optional, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092/mifare protocol，Card reading distance：0-4cm
BT
BT4.2 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 7265
4G
MeiGlink SLM750, LTE-FDD: B1/3/5/8; LTE-TDD:B38/39/40/41;  WCDMA: B1/B8;                  TD-SCDMA:B34/39; CDMA&EVDO:BC0; GSM: 900/1800
GPS
Support          GPS（L1 1.575GHz C/A code），Beidou（B1 1.561GHz），
                                            GLONASS(L1 1.602GHz)
OS
Windows 10 home activated os(Free), Optiona PRO/IOT/LTSC
I/O Port & Appearance & Package

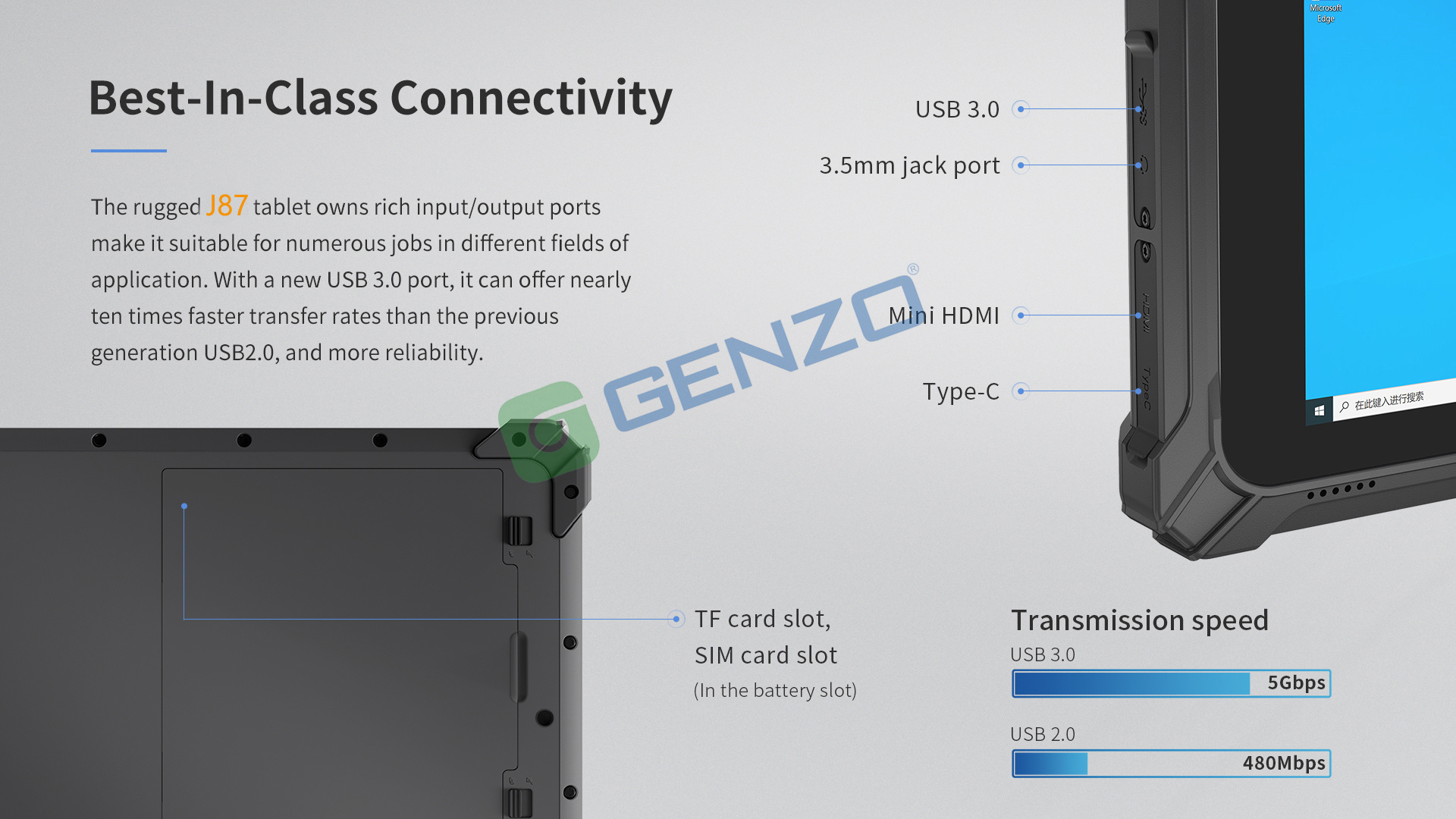

I/O Port
HDMI 1.4a x 1,
USB 3.0x1, Type C x1（data&charing）,
Nano SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Indicator light
Indicator light * 2 R / g two-color lights and 1 blue light. The power on is blue and always on. It is red constant when charging.
The full display is green constant, and the low point flashes red.
Key
Scan key x1(When there is no adaptive scanning head, this key can be customized)
Power key x1,  Volume+ x1, Volume- x1, Home key x1
Dimension
236.7*155.7*20mm
Weight
Device unit: 910g.
Package
Type-c cable / Han-Straps157.5*57.30 PU+Elastic band（SGS)/
Charger 19V/3.42A / Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67
 IPX5 Method name：short time submerging test test device and test condition：submerge water box。the size should make the testing
sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample
top side to water surface at least 0.15m. Testing time: 30 min
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
