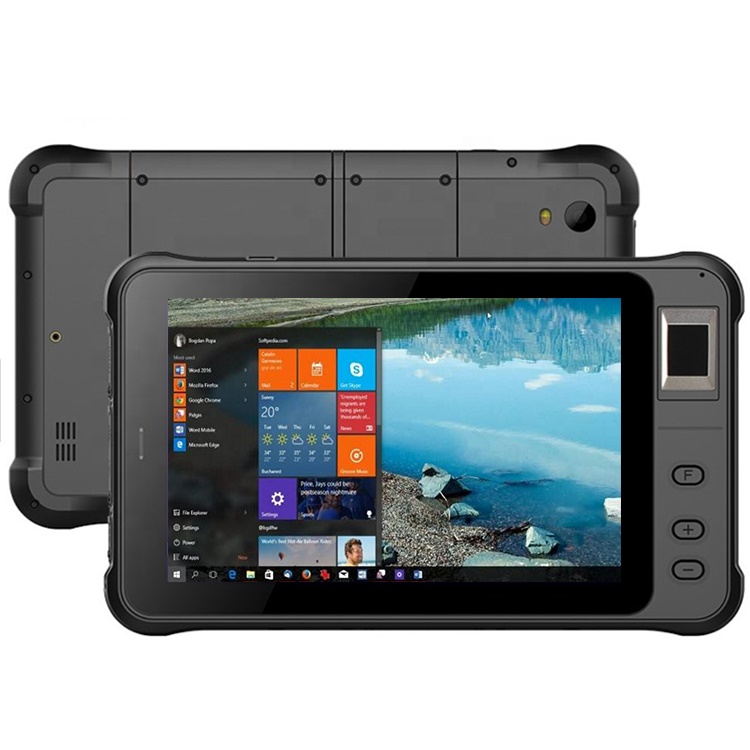

7 Inch Rugged Windows Tablet

REMARKS:CCT: 3000K, 4000K, 5000K, 5700K， 6500KCRI: Ra80&90Beam Angle: 40°, 60°, 90°,110°Certificate: CE, RoHS, CB, TUV, SAA, LPCIP Rank： IP65
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
Intel Atom x5 Z8350  1.92 GHz
GPU
Intel® HD Graphics
RAM/ROM
4GB LPDDR3/ 64GB Emmc
External Memory
Support TF*1,MAX 128GB

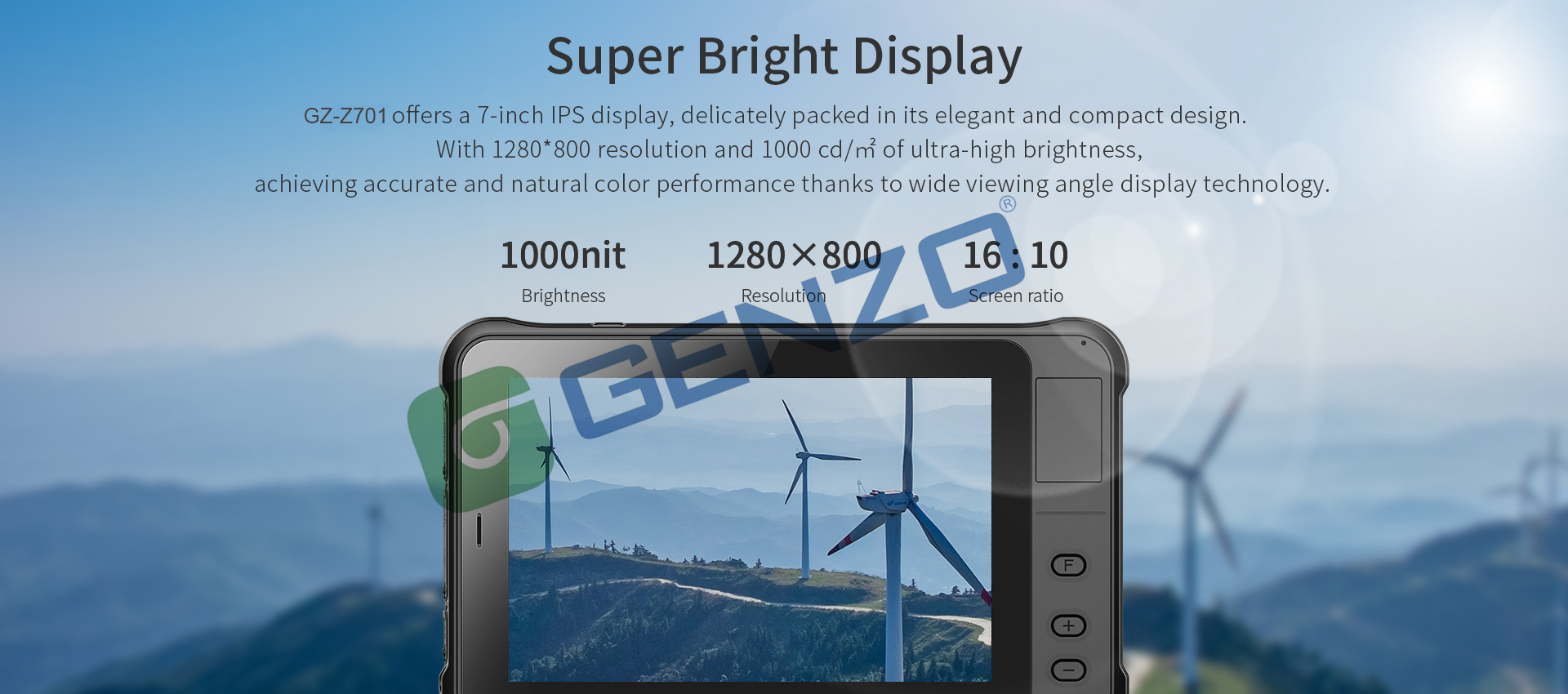

LCD Display
7“ 16:10,800*1280 IPS LCD, 1000 nits
Touch Panel
5 points capacity TP, G+G, hardness over 7H, scratch resistant,
TP thickness:1.1mm, COF, support touch with wearing gloves and wet finger
Camera
Front:2.0MP ,Rear: 5.0MP Auto focus with flash
Battery
3.7V/7500mAh. Built in polymer lithium ion battery
Endurance
Nearly 6hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default )
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1

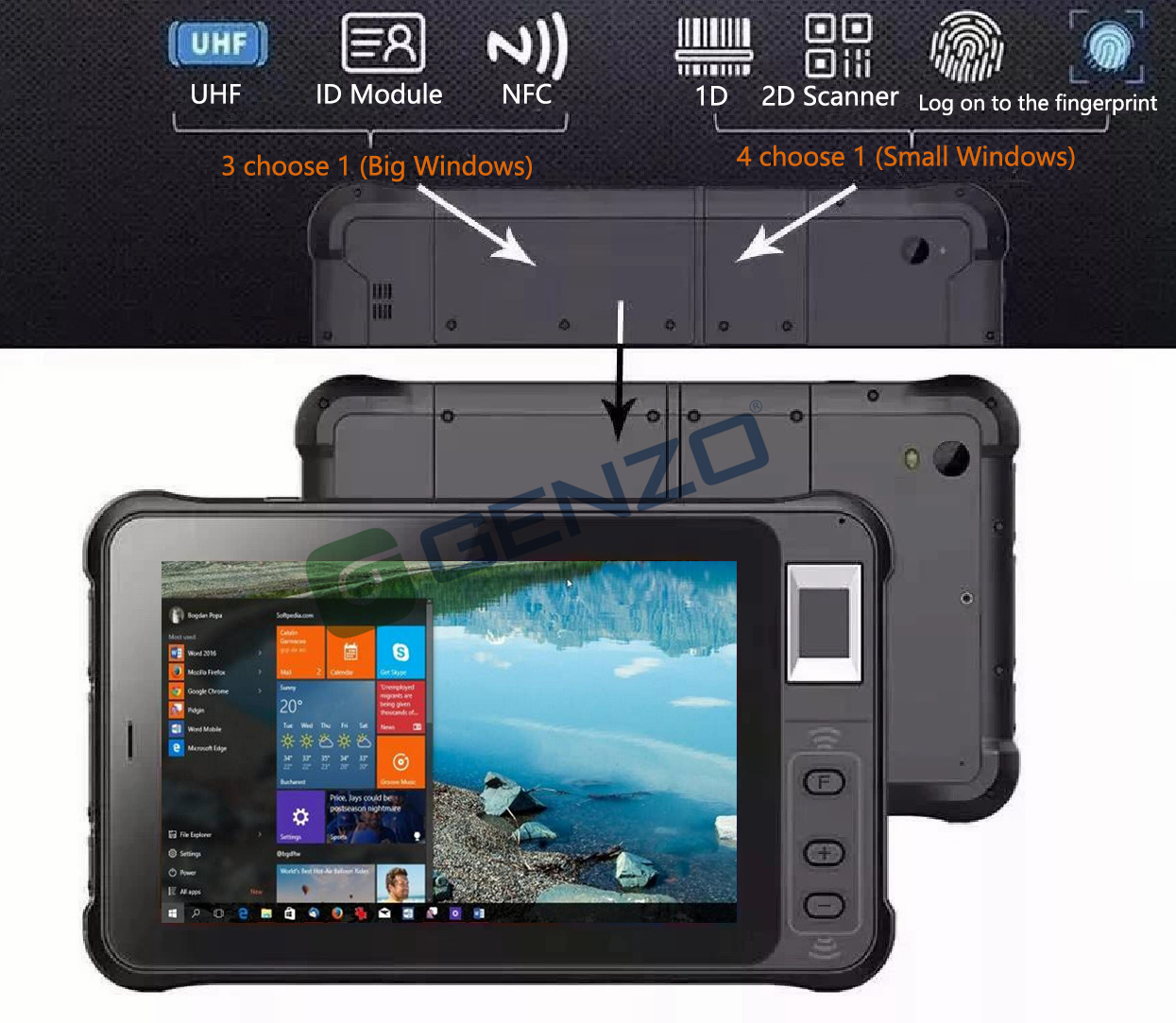

Data Collection & Networking
Barcode Scanner
1D Optional Honeywell N4313;    2D Optional Honeywell N3680/4680
NFC
Optional, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092

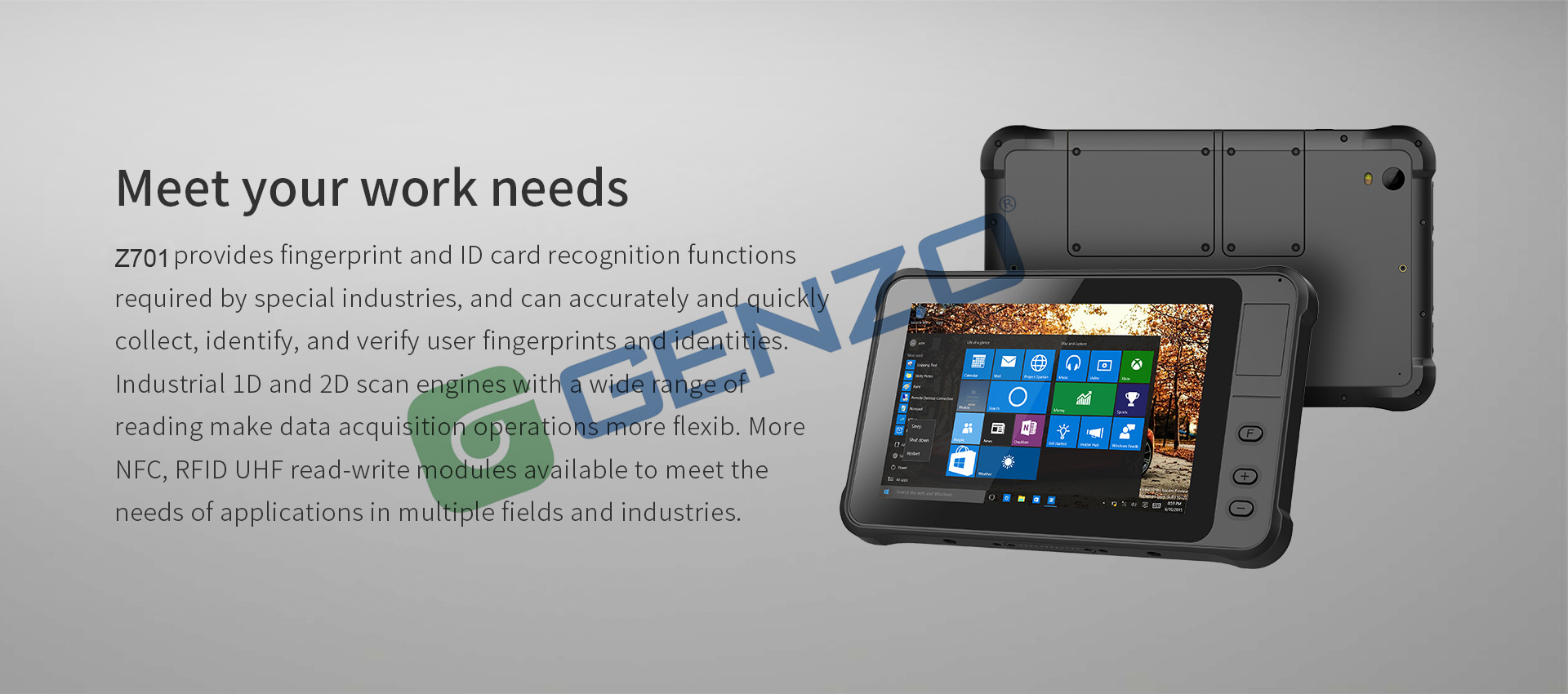

ID Module
Optional Support reading the 2nd，the 3rd ID card information and the fingerprint information built-in.
Fingerprint
Optional The fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF
Optional M-550 UHF RFID slim all-in-one module
BT
BT4.2 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG
4G
MeiGlink SLM750, LTE-FDD: B1/3/5/8; LTE-TDD:B38/39/40/41;  WCDMA: B1/B8;                  TD-SCDMA:B34/39; CDMA&EVDO:BC0; GSM: 900/1800
GPS
U-BLOX M8Q GNSS.Support GPS/Beidou/glonass; Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 10 home activated os(Free), Optiona PRO/IOT/LTSC
I/O Port & Appearance & Package
I/O Port
HDMI 1.4a x 1,
Micro USB x 1,
SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1
Dimension
216.98*133.96*21.4
Weight
Device unit: 680g.
Package
USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67/IP65
IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X
a.Inner Nozzle diameter：6.3mm；
b. water speed：12.5±0.625L/min；
c. Water Pressure：adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel：about 1min；
f.test time：at least 3min；
g.distance between nozzle and panel surface：2.5～3m.
After test,there is no water leakage in sample.
CE NB
YES

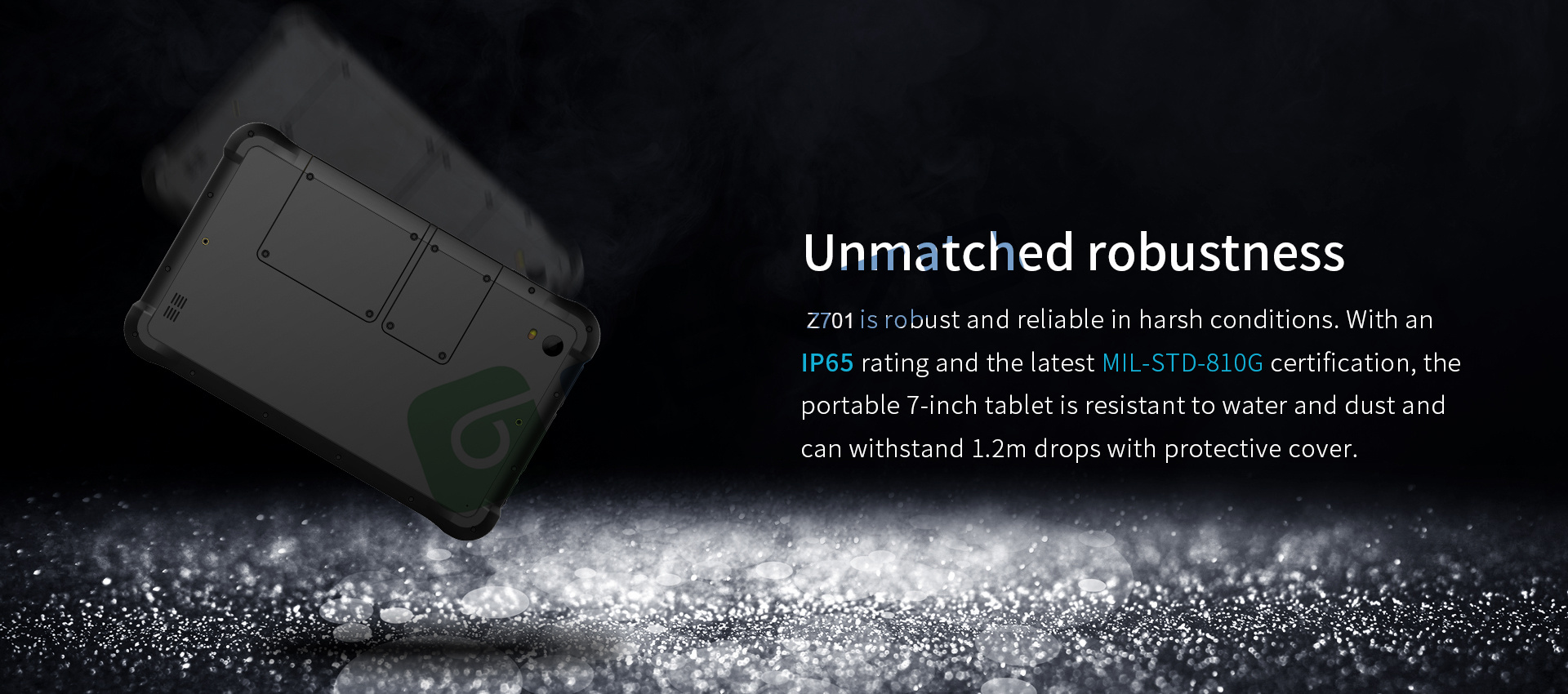

MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
