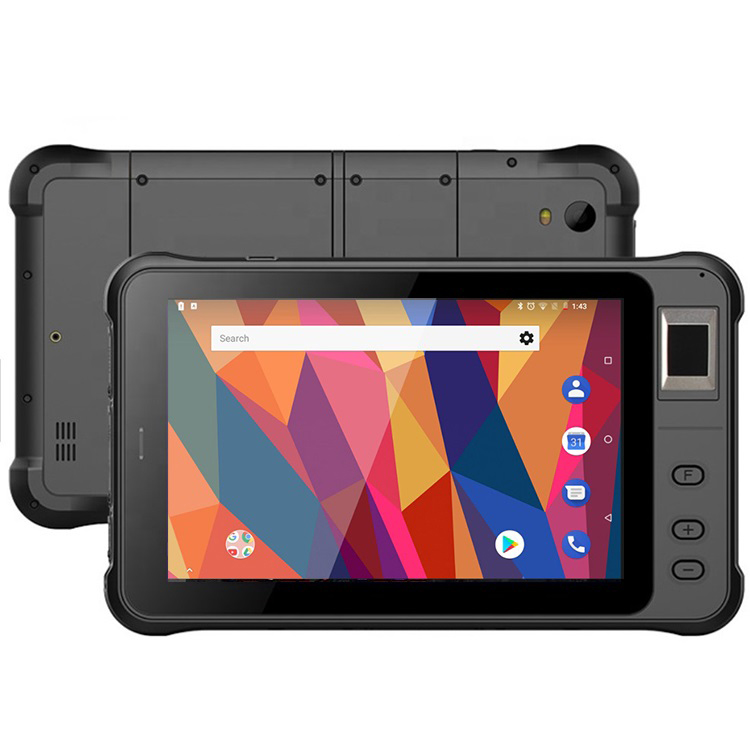

7 Inch Rugged Android Tablet

Rugged Tablet 7 inch

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

Hardware
CPU	Qualcom-m MSM8953（8core） 2.0 GHz
GPU	Adreno 506 1920 × 1200 @ 60 fps
RAM/ROM	4GB LPDDR3/ 64GB Emmc
External Memory	Support TF*1,MAX 128GB
LCD Display	7“ 16:10,800*1280 IPS LCD, 1000 nits
Touch Panel	5 points capacity TP, G+G, hardness over 7H, scratch resistant, TP thickness:1.1mm, COF, support touch with wearing gloves and wet finger
Camera	Front:5.0MP ,Rear: 13.0MP Auto focus with flash
Battery	3.7V/7500mAh. Built in polymer lithium ion battery
Endurance	6-8 hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default )
Speaker	Embedded 8Ω/0.8W waterproof speakerx 1

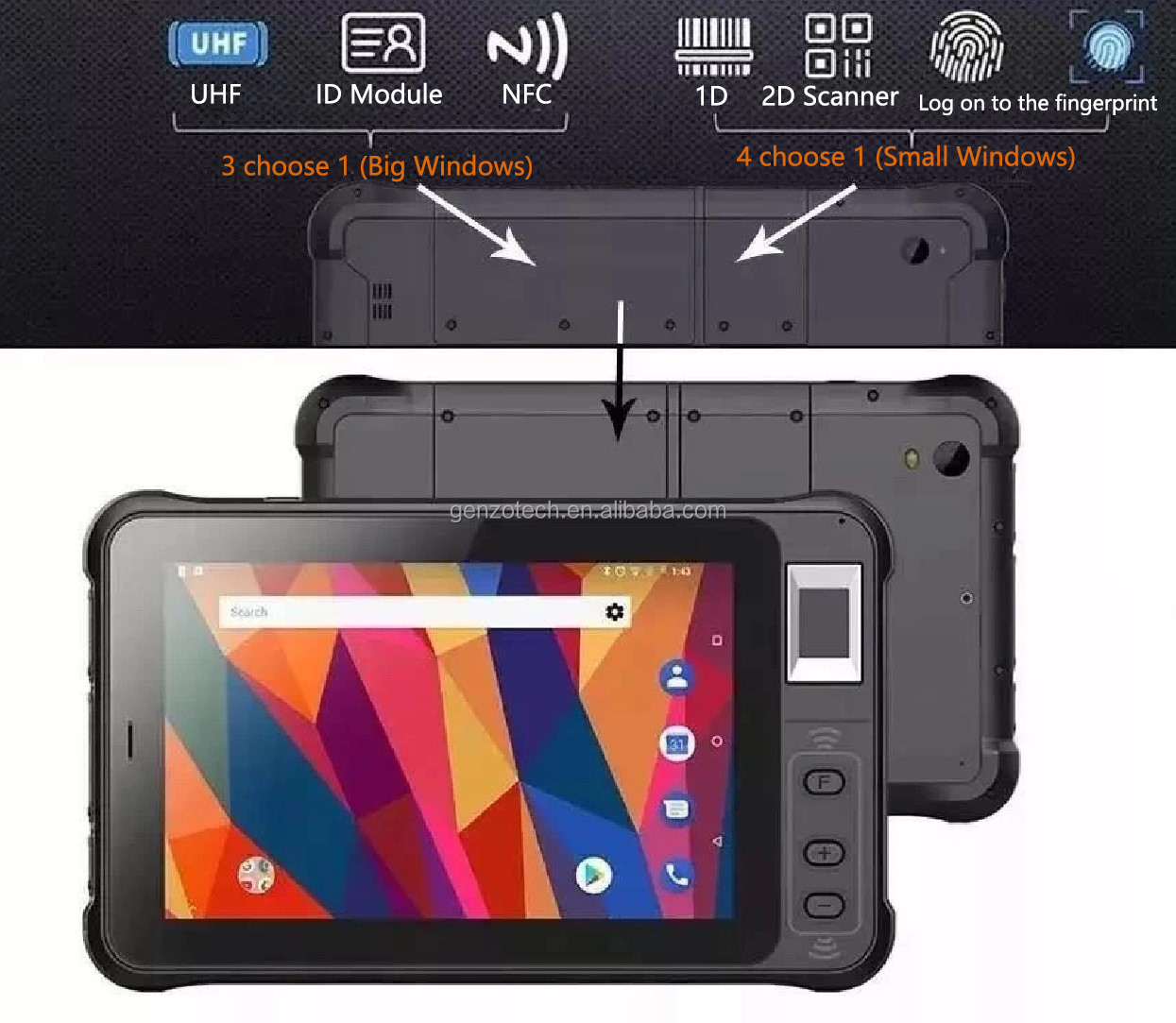

Data Collection & Networking
Barcode Scanner	1D Optional Honeywell N4313; 2D Optional Honeywell N3680/4680
NFC	Built-in 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
ID Module	Optional Support reading the 2nd，the 3rd ID card information and the fingerprint information built-in.
Fingerprint	Optional The fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF	Optional M-550 UHF RFID slim all-in-one module
BT	BT4.2 (BLE) class1 transmission distance：10m
WIFI	WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G dual band WIFI
4G	CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8
GPS	Support GPS/glonass; Capture sensitivity: -140 dBm; Cool Start Time:less 50 seconds,Hot Start Time:less 5 seconds
OS	Android 9/10 With GMS

I/O Port & Appearance & Package

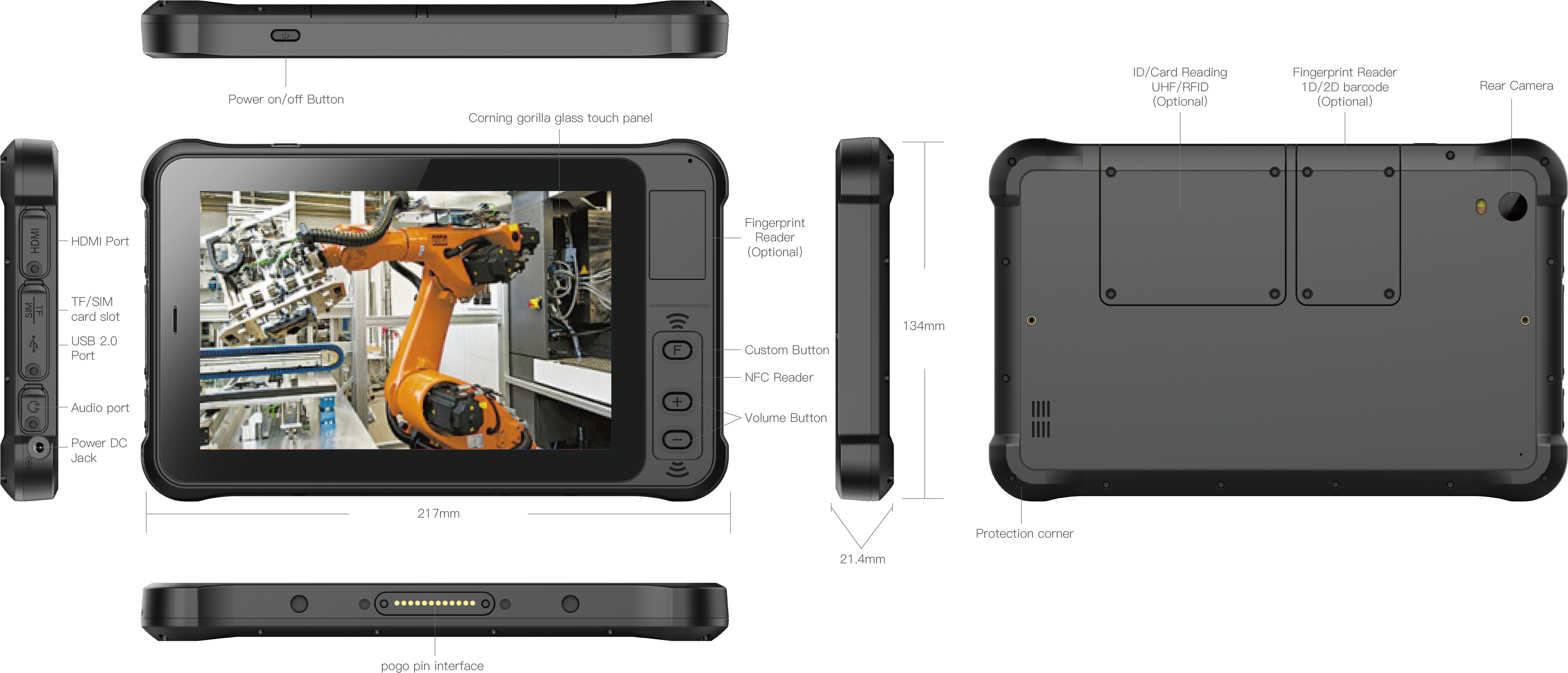

I/O Port	HDMI 1.4a x 1, Micro USB x 1, SIM Card x 1, TF Card x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1
Dimension	216.98133.9621.4
Weight	Device unit: 680g.
Package	USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67/IP65	IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X a.Inner Nozzle diameter：6.3mm； b. water speed：12.5±0.625L/min； c. Water Pressure：adjust according to water volumn； d.Central part of water volumn e.Spray time in surface of panel：about 1min； f.test time：at least 3min； g.distance between nozzle and panel surface：2.5～3m. After test,there is no water leakage in sample.
CE NB	YES
MIL-STD-810G	YES
Battery	UN38.3，MSDS,IEC62133
Drop Height	MIL-STD-810G 1.22m drop
Operate Temperature	‘-20 °C to 60 °C
Store Temperature	’-30 °C to 70 °C
Humidity	Humidity: 95% Non-Condensing

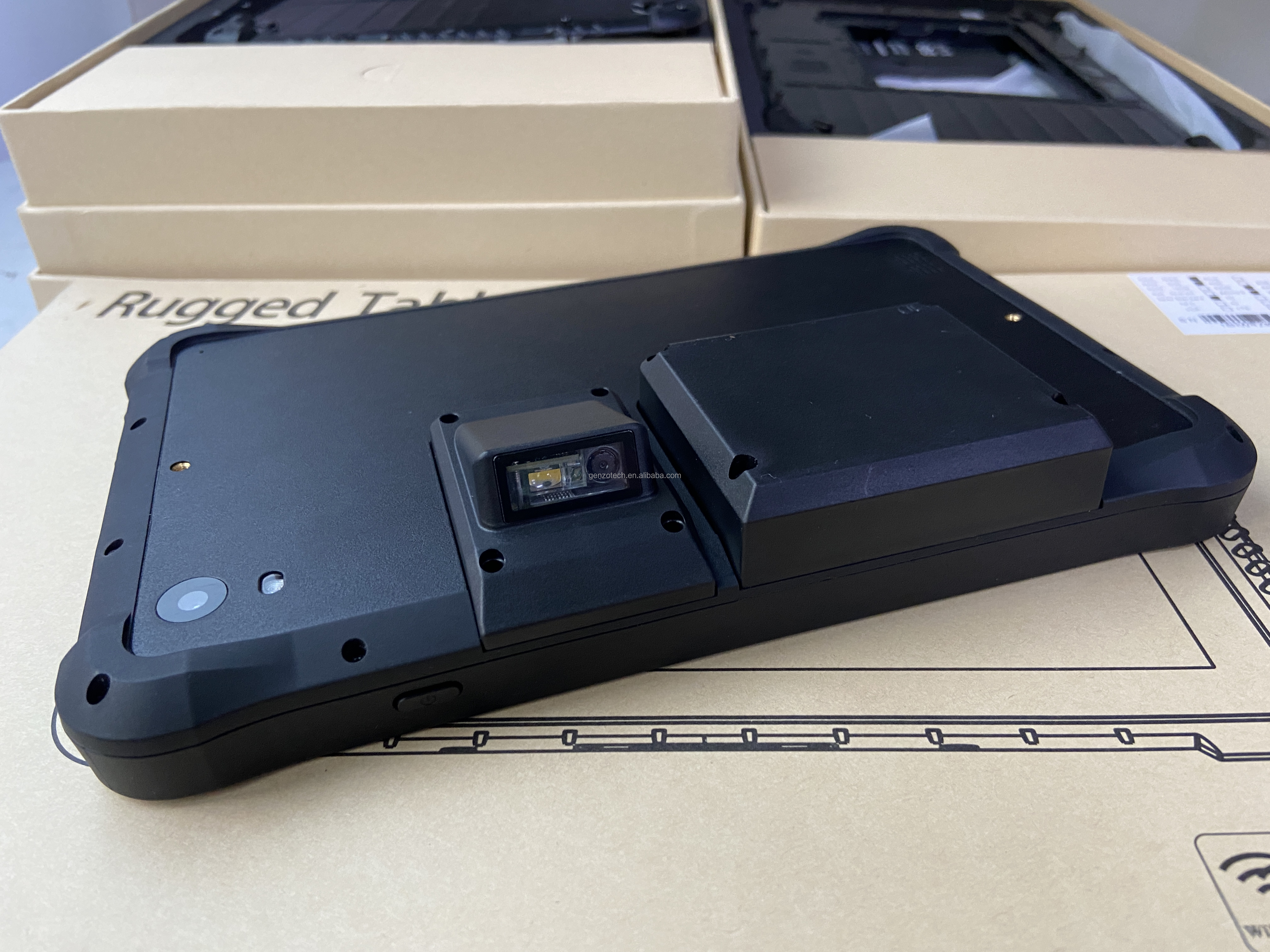

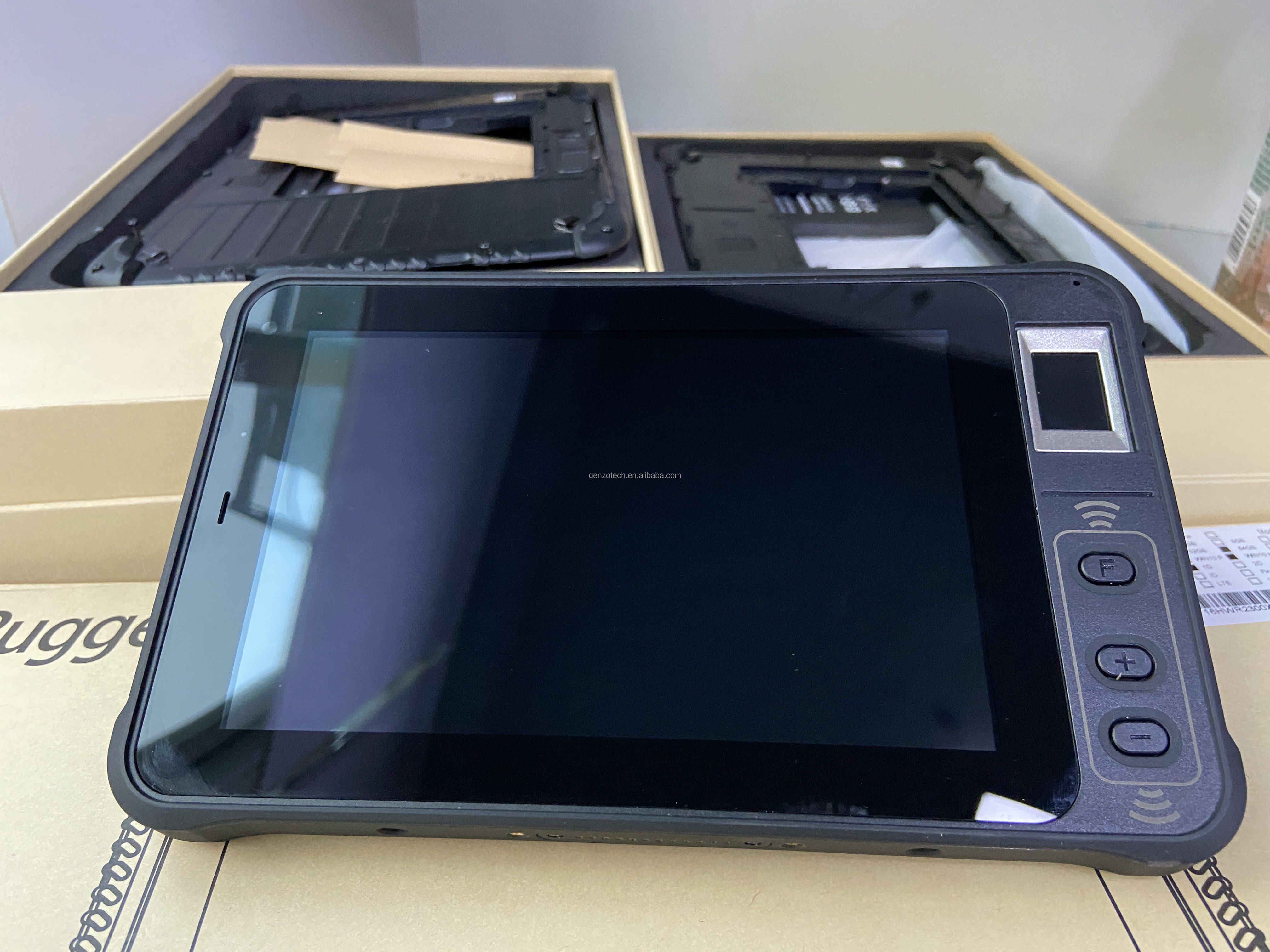

Details Images

Optional Accessories

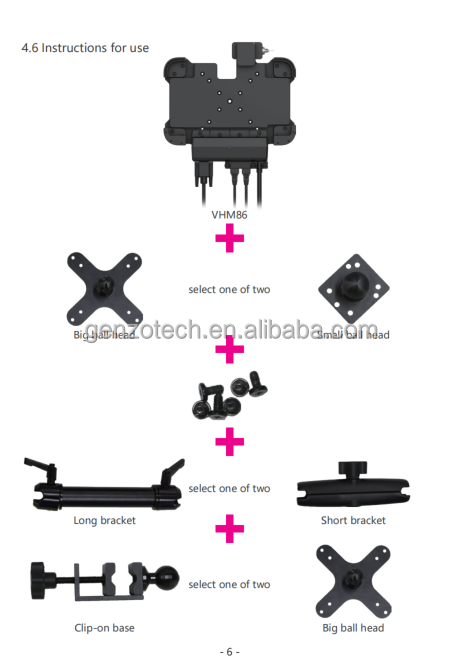

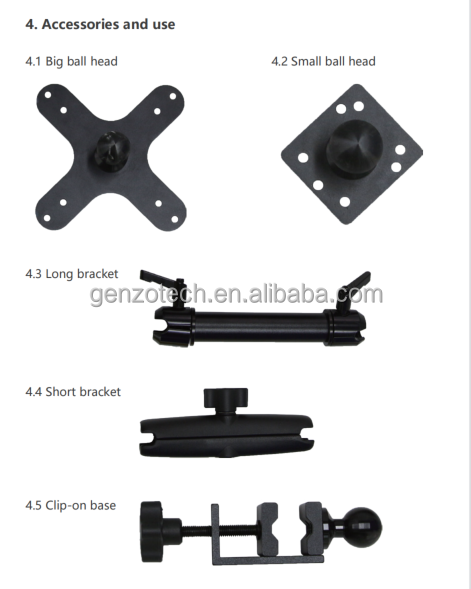

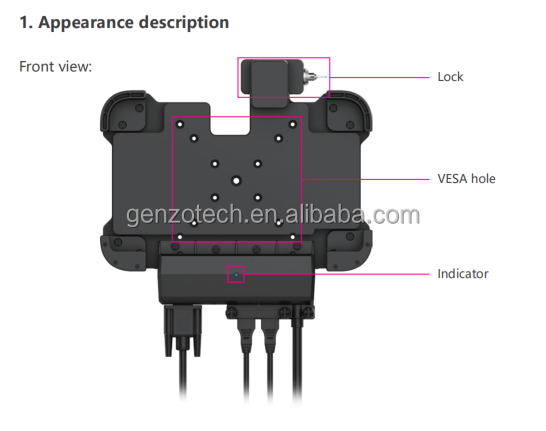

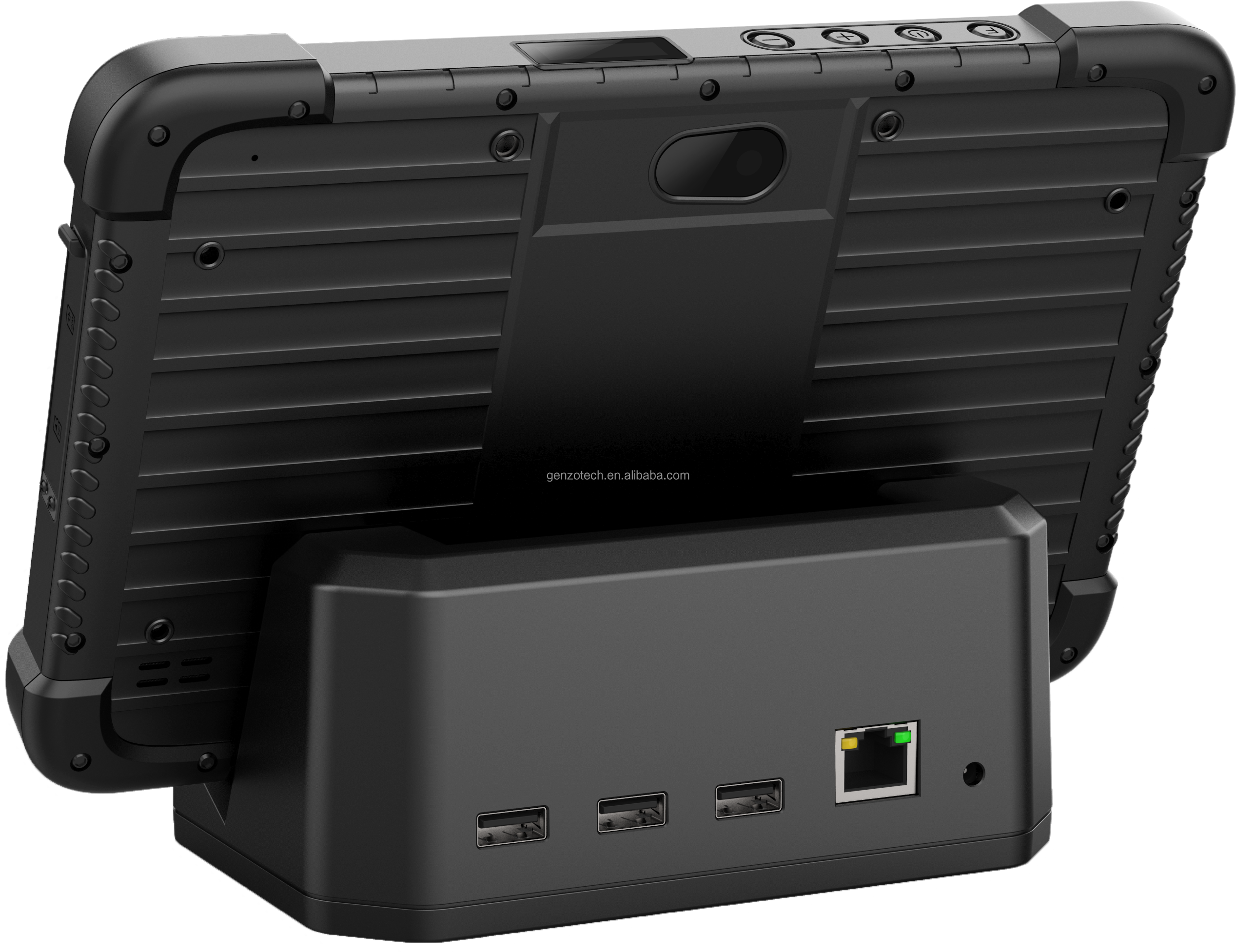

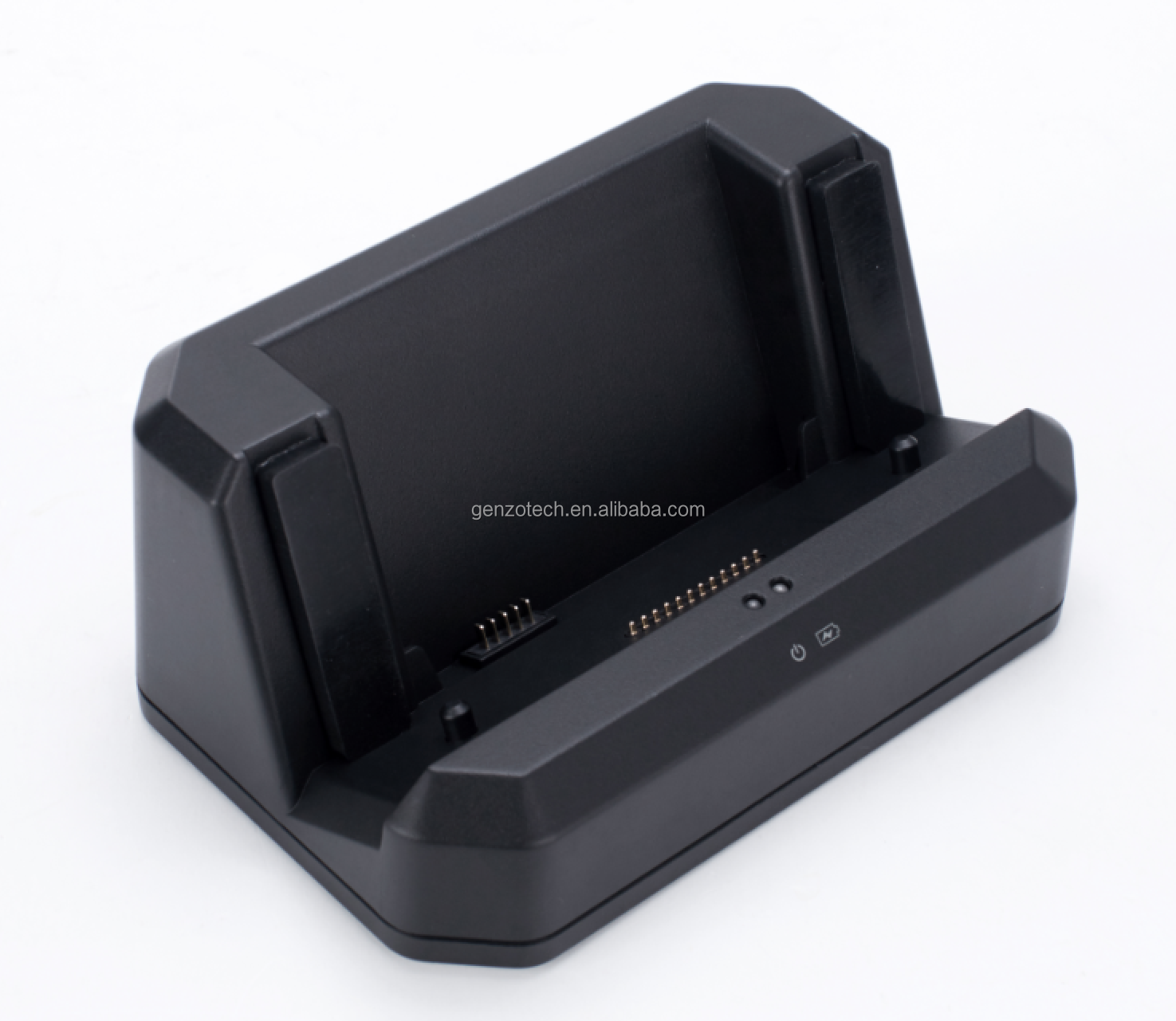

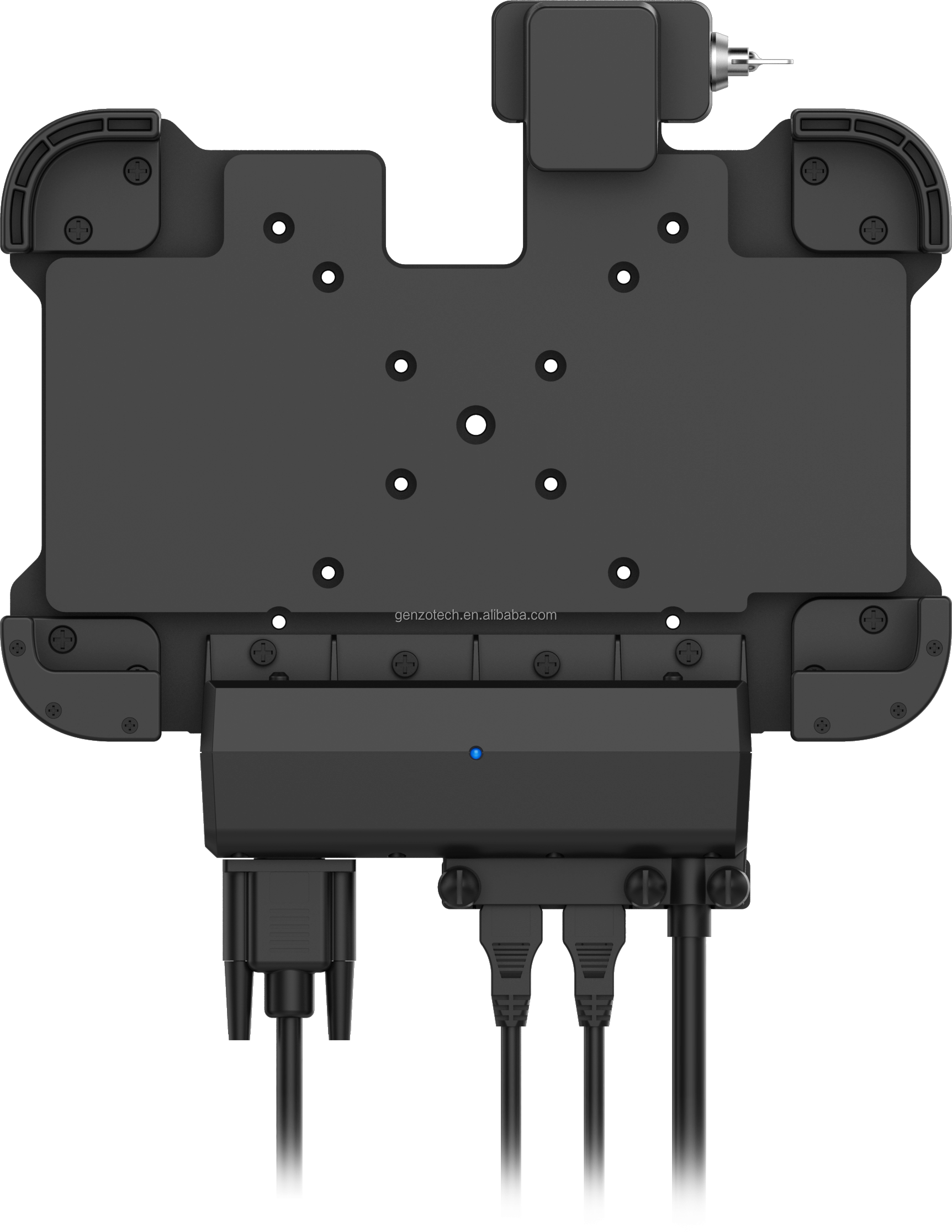

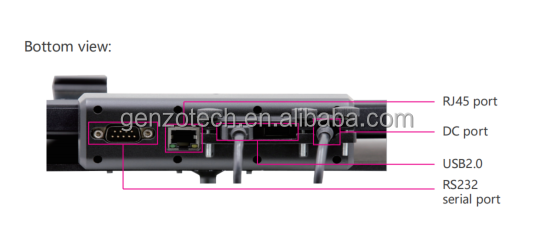

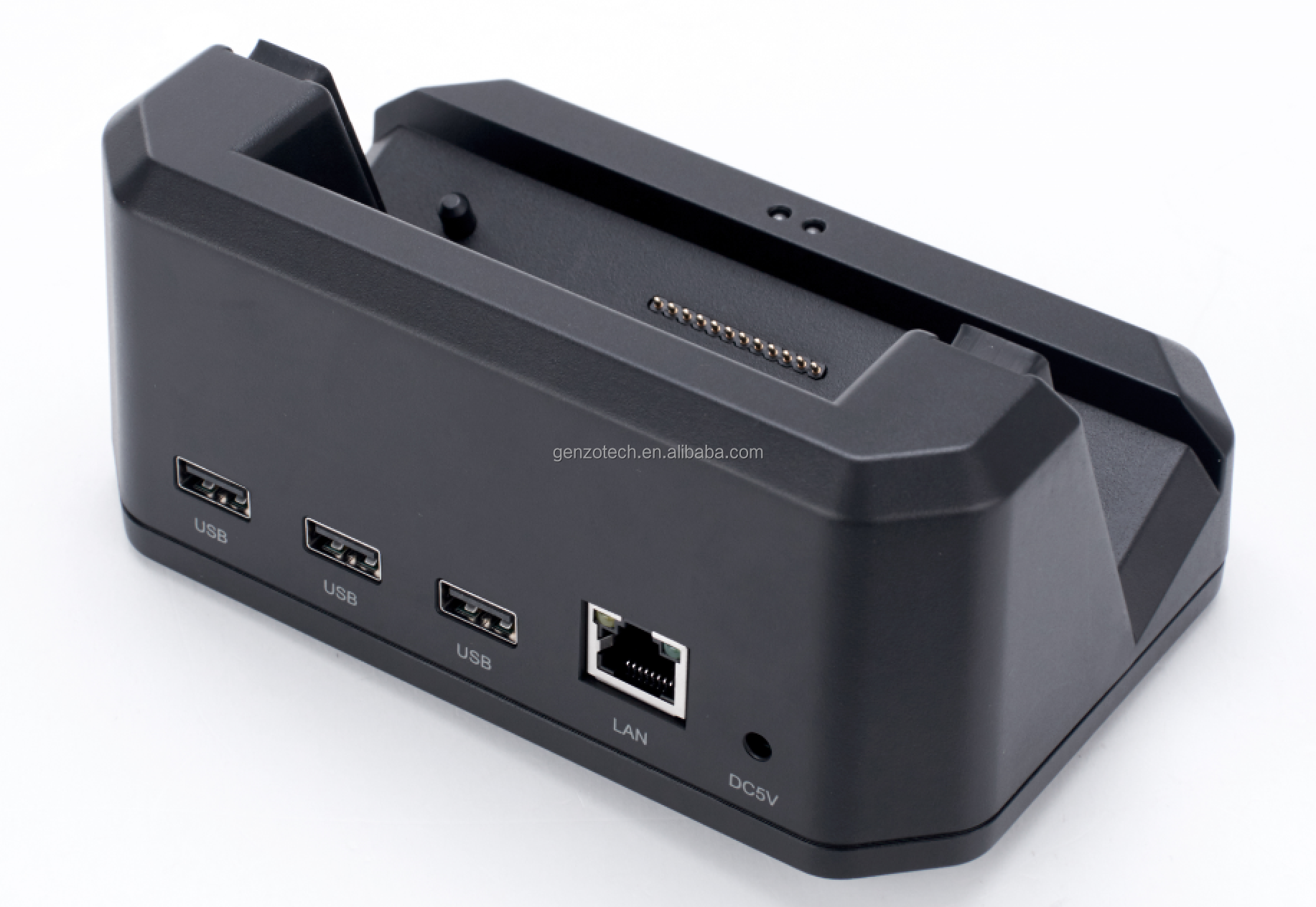

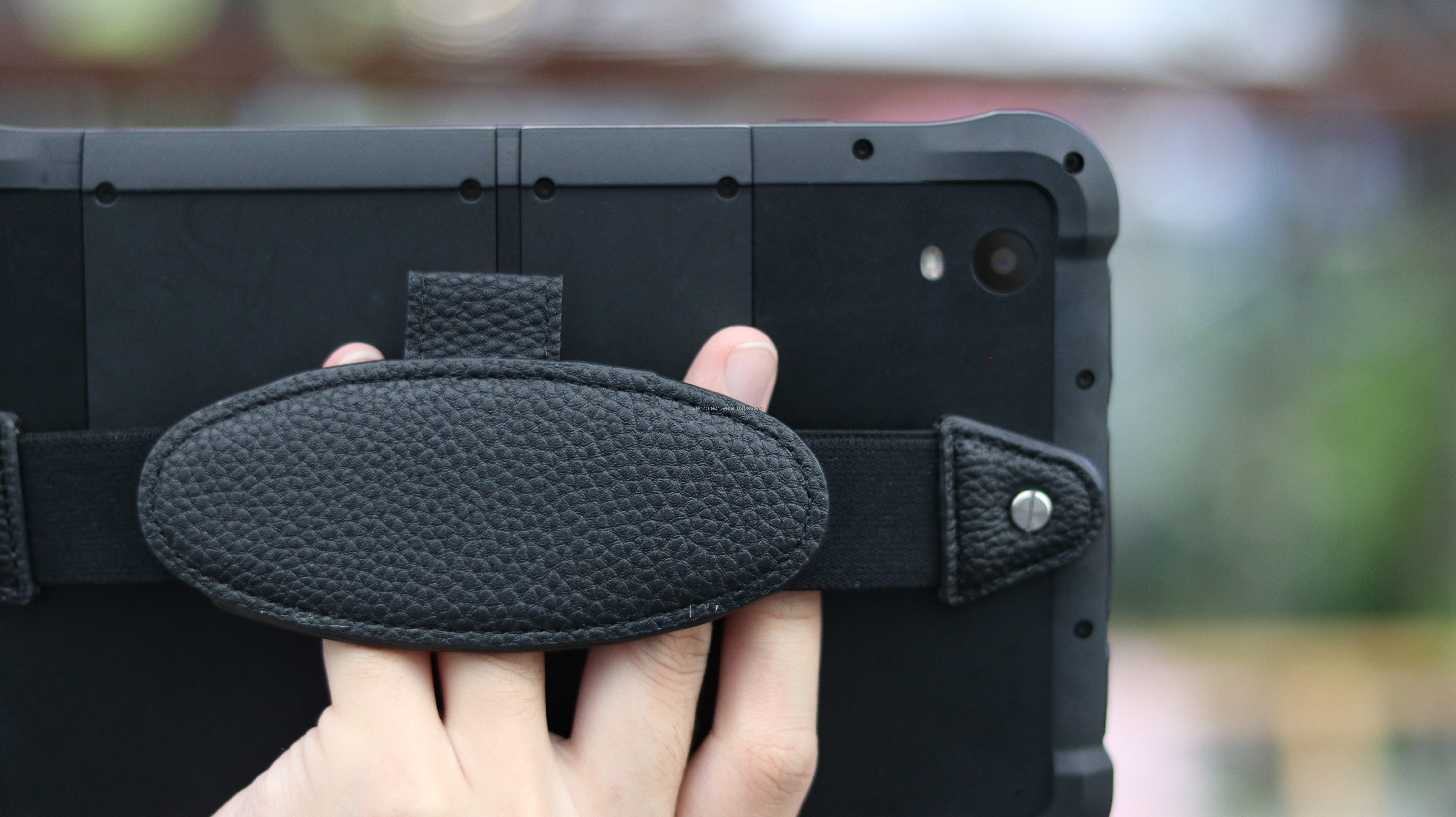

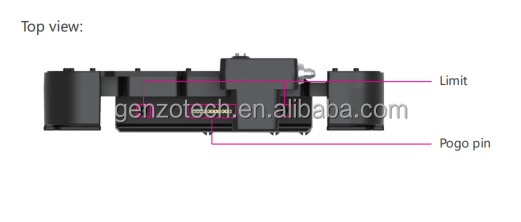

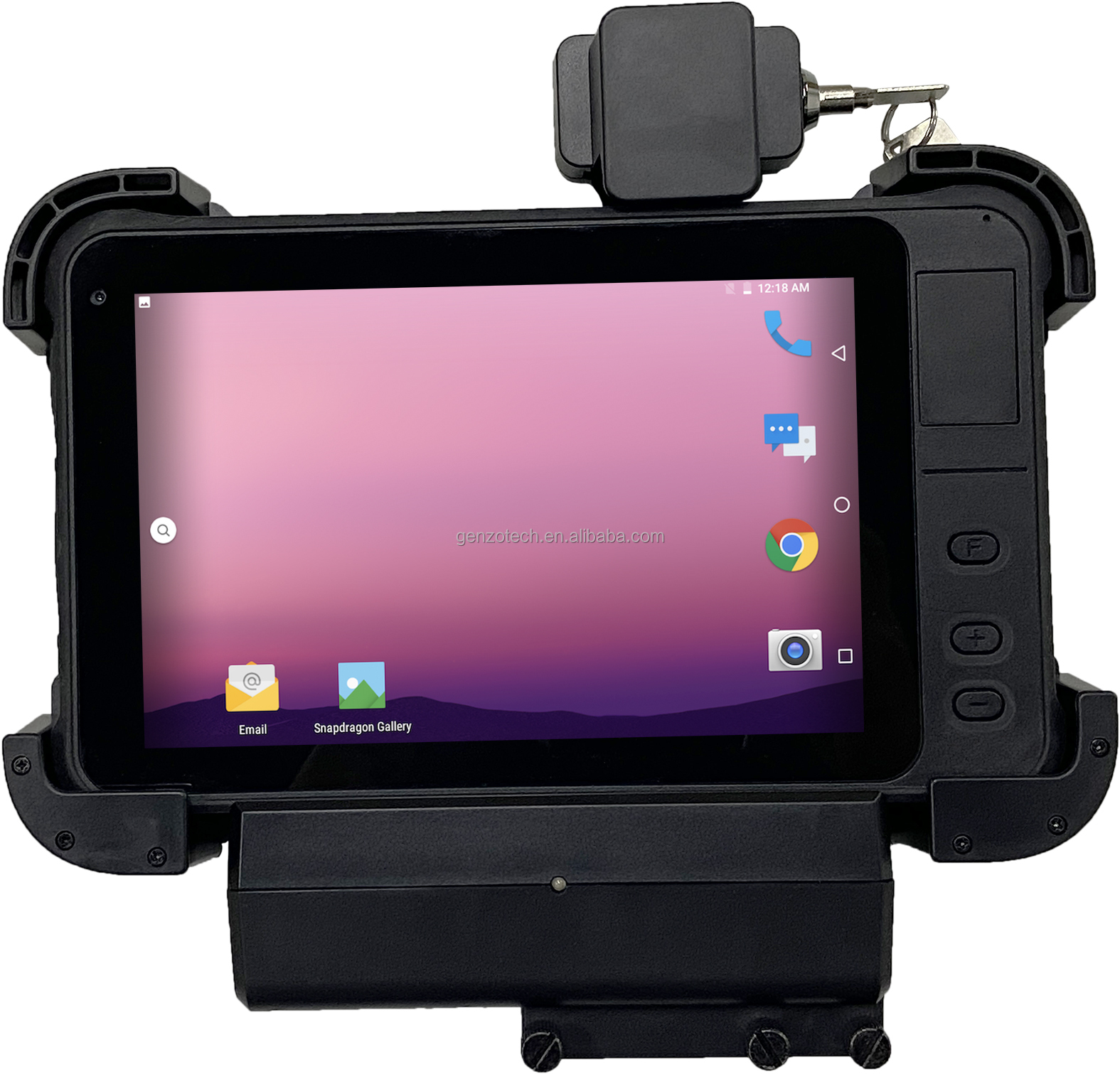

Vehicle Mount, Docking Charger, Leather Cover, Shoulder strap, Back Strap, Stylus, Car Charger, TP protective film

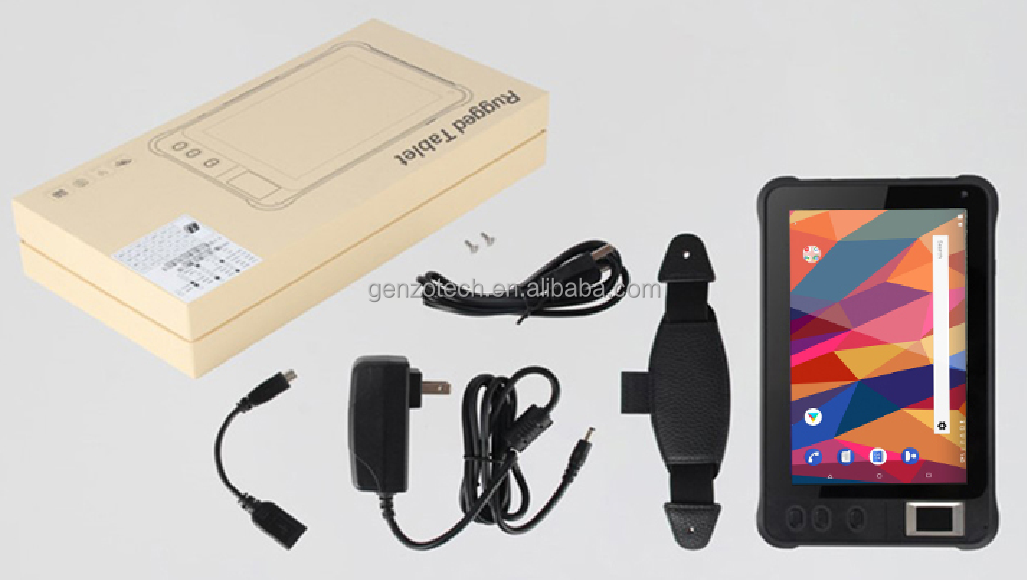

Package

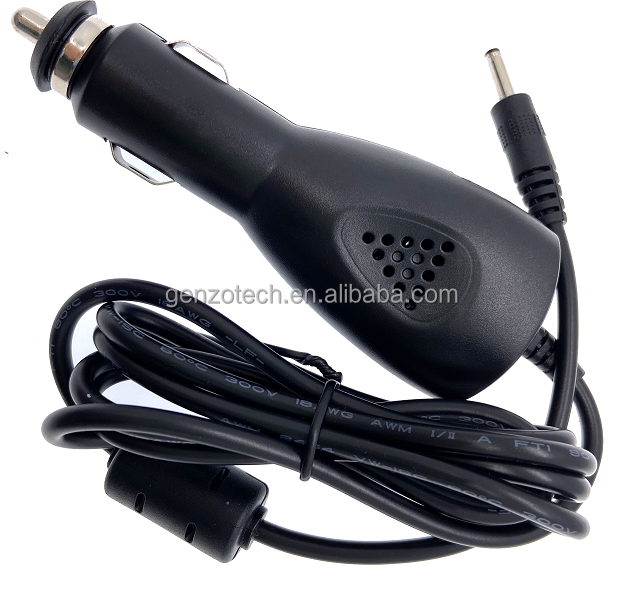

Car Charger Optional

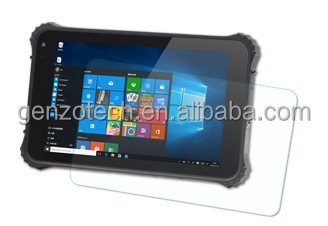

TP protective film
