14 Inch 11th i5/i7 Rugged Laptop

Modle: GZ-X14. CPU：i5-1135G7 (11th Generation Intel Tiger Lake UP3 -28W) , 2.4-4.2GHz， RAM/ROM：8GB DDR4L / 256GB NGFF SSD Removeable, Optional 16GB DDR4L， LCD Display：14 inch 16:9, 1920(H)*1080(V) FHD, 700 cd/m2. Battery：Built-in 1750mAh/7.4V+ Hot pluggable External 6300mAh/7.4V. Camera: Front 2.0MP, Anti camera LED. 1* DB9 board With RS232 + 2* RJ45.
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
11th Generation Intel Tiger Lake UP3 -28W i5-1135G7/ Optional i7-1165G7
GPU
Gen 12 Intel® Iris® Xe Graphics, up to 96EU (GPU1.3G)
RAM/ROM
8GB DDR4L /  256GB NGFF SSD Removeable, Optional 16GB DDR4L + HDD
External Memory
Support TF*1,MAX 128GB
LCD Display
14 inch 16:9,  1920(H)*1080(V) FHD,      700 cd/m2
Touch Panel
Optional 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support Corning gorilla and glove touch
Camera
Front 2.0MP, Anti camera LED
Battery
Lithium-ion ploymer battery   Built-in 1750mAh/7.4V+   Hot pluggable  External 6300mAh/7.4V.
6-7hrs(Default 50% volume,default 200 nit,Play 720P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speaker×2
Mic
Internal Digit MIC×2
TPM
Built-in TPM Security Chip SLB9665T2.0
Keyboard
US 104 button,IP65
Fingerprint
Built-in ×1 SPI Fingerprint (windows hellow boot login)
E-compass sensor
Built-in
Hall switch
Built-in
Gyroscope
Built-in
Data Collection & Networking
NFC
Optional NXP300,  13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT 5.1
WIFI
WI-FI 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
4G
Mini-pcie interface(USB and pcie signal compatibility)
GPS
U-blox NEO-7,Support:GPS(USB interface）GPS+BEIDOU Optional
Acquisition sensitivity: -160 dBm;frequency: 0.25 Hz 10 MHz (configurable)
Cool Start Time:less 50second,Hot Start Time:less 28second,
OS
Windows 10 Pro inactivated os(Free) 64BITS, Optiona Home/IOT/LTSC - 64BITS
I/O Port & Appearance & Package

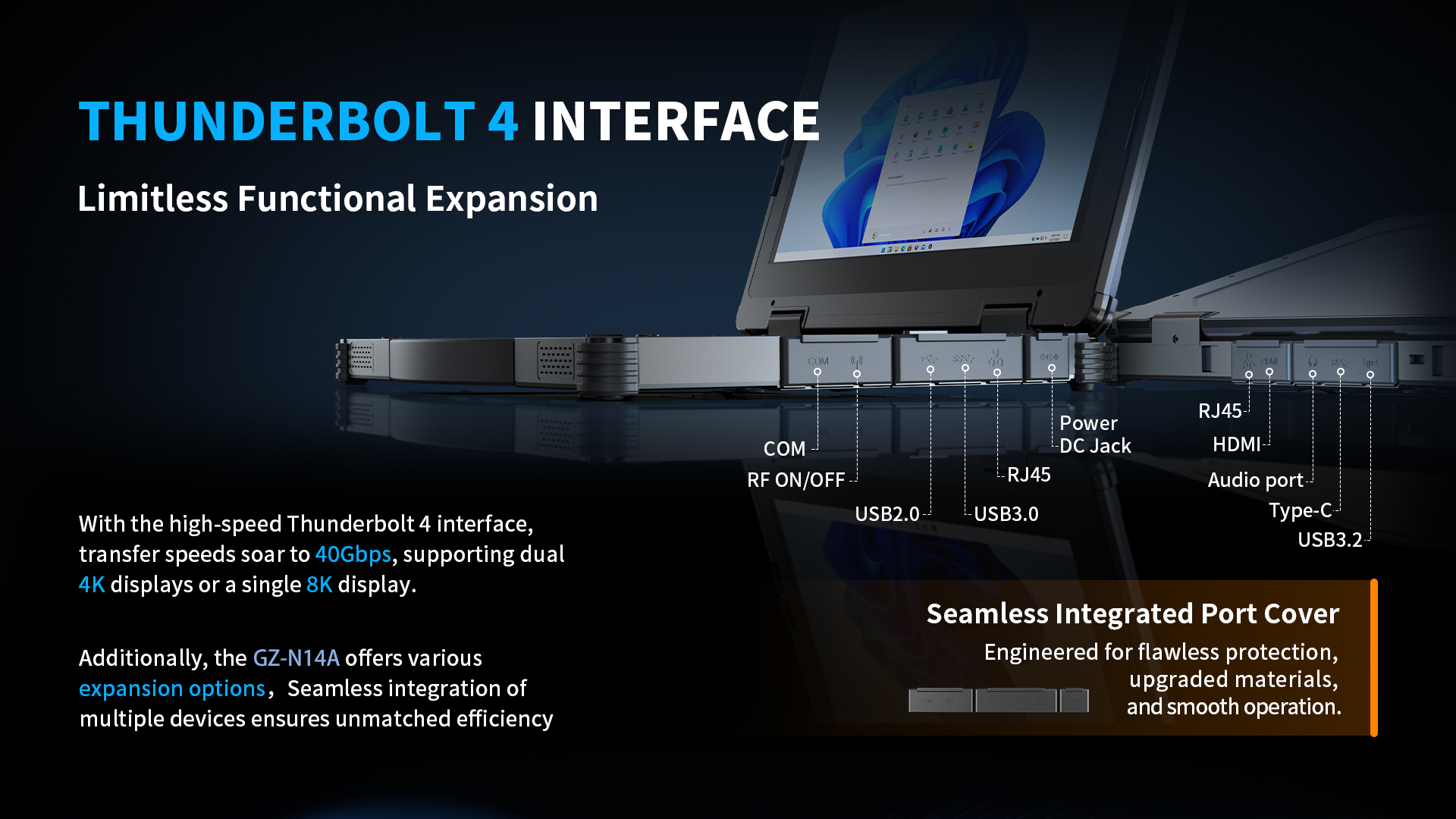

I/O Port
HDMI Type-A x 1,
USB 3.0 Type-A x 3, USB 2.0 Type-A x 1,
SIM Card x 1& TF Card x 1
Pogo 5pin (USB interface definition) x 1（Optional）,
Φ3.5mm standard earphone jack x 1,Φ5.5mm DC 19V 3.42A DC jack x 1
DB9 (RS232 or RS485) ×1,                 RJ45 port x2（10/100/1000M Self-adaption）
Burglar lock hole(Right)-Kensington x 1
Heat dissipation air outlet(Right) x 1
Left extension dock ×1 Passenger transfer card PCIE 4X solt or HDD（Optional）
Keys
Power Button x1,P1 Used to lock or open screen ×1
Indicator light
Power ×1 Light color is blue when boot(Blue will not too bright), Light off when machine closed.
Baterry ×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low- power, it is not bright when discharge.
Power Adaptor
AC100V ~ 240V, 19V3.42A/65W Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
397*271*37 mm
Weight
Device unit: 3300g.
Package
Charger 19V3.42A/Packing box（Can be customized logo)
Certificate System & Reliability Design

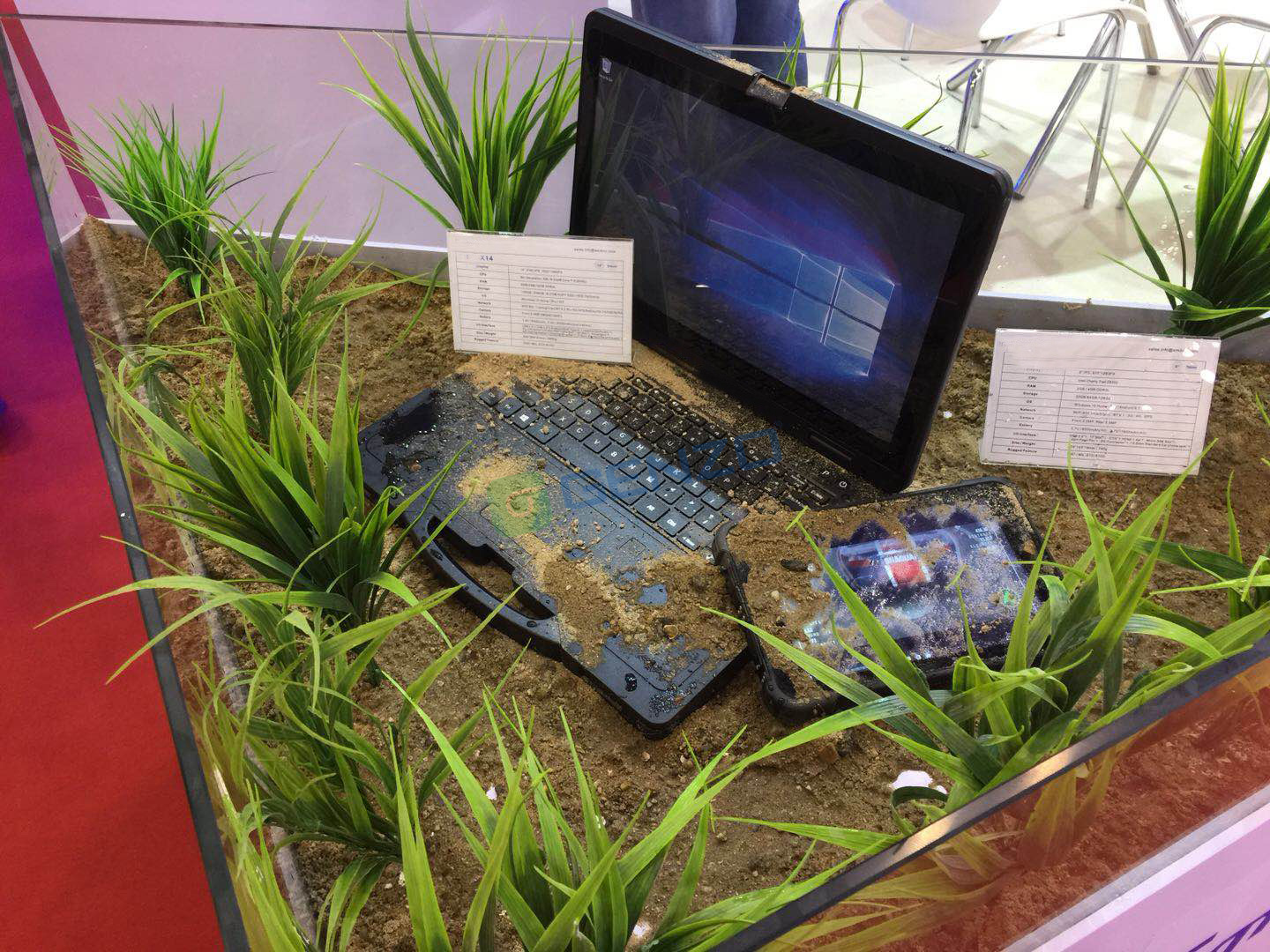

IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
