13.3 Inch 11th i5/i7 Rugged Laptop

Modle: GZ-X33. CPU：i5-1135G7 (11th Generation Intel Tiger Lake UP3 -28W) , 2.4-4.2GHz， RAM/ROM：8GB DDR4L / 256GB NGFF SSD Removeable, Optional 16GB DDR4L， LCD Display：13.3 inch 16:9, 1920(H)*1080(V) FHD, 400 cd/m2，10 points Capacitive，G+G. Battery：External polymer lithium ion battery--5600mAh/11.1V (2800mAh/11.1V x2 ). Camera: Front 2.0MP, Anti camera LED. 1* DB9 board With RS232 + 1* RJ45. 78 key, with LED backlight. Thunderbolt 4 x 1

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

Hardware
CPU	i5-1135G7 (11th Generation Intel Tiger Lake UP3 -28W) Processor 4 core 8 threads, processor base frequency 2.40 GHz, maximum frequency 4.20 GHz
GPU	Gen 12 Intel® Iris® Xe Graphics
RAM/ROM	8GB DDR4L / 256GB NGFF SSD Removeable, Optional 16GB DDR4L
External Memory	Support TF*1,MAX 128GB
LCD Display	13.3 inch 16:9, 1920(H)*1080(V) FHD, 400 cd/m2
Touch Panel	10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support Corning gorilla and glove touch
Camera	Front 2.0MP, Anti camera LED
Battery	External polymer lithium ion battery--5600mAh/11.1V (2800mAh/11.1V x2 ). 5-6hrs(default 50% volumn，default200nit，play 1080P HD video)
Speaker	Embedded 8Ω/0.8W waterproof speaker×2
Mic	Internal Digit MIC×2
TPM	Built-in TPM2.0 SLB9665T
Keyboard	78 key, with LED backlight
Fingerprint	Built-in ×1 SPI Fingerprint (windows hellow boot login)
Fan	Built-in ×1 IPX5
Data Collection & Networking
NFC	Optional NXP100, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT	BT V5.1
WIFI	Intel AX200: Support WI-FI 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
4G	Optional M. 2 interface EC25-EC, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (Unicom Telecom, mobile support is not good, only B8 support, no TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPS	Optional U-blox neo-7 ,Support:GPS,External GPS antenna（Optional） Acquisition sensitivity: -160 dBm;frequency: 0.25 Hz 10 MHz (configurable) Cool Start Time:less 50second,Hot Start Time:less 28second,
OS	Windows 10 Pro inactivated os(Free) 64BITS, Optiona Home/IOT/LTSC - 64BITS

I/O Port & Appearance & Package

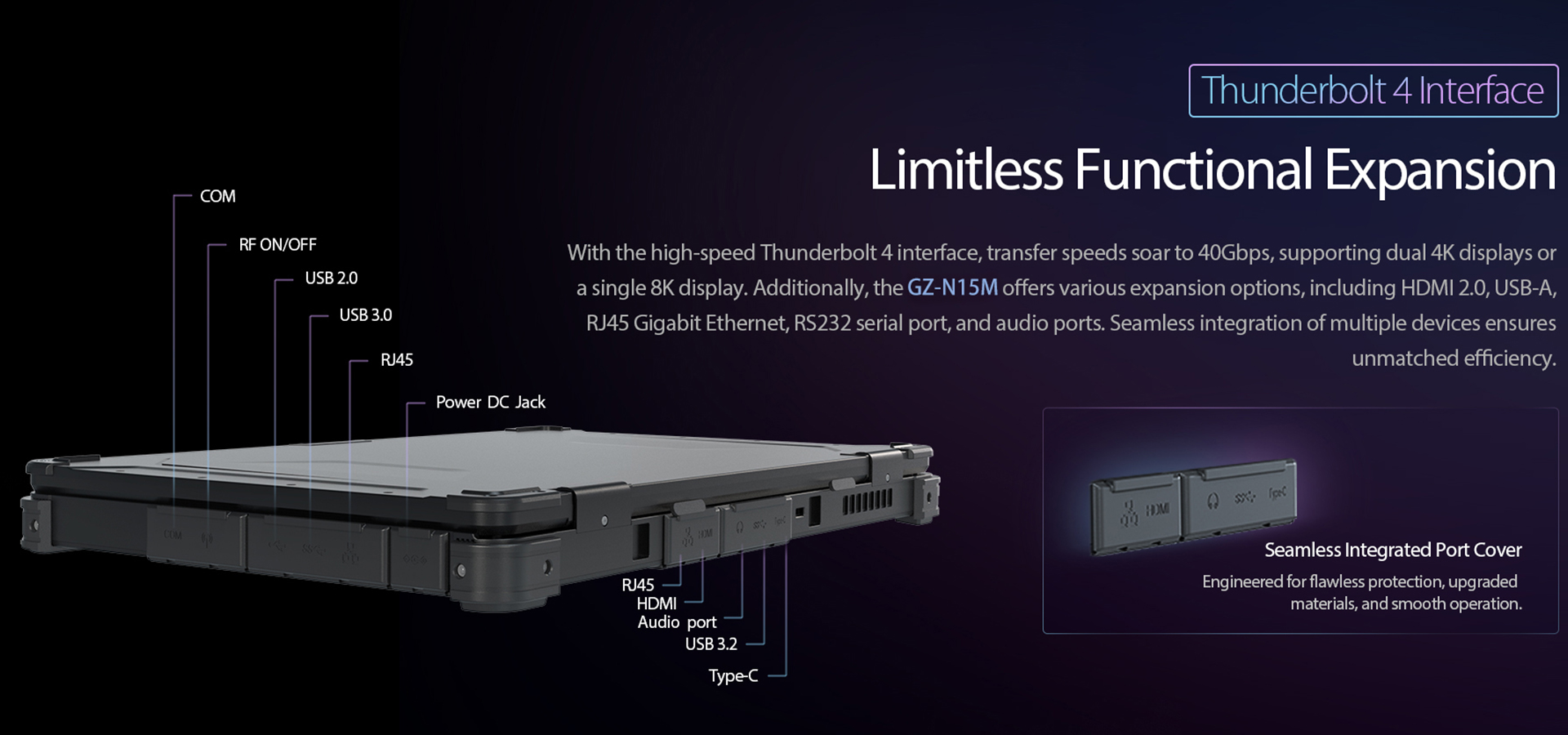

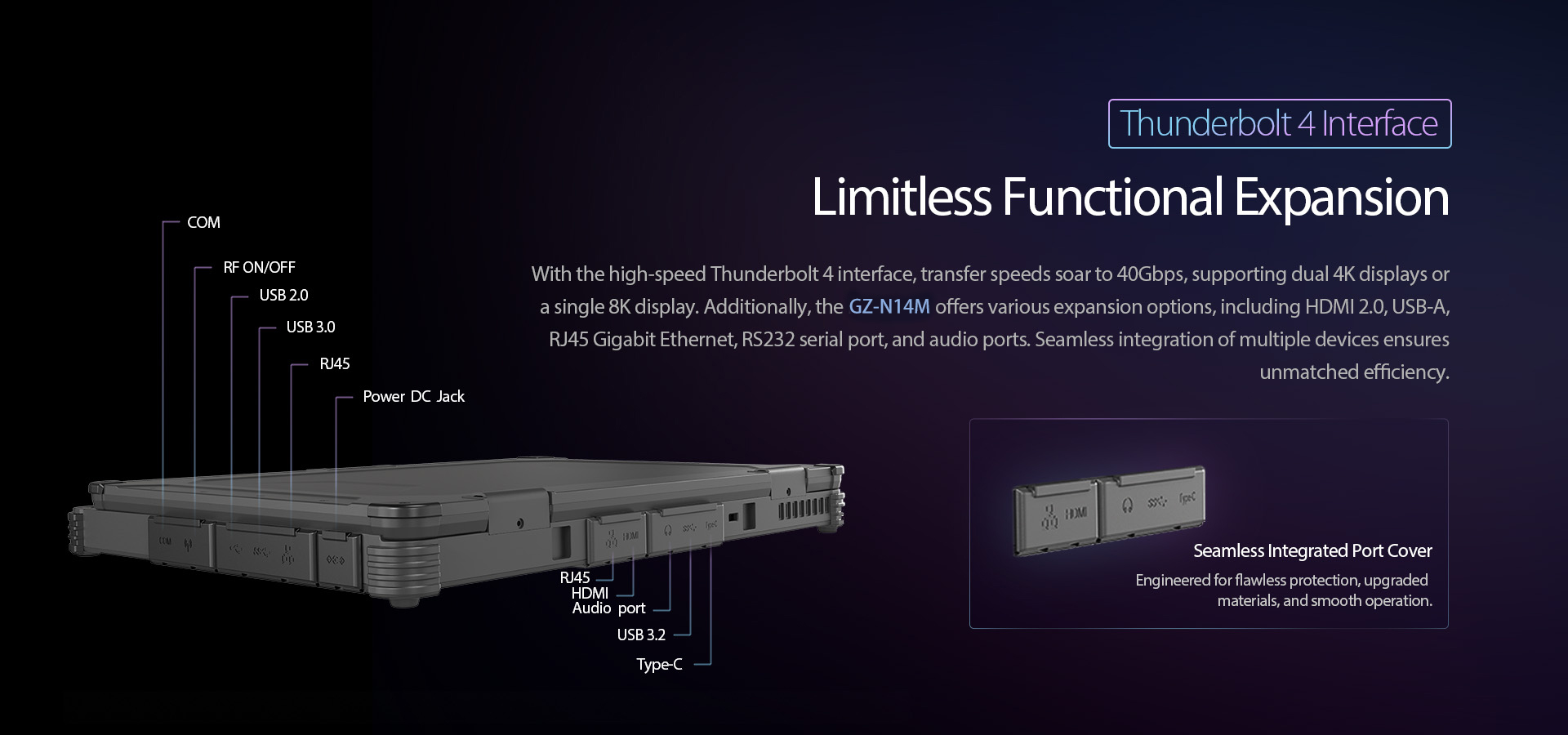

I/O Port	HDMI Type-A x 1, Thunderbolt 4 x 1 USB 3.0 Type-A x 3, Type-c x 1 SIM Card x 1& TF Card x 1（Inside the battery compartment） Pogo 5pin (USB interface definition) x 1（Optional）, Φ3.5mm standard earphone jack x 1,Φ5.5mm DC 19V 3.42A DC jack x 1 DB9 (RS232) ×1, RJ45 port x1（10/100/1000M Self-adaption） Burglar lock hole(Righ)-Kensington x 1 Heat dissipation air outlet(Right) x 1 Left extension dock ×1 External GPS antenna（Optional）
Keys	Power Button x1,P1 Used to lock or open screen ×1
Indicator light	Power ×1 Light color is blue when boot(Blue will not too bright), Light off when machine closed. Baterry 1×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low- power, it is not bright when discharge. Baterry 2 ×1( red and green double - color ) Light color is red when charging, then become green when full charge , red light flash when low - power, it is not bright when discharge.
Power Adaptor	AC100V ~ 240V, 19V3.42A/65W Output USA Standard CE approval. UK/EU Standard Optional
Dimension	32223326 mm (Host)
Weight	Device unit: 1500g.
Package	Charger 19V3.42A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67/IP65	IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R a.Inner Nozzle Diameter:6.3mm； b. Water Speed:12.5±0.625L/min； c. Water Pressure:Adjust according to water volumn； d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample.
CE NB	YES
MIL-STD-810G	YES
Battery	UN38.3，MSDS,IEC62133
Drop Height	1.22m composite wood floors,in operation status
Operate Temperature	‘-20 °C to 60 °C
Store Temperature	’-30 °C to 70 °C
Humidity	Humidity: 95% Non-Condensing
