8 Inch Rugged Vehicle Tablet

Modle:GZ-VJ80. CPU：Intel JASPER LAKE N5100, up to 2.80 GHz， RAM/ROM：4GB DDR3L + 64GB EMMC， LCD Display：8 inch 16:10, 800×1280P, 700 cd/m2
Products Inquiry

PRODUCT INFORMATION

VJ80 LOGO.png


Hardware
CPU
Intel JASPER LAKE N5100， 2.8 GHZ
GPU
Intel® HD Graphics Gen 11 LP
RAM/ROM
4GB LPDDR3/ 64GB EMMC. Optional: 8GB, up to 16GB/ Optional: 128GB, up to 512GB
External Memory
NO

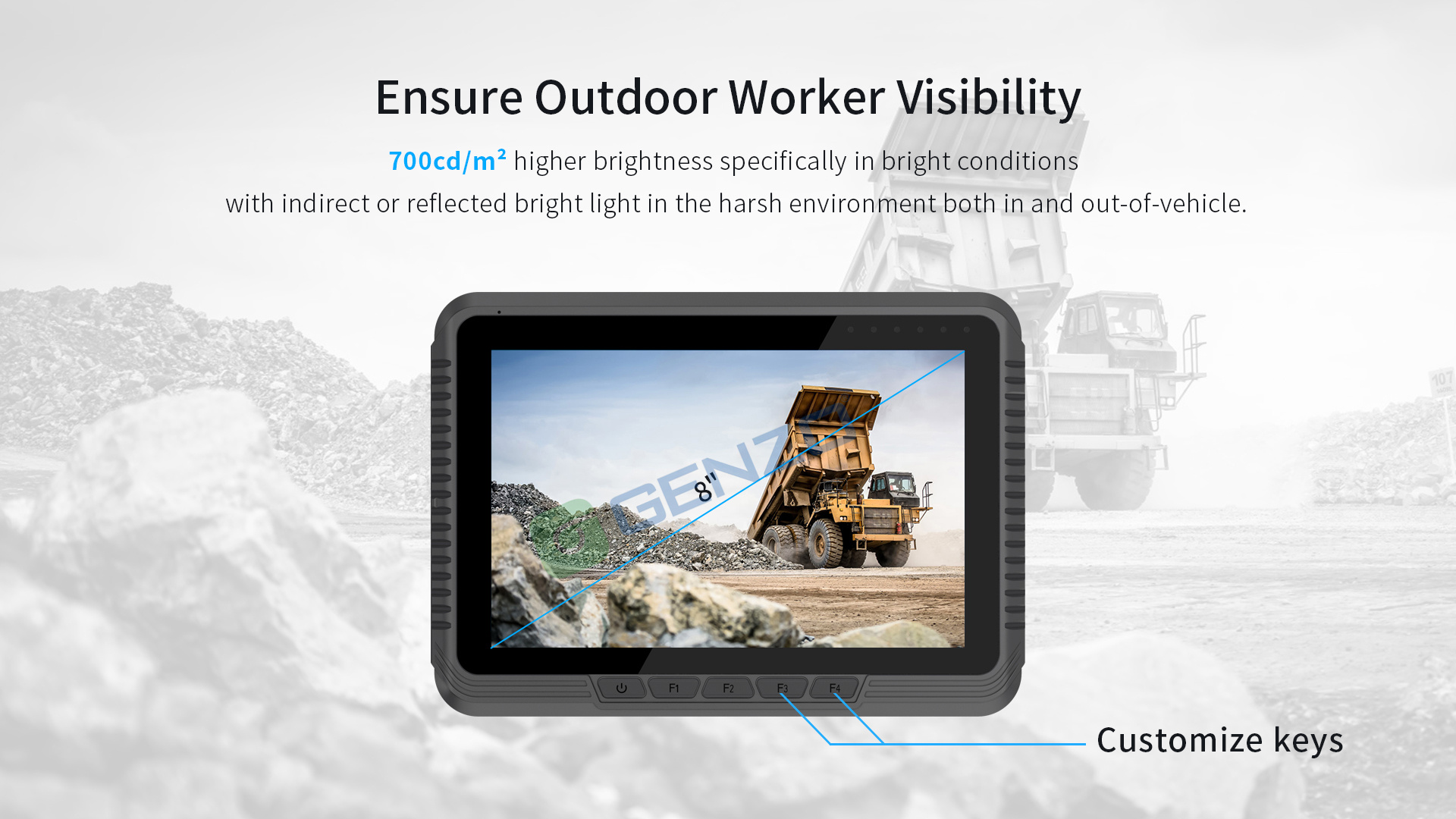

LCD Display
8 inch 16:10,   800×1280P, IPS      700 cd/m2
Touch Panel
5-point tempered glass capacitive screen G+F+F, hardness 7H
Camera
NO   (Optional)
Battery
Optional , Built in polymer lithium ion battery 1000mAh/7.4V
30 mins (50% volume sounds, 200 nits brightness, 1080P HD video
display by default), It is used to support normal power off and protect user data.
RTC
Built in 2032 RTC dry battery
Speaker
1.5W *1, Single horn (Maximum 2W)
Mic
Single MIC
G_sensor
Gravity acceleration sensor
Fingerprint
NO

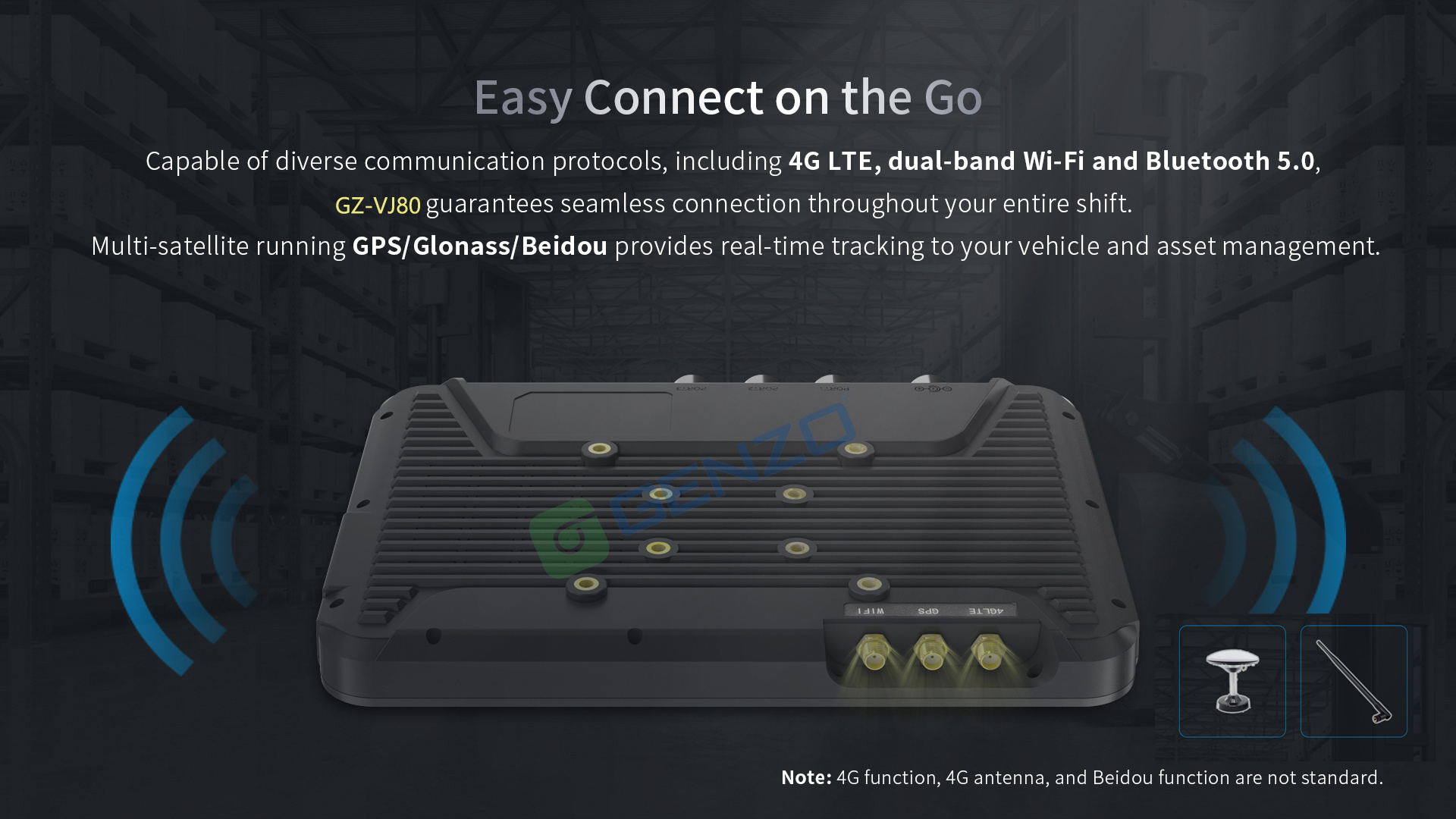

Data Collection & Networking
Barcode Scanner
NO
NFC
Optional NXP300,  13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT5.0 (BLE) class1 Transmited distance: 10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG
4G
Optional, South America or North America module, LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40 WCDMA: B1/B5/B8 GSM: 900/1800
GPS
Built in, Ublox 7 supports GPS, GLONASS
Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 11 Pro inactivated os(Free), Optiona Home/IOT/LTSC
Ethernet interface
Optional 1* RJ45 board,(10/100M/1000M) Ethernet interface
Serial port
Optional 1* DB9 board
I/O Port & Appearance & Package

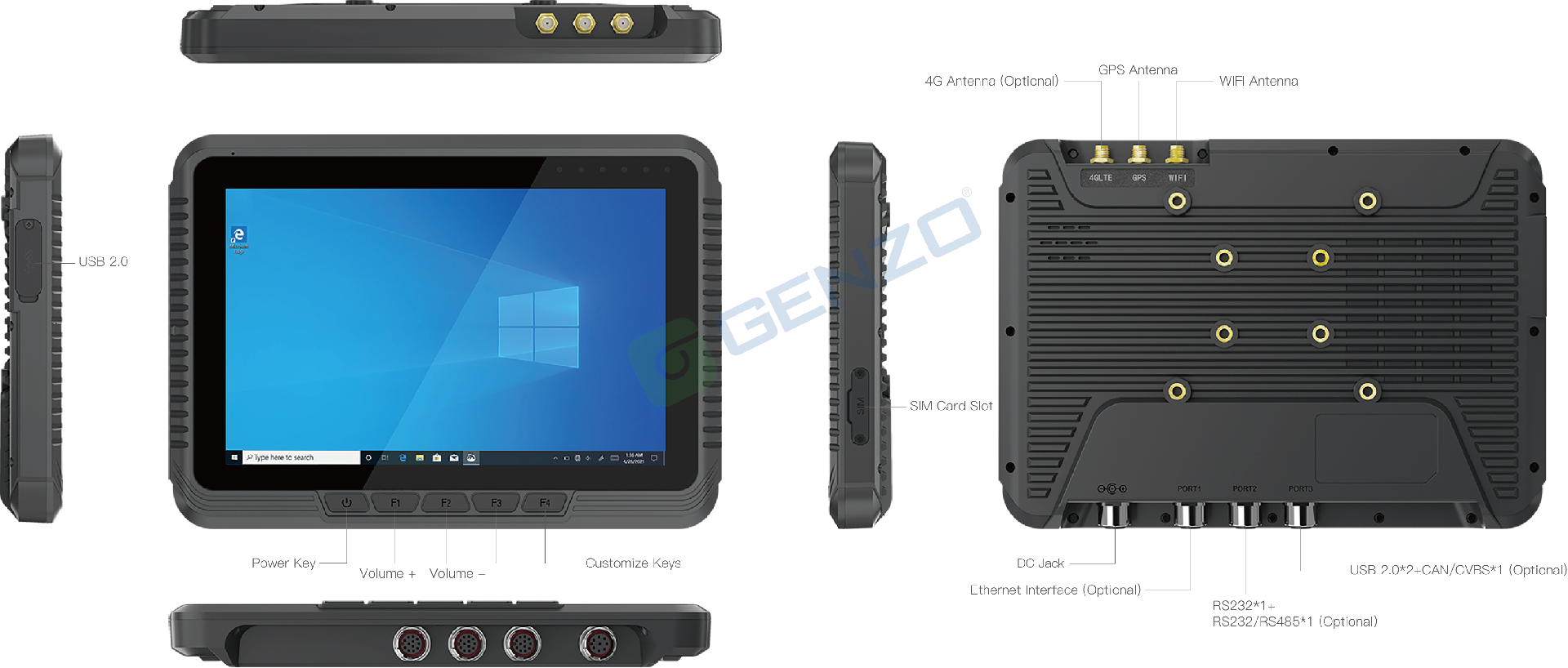

I/O Port

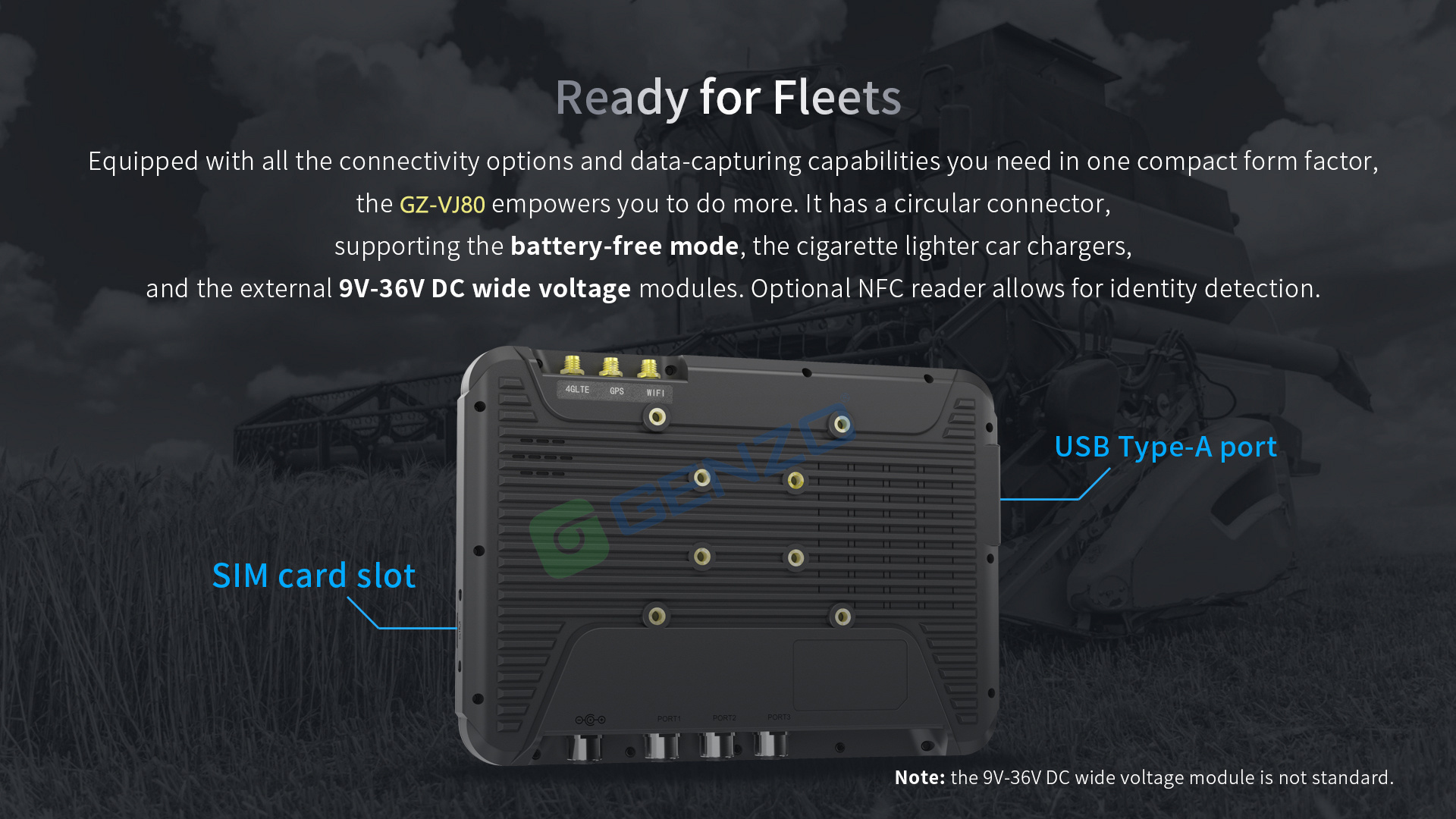

SIM card slot (optional) Nano-SIM *1,
Standard USB-A port / Data transmission USB 3.0 *1, USB A port, HOST data transmission,
Power interface DC input (Input: 11~24V), Compatible: 4-way GPIO customized for customer customization,
PORT1 (M12-12) (optional) 1000M network interface, Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet),
PORT2 (M12-12) (optional) RS232 *1+RS232/RS485 *1， 9PIN DB9 full function serial port RS232; 3PIN data transmission RS485/3PIN
PORT3 (M12-12) (optional) USB 2.0 *2+CAN/CVBS *1， USB2.0 standard interface *1; USB2.0 standard interface *1; Optional CAN or CVBS for customer debugging,
Keys
Power *1
Volume Adjustment Key (+) *1
(F1 Key) Volume Adjustment Key (-) *1
(F2 Key) Customizable *1
(F3 Key) Customizable *1 (F3Key)
Indicator light
1. Power indicator (blue when starting)
2. Charging lamp (red when DC is powered on)
3. Full charge indicator light (green when full with battery, not on when no battery)
Power Adaptor
Optional 19V3.42A DC φ5.5 power adapter.  Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
264.5*184.1*23.0 mm
Weight
Device unit: 1015g.
Package
WIFI rod antenna,GPS rod antenna,Power adapter cable, Packing box（Can be customized logo)
Optional Accessories
4G rod antenna (4G+network port)
4G rod antenna shall be used together with 4G module function, Frequency
Rang:824~960/1710~2700MHz Return Loss:-6dB or less Frequency Rang:3.4~3.8/4.4~4.9GHz Return Loss:-10dB or less Gain:2.0±0.2 dBi
Cigarette lighter adapter 19V3.42A Cigarette Lighter Adapter
Power adapter 19V3.42A DC φ5.5 power adapter
Power adapter cable   Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements.

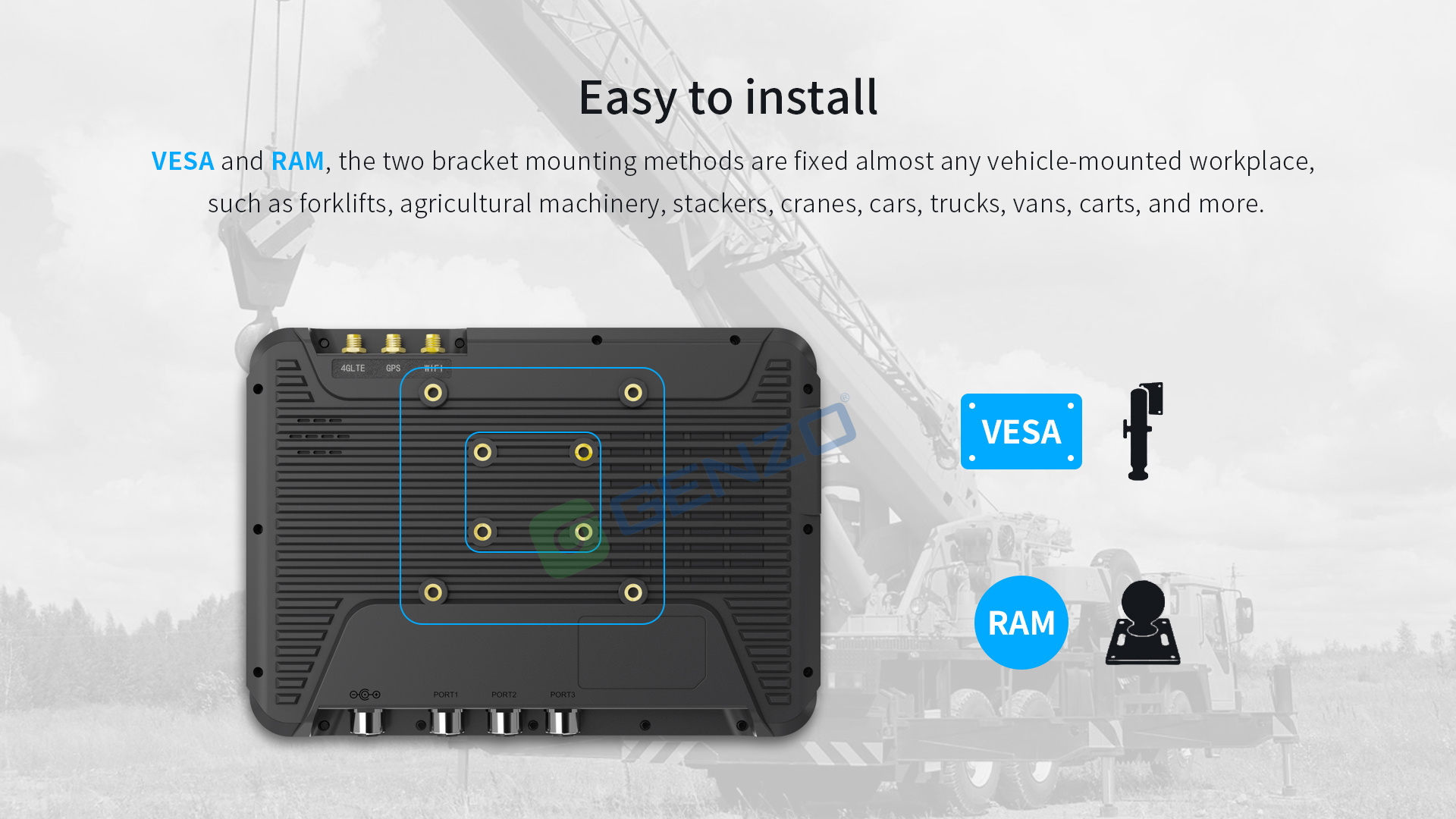

Bracket   Optional bracket
Bracket Optional platform bracket
Function adapter cable  Multi function adapter selection, 12PIN to 2-way USB 1-way CAN
Function adapter cable  Multi function adapter selection, 12PIN to full function RS232 power line + serial communication 485
Function adapter cable  Multi function adapter selection, 12PIN to full function RS232 power line + serial communication 232
Function adapter cable  Multi function adapter selection, 12PIN to 1000M RJ45
Function adapter cable  Multi function adapter selection, 12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection
Wide voltage module     Wide voltage demand when the power supply is unstable, External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment
GPS vehicle mushroom antenna  Active GPS mushroom antenna, line length 1.5M, 20dB ± 2dB
Certificate System & Reliability Design
IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status.
±8kV contact discharge, ±15kV air discharge
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
