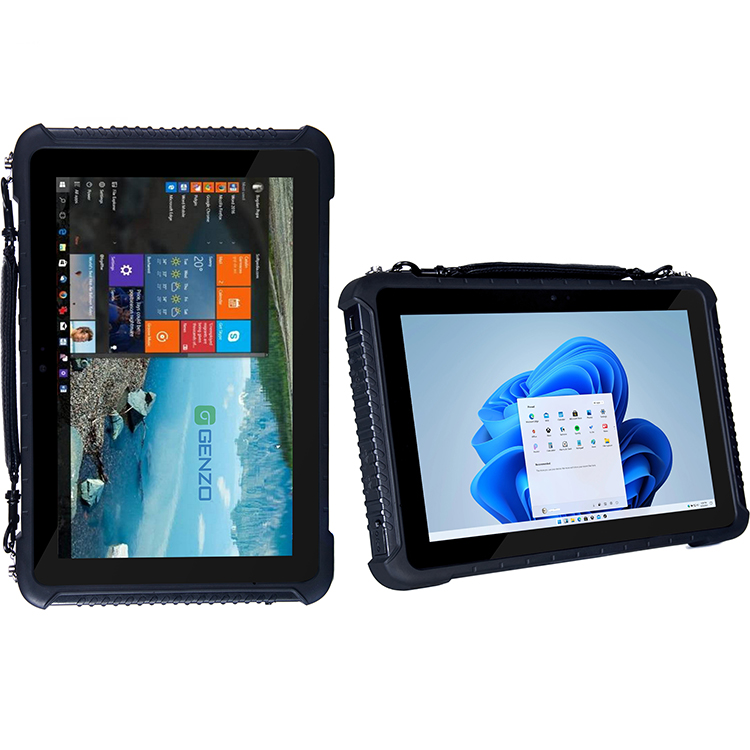

New 10 Inch Windows 11 Tablet With RJ45 & RS232

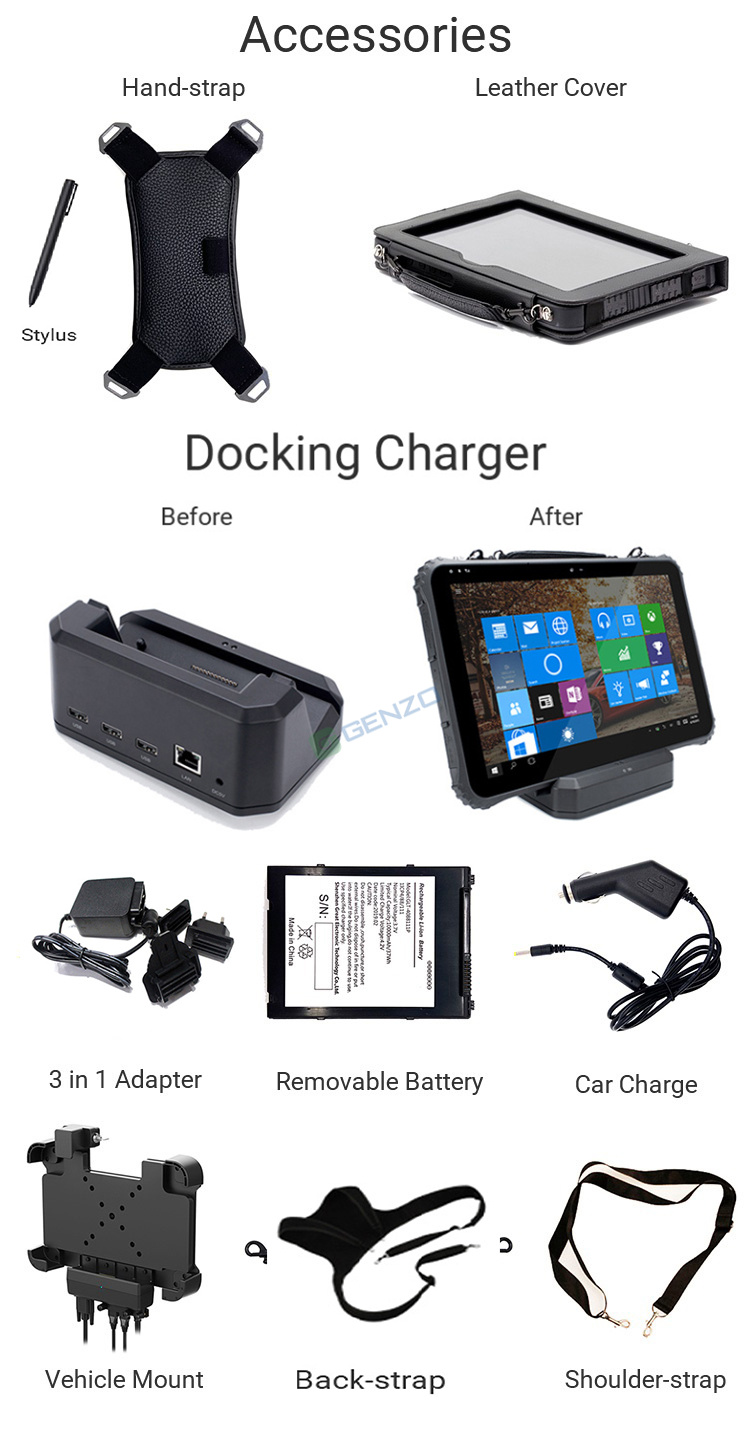

Modle:GZ-J109 , CPU：Intel JASPER LAKE N5100， 2.8 GHZ， RAM/ROM：4GB DDR3L + 64GB EMMC， LCD Display：10.1 inch 16:10, 1200×1920P, 400 cd/m2，Battery: 3.7V/5000mAh. Removeable polymer lithium ion battery. Camera: Front:5.0MP, Rear: 8.0MP. 1* DB9 board With RS232 + 1* RJ45. Optional Items: Docking Station /1D or 2D Barcode Scanner/Vehicle Mount/Stylus.
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
Intel JASPER LAKE N5100， 2.8 GHZ
GPU
Intel® HD Graphics Gen 11 LP
RAM/ROM
8GB LPDDR3/  128GB NGFF SSD
External Memory
Support TF*1,MAX 512GB
LCD Display
10.1 inch 16:10,   1200×1920P,      400 cd/m2
Touch Panel
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support 930 active pen
Camera
Front:5.0MP,   Rear: 8.0MP
Battery
3.7V/5000mAh removeable batery.6 hrs(default 50% volumn,default200nit,play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Mic
Sensitivity:-42db, Output resistance:2.2kΩ
G_sensor
Gravity acceleration sensor
Fingerprint
NO
Data Collection & Networking
Barcode Scanner
1D Optional Honeywell MOTO SE655E100R;
2D Optional Honeywell N3680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
Optional NXP100,  13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT4.2 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG
4G
MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no
TDD band) Europe, Middle East, Africa, Taiwan, Japan
GPS
Support GPS, GLONASS
Capture sensitivity: -160 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second
OS
Windows 11 Pro inactivated os(Free), Optiona Home/IOT/LTSC
Ethernet interface
1* RJ45 board,(10/100M/1000M) Ethernet interface
Serial port
1* DB9 board
I/O Port & Appearance & Package
I/O Port
HDMI 1.4a Type C x 1,
USB 3.0 Type-A x 1, Type C (USB3.0/HDMI/charge)x 1,
SIM Card x 1, TF Card x 1,
12pin（USB&Docking charging） x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC 12V 34A DC jack x 1
Keys
F KEY=Scanner key,   P KEY customizable KEY,                Volume adjustment key(+) x 1,Volume adjustment key(-) x 1,power keyx 1
Indicator light
Power on is always blue, power off light is off ×1,
(Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1
Power Adaptor
AC100V ~ 240V, 12V4A/ Output USA Standard CE approval.
UK/EU Standard Optional
Dimension
280.4*187*26.6mm
Weight
Device unit: 1015g.
Package

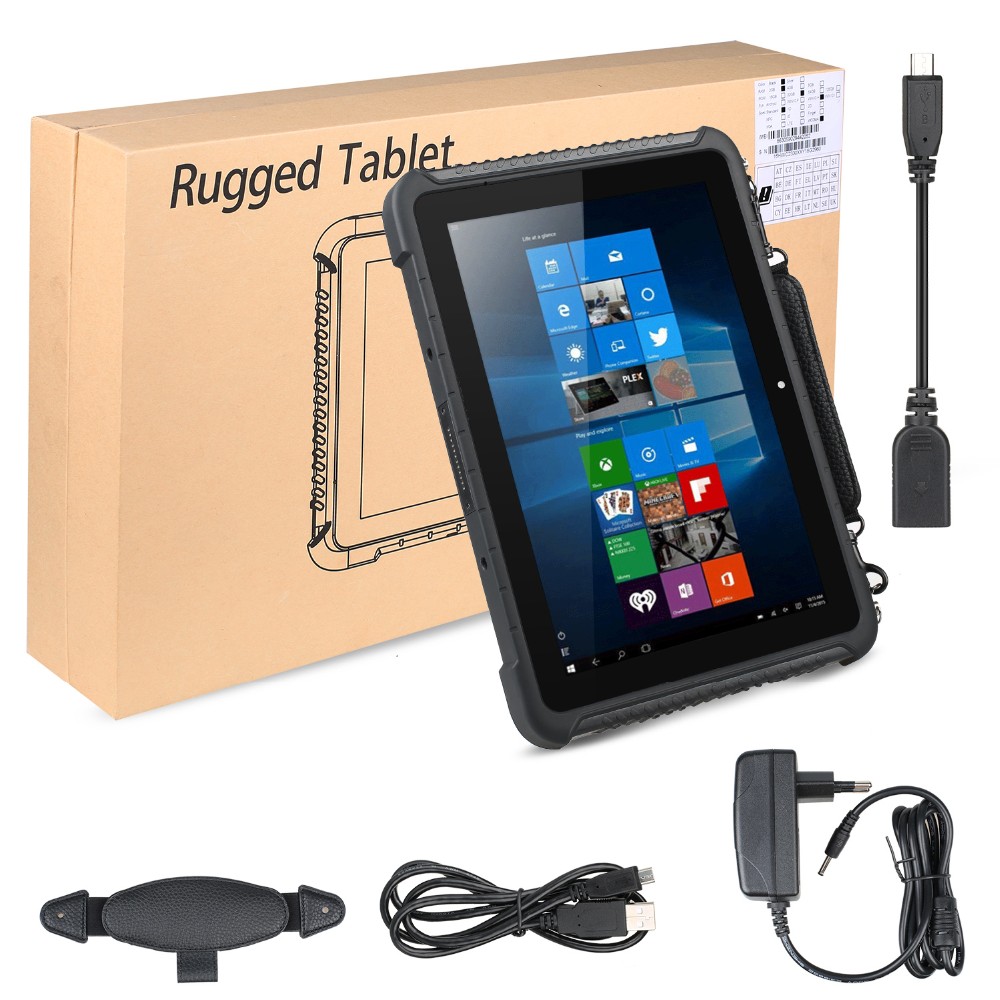

USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
