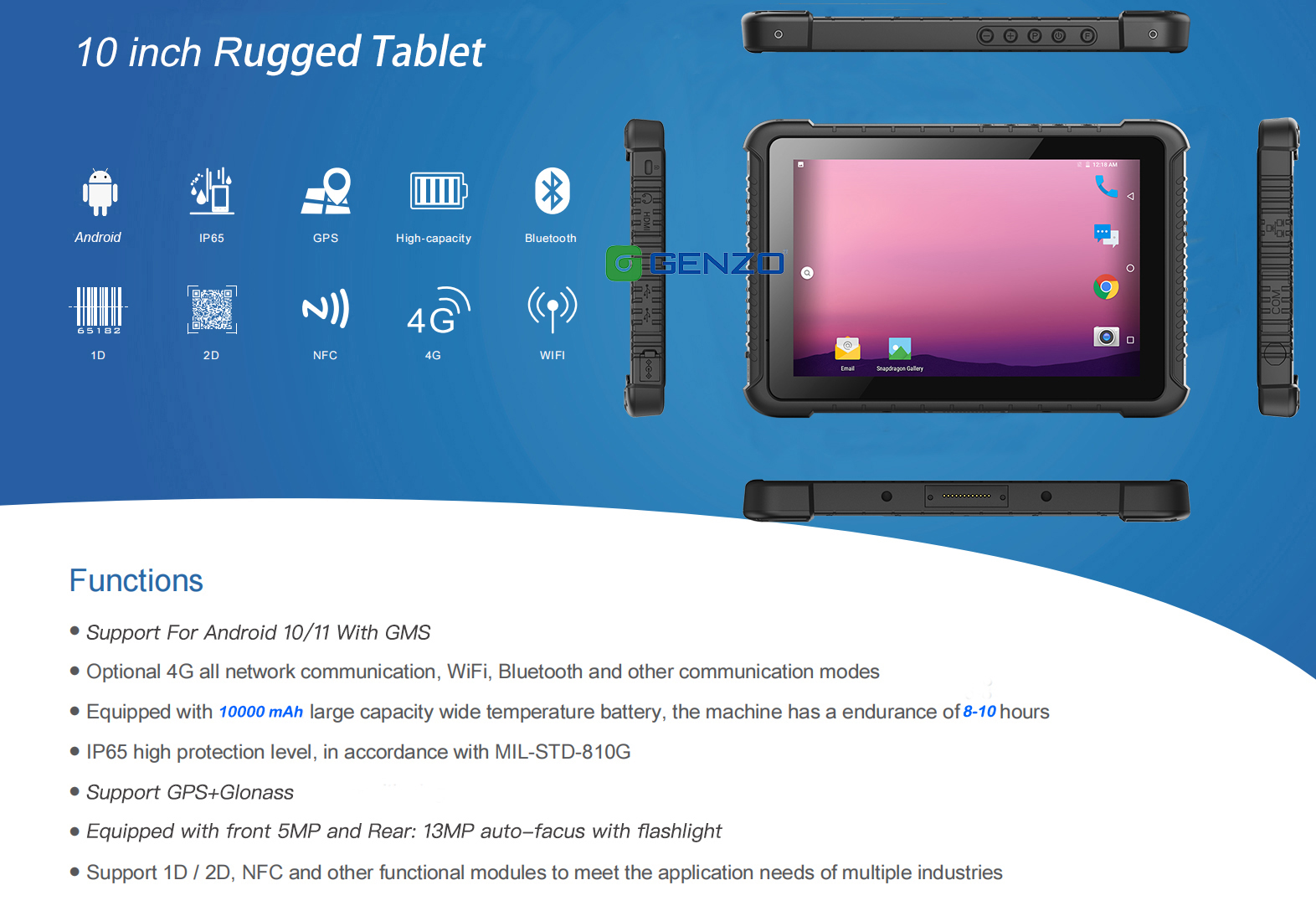

Rugged Android Tablet With RJ45 & RS232

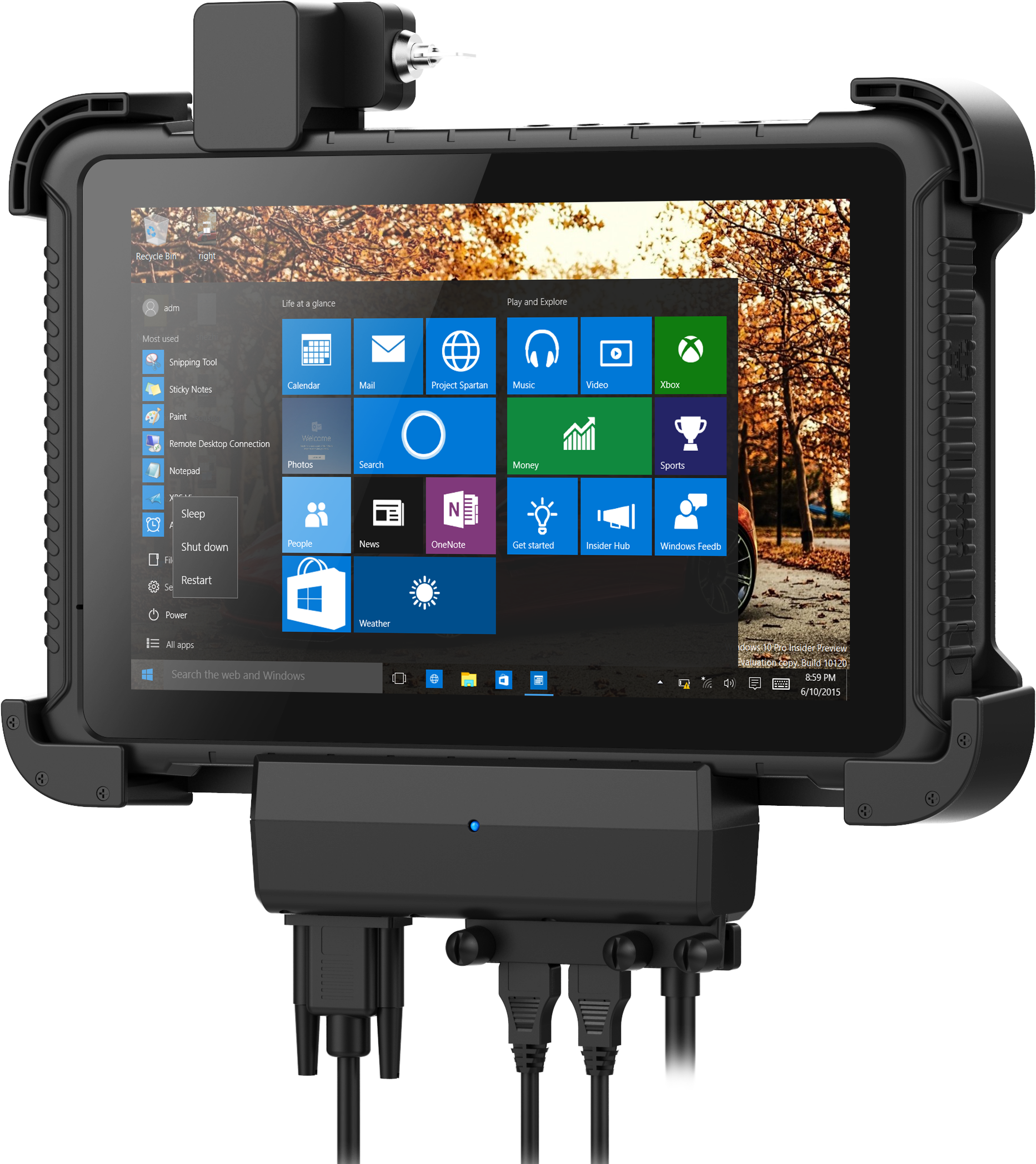

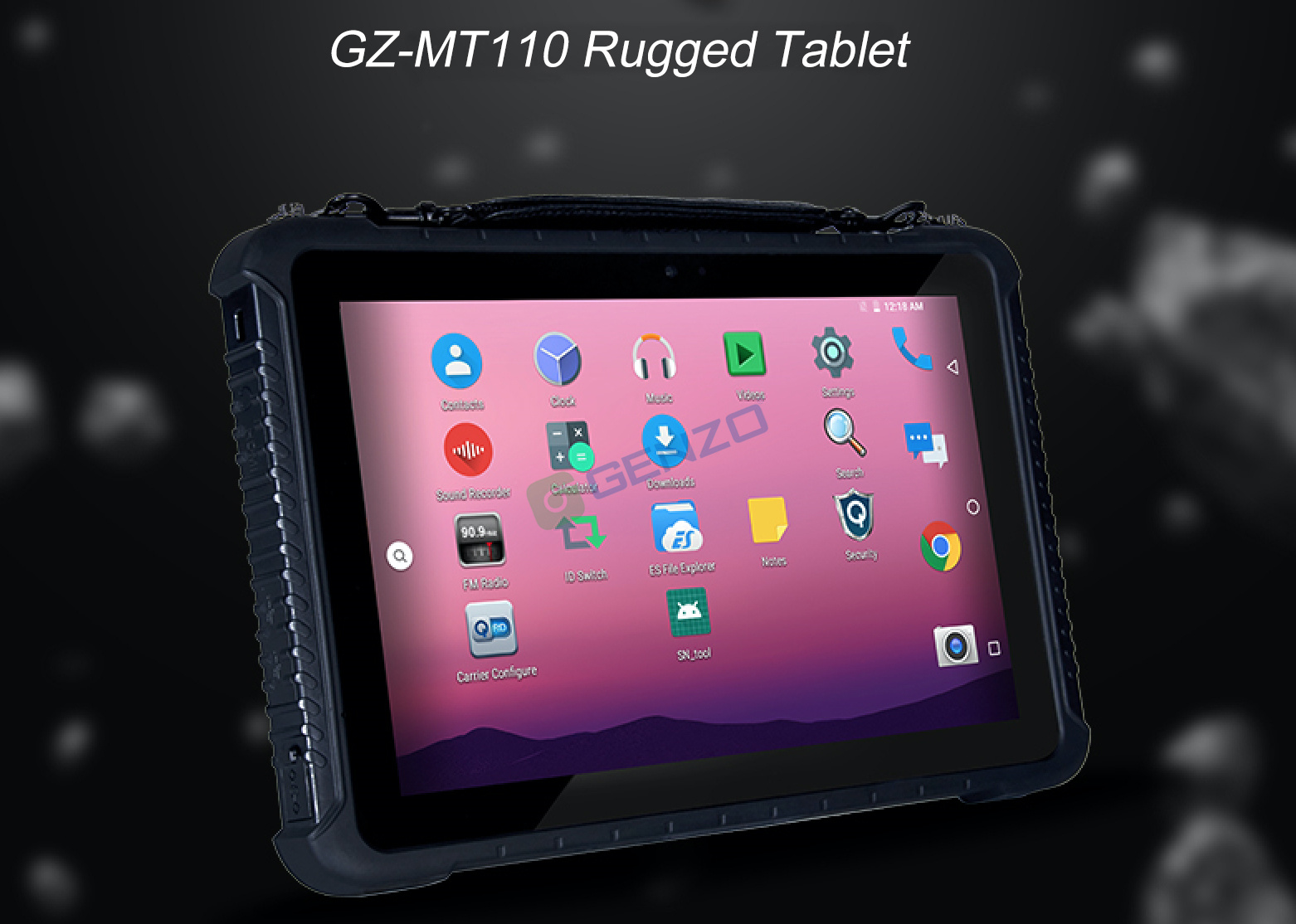

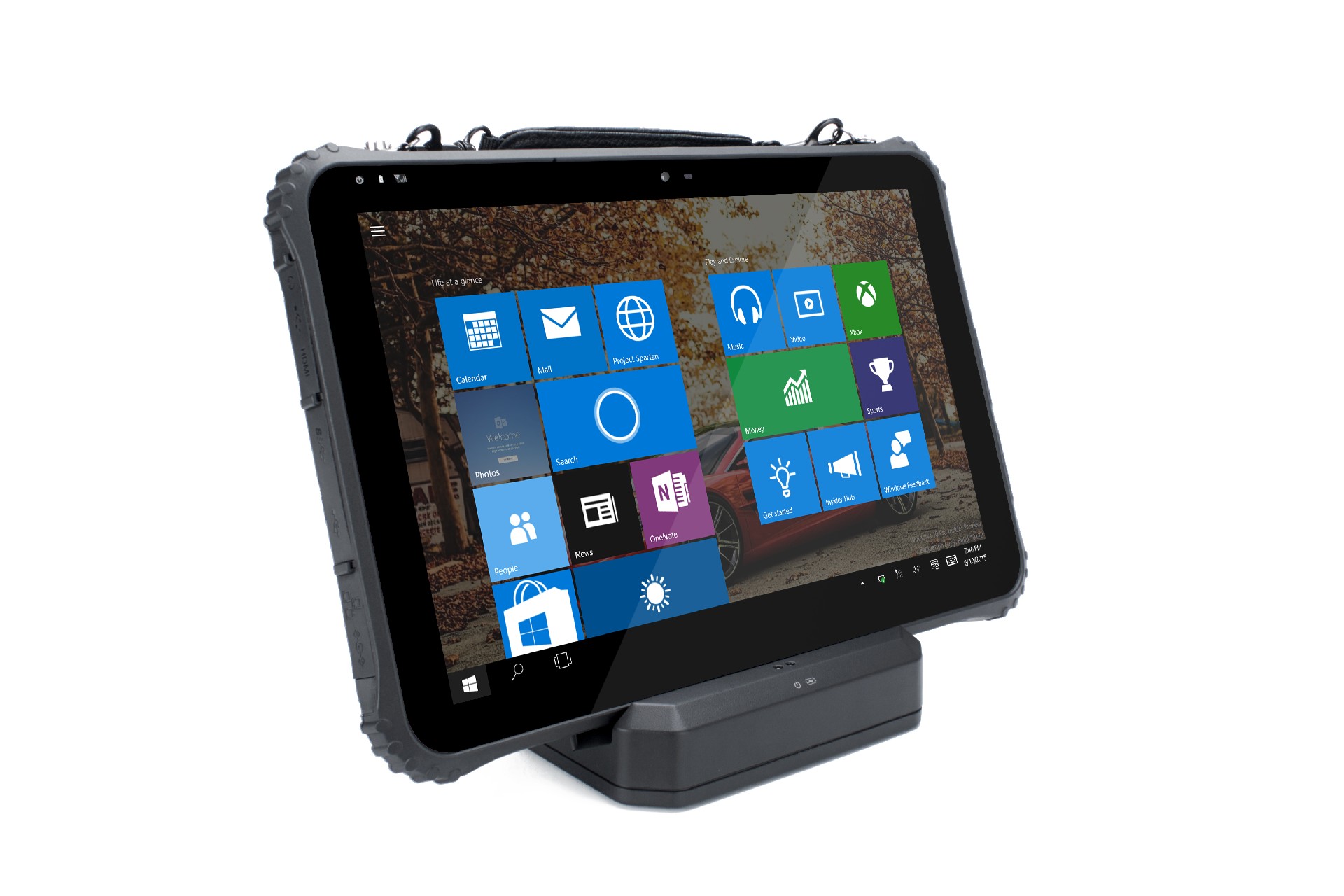

Modle:GZ-MT110. CPU：MSM8953（8core）， RAM/ROM：4GB LPDDR3/ 64GB EMMC， LCD Display：10.1 inch 800*1280 IPS LCD, 400 nits, 1200*1920P with 700nits optional，Battery: 3.7V/10000mAh. Removeable polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight.DB9 Port RS232 TTL Electrical Level + RJ45 PORT 10/100 Self-adaption. Optional Items: Docking Station /1D or 2D Barcode Scanner/Vehicle Mount/Stylus.
Products Inquiry

PRODUCT INFORMATION

配件 (28).jpg

Hardware
CPU
Qualcom-m MSM8953  2.0 GHz
GPU
Adreno 506; 650MHz
RAM/ROM
4GB LPDDR3/ 64GB Emmc
External Memory
Support TF*1,MAX 256GB
LCD Display
10.1“ 16:10,800*1280 IPS LCD, 400 nits, 1200*1920P with 700nits optional
Touch Panel
Multipoints Capacitive, G+G, Rigidity: above 7H-Anti-scratch, support handwriting
Camera
Front:5.0MP, Rear: 13MP auto-facus with flashlight
Battery
3.7V/10000mAh. Removeable polymer lithium ion battery.
10-12 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Sensor
light Sensor *1,Gyro Sensor *1,G_sensor *1,Compass Sensor *1
Data Collection & Networking

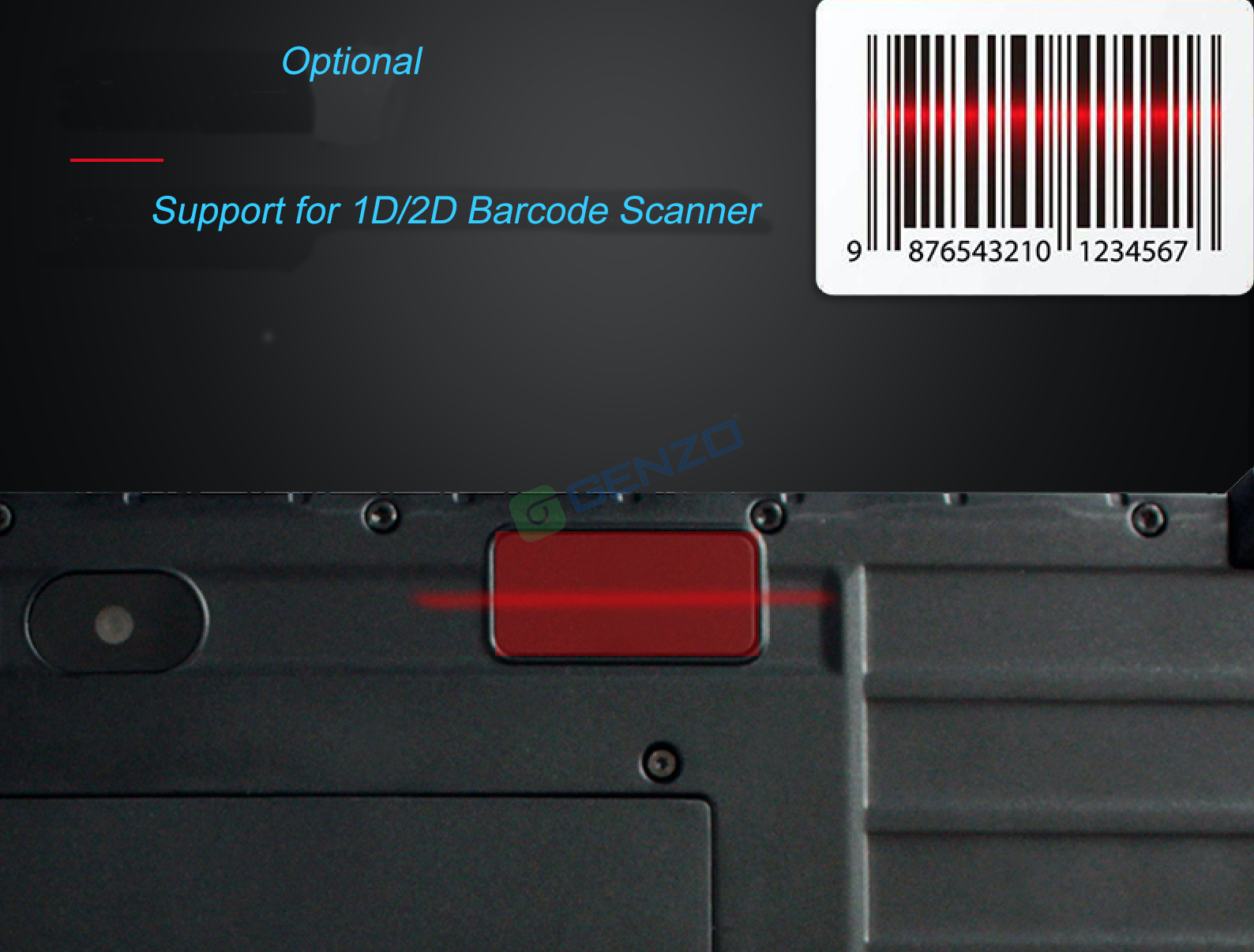

Barcode Scanner
1D Optional MOTO SE655E100R;    2D Optional Honeywell N3680 TTL decoding
Fingerprint
Optional SPI Fingerprint (windows hellow boot login)
NFC
Build-in NFC, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT
BT4.2 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI
4G
CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8
GPS
Support :GPS+Glonass; Capture sensitivity: -140 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second;
GPS frequency: 1575.42MHz, GLONASS frequency: 1602MHz
OS
Android 10 or 11 With GMS
I/O Port & Appearance & Package

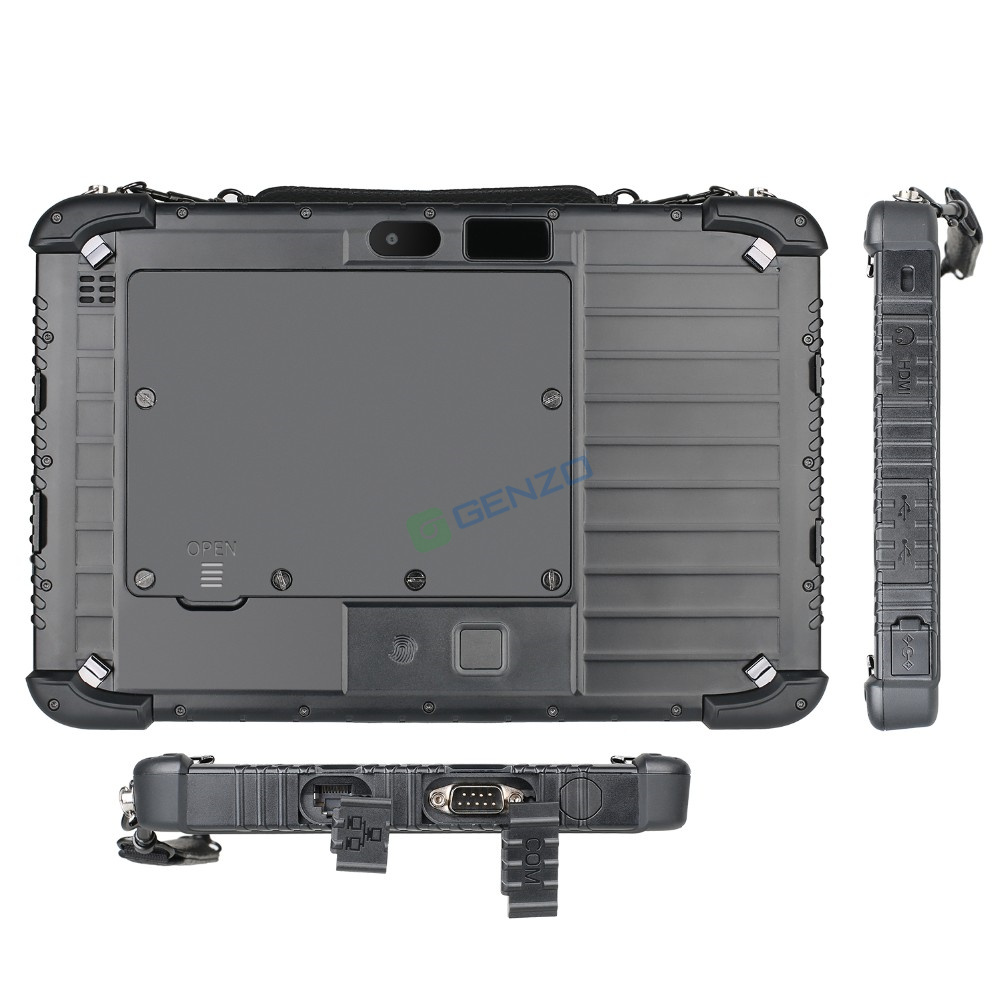

I/O Port
HDMI 1.4a x 1,
USB 3.0 Type-A x 1, Type-c x 1,
SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1,
DB9 Port RS232 TTL Electrical Levelx 1,
RJ45 PORT 10/100 Self-adaptionx 1
Dimension
289.9*196.7*27.4mm
Weight
Device unit: 1150g.   10000mAh battery:450g
Package
Type-c cable/Type-c OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design

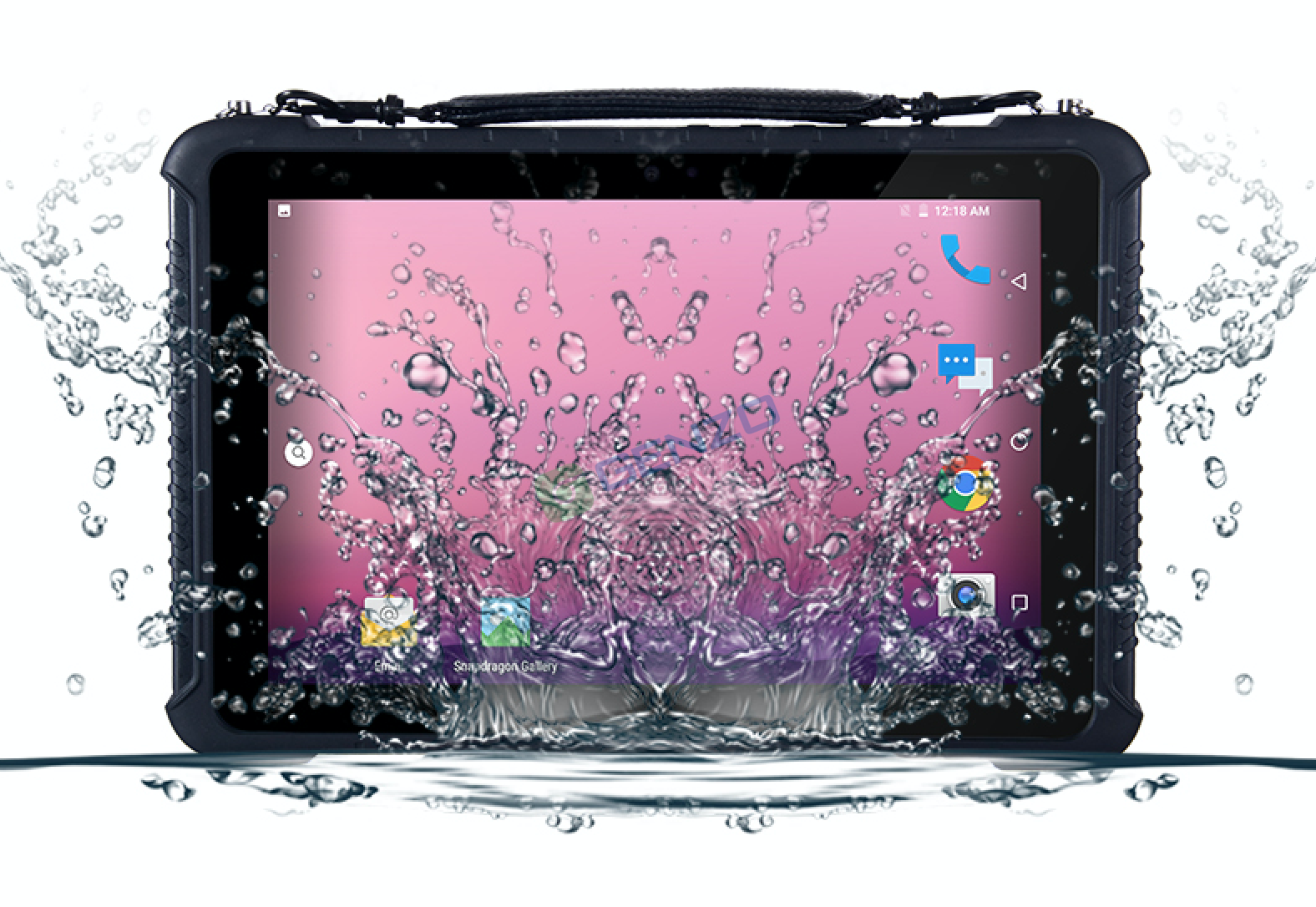

IP67
IP65 Report：Water Resistance:IP-X5，Dust Resistance:IP-6X
a.Inner Nozzle Diameter：6.3mm；
b. WaterSpeed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time: at least 3min；
g.Distance between nozzle and panel surface：2.5～3m.
After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
