10 Inch 5G Rugged Android Tablet

Modle:GZ-MT105P. CPU：MSM 6350（8core）， RAM/ROM：4GB LPDDR3/ 64GB EMMC， LCD Display：10.1 inch 16:10,1200*1920 IPS screen, 400 nits，Battery: 3.7V/8000mAh. Built-in polymer lithium ion battery. Camera: Front:5.0MP, Rear: 13MP auto-facus with flashlight. Optional Items: Docking Station /1D or 2D Barcode Scanner.
Products Inquiry

PRODUCT INFORMATION

Hardware
CPU
MSM 6350（8core）
GPU
Adreno GPU 619
RAM/ROM
4GB LPDDR3/ 64GB EMMC
External Memory
Support TF*1,MAX 256GB
LCD Display
10.1“ 16:10,1200*1920 IPS screen, 400 nits
Touch Panel
10 points capacity TP Multipoints Capacitive, Rigidity: above 6H-Anti-scratch
Camera
Front:5.0MP, Rear: 13MP auto-facus with flashlight

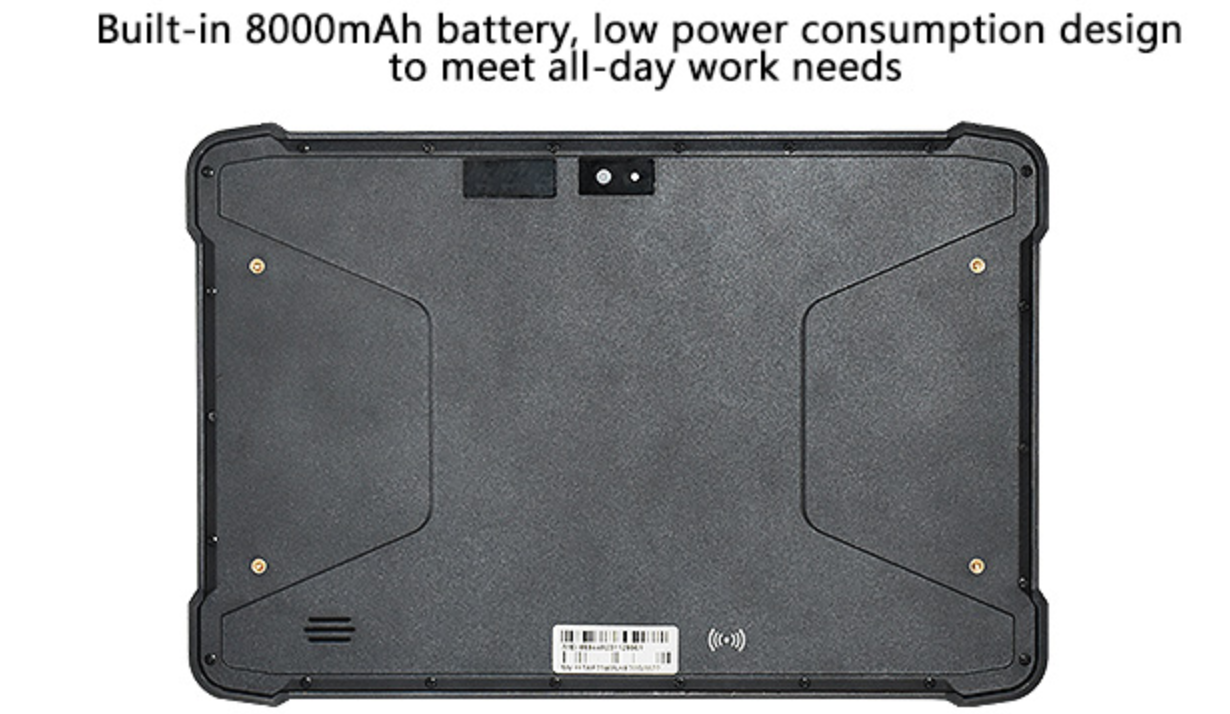

Battery
3.7V/8000mAh. Built-in polymer lithium ion battery.
8-10 Hrs(default 50% volumn,default maximum lumens brightness,play 1080P HD video)
Speaker
Embedded 8Ω/0.8W waterproof speakerx 1
Sensor
light Sensor *1,Gyro Sensor *1,G_sensor *1,Compass Sensor *1
Data Collection & Networking

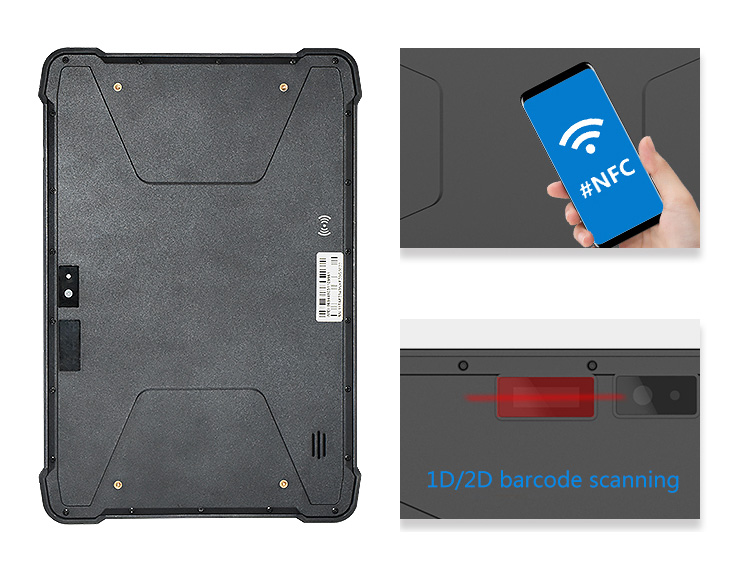

Barcode Scanner
1D Optional MOTO SE655E100R;    2D Optional Honeywell N3680 TTL decoding
Fingerprint
NO
NFC
Build-in NFC, Support 14443A protocol under ISO / IEC, card reading distance: 3-5cm
BT
BT5.1 (BLE) class1 transmission distance：10m
WIFI
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G dual band WIFI
4G
5G NR:N1/N28/41/78/79 TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/5/7/8 WCDMA: B1/5/8
GPS
Support :GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS;
Capture sensitivity: -140 dBm;
Cool Start Time:less 50second,Hot Start Time:less 28second;
GPS frequency: 1575.42MHz, GLONASS frequency: 1602MHz
OS
Android 11 With GMS
I/O Port & Appearance & Package

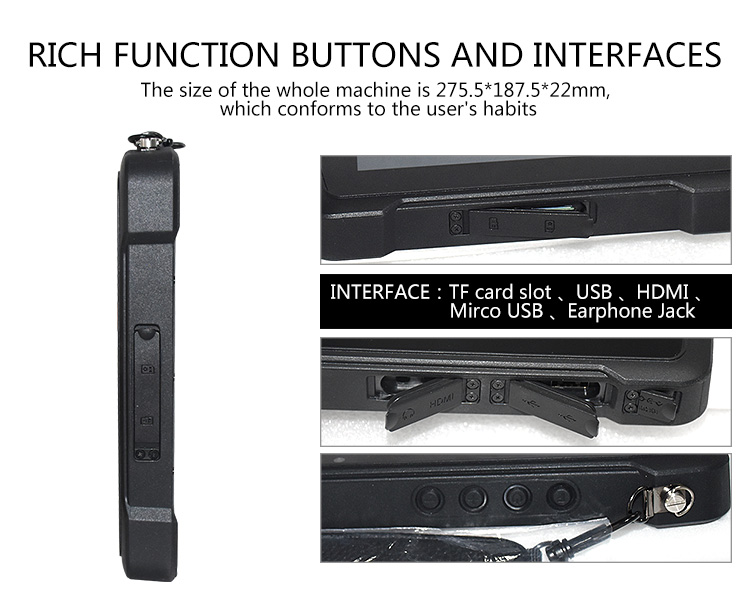

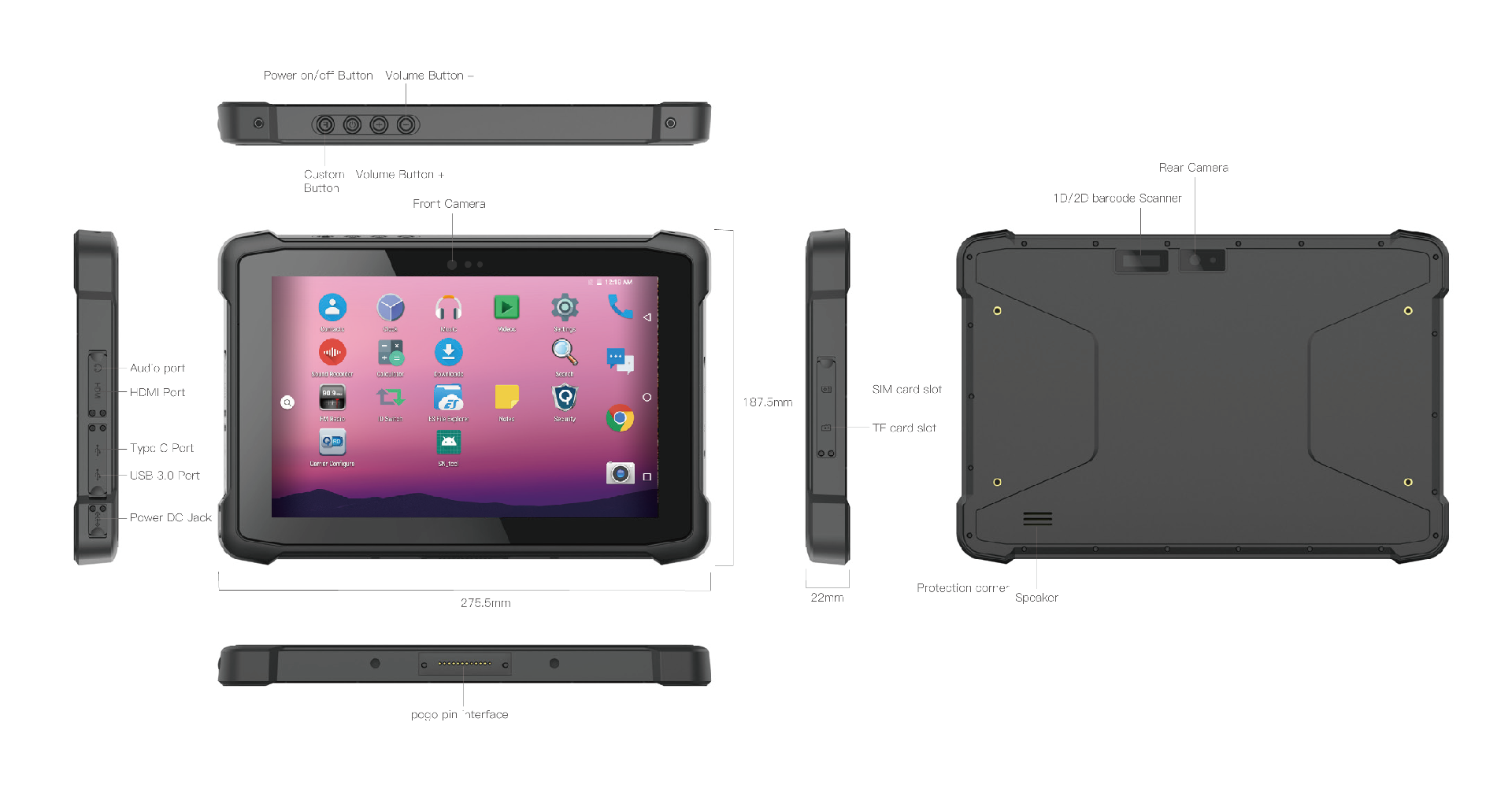

I/O Port
HDMI 1.4a Type-c x 1,
USB 3.0 Type-A x 1,Type-c(data&charing) x 1,
SIM Card x 1, TF Card x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1,
Dimension
275.7*187.5*24.5mm
Weight
Device unit: 970g.
Package
USB cable/Hand-Straps,Charger 5V 3A/Packing box（Can be customized logo)
Certificate System & Reliability Design
IP67
IP65 Report：Water Resistance:IP-X5，Dust Resistance:IP-6X
a.Inner Nozzle Diameter：6.3mm；
b. WaterSpeed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn :A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time: at least 3min；
g.Distance between nozzle and panel surface：2.5～3m.
After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
MIL-STD-810G 1.22m drop
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
