Hardware | |
CPU | 12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz |
GPU | Intel® Iris® Xe Graphics eligible |
RAM/ROM | 16GB DDR5 Optional: 32GB, up to 64GB / 256GB NGFF SSD Removeable, Optional: 512GB, up to 1TB/2TB |
External Memory | Support TF*1,MAX 128GB |
LCD Display | 10.1 inch 16:10, 1080×1920P With 700 cd/m2 |
Touch Panel | 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Supports glove touch |
Camera | Front Integrated FF 5.0 MP,Rear Integrated AF 13.0 MP With Flashlight |
RTC Battery | Separated 3V/210mAh RTC on board |
Battery(Small+Big) | Small Battery:Built in polymer lithium ion battery, Non-Removeable 7.4V/860mAh. 40mins(default 50% volumn，default200nit，play 1080P HD video) +Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,7.4V/9800mAh. 11hrs(default 50% volumn,default200nit,play 1080P HD video) |
Speaker | Built in 4Ω/1W waterproof speaker *2 |
Mic | Waterproof microphone 4618, specification: - 38dB±3DB |
TPM | Built-in TPM2.0 |
G_sensor | Gravity acceleration sensor |
Fingerprint | Built-in ×1 SPI Fingerprint (windows hellow boot login) |
Fan | Built-in ×1 IPX5 |
Data Collection & Networking | |
Barcode Scanner | 2D Optional Honeywell N3680/N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse) |
NFC | Optional HF-RFID (NFC) reader |
BT | BT5.1 (BLE) class1 Transmited distance：10m |
WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI |
4G | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA：B1/5/8 |
GPS | Integrated GPS/GLONASS module |
OS | Windows 11 Pro (Home, IOT) 64bit, Language by default: English |
Module extension (Note: The following modules are 1 of 5) | |
Ethernet interface | 1* RJ45 board,(10/100M/1000M) Ethernet interface (Standard Machine including RJ45) |
Serial port | Optional 1* RS232 |
Two-dimension barcode | Optional 1*Honeywell N3680/N4680 hardcode |
| Ethernet interface | Optional 10/100/1000 Ethernet (RJ45) & USB3.0（TypeA）x1 |
USB2.0 | Optional USB3.2 *1，USB2.0 *2 |
I/O Port & Appearance & Package | |
I/O Port | HDMI 2.1a mini x1, USB 3.1 Type-A x 1, USB3.0 (Type-C) x 1 Nano SIM Card x 1, SD Card x 1, RJ45*1 10M/100M/1000M self-adaptive 12pin（USB&Docking charging） x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC 19V 3.42A DC jack x 1 |
Keys | Power Button *1 Volumn + key *1 Volumn - key *1 Windows Home *1 F key *1 (Barcode scanning) |
Power Adaptor | AC100~240V, 19V/3.42A , 65W USA Standard CE approval. UK/EU Standard Optional |
Power Indicator Light | 1. Power On: Power indicator remains solid. 2. Power Off: Power indicator turns off. 3. Sleep Mode: Power indicator blinks. |
Baterry Indicator Light | 1. Charging: Charging indicator remains solid (red). 2. Fully Charged: Charging indicator remains solid (green). 3. Large Battery Not Connected: Charging indicator flashes quickly (red). 4. Low Battery (10%) Without Adapter Connected: Charging indicator flashes quickly (red) |

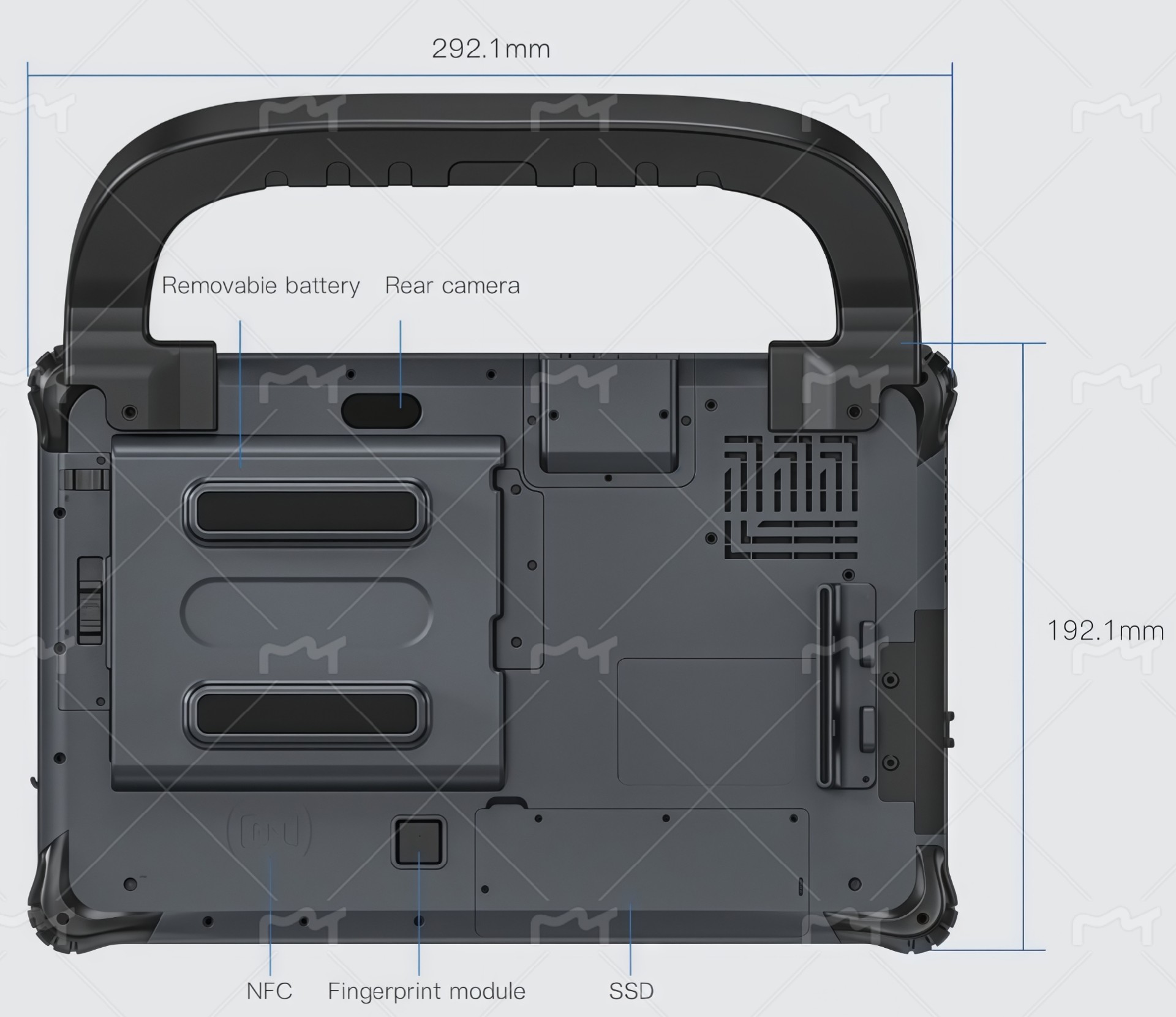

Dimension | 292.1 mm(L) × 192.1 mm(W) × 27.5 mm(H) |
Weight | Device unit: 1450g. |
Package | Standard configuration:Handle/USB cable/OTG cable/19V 3.78A Adapter/Packing box（Can be customized logo) |
Optional Accessories | Docking Charger / Stylus / Removable Battery |
Certificate System & Reliability Design | |
IP67/IP65 | IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R 26 drops from 4ft (each face, edge and corner) a.Inner Nozzle Diameter:6.3mm； b. Water Speed:12.5±0.625L/min； c. Water Pressure:Adjust according to water volumn； d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample. |
CE NB | YES |
MIL-STD-810G | YES |
Battery | UN38.3，MSDS,IEC62133 |
Drop Height | 1.22m composite wood floors,in operation status |
Operate Temperature | ‘-25 °C to 60 °C |
Store Temperature | ’-30 °C to 70 °C |
Humidity | Humidity: 95% Non-Condensing |
