GZ-H61J 6.5 Inch PDA Windows 10/11

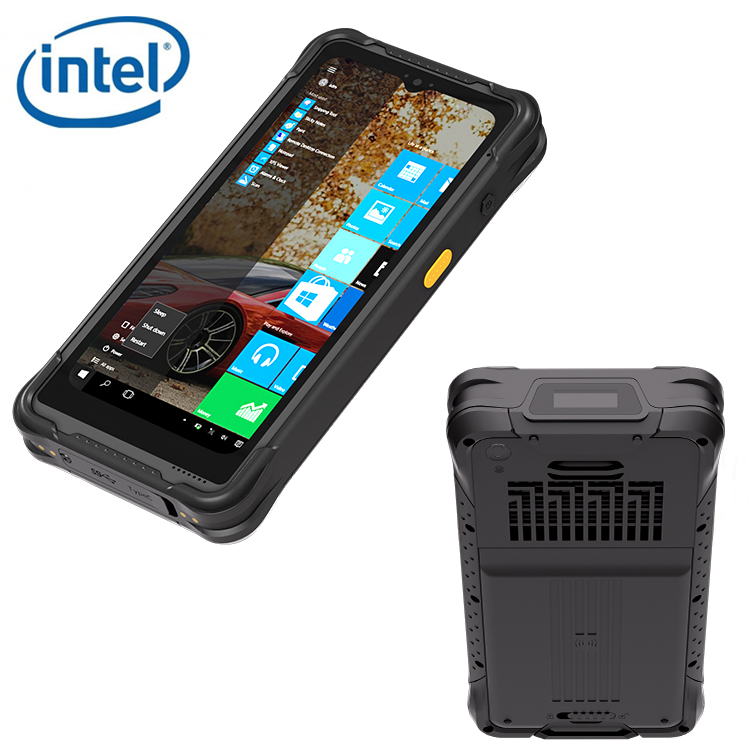

Modle:GZ-H61J,New 6.5 Inch Rugged Windows PDA,Intel JASPER LAKE N5100,2.80 GHz,8GB LPDDR4+128GB Emmc,6.5 inch full laminated TFT color full IPS screen,Dropnotch 20:9,Resolution: 720*1600P, Brightness: 500cd/cm²,Front:5.0MP,Rear 8.0MP automatic focusing,7.4V/4000mAh. Removeable polymer lithium ion battery,Support 45W PD3.0 - Fast Charging,2D Optional Honeywell N4680/N3680
Products Inquiry

PRODUCT INFORMATION






6 拷贝 2.jpg



Hardware
CPU
Intel JASPER LAKE N5100,2.80 GHz
GPU
Intel® UHD Graphics 620
RAM/ROM
8GB LPDDR4+128GB Emmc
External Memory
Support TF*1,MAX 512GB
LCD Display
6.5 inch full laminated TFT color full IPS screen,Dropnotch 20:9,
Resolution: 720*1600P,  Brightness: 500cd/cm²
Touch Panel
5 points Capacitive, G+FF, Corning Gorilla Glass, Hardness 6H or higher, scratch-resistant.
Camera
Front:5.0MP,Rear 8.0MP automatic focusing
Battery(Small+Big)

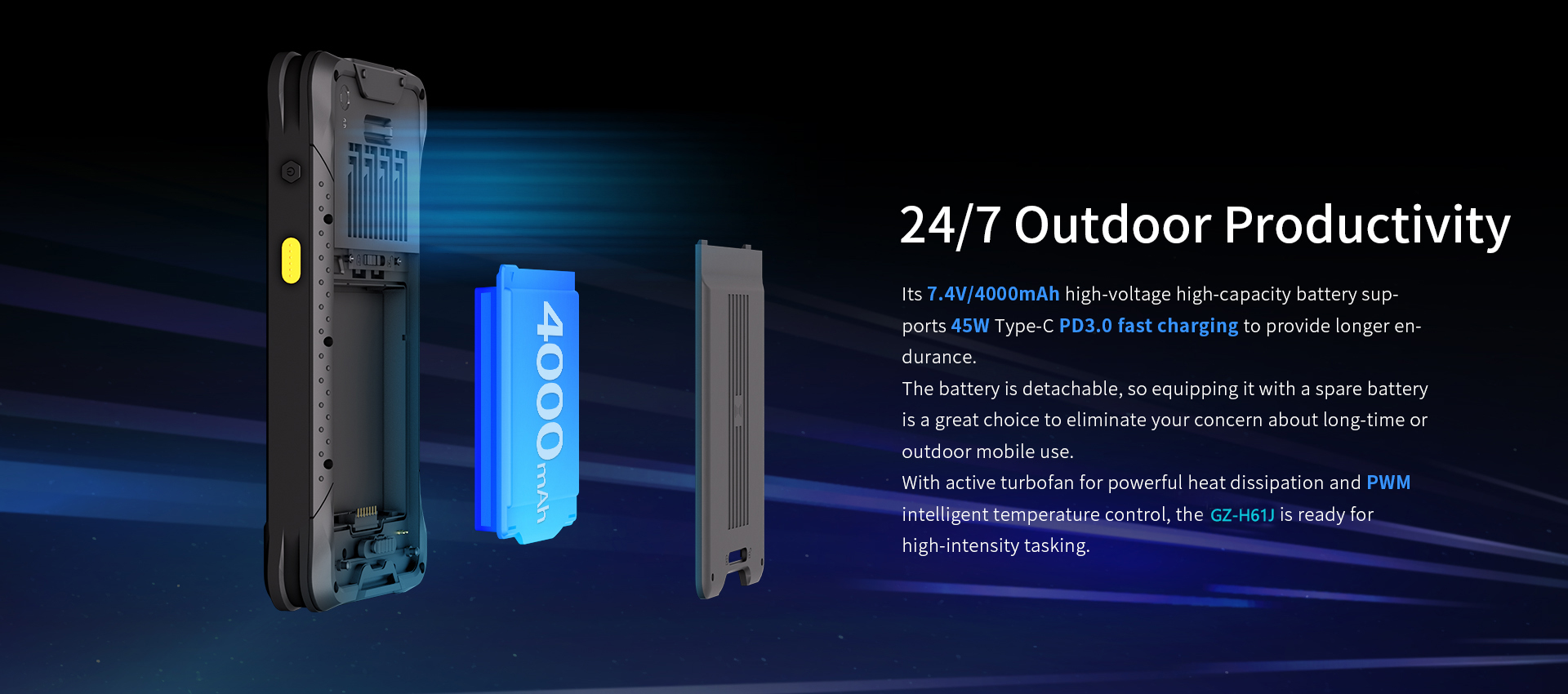

7.4V/4000mAh. Removeable polymer lithium ion battery,
About 6 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default )
                            Support 45W PD3.0 - Fast Charging
Speaker
Embedded 1Ω/1W speaker x 1 95dB@0.1m
Mic
Sensitivity:-42db, Output resistance:2.2kΩ
G_sensor
Gravity acceleration sensor
Data Collection & Networking
Barcode Scanner
2D Optional Honeywell N3680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 3-5cm
BT
BT5.0 (BLE) class1 transmission distance：10m
WIFI
Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
4G
MeiGlink 750VE, LTE FDD: B1/B3/B7/B8/B20, LTE TDD: B40, WCDMA: B1/B5/B8 GSM: 900/1800 China (Unicom, Telecom, Mobile) Europe, Middle East,Africa, Taiwan, Japan
Optional: 750-VA，LTE-FDD: B2/4/5/12/13/17/18/25/26, LTE-TOD:B41, WCDMA: B2/4/5, CDMA&EVDO: BC0/BC1 GSM: 850/1900
 750-VSA, LTE-FDD:B2/4/5/7/8/28, LTE-TOD:B40, WCDMA: B2/5/8, GSM:850/900/1900
GPS
GPS+GLONASS
OS
Windows 10 IOT/Windows 11 IOT inactivated os(Free)
Optional  Extension

Optional  Extension
Docking Station,Scanner Triggers,Removeable Battery
I/O Port & Appearance & Package
I/O Port
TYPE-C 2.0*1 OTG (Data transmission),
Standard USB-A port/Data Transfer (3.0),
TF card *1, Max: 512GB
Nano-SIM * 1
Pogo Pin (Suitable docking charger)
Keys
Power *1
Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1
Bar code scanning (left and right)*2
Power Adaptor
AC100V ~ 240V, PD3.0 45W, USA Standard CE approval.
UK/EU Standard Optional
Dimension
183.1*88.6*24.1mm
Weight
Device unit: 470g.
Package
USB C to C cable/PD3.0 45W Adapter/Packing box（Can be customized logo)
Handstrap is Optional
Certificate System & Reliability Design
IP67/IP65
IP67 Report:Water Resistance:IP-X7，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
