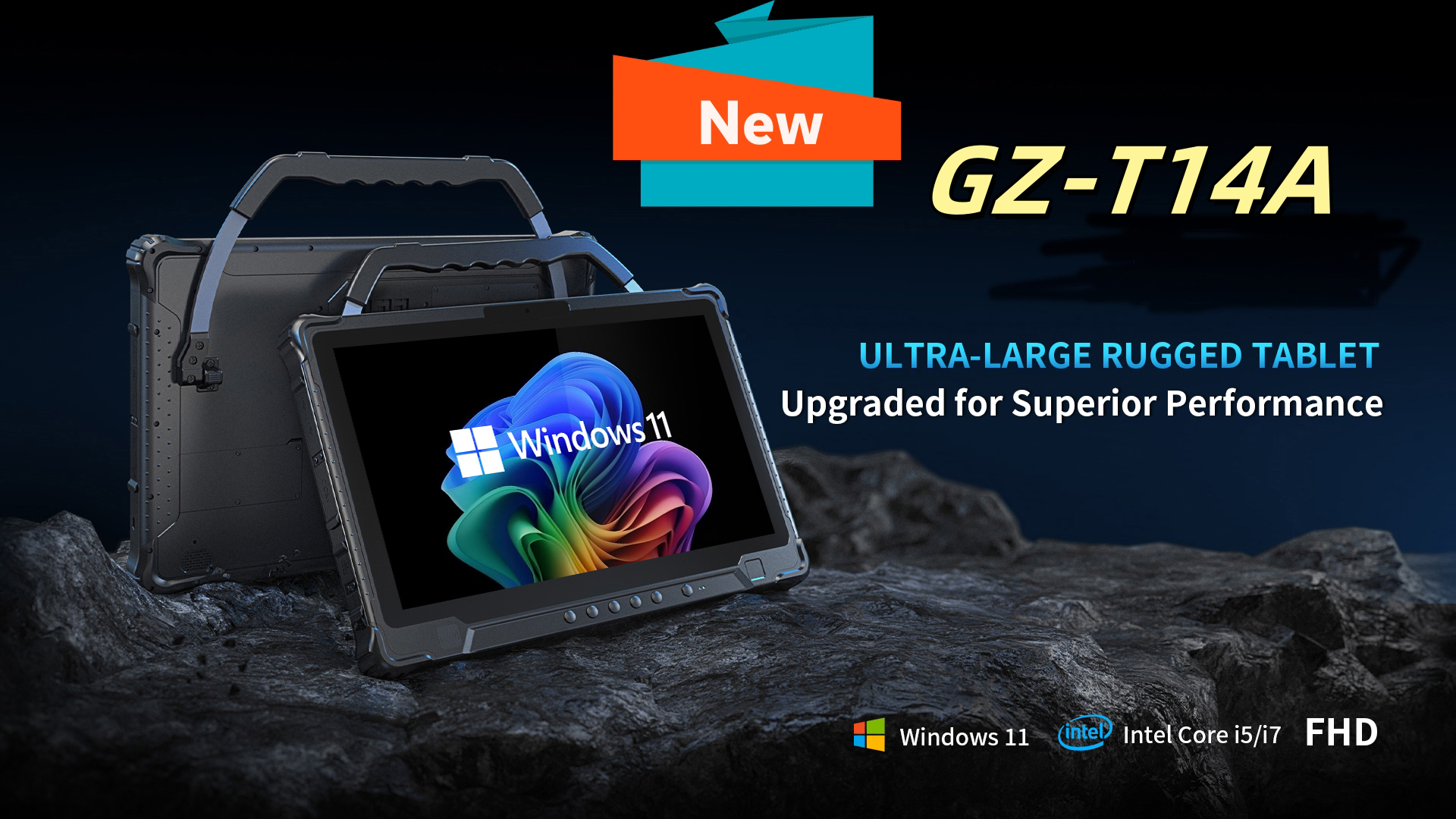

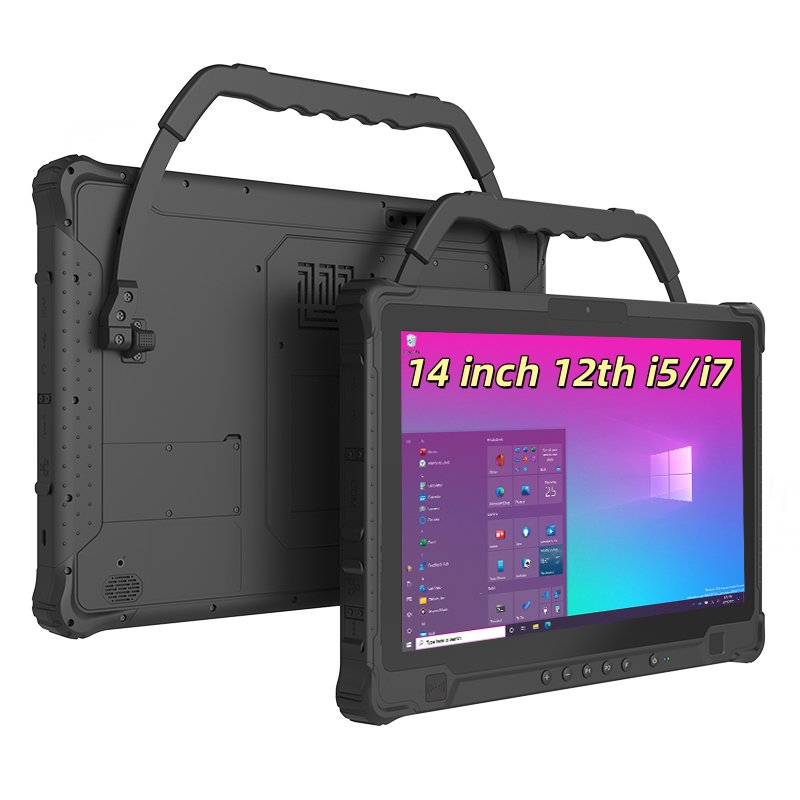

Big Screen 14 inch Rugged Tablet GZ-T14A

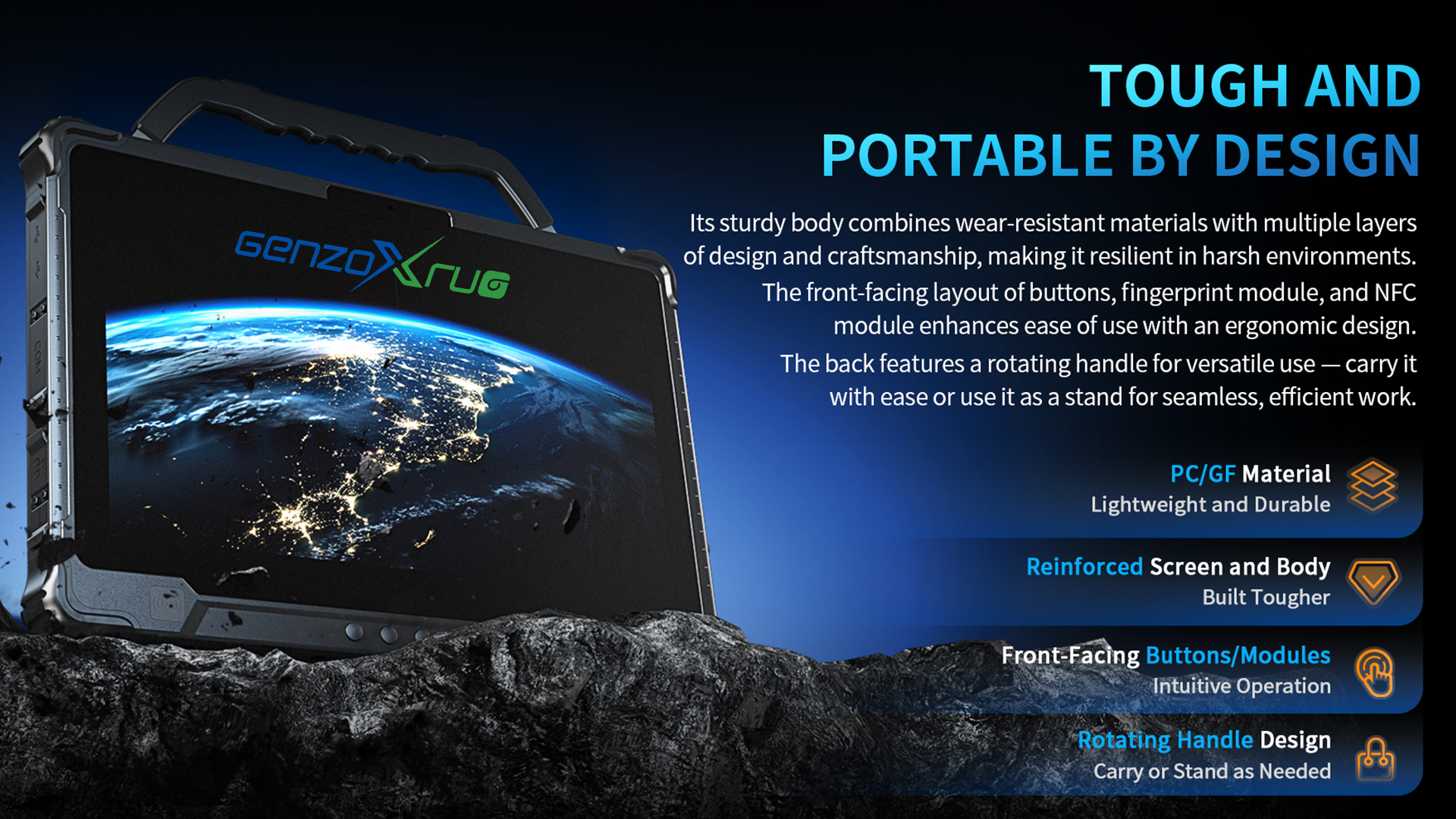

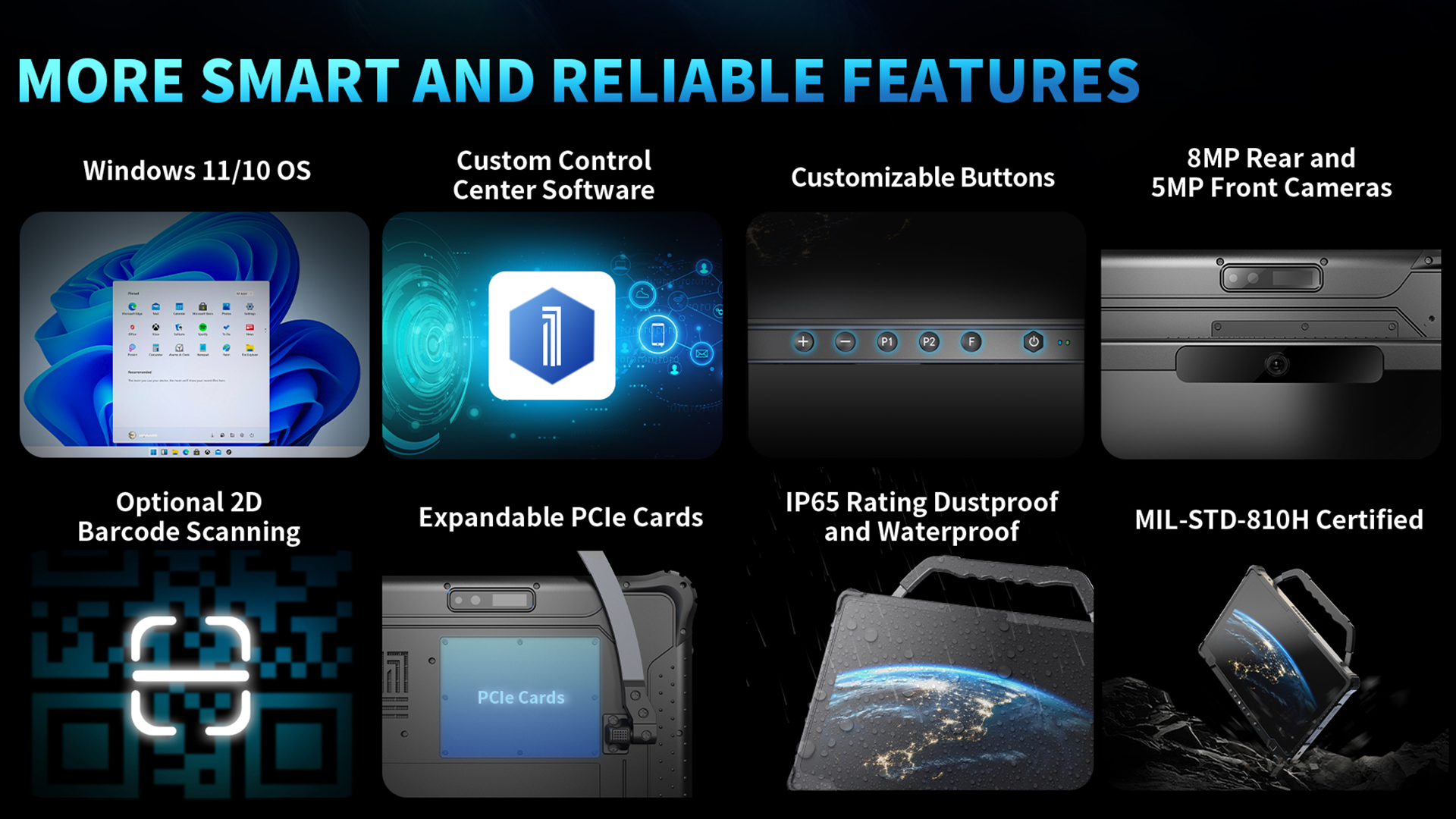

ULTRA-LARGE RUGGED TABLETThe GZ-T14A features the 12th Generation Intel® Core™ i5/i7 processors and runs on Windows 11/10 operating systems. It comes standard with 16GB RAM + 256GB SSD, and boasts a dual-memory and dual-hard drive slot design that supports free upgrades and expansions. Options for M.2 interface 5G/4G connectivity are available, along with efficient transmission via WiFi 6 and BT5.1. It includes a Thunderbolt 4 versatile interface, as well as USB, HDMI, Ethernet, and serial ports, allowing for the connection of numerous external devices. With a dual-battery setup of 56Wh + 14.4Wh, it offers long-lasting endurance, and the larger battery supports hot-swapping. The device has an IP65 protection rating and has undergone rigorous testing according to the MIL-STD-810H US military standards.
Products Inquiry

PRODUCT INFORMATION

1 拷贝_副本 拷贝.jpg

Hardware
CPU
12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz
Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz
GPU
Intel® Iris® Xe Graphics eligible
RAM/ROM

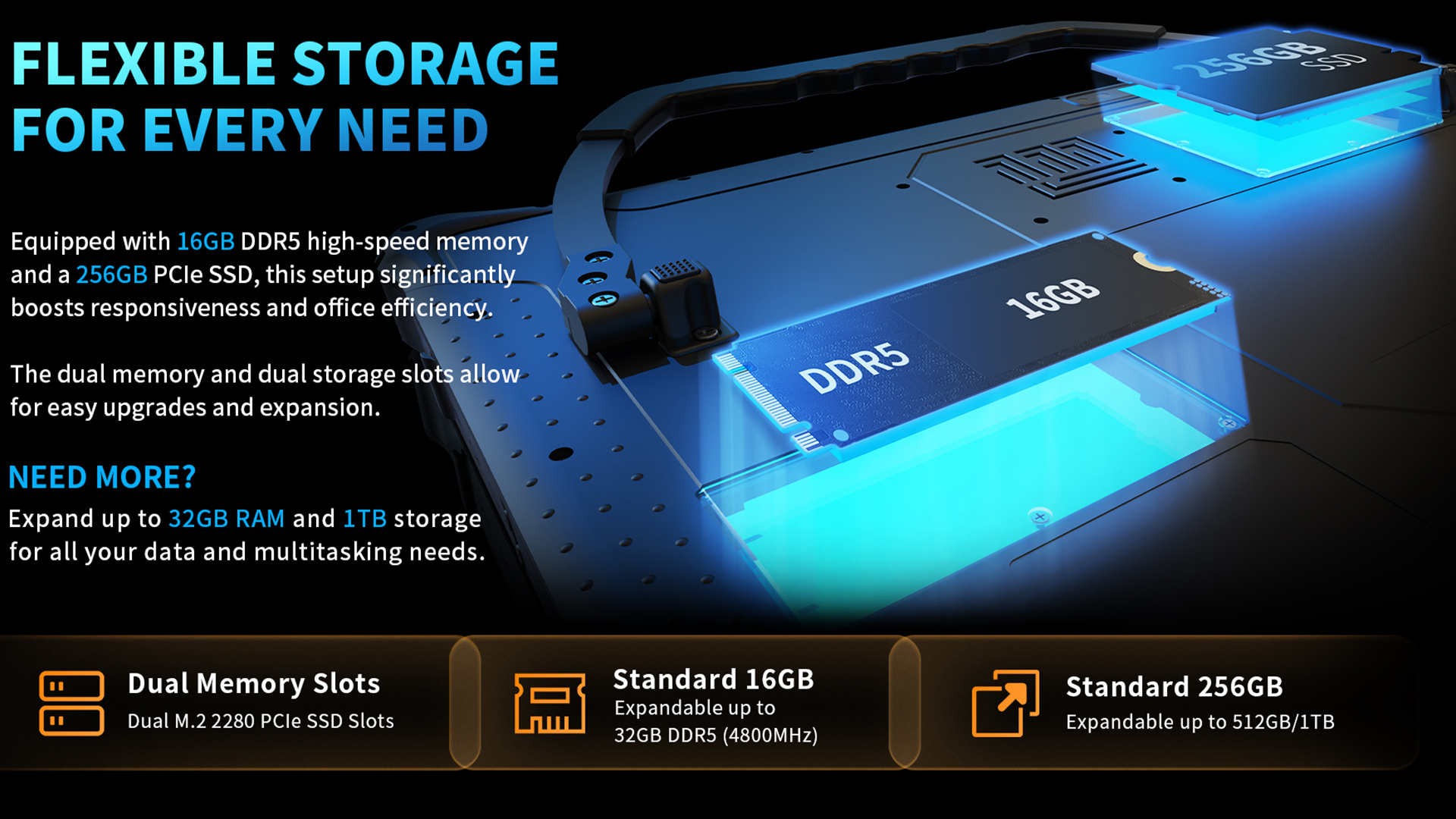

16GB DDR5 Optional: 32GB, up to 64GB /
256GB NGFF SSD Removeable, Optional: 512GB, up to 1TB/2TB
External Memory
Support TF*1,MAX 128GB
LCD Display

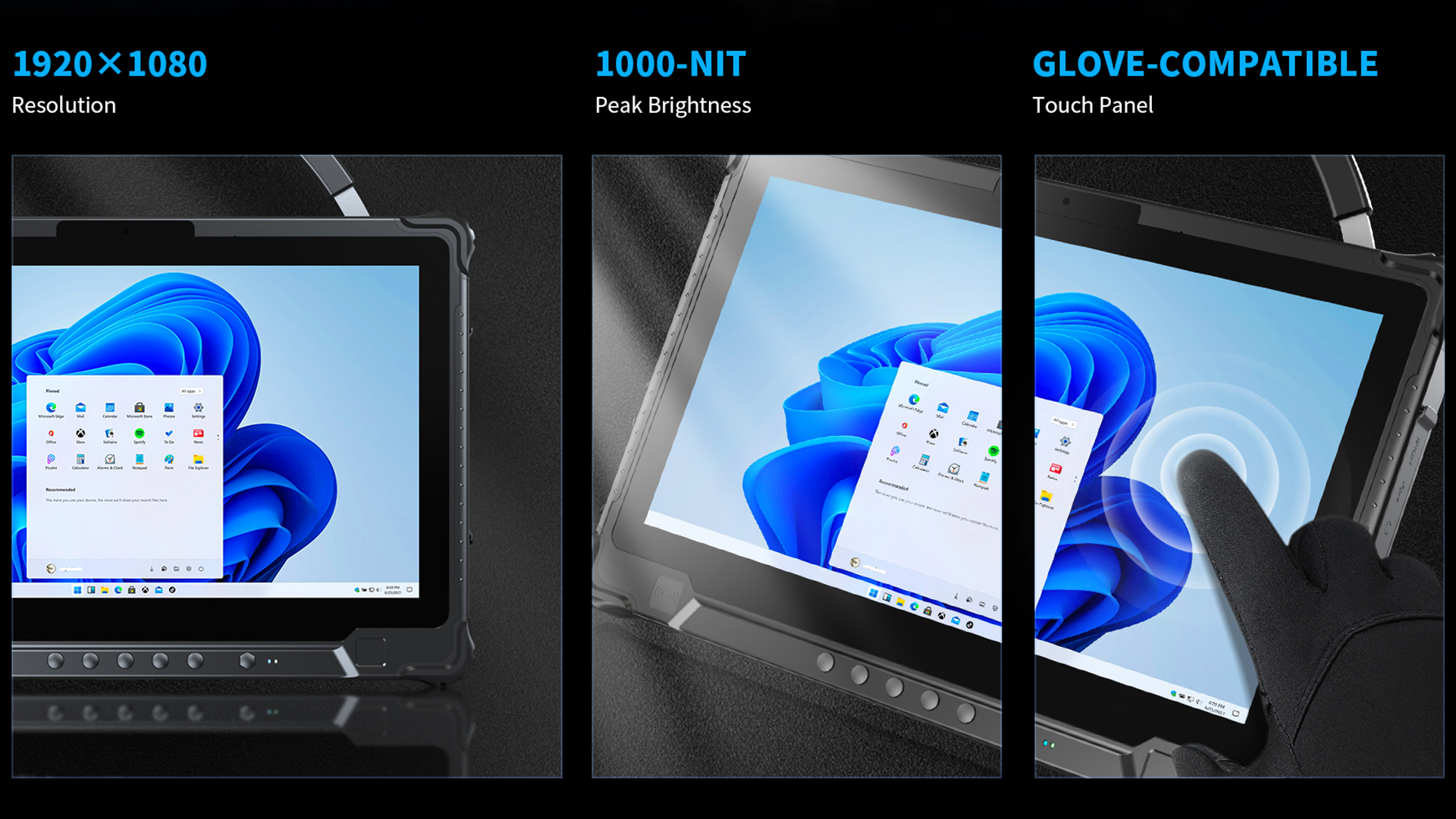

14 inch 16:10, 1080×1920P With 1000 cd/m2
Touch Panel
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Supports glove touchV
Camera
Front:5.0MP,   Rear: 8.0MP
RTC Battery
3.0V/220MAH
Battery(Small+Big)
Small Battery:Built in polymer lithium ion battery,Non-Removeable 11.1V/1300mAh. 30mins(default 50% volumn，default200nit，play 1080P HD video)         +Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,11.55V/4850mAh.
8hrs(default 50% volumn,default200nit,play 1080P HD video)
Speaker
Built in 4Ω/3W waterproof speaker *2
Mic
Waterproof microphone 4618, specification: - 38dB±3DB
TPM
Built-in TPM2.0
G_sensor
Gravity acceleration sensor
Fingerprint
Built-in ×1 SPI Fingerprint (windows hellow boot login)
Fan
Built-in ×1 IPX5
Data Collection & Networking
Barcode Scanner
2D Optional Honeywell N3680/N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse)
NFC
Optional USB interface, supports ISO14443A, ISO14443B, IOS15693, ISO18092, Felica.
BT
BT5.1 (BLE) class1 Transmited distance：10m
WIFI

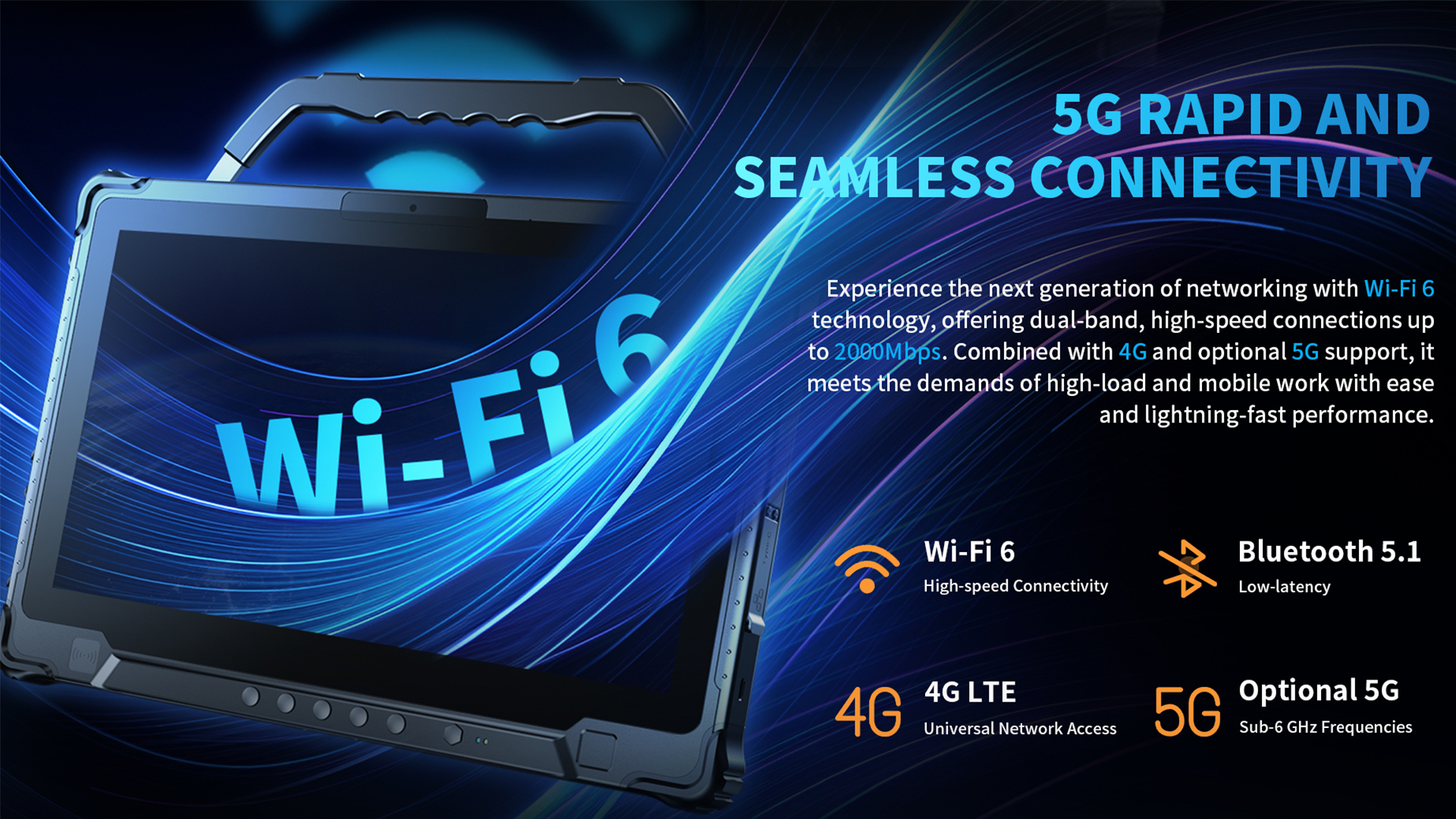

Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI
4G
MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no
TDD band) Europe, Middle East, Africa, Taiwan, Japan
5G Optional
Optional NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 SA n1/2/3/5/7/8/12/13/14/
18/20/25/26/28/29/30/38/ 40/41/48/66/70/71/75/ 76/77/78/79 LTE LTE-FDD B1/2/3/4/5/7/8/ 12/13/14/17/18/19/20/
25/26/28/29/30/32/66/71 LTE-TDD B34/38/39/40/ 41/42/43/48
GPS
Supports single GPS or single Glonass, default GPS
OS
Windows 11 Pro (Home, IOT) 64bit, Language by default: English
Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit
Module extension (Note: The following modules are one of four)
Ethernet interface
1* RJ45 board,(10/100M/1000M) Ethernet interface
(Standard Machine including RJ45)
Serial port
1* RS232
Two-dimension barcode
1*Honeywell N3680/N4680 hardcode
USB2.0
USB3.2 *1，USB2.0 *2
I/O Port & Appearance & Package

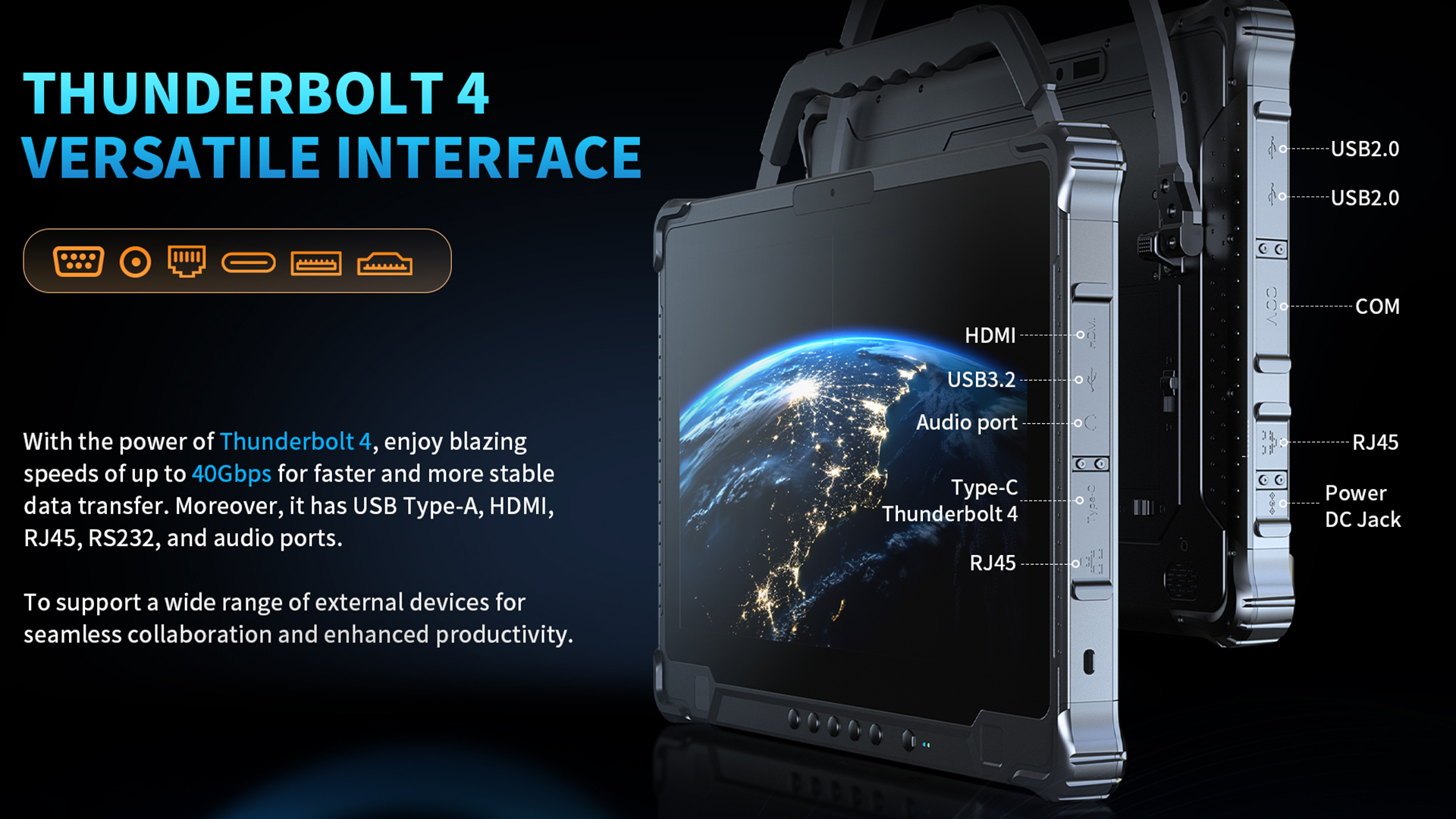

I/O Port
Power Button *1 Volumn + key *1 Volumn - key *1 Customized key *2（Default: P1 for opening the Control Center, P2 for opening the
camera） F key *1 (Barcode scanning)HDMI 2.0a mini x1,
USB 3.2 Type-A x 1,
USB2.0 Type-A x 2
Type-c x 1(Supports Thunderbolt 4),
SIM Card x 1, TF Card x 1,
RJ45*1 10M/100M/1000M self-adaptive                                                                              RJ45*1 10M/100M/1000M self-adaptive (USB2.0), supports Gigabit Ethernet protocol
RS232 *1, 9 fully functional lines
12pin（USB&Docking charging） x 1,
Φ3.5mm standard earphone jack x 1,
Φ5.5mm DC 19V 3.78A DC jack x 1
Keys
Power Button *1
Volumn + key *1
Volumn - key *1
Customized key *2（Default: P1 for opening the Control Center, P2 for opening the
camera）
F key *1 (Barcode scanning)
Power Adaptor
AC100~240V, 19V/3.78A 71.82W output
USA Standard CE approval.
UK/EU Standard Optional
Power Indicator Light
1. Power On: Power indicator remains solid.
2. Power Off: Power indicator turns off.
3. Sleep Mode: Power indicator blinks.
Baterry Indicator Light
1. Charging: Charging indicator remains solid (red).                                                                    2. Fully Charged: Charging indicator remains solid (green).                                                      3. Large Battery Not Connected: Charging indicator flashes quickly (red).                                4. Low Battery (10%) Without Adapter Connected: Charging indicator flashes quickly (red)
Dimension
366.2mmx246.9mmx24.8mm
Weight
Device unit: 1150g.    5000mAh battery：250g
Package
Standard configuration:Handle/USB cable/OTG cable/19V 3.78A Adapter/Packing box（Can be customized logo)
Optional Accessories
Docking Charger / Vehicle Mount/ Stylus / Removable Battery
Certificate System & Reliability Design
IP67/IP65
IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R
a.Inner Nozzle Diameter:6.3mm；
b. Water Speed:12.5±0.625L/min；
c. Water Pressure:Adjust according to water volumn；
d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.
e.Spray time in surface of panele: About 1 min/Square meter；
f.Test time:at least 3min；
g.Distance between nozzle and panel surface:2.5～3m.
    After test,there is no water leakage in sample.
CE NB
YES
MIL-STD-810G
YES
Battery
UN38.3，MSDS,IEC62133
Drop Height
1.22m composite wood floors,in operation status
Operate Temperature
‘-20 °C to 60 °C
Store Temperature
’-30 °C to 70 °C
Humidity
Humidity: 95% Non-Condensing
